Heavy Duty Steel Mobile Crane Forklift Jib Boom for Warehouse Material Handling
Lifting Attachment 2.5T Extendable Forklift Short/Long Boom Forklift Lifting Fixed Jib
| Product Name | Forklift Jib |
| Material | Steel |
| Finish | Galvanized or Painted |
| Safe Working Load | 2500kg |
| Fork Pocket Size | 140x65mm |
| Fork Pocket Center | 225mm |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

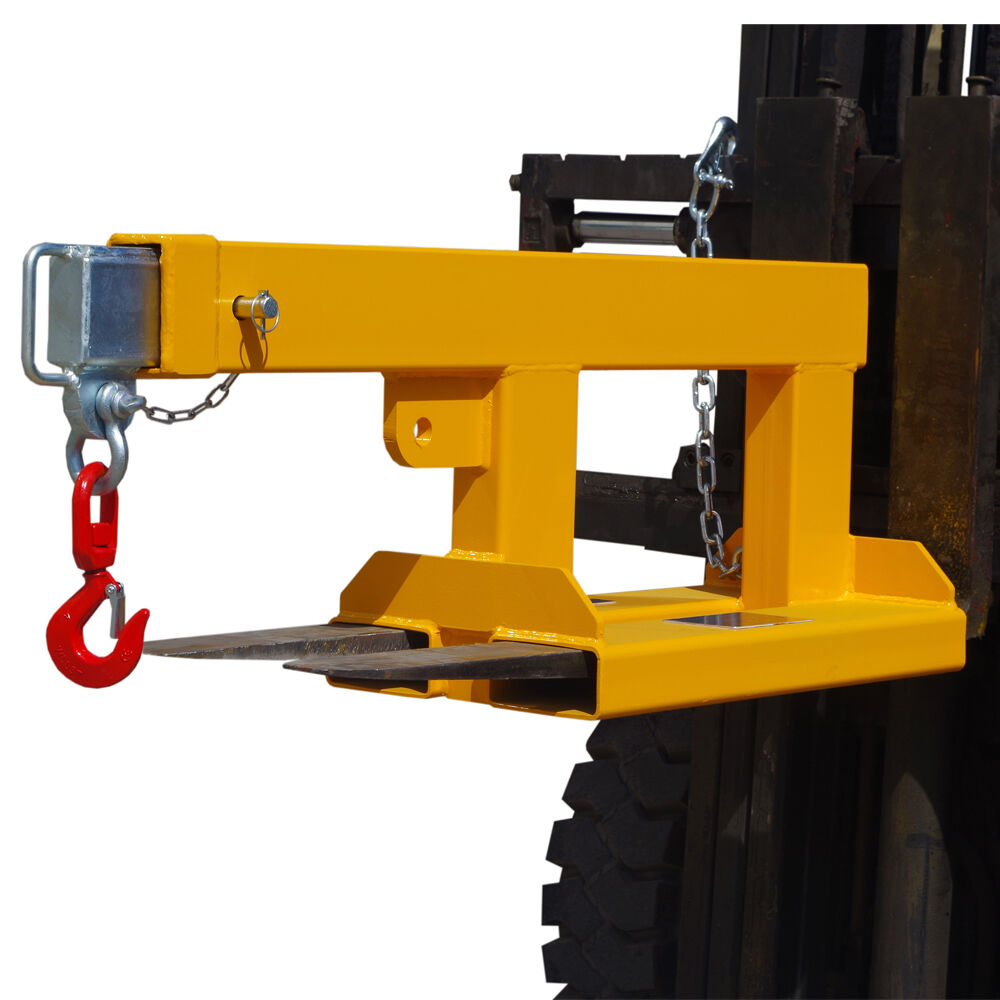

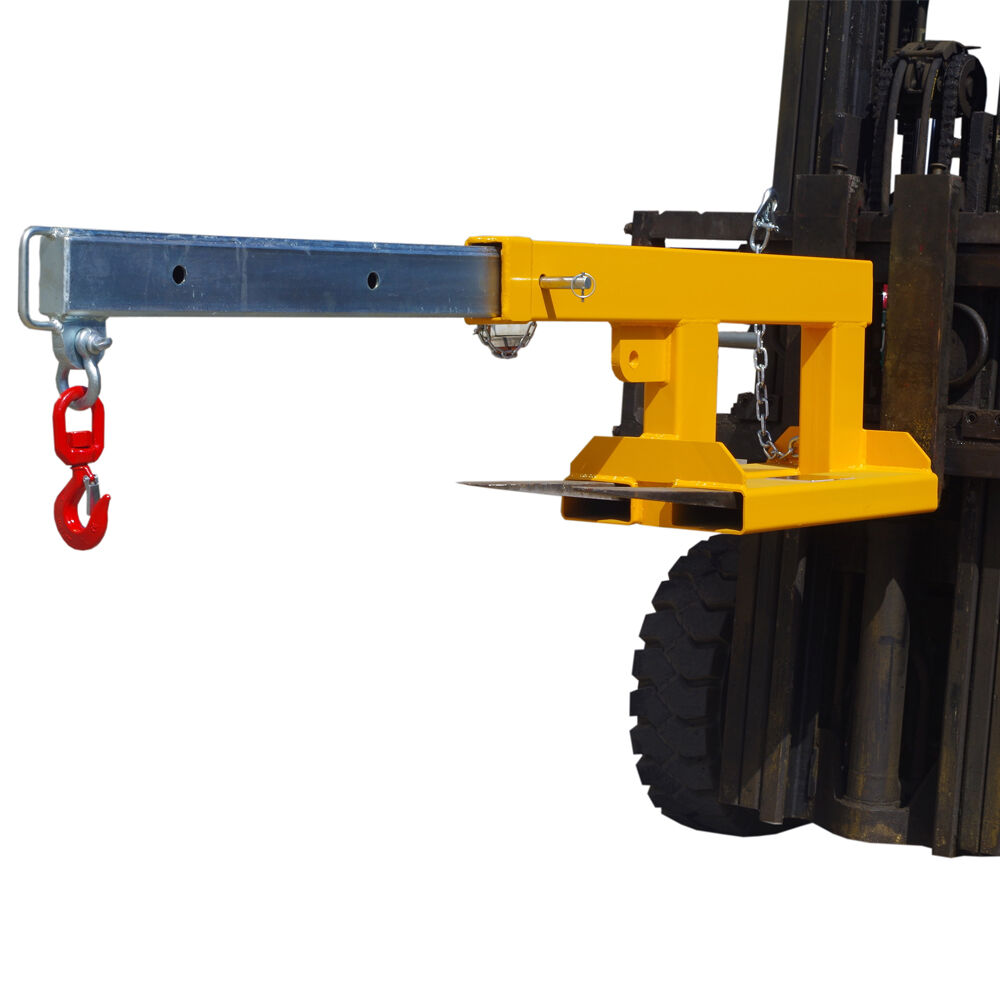

The Fixed Jib (Short) is designed as an affordable general-purpose Jib able to manoeuvre in confined spaces, with a 1.96-metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The forklift jibs overall length when closed is 1.3 metres.

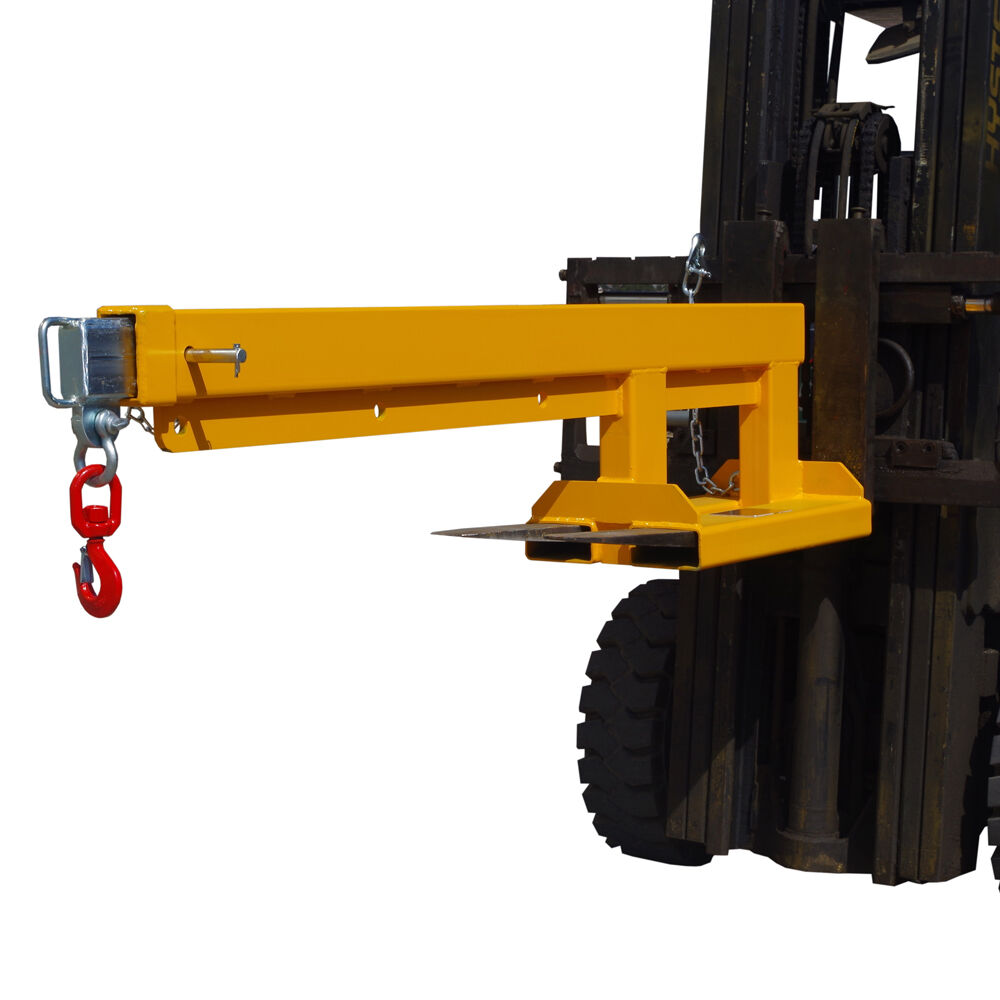

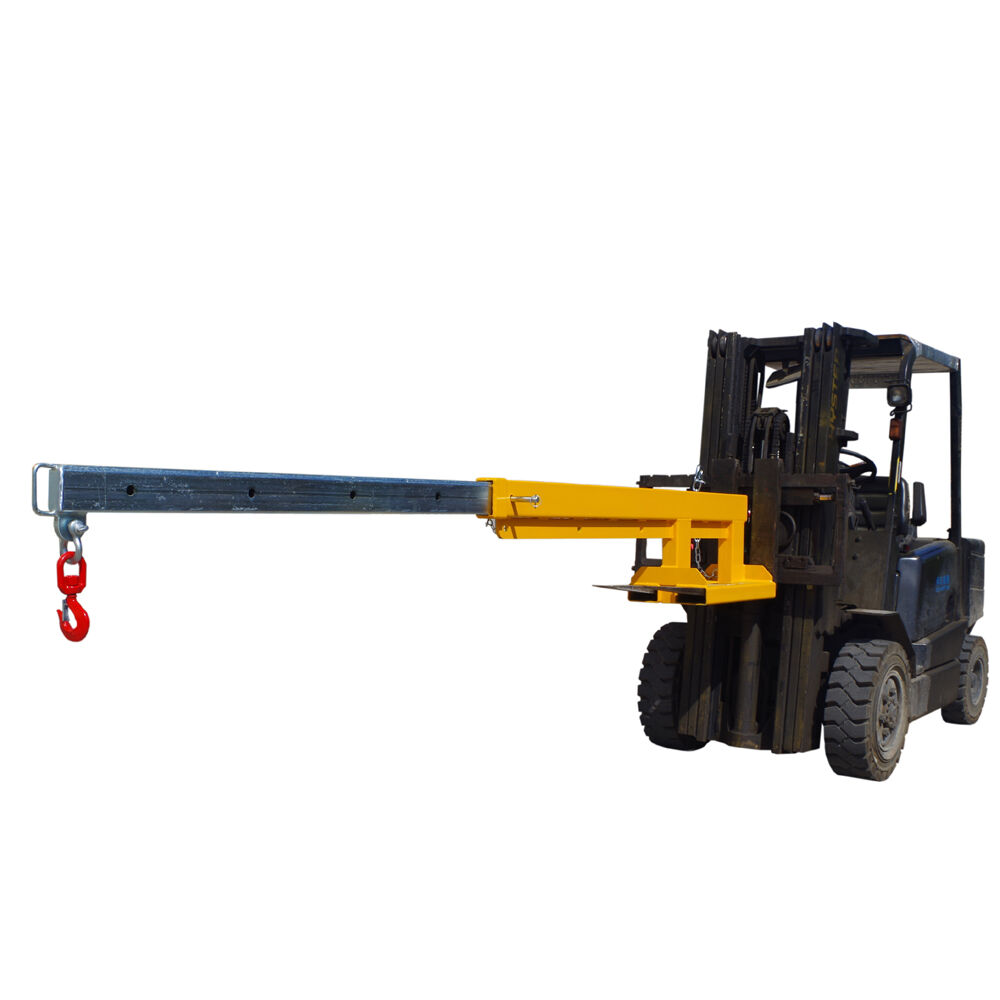

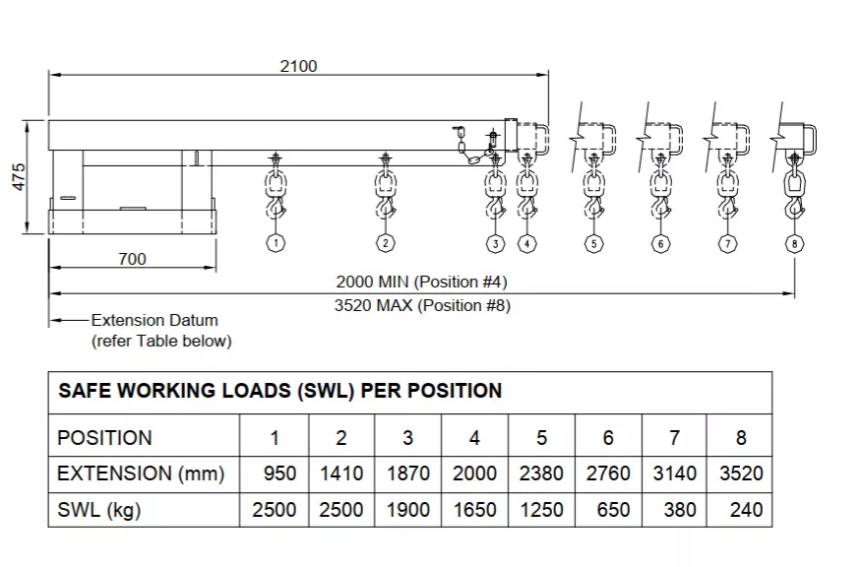

The Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.5 metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The forklift jibs overall length when closed is 2.1 metres.
Detailed Specifications
|

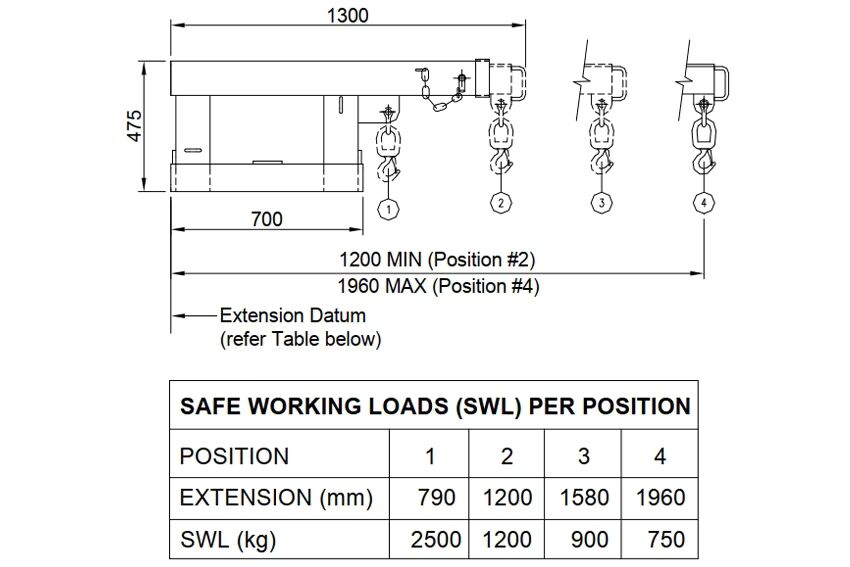

Short Forklift Jib
|

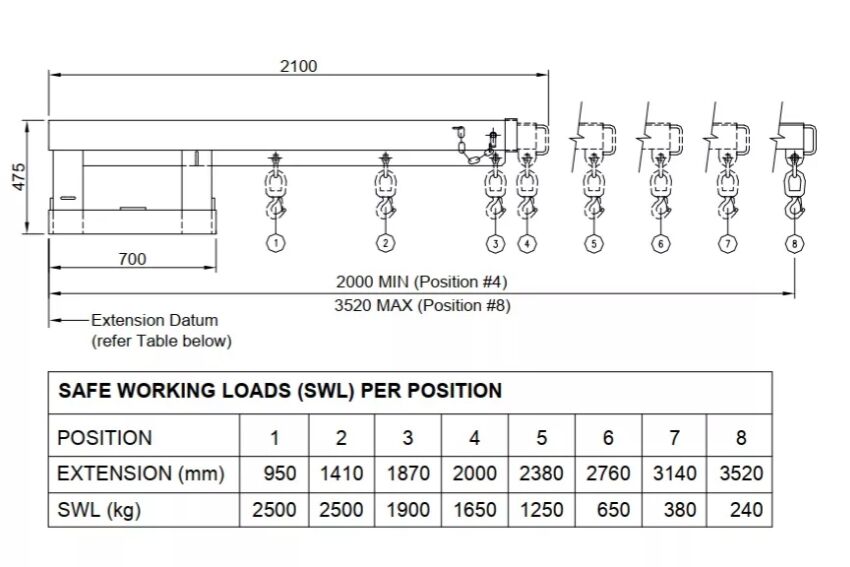

Long Forklift Jib
|
|
|
Material
|
Steel
|
Steel
|
|
Finish
|
Galvanized or Painted
|
Galvanized or Painted
|
|
Safe Working Load(SWL)
|
2500kg
|
2500kg
|
|
Fork Pocket Size
|
140x65mm
|
140x65mm
|
|
Fork Pocket Center
|
225mm
|
225mm
|
|
Load Center
|
790mm
|
950mm
|
|
Horizontal Centre of Gravity
|
630mm
|
1160mm
|
|
Vertical Centre of Gravity
|
135mm
|
185mm
|
|
Weight
|
100kg
|
130kg
|
|
Size
|
1300*440*475mm
|
2100*440*475mm
|

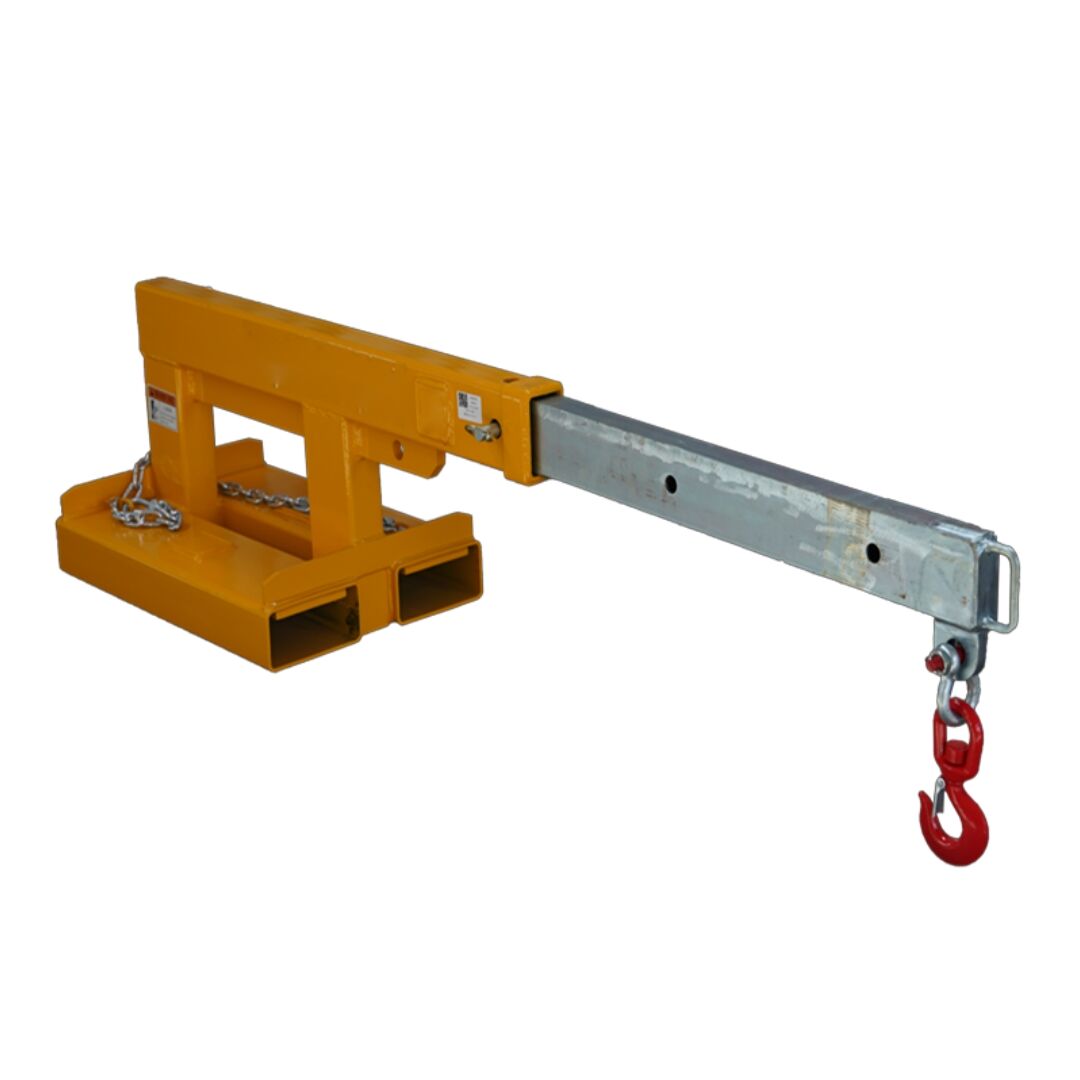

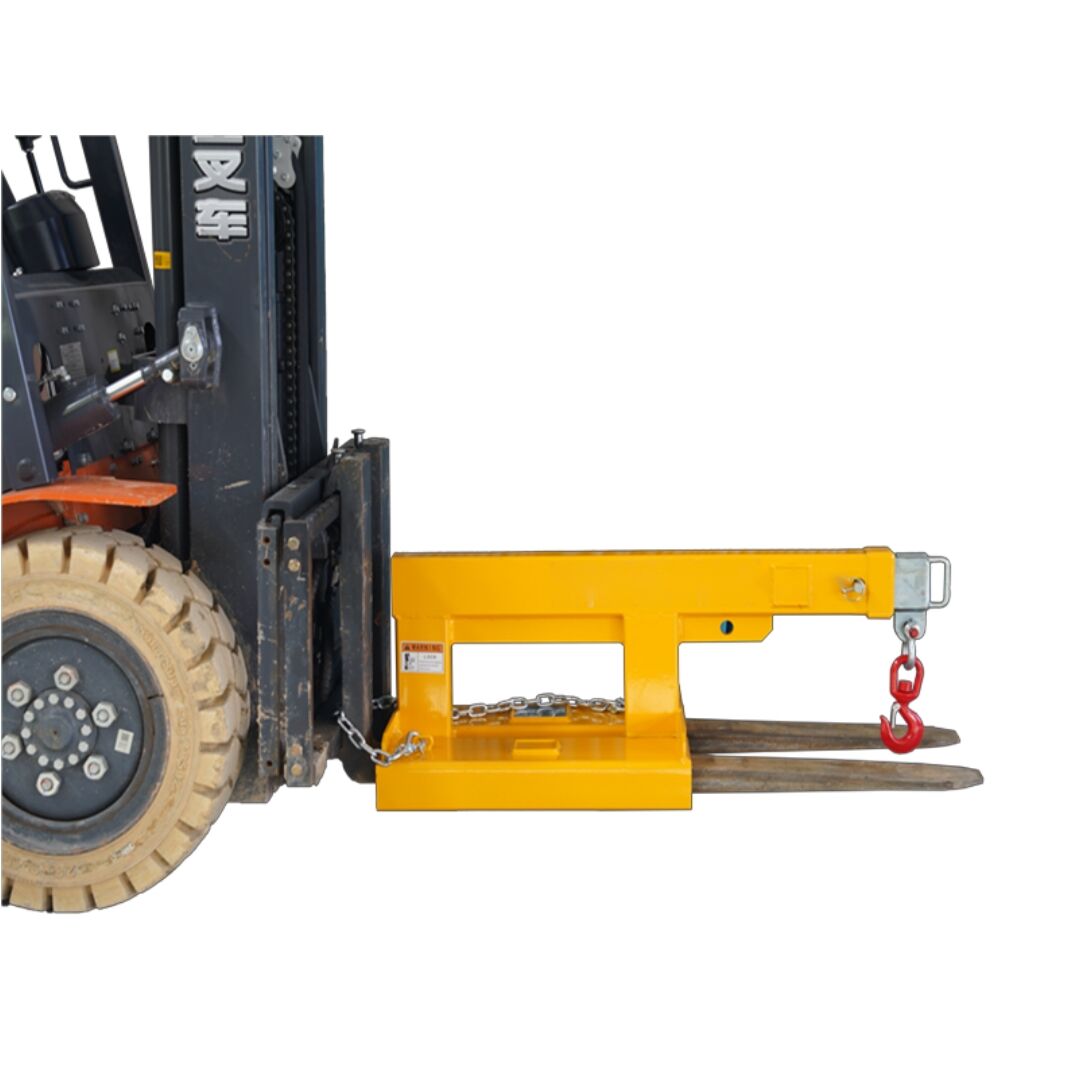

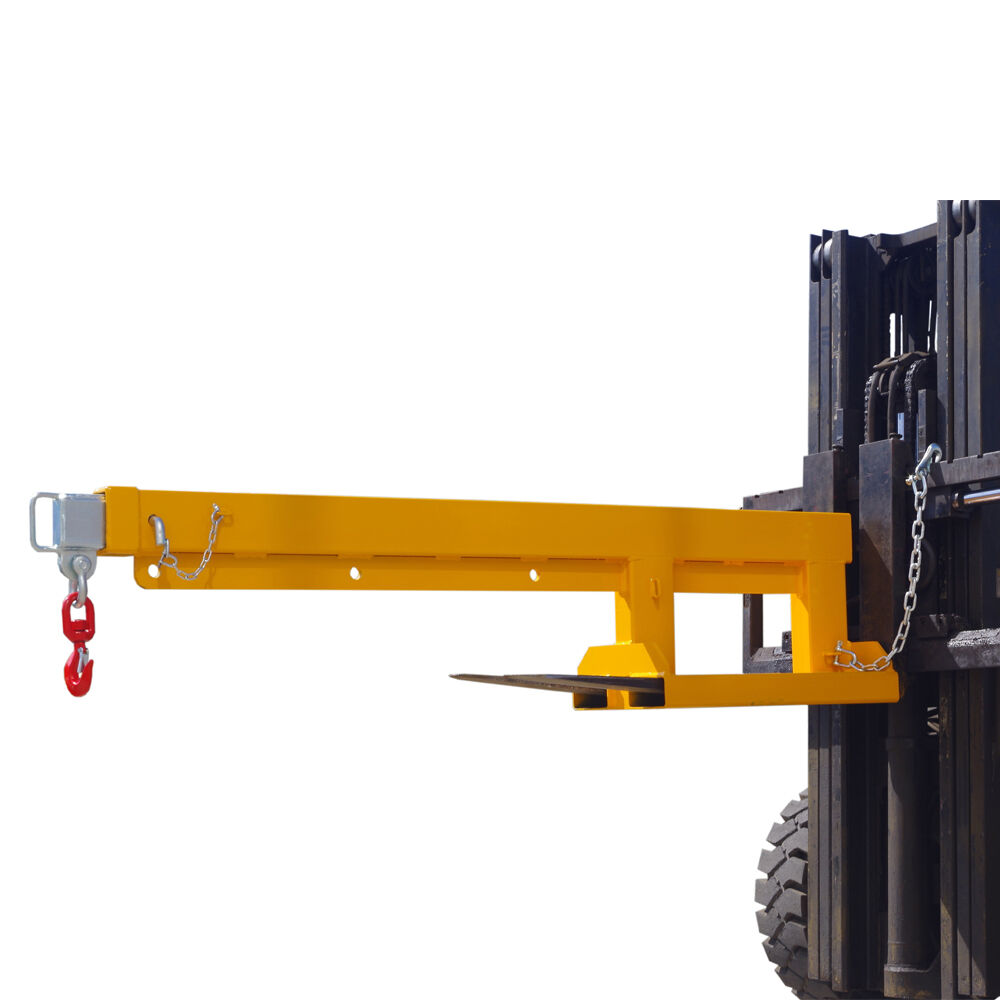

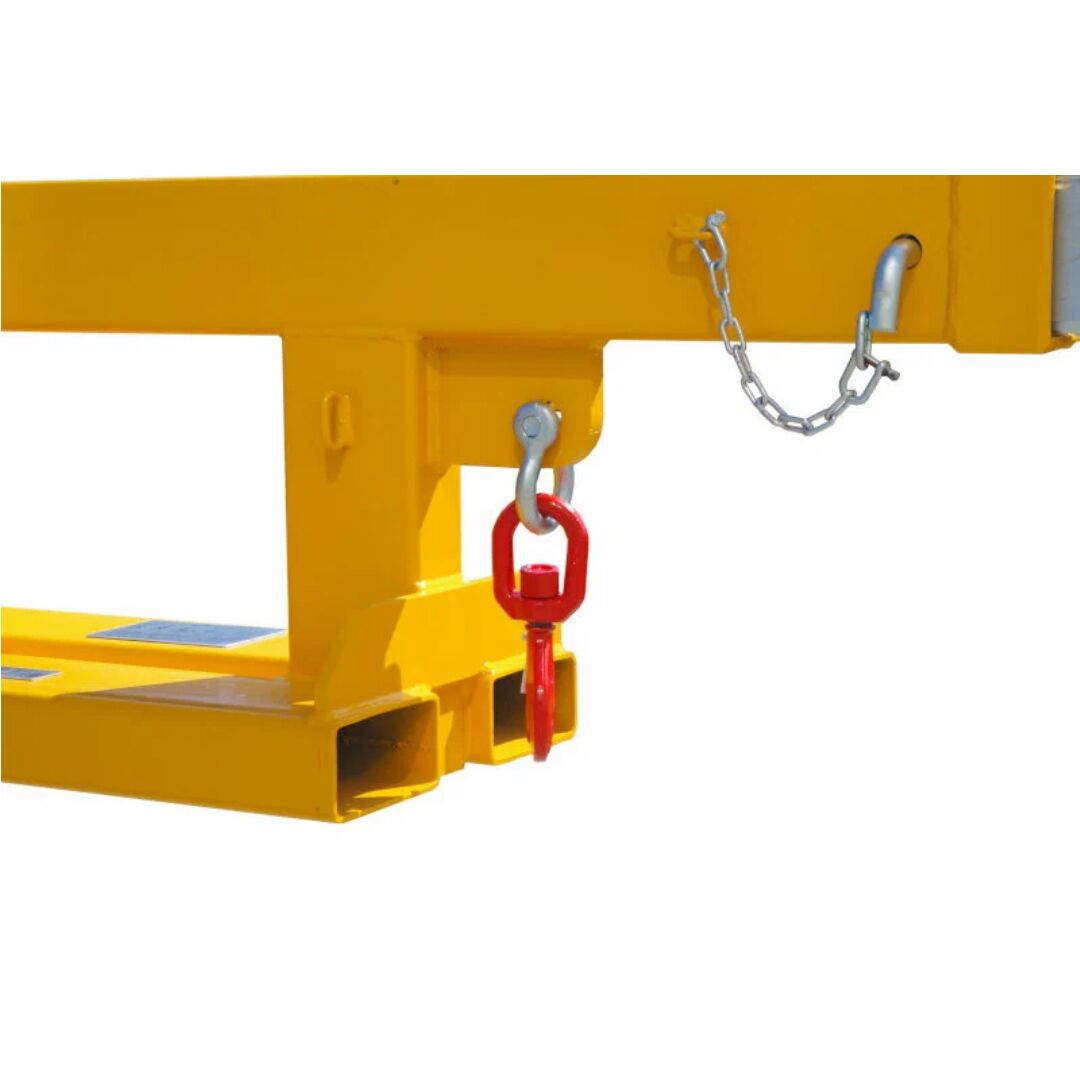

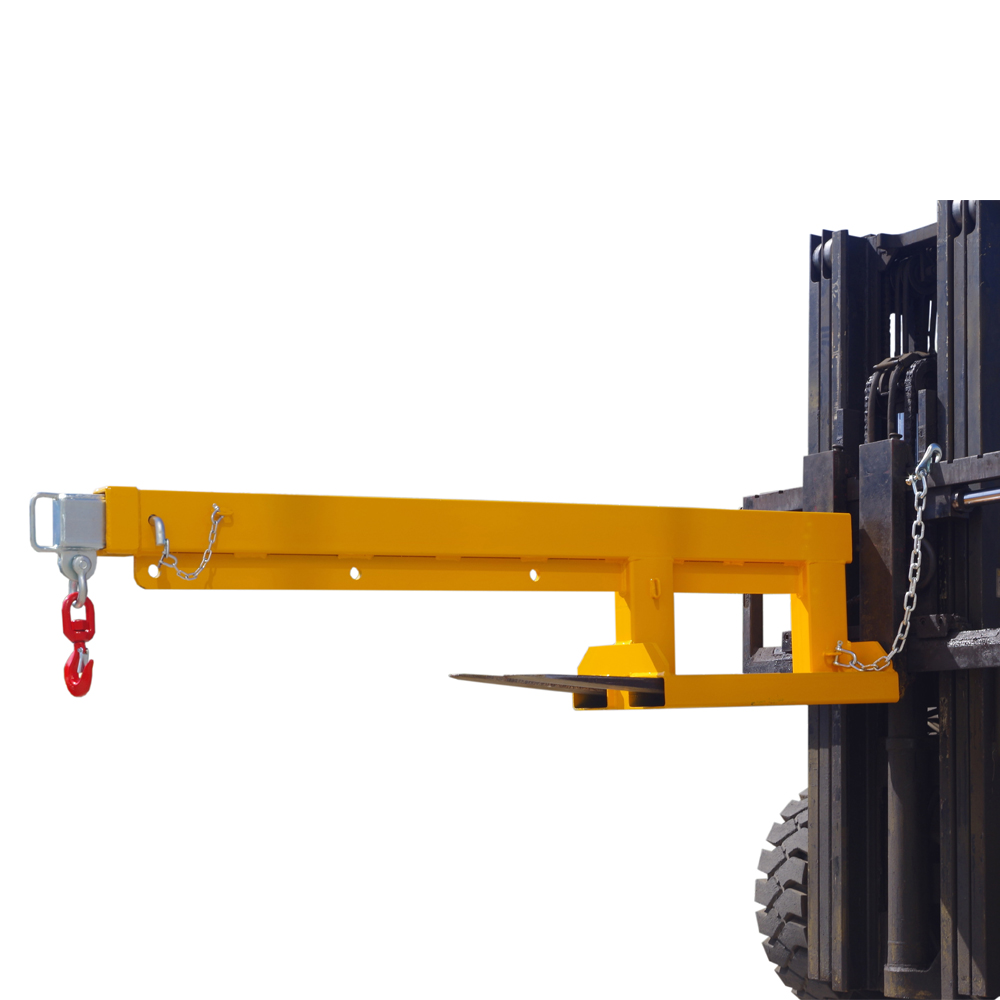

Detailed Photos
Application
This lifting arm is easy to install and is mainly used in situations where there is a forklift but no crane, and where goods need to be lifted. It is designed as a telescopic arm, allowing for more flexible lifting lengths.
These forklift booms widely used in Industrial for transporting or lifting at Factories, Mines, Installing Machinery, Workshops, Facilities, Automotive, Ship Building Wharves/Docks, Warehouses, Garages & Construction Sites.
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
