20X30 Single Truss Storage Garage for Farm Equipment Shelter
Application |
storage house, Carport |
Product Type |
Steel Structure |
Warranty |
1 Year |
Model Number |
2030 |
Wind Resistance |
70 mph (113 km/h) |
Snow Rating |
41 psf (2.0 kN/m²) |
Clear Interior Width |
15.74 ft (4.8 m) |
Nominal Width |
20 ft (6.1 m) |
Doors |
Folding zipper doors at both ends |
Material |
PVC, Steel |
Use |
Carport |
After-sale Service |
Online Technical Support |
Product Name |
Single Truss Storage Carport |
Cover |
PVC 610 g/m² (B-s1,d0 fire-rated) |
Company Profile |
Factory |
Peak Height |
12 ft (3.66 m) |
Truss Type |
Single truss, hot-dip galvanized |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

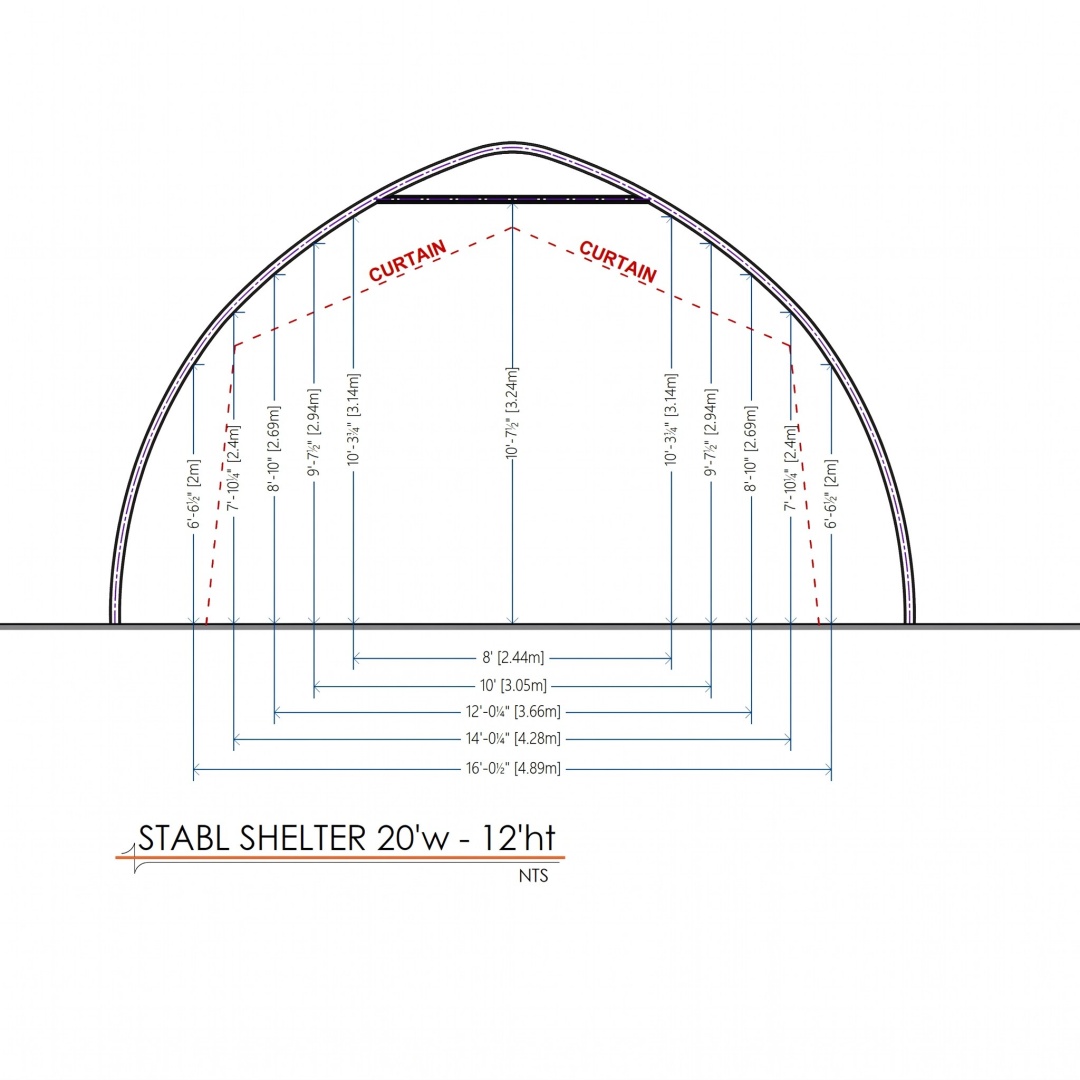

A 20 ft wide single-truss fabric storage shelter: a hot-dip galvanized frame carrying a translucent, fire-retardant PVC 610 cover, erected without a concrete foundation. With 15.74 ft clear width and 10.5 ft clear height, available in 30 / 36 / 42 ft lengths and fully bolted for relocation — a cost-effective entry option for hay, farm equipment, timber and light-duty outdoor storage.
About this supplier
Our Company -------- Shouguang Esen Wood Co., Limited
1.We are manufacturer of container flooring plywood, container spare parts. We have possess a high-quality management team.
2.Based on advanced equipment and production line. All index abides by International Quality Standard.
3.We have provided our goods to hundreds of customers from 50 countries.
4.Our container parts are well praised by domestic and foreign customers. We are willing to become a long-term partner with your company in the development.
5.We can customize all special container accessories according to your drawings.
Detailed Photos
Application
A translucent, weatherproof 20 ft shelter with 15.74 ft clear width — foundation-free storage for hay bales, tractors and implements.

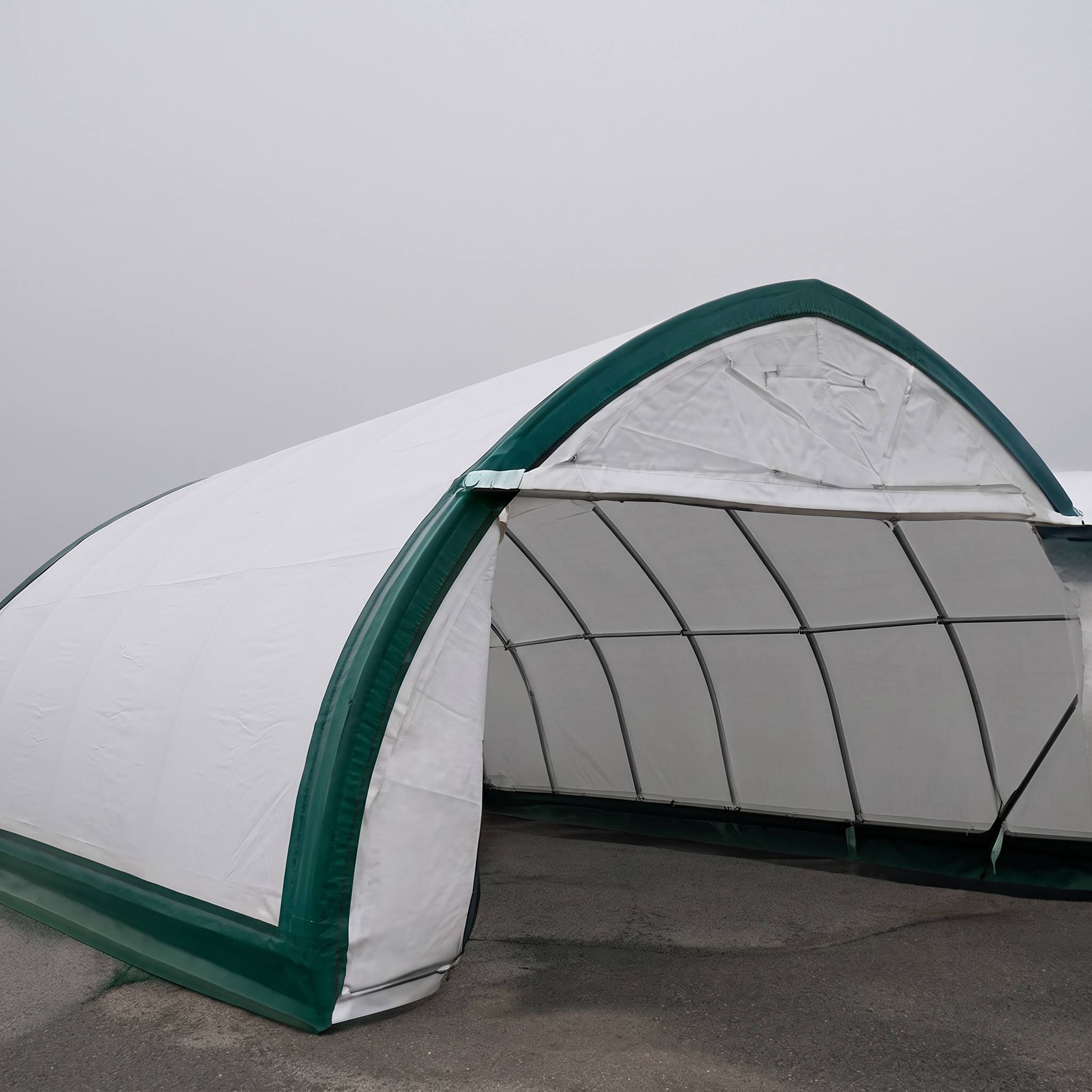

Zipper doors at both ends for long stock; the PVC 610 cover keeps timber and profiles dry.
Fully bolted and relocatable — follows the job site or season for tools and goods.
Packaging & Shipping
FAQ
1.What kind of engineering support do you provide?
With over 10 years of industry expertise, our engineering team offers end-to-end support from concept to design. We deliver customized solutions that improve performance, reduce maintenance, and maximize long-term operational value.
2.Is it fire retardant?
Yes. The fabric is flame-retardant and self-extinguishing, suitable for industrial and commercial use where fire safety matters.
3.What is the sea freight delivery time?
Sea freight transit time varies greatly depending on destination port, shipping schedule and customs clearance. Normally sea shipping takes 7-45 working days from China port to most European main ports, excluding local customs clearance and inland delivery.
4.Is the single truss strong enough?

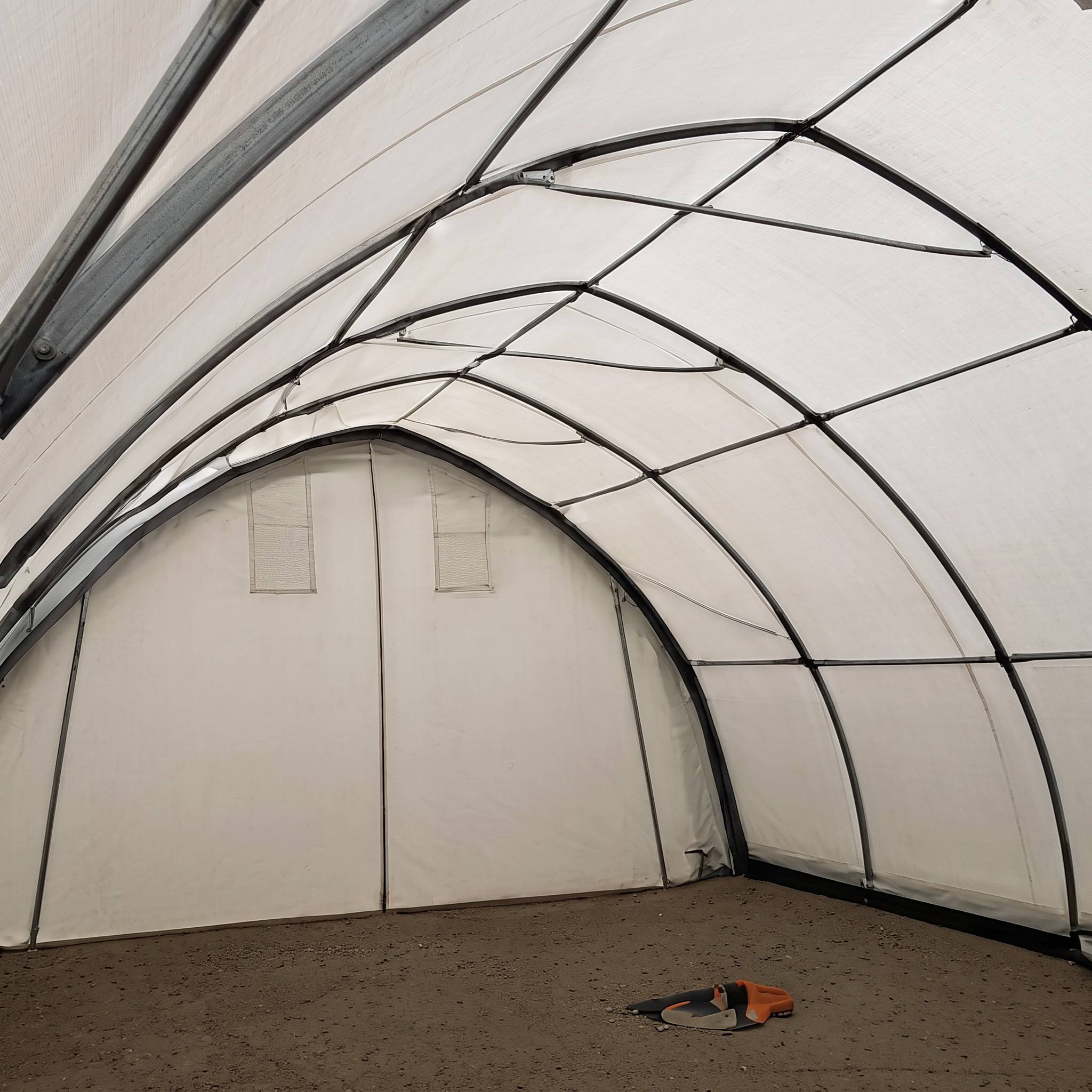

Hot-dip galvanized single truss, arches 70 X 42 X 1.5 mm, horizontal tubes 40 X 1.2 mm, with 6 ft bay spacing - suited to light-to-medium duty storage.
5.What's the difference vs double truss?
Single truss is lower cost for light duty; double truss offers higher load and wind/snow capacity - recommended for large spans or heavy duty.
6.Can it be relocated?
Yes - fully bolted, it dismantles, moves and reinstalls on a new site.
