260mm 280mm Customized Size DNV GL Certified Lashing Materials Shipping Container Bridge Fitting
| Shipping Container Bridge Fitting | ||
| Length | 260 MM | 380 MM |
| Weight | 3 KGS | 4 KGS |
| M.B.L Tension | 100/300 KN | |
| Material | Casting Steel | |
| Surface treatment | Hot Dip Galvanized | |
| Approval | GL CCS certification | |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
Container lashing twist lock allows two corner castings to be connected together vertically to fix safely container, when container is being transported in sea or on land.
The container bridge fittings are used to secure containers together that are side by side.
Shipping container bridge fitting are primarily used in the shipping industry to ensure safe transport of shipping containers on ship but are widely used when two shipping containers need to be securely connect together horizontally.
The length of the bridge fitting can be customized according to customer's requirements.
There are two types: Standard Type 260mm and Larger Type 380mm which are the most popular.
The bridge fittings would prevent the containers from shifting and would allow for the sealing of the roof joint of the two containers. They do so by securing the corner cubes together by turning the center bolt with a wrench. You then secure a nut against one of the hooks to prevent the fitting from loosening.
Container bridge fittings are not to be used for securing two stacked containers together as the hooks don't close enough to secure them even when tightened all the way. They are only to be used for containers that are side by side.

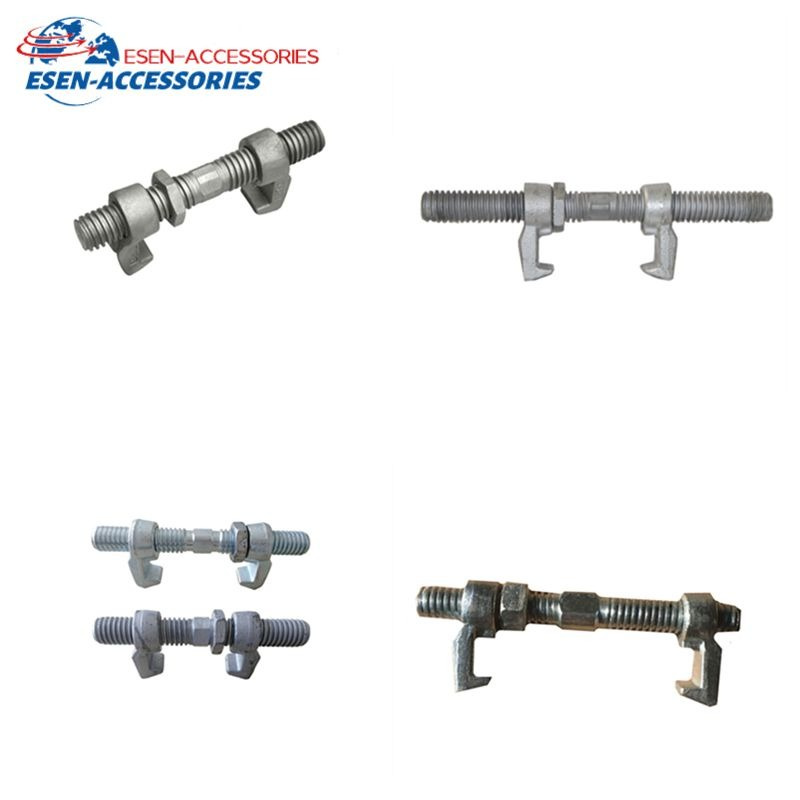

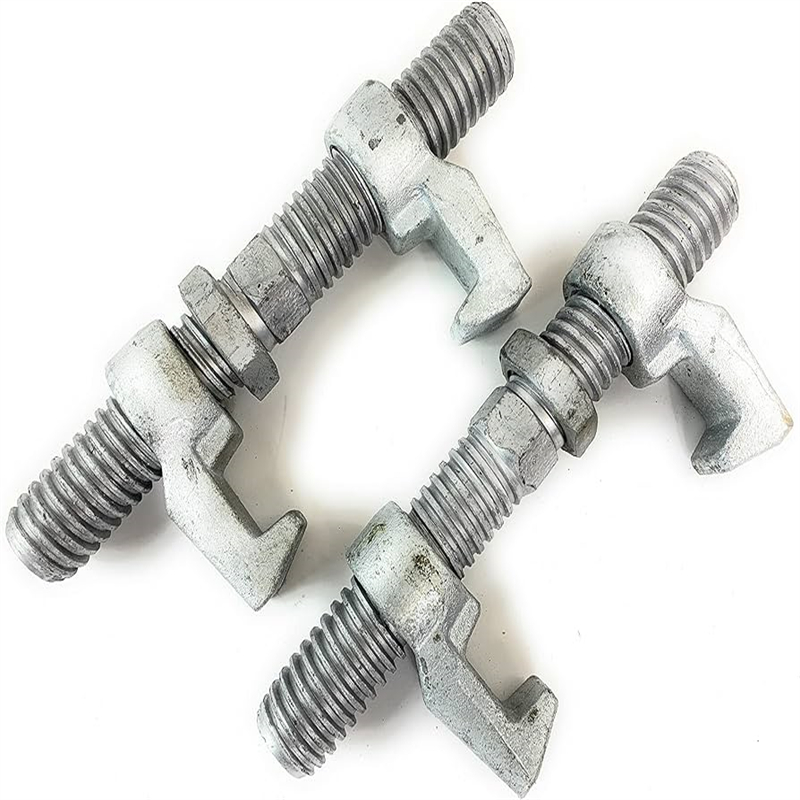

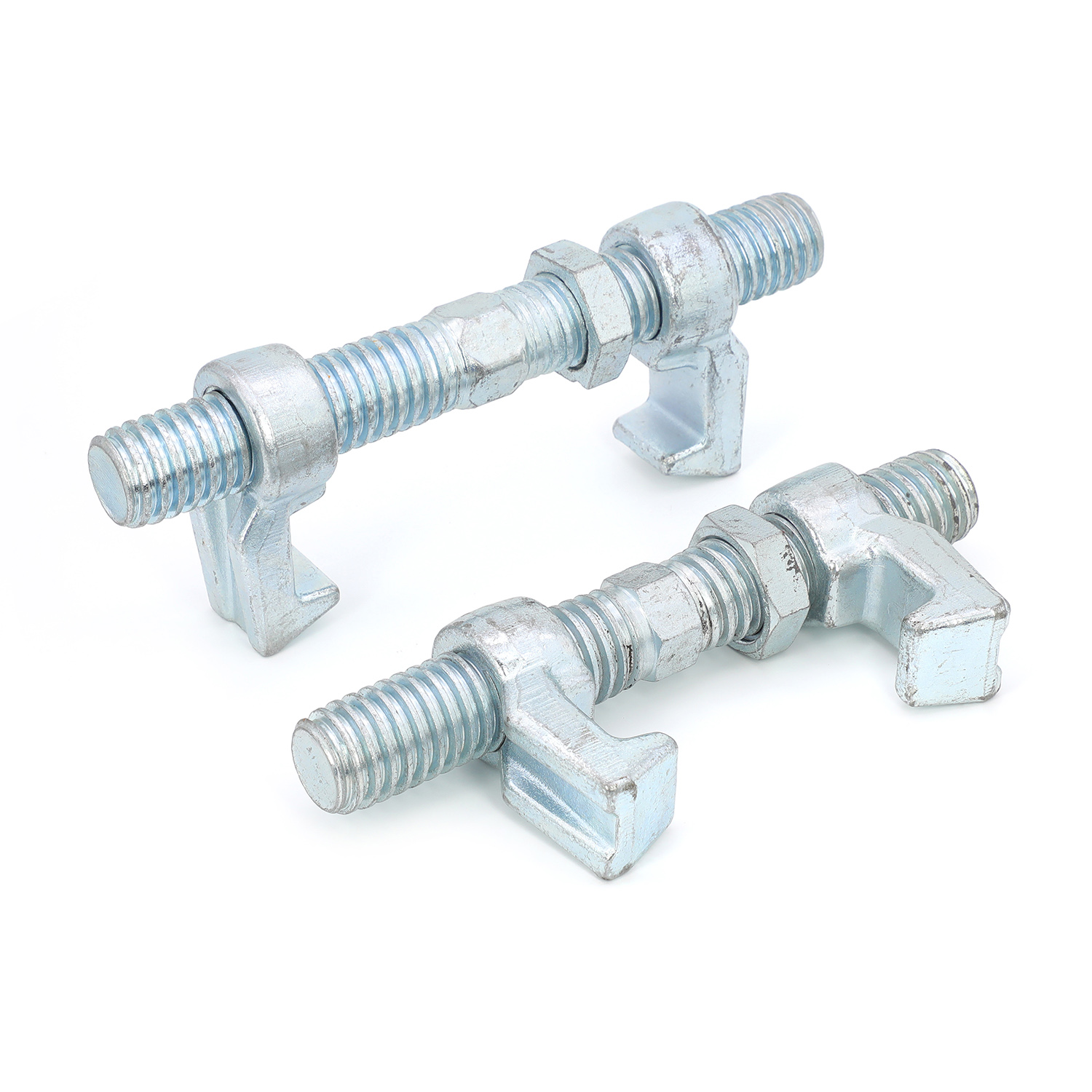

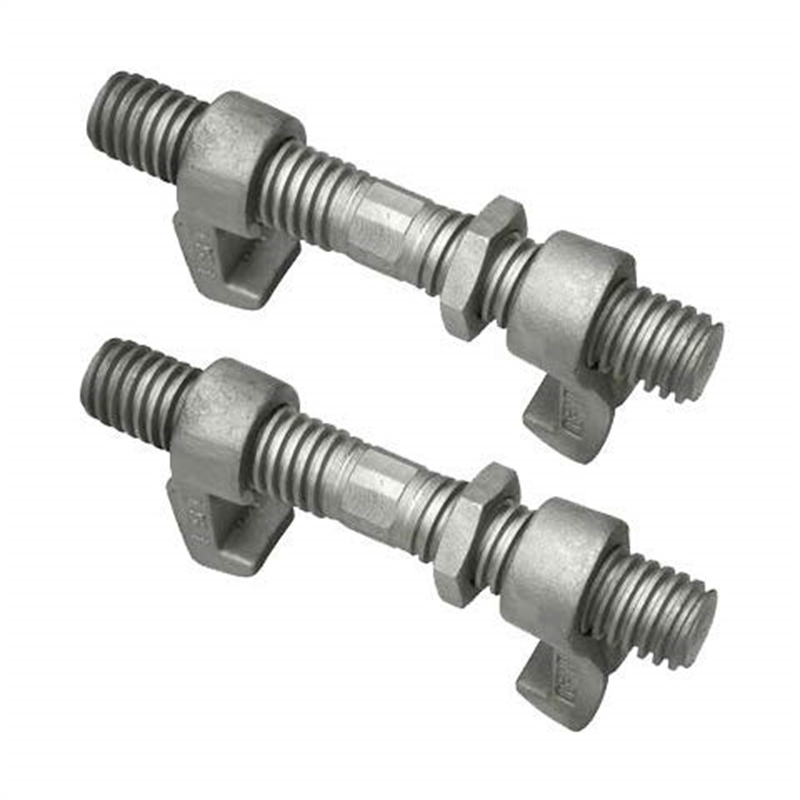

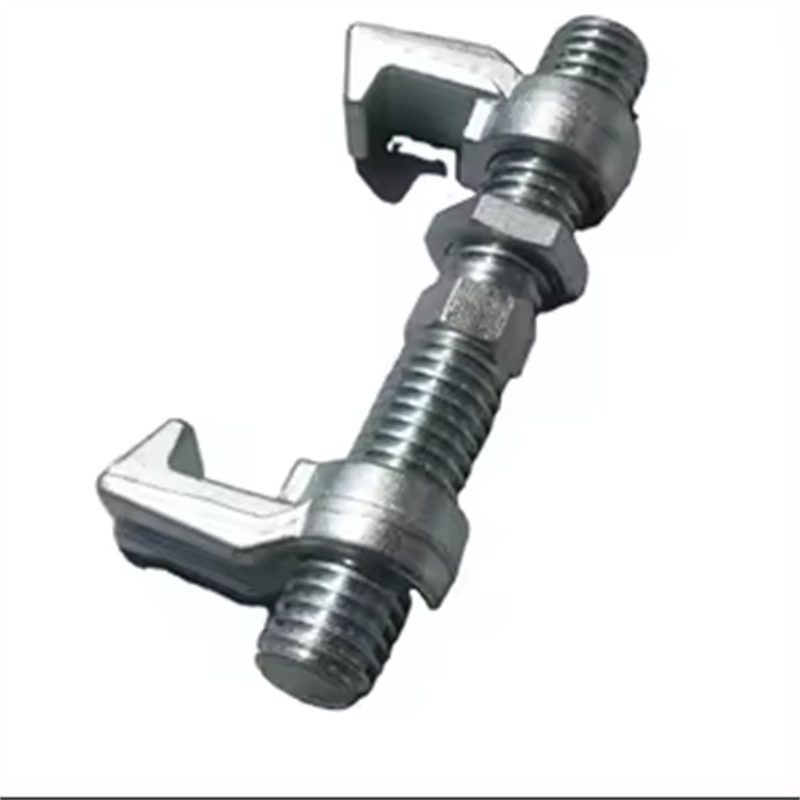

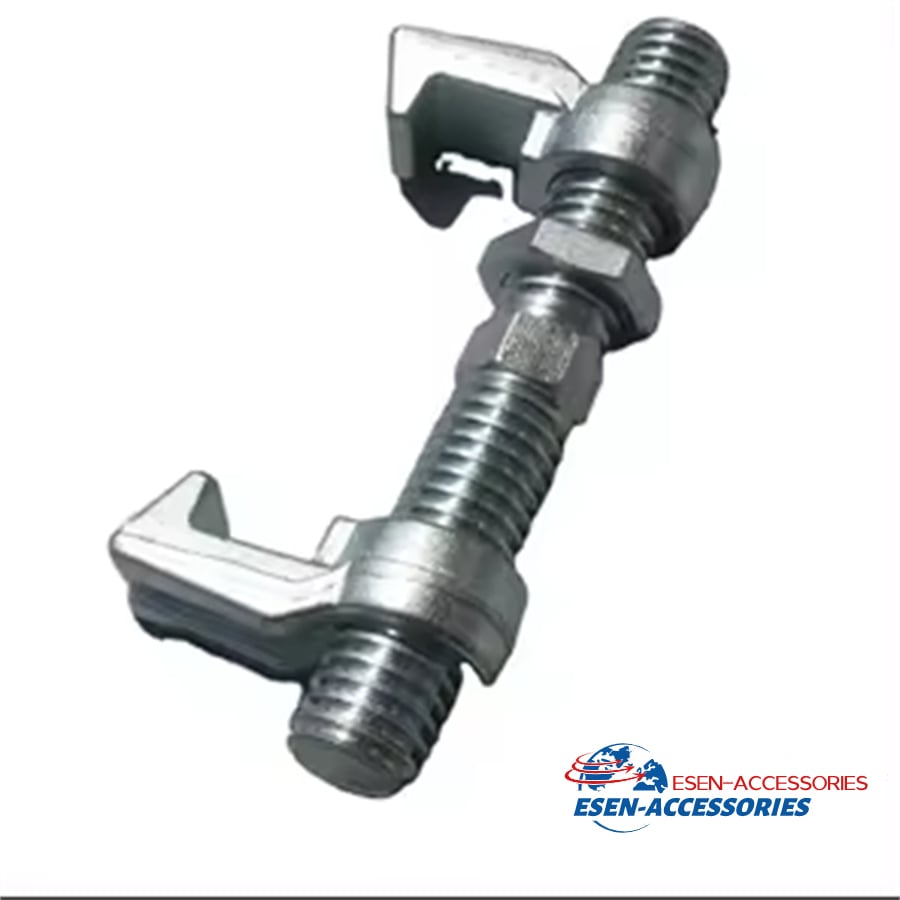

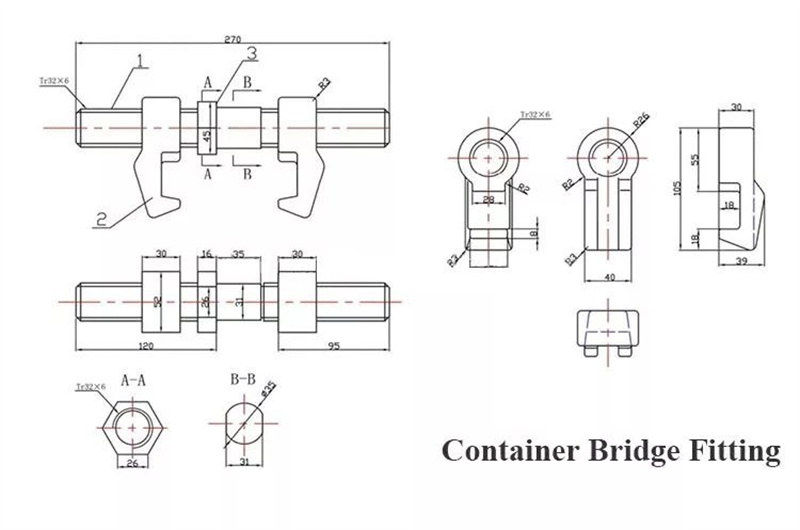

Detailed Photos

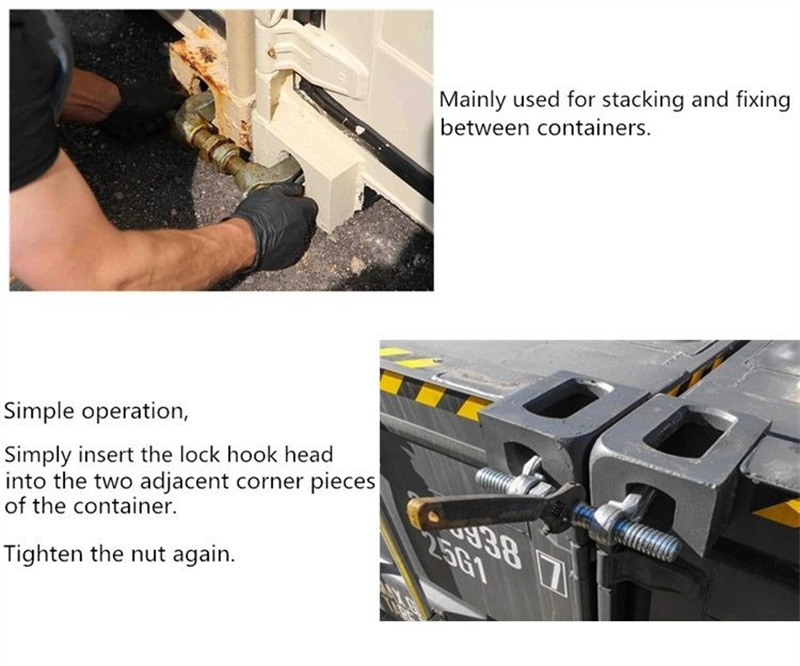

Application
Container bridge fitting is mainly used to fix container up and down together when container is shipping or stacking.
It is designed to connect a shipping container together horizontally to pevent the possible falling from the top.

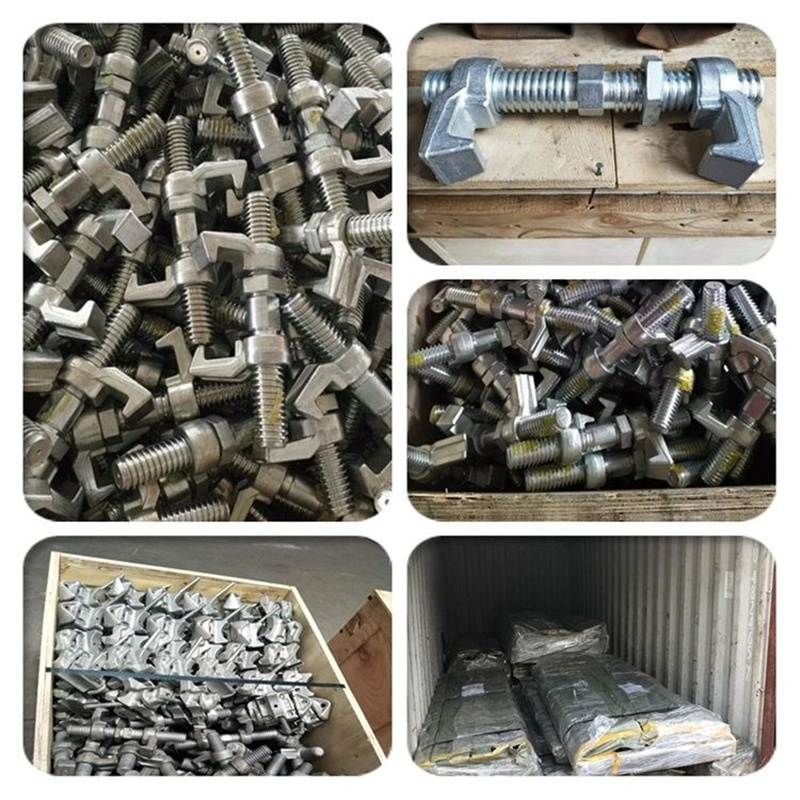

Packaging & Shipping
★Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
★We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
