40x40ft Single Truss Gothic Style Snow Shelter with No Concrete Foundation Required for Farm Equipment & Tractor Barn
Application |
storage house |
|
Product Type |
Steel Structure |
|
After-sale Service |
Online Technical Support |
|
Model Number |
4040 |
|
Cover |
610g/m² PVC |
|
Snow Rating |
20 lbs/sq ft (1.0 kN/m²) |
|
Package Feature |
Anti-Collision, Stackable, Ocean Freight Protected |
|
Assembly |
No mortar, cement, or adhesives required for secure connections |
|
Material |
PVC |
|
Product Name |
Container shelter |
|
Wind Resistance |
70 mph (110 km/h) |
|
Mounting Type |
Container Mounted, Concrete Slab, Retaining Wall |
|
Connection Method |
Precision-engineered male and female interlocking components |
|
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
English Version: The Slip Tube Style Peaked Gothic Shelter (30ft / 40ft Wide) is a heavy-duty, relocatable fabric building engineered specifically for extreme northern snowbelts and custom industrial sites:
Steep Snow-Shedding Pitch: The sharp Gothic-arch roofline forces heavy wet snow, ice, and driving rain to slide off naturally by gravity, completely eliminating dangerous center-roof snow loads;
Overhead Mezzanine Storage: Utilizes internal structural crossties to create an integrated second-tier loft for spare tires and tools, boosting usable storage volume by 40% while keeping the ground floor 100% open for trucks;
Multi-Foundation & Side-Entry Versatility: Mounts easily over shipping containers, concrete Lego blocks, or direct ground anchors without poured concrete. Ideal for harsh-winter agricultural barns, quarry bays, fleet maintenance workshops, and remote movie set production studios at a fraction of brick-and-mortar cost.
About this supplier
Our Company -------- Shouguang Esen Wood Co., Limited
1.We are manufacturer of container flooring plywood, container spare parts. We have possess a high-quality management team.
2.Based on advanced equipment and production line. All index abides by International Quality Standard.
3.We have provided our goods to hundreds of customers from 50 countries.
4.Our container parts are well praised by domestic and foreign customers. We are willing to become a long-term partner with your company in the development.
5.We can customize all special container accessories according to your drawings.

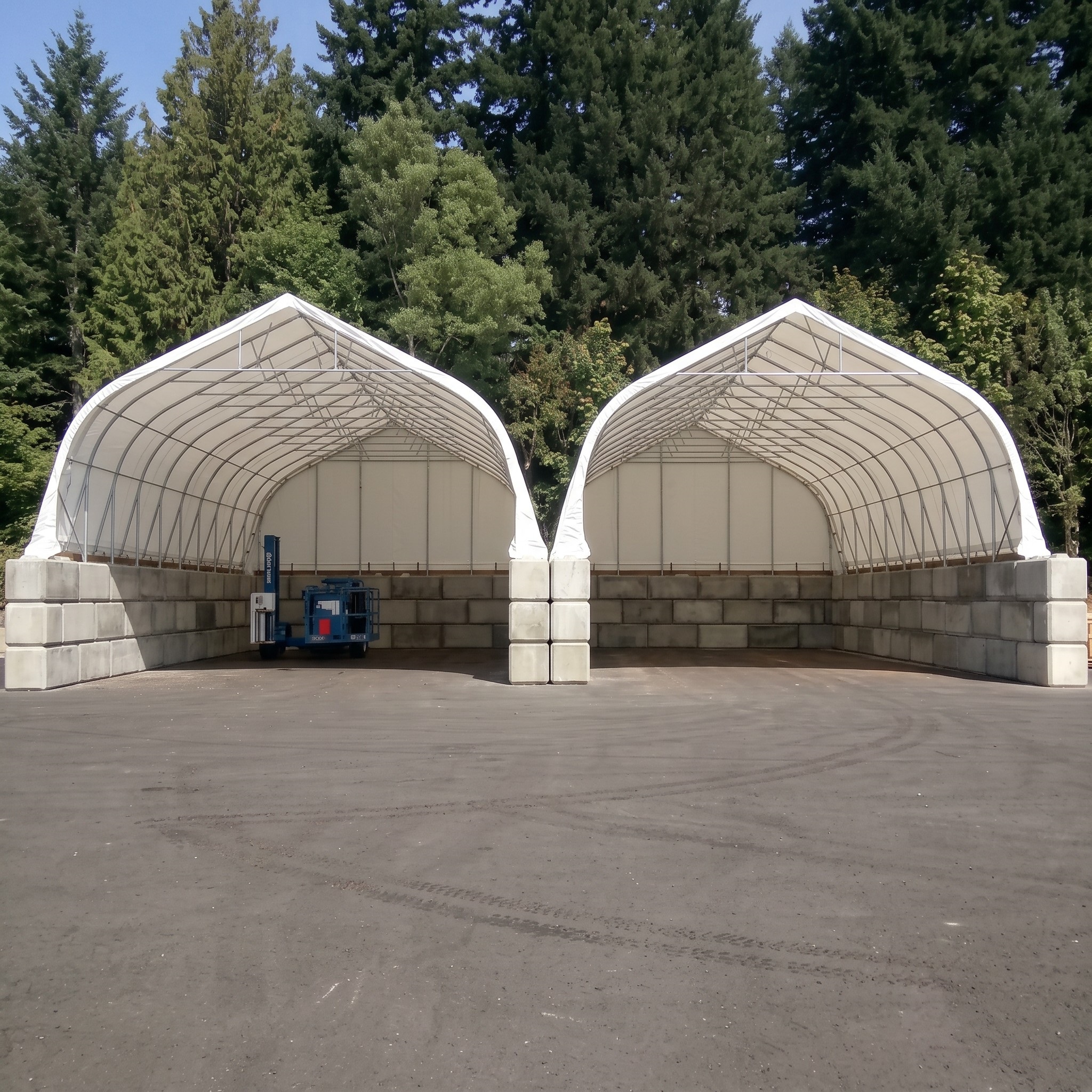

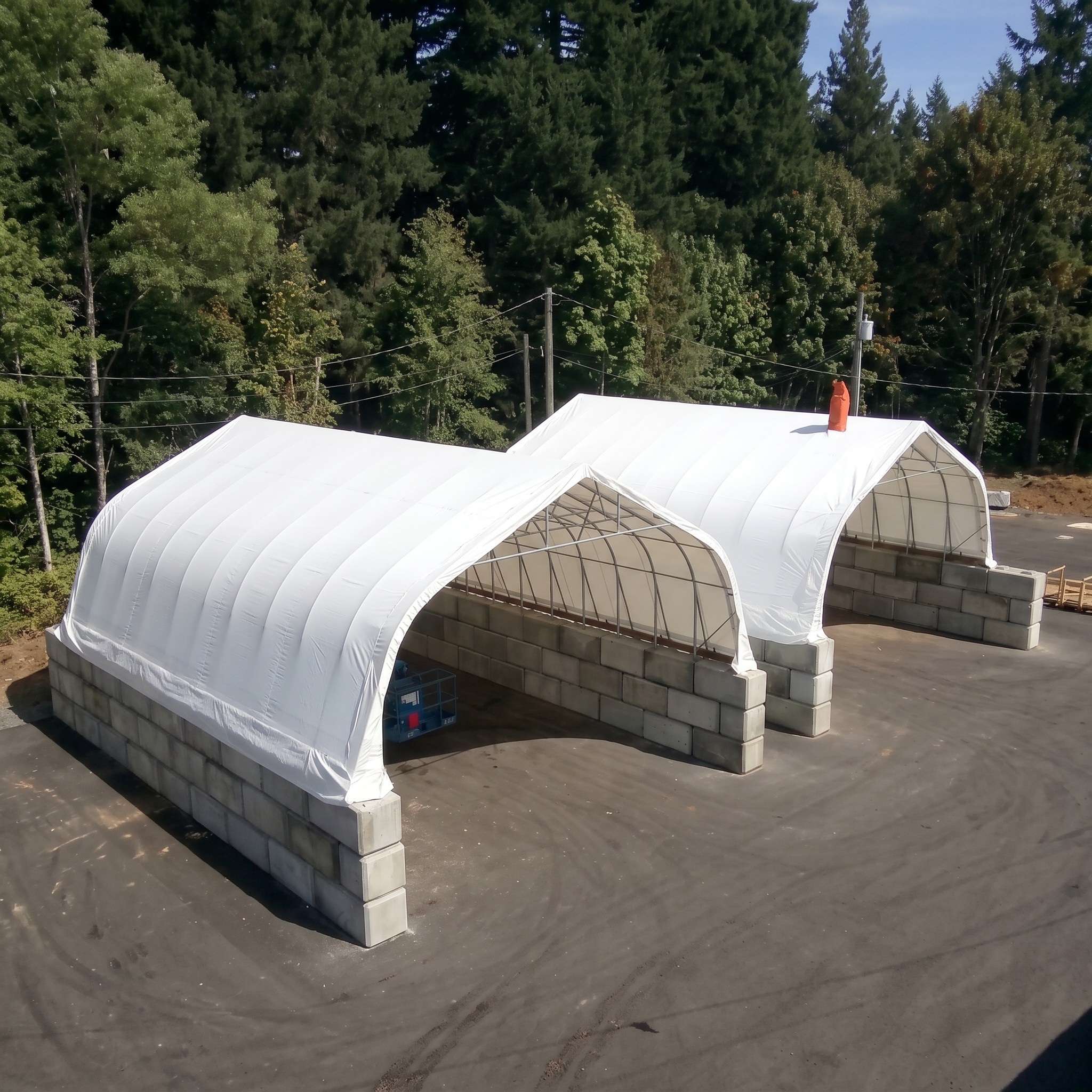

Detailed Photos
Application
Movie Set Temporary Tent / Film Production Studio Shelter Farm Equipment & Tractor Barn / Bulk Hay Storage Shelter Timber Lumber Drying Shed / Steel Pipe Side-Loading Bay Jobsite Plant Maintenance Canopy / Fleet Service Workshop Class A RV Winter Storage Cover / Commercial Boat Hangar
FAQ
1.What kind of engineering support do you provide?
With over 10 years of industry expertise, our engineering team offers end-to-end support from concept to design. We deliver customized solutions that improve performance, reduce maintenance, and maximize long-term operational value.
2.Is it fire retardant?
Yes. The fabric is flame-retardant and self-extinguishing, suitable for industrial and commercial use where fire safety matters.
3.What is the sea freight delivery time?
Sea freight transit time varies greatly depending on destination port, shipping schedule and customs clearance. Normally sea shipping takes 7-45 working days from China port to most European main ports, excluding local customs clearance and inland delivery.
4.Is it safe for winter storage?
The cover sheds snow and blocks ice/rain; vehicles stay dry. It's not heated -remove snow buildup and it protects year-round.
5.How are the baseplates anchored to the Lego blocks? Do the top blocks need to be flat?
Yes, for the top tier of your block wall, we recommend specifying "Flat-Top" interlocking blocks (blocks without the top raised studs) from your local supplier. Our heavy-gauge hot-dip galvanized baseplates seat flush onto the flat concrete surface and anchor securely using heavy-duty M16/M20 chemical resin capsule anchors or mechanical expansion bolts (anchor hardware can be included in our kit). Alternatively, saddle-style clamping brackets can be supplied to straddle blocks with studs.
6.Why is a Peaked Gothic shelter superior to a traditional Round hoop shelter in snow zones?
Round hoop shelters have a relatively flat slope at the top center, which tends to accumulate wet snow, leading to dangerous ice dams and structural stress. Our Peaked Gothic design features a sharp, angled ridge and steep curved sidewalls. Gravity naturally forces heavy snow and ice to shed immediately down both sides before it can build up, delivering substantially higher safety margins for severe Canadian and northern US winters.
7.How does the "Overhead Storage on Crossties" system work?
In our wide-span shelters (30ft and 40ft models), heavy structural steel tubular crossties tie the arch chords together at approximately 3.0m to 3.5m above ground. By adding standard steel grating or heavy plywood decking across these crossties, you create an integrated overhead mezzanine shelf. This overhead deck safely supports up to 1,500–2,000 kg of distributed load—ideal for storing spare vehicle tires, irrigation pipes, hoses, and crated tools—freeing up 100% of your ground floor for heavy vehicle parking.
