Forklift Lifting Crane Attachment 4.5Ton Telescopic Short/Long Boom Forklift Lifting Fixed Jib
Heavy Duty Forklift Accessories Extendable Forklift Jib Crane for Material Handling
|
Product Name
|
Forklift Boom
|
|
Material
|
Steel
|
|
Finish
|
Zinc Plated
|
|
Safe Working Load
|
4500kg
|
|
Fork Pocket Size
|
185x65mm
|
|
Fork Pocket Centres
|
290mm
|
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

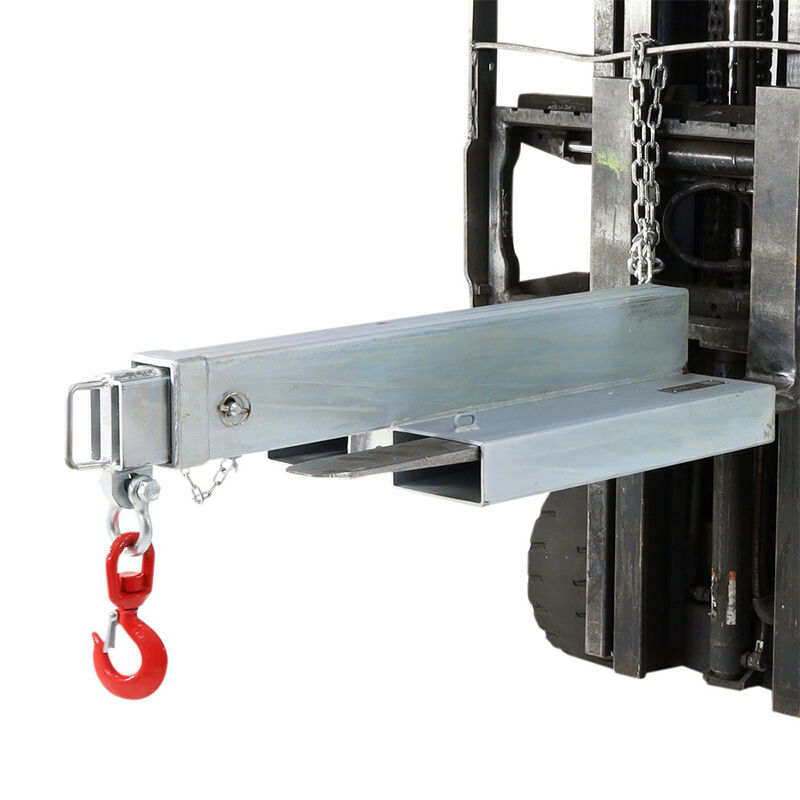

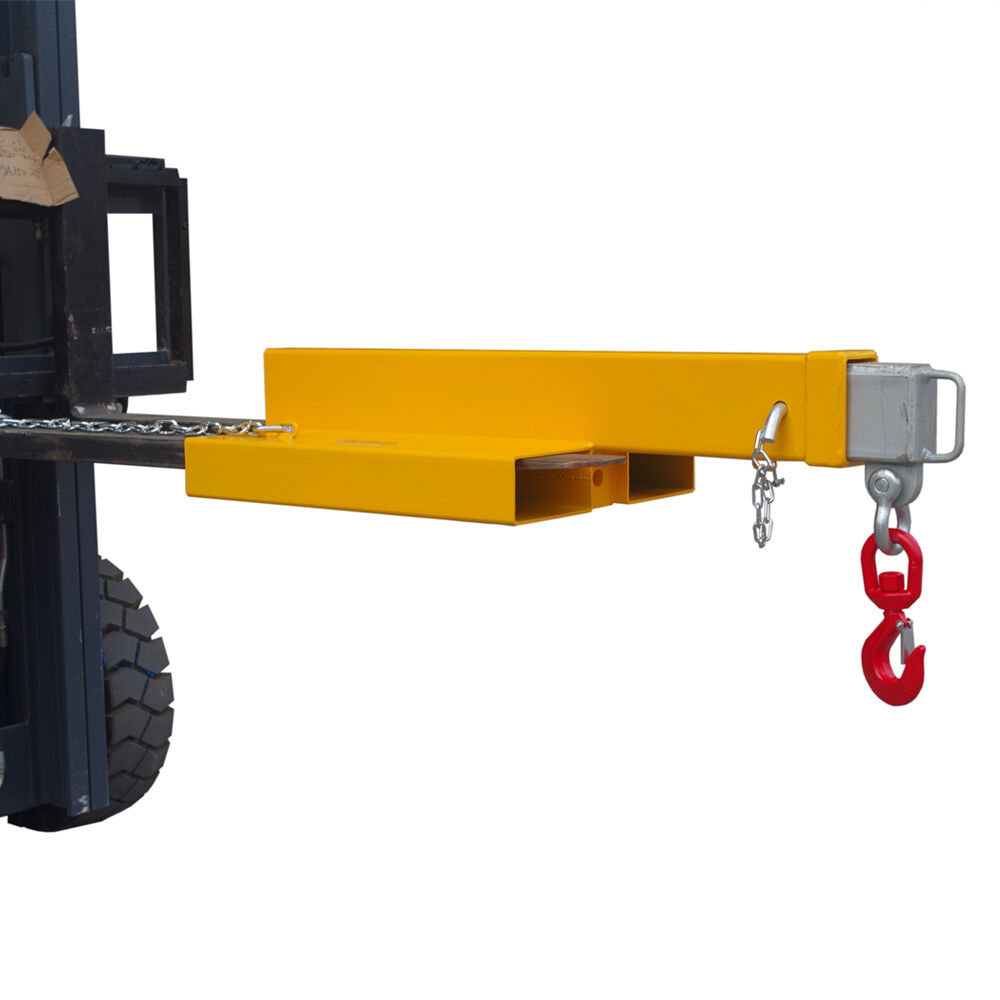

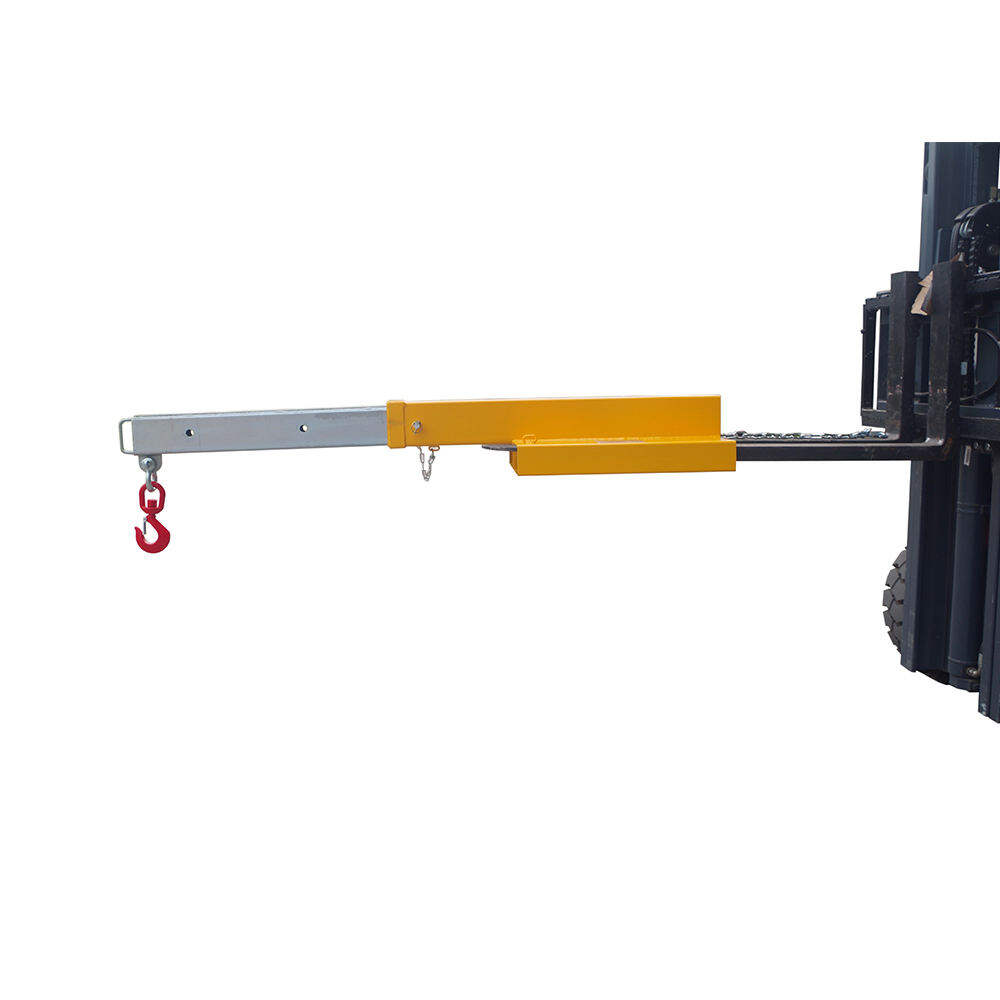

This 4500kg short fixed jib is designed as an affordable general purpose jib which is great for confined spaces and has a 1.9 metre reach when fully extended.The short jib can be extended to four different positions.

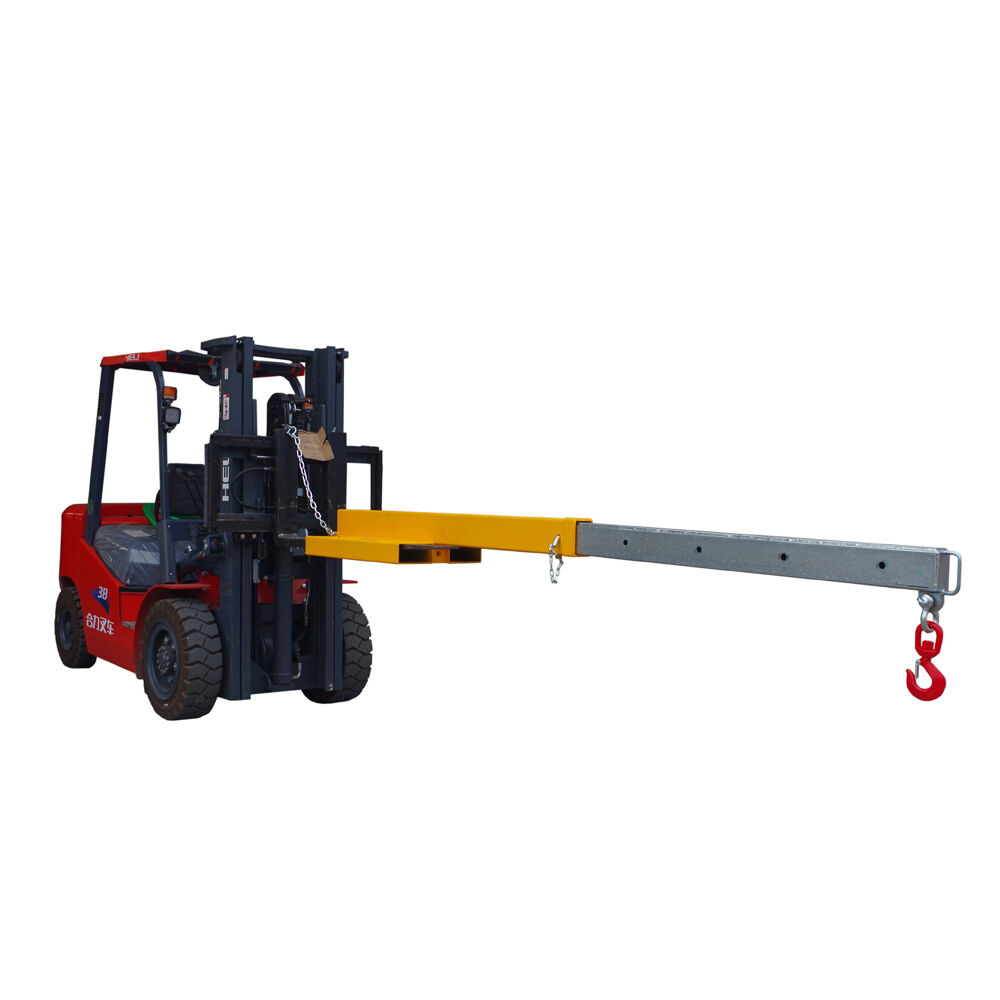

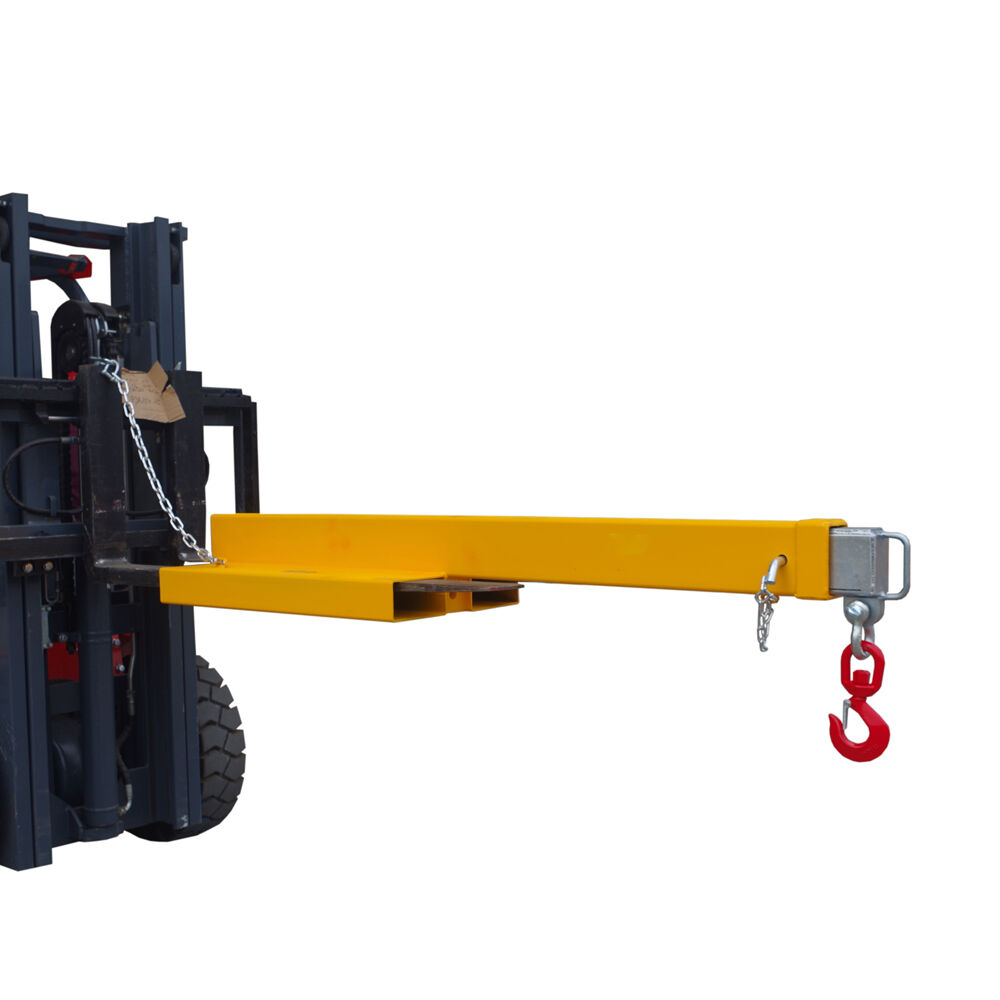

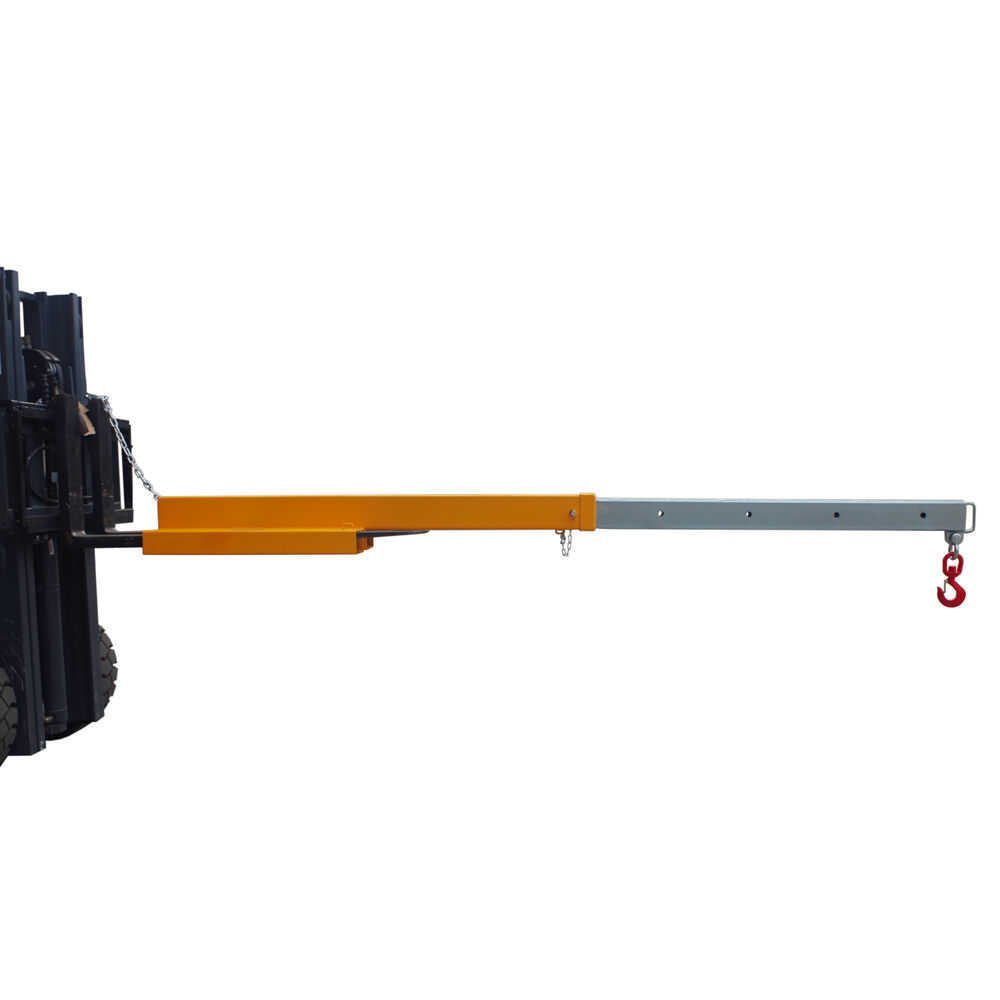

The 4500kg fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.5 metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2 metres.The long jib can be extended to six positions.
The standard finish on the fixed Jib is Zinc Plated.
Detailed Specifications
|

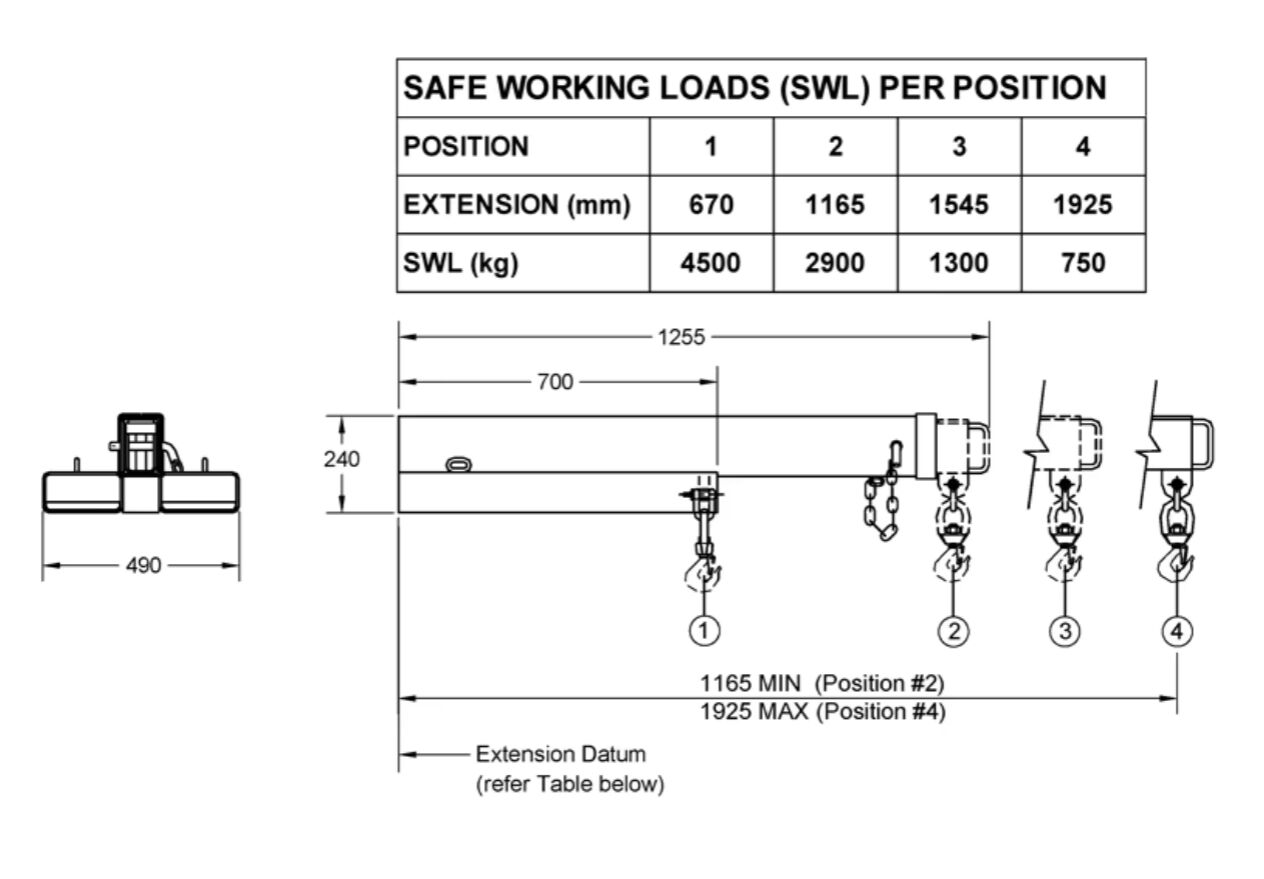

Short Forklift Jib
|

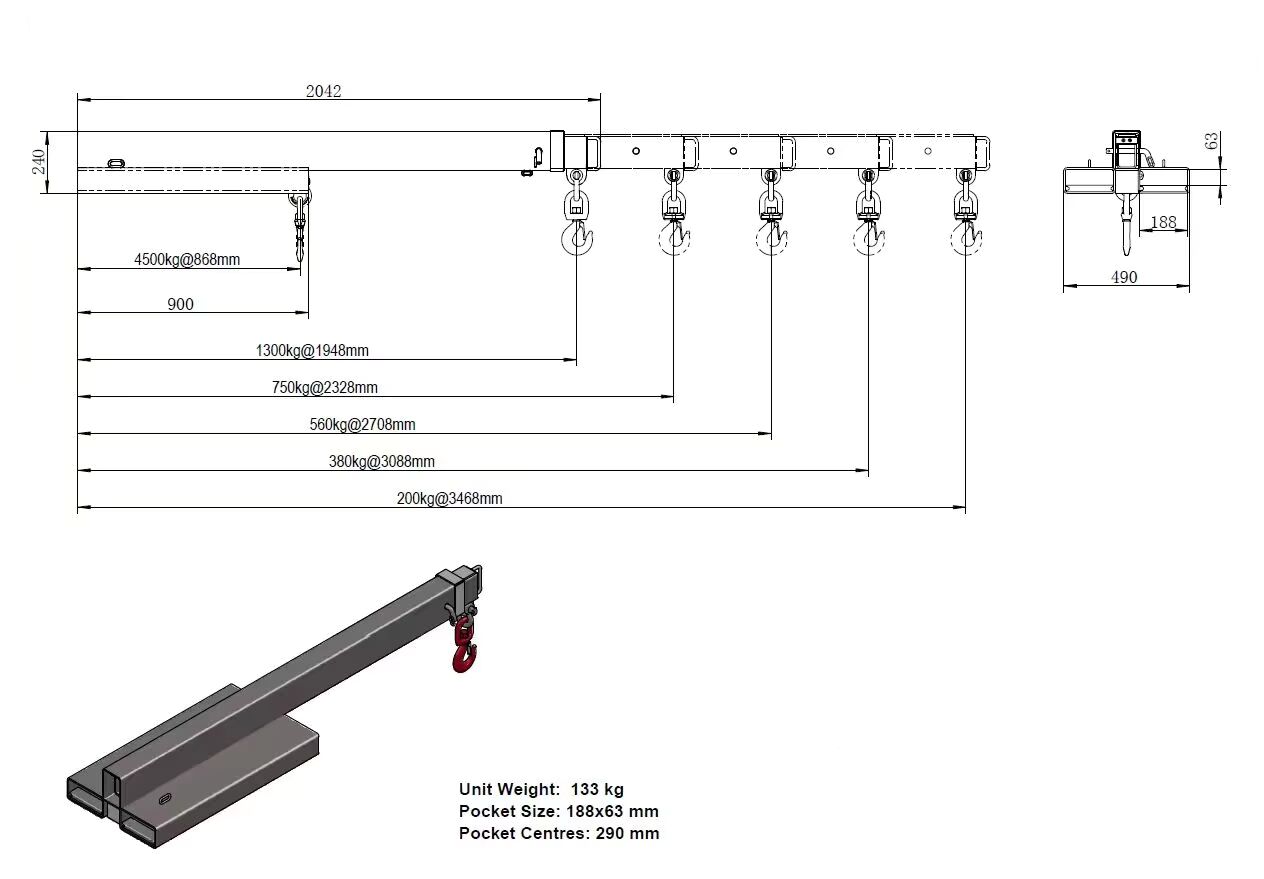

Long Forklift Jib
|
|
|
Material
|
Steel
|
Steel
|
|
Finish
|
Zinc Plated
|
Zinc Plated
|
|
Jib Positions
|
4 Jib Positions
|
6 Jib Positions
|
|
Safe Working Load
|
4500kg
|
4500kg
|
|
Load Centre
|
670mm
|
870mm
|
|
Jib Length (when closed)
|
1250mm
|
2000mm
|
|
Jib Length (when extended)
|
1900mm
|
3500mm
|
|
Fork Pocket Size
|
185x65mm
|
185x65mm
|
|
Fork Pocket Centres
|
290mm
|
290mm
|
|
Weight
|
95kg
|
140kg
|
|
Size
|
1900 x 300 x 200 mm
|
2000 x 490 x 250 mm
|

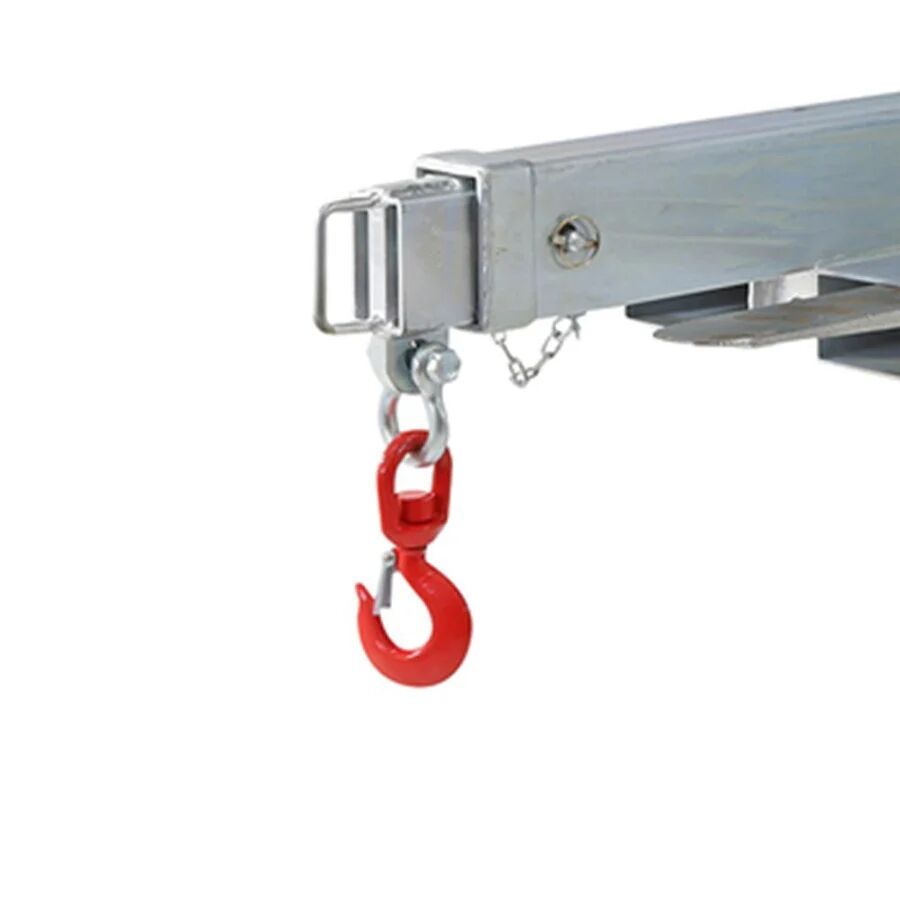

Detailed Photos
Application

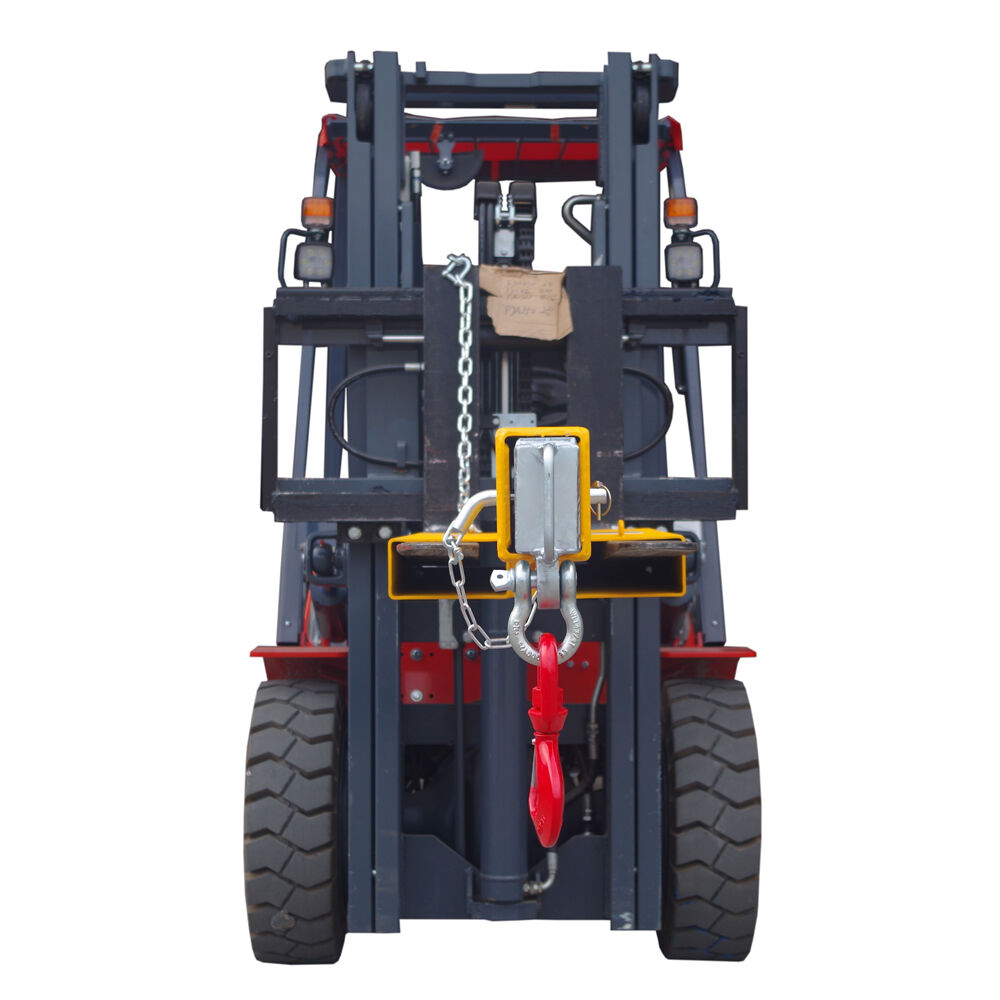

The forklift boom can be directly attached to the forks of the forklift and fixed by a safety chain. This enables the standard forklift to be transformed into a mobile crane, which can be used for lifting and moving heavy objects. It is commonly used in construction sites, warehouses and industrial environments.
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
