Forklift Jib Crane Telescopic Forklift Lifting Jib Extension Fixed Boom Forklift Attachment
Mobile Forklift Crane Arm Fork Extension Adjustable Forklift Jib Boom Attachments for Lifting
| Product Name | Tilting Extension Jib |
| Material | Steel |
| Finish | Zinc Plated |
| Type | Forklift Tilt Jib |
| Usage | transform your forklift into an industrial lifting machine |
| Safe Working Load | 3.5Ton,4.7Ton,7.5Ton |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
The telescopic extension jib is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 2.365 metre reach when fully extended. This slip-on jib is held to the forklift by a safety chain. The jib overall length when closed is 1.5 metres. The standard finish is zinc plated.
Telescopic hook allows for flexible hook mounting position. No angle adjustment required.
Easy installation and secure with chain.

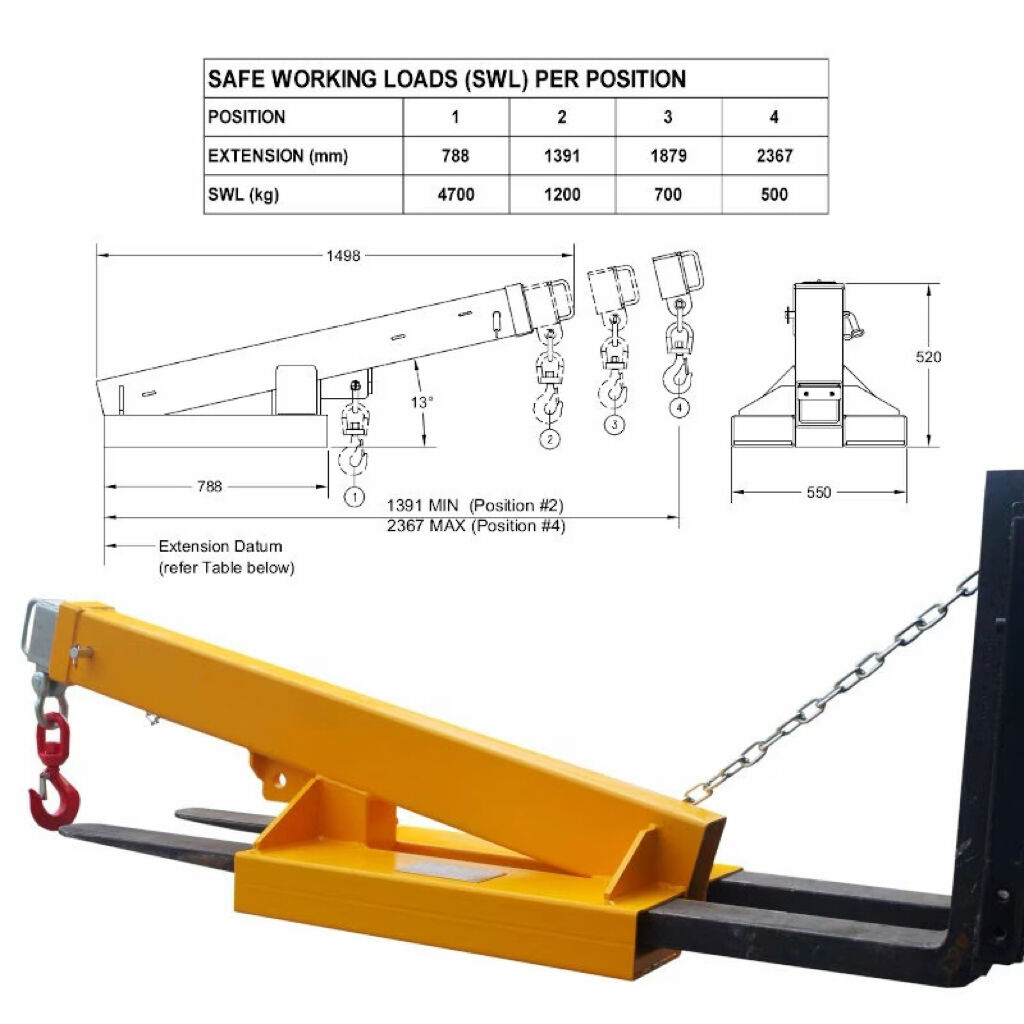

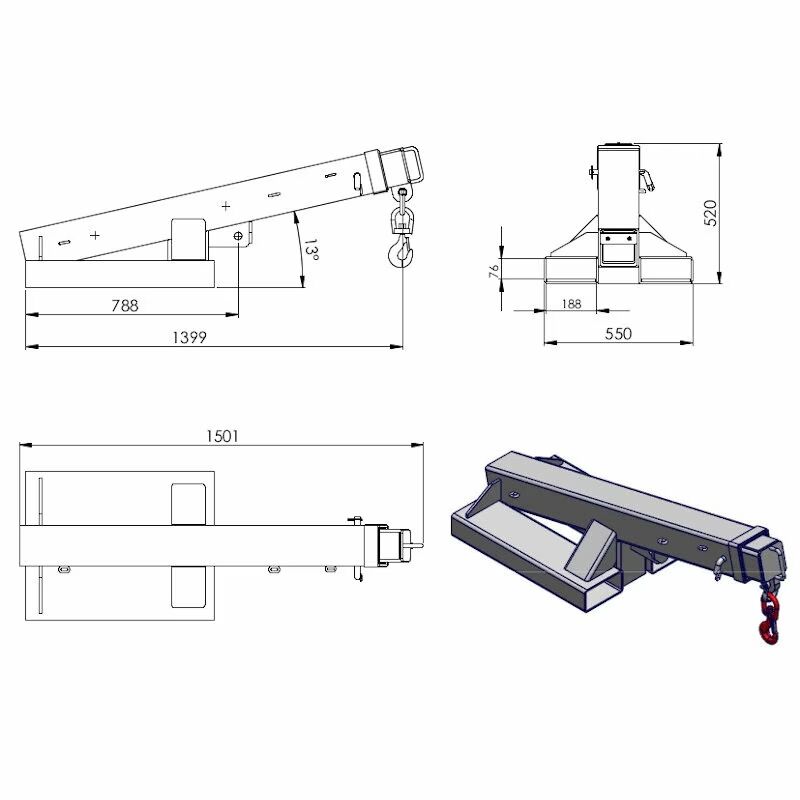

Detailed Specifications
|
Model
|
3.5T
|
4.7T
|
7.5T
|
|
Material
|
Steel
|
||
|
Finish
|
Zinc Plated
|
||
|
Safe Working Load
|
3500kg
|
4700kg
|
7500kg
|
|
Fork Pocket Size
|
185*65mm
|
185*65mm
|
230*110mm
|
|
Fork Pocket Center
|
300mm
|
350mm
|
875mm
|
|
HCG
|
580mm
|
600mm
|
680mm
|
|
VCG
|
110mm
|
120mm
|
105mm
|
|
Weight
|
115kg
|
140kg
|
390kg
|
|
Width
|
500mm
|
550mm
|
1125mm
|

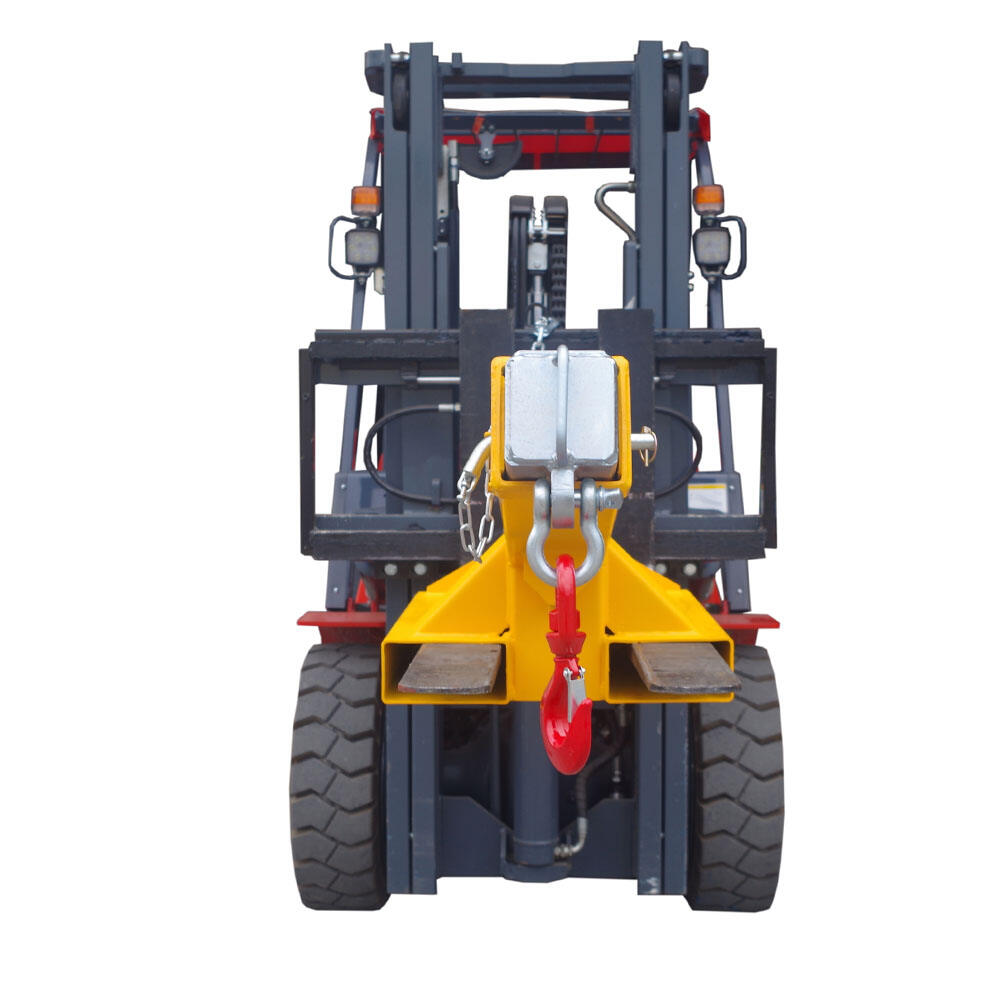

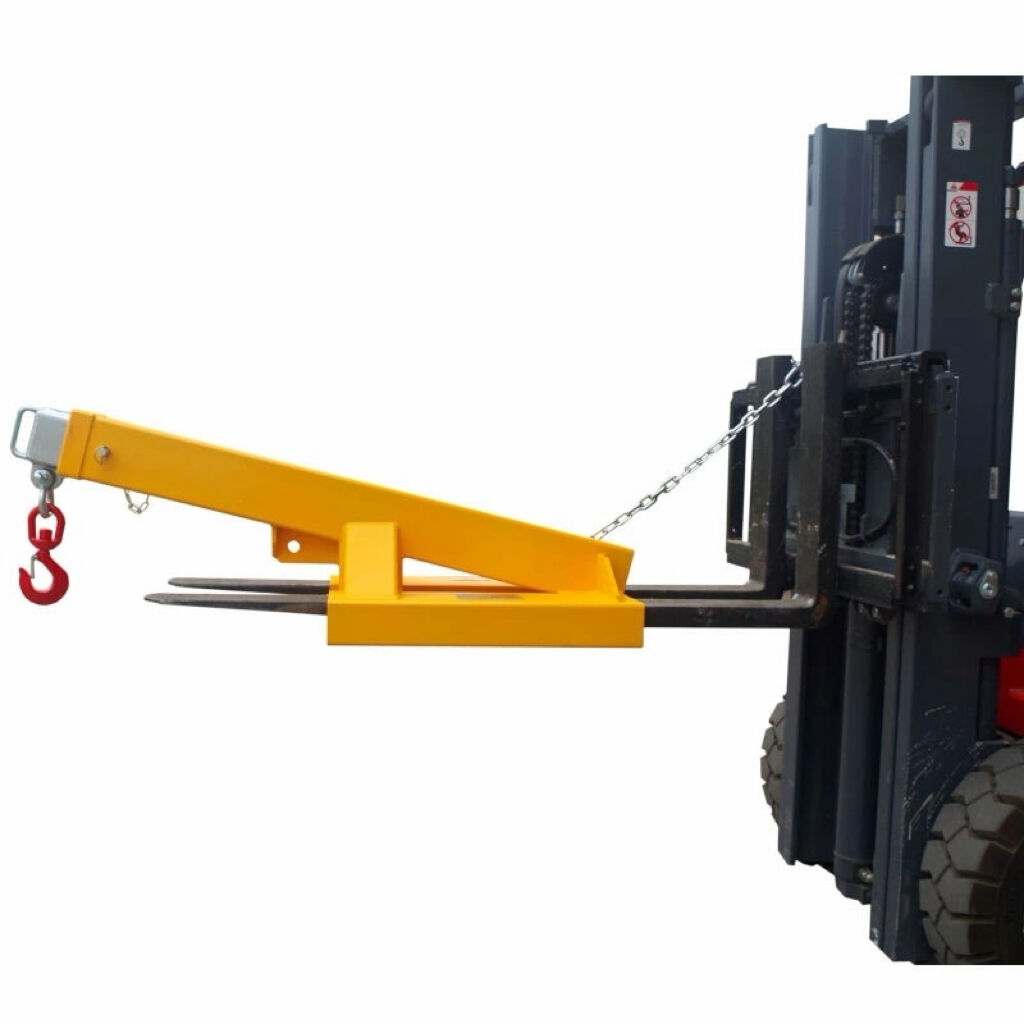

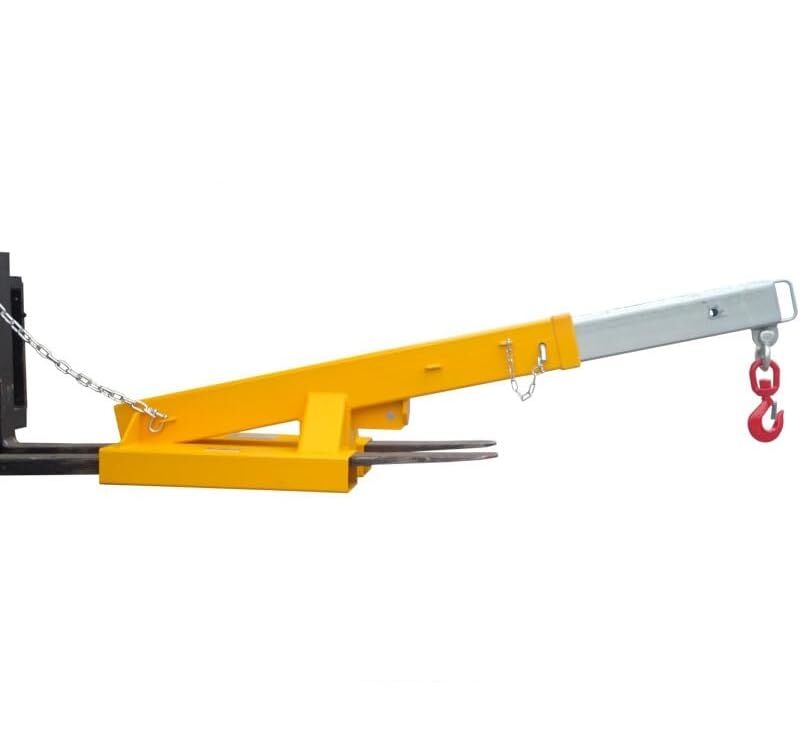

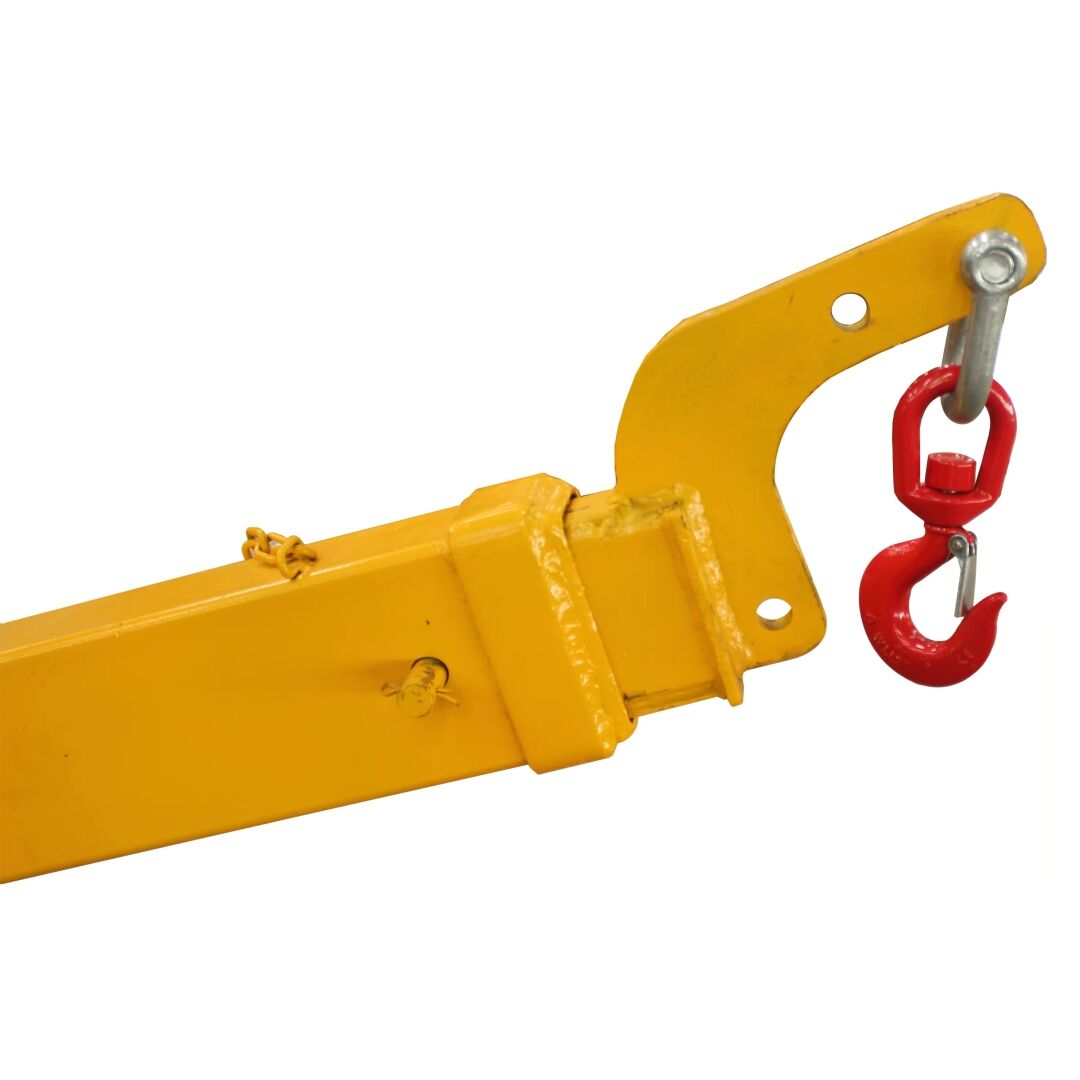

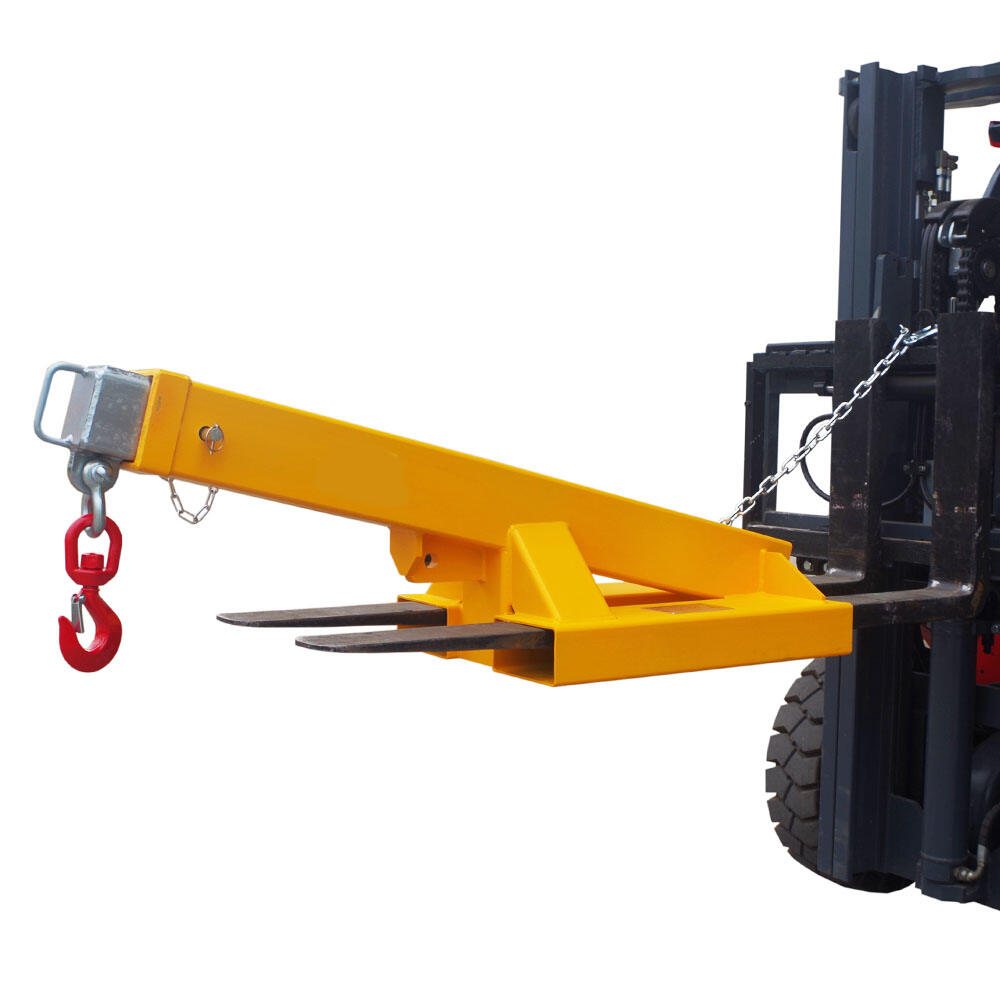

Detailed Photos
Application
This forklift attachment is specifically designed for forklifts. With a double-fork design, it fits most pallet forks, making it easy to convert your equipment into a mobile crane. Thanks to this attachment, you can transform your skid steer or forklift into an industrial lifting machine!
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
