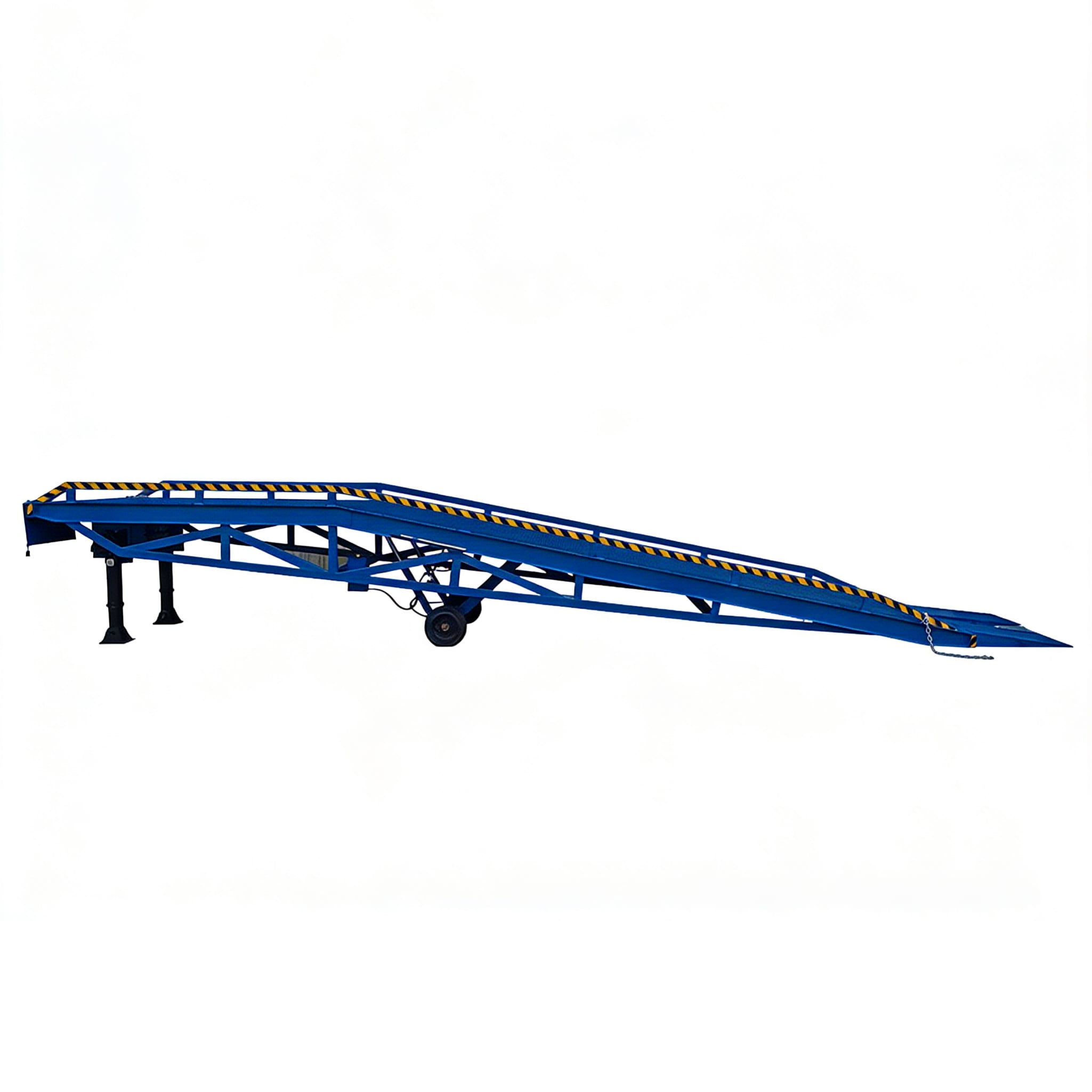

Mobile Container Truck Loading Dock Ramps Hydraulic Dock Yard Ramp for Warehouse
Portable Container Truck Loading Platform Lift Hydraulic Forklift Unloading Dock Ramp
| Product Name | Mobile Yard Ramp |
| Material | Steel |
| Capacity | 8Ton,10ton,12Ton,16Ton |
| Length | Standard: 10000mm Long: 13000mm |
| Width | 2200mm |
| Size(Platform+Ramp ) | Standard:3000mm+7000mmx2200mmx1200 -1680mm Long:3000mm+9000mmx2200mmx1200-1680mm |
| Working Height | Adjustable 1200mm - 1680mm |
| Weight | 2930-3966kg |
| Color | Blue or Customized |
| Lift Drive / Actuation |
|
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

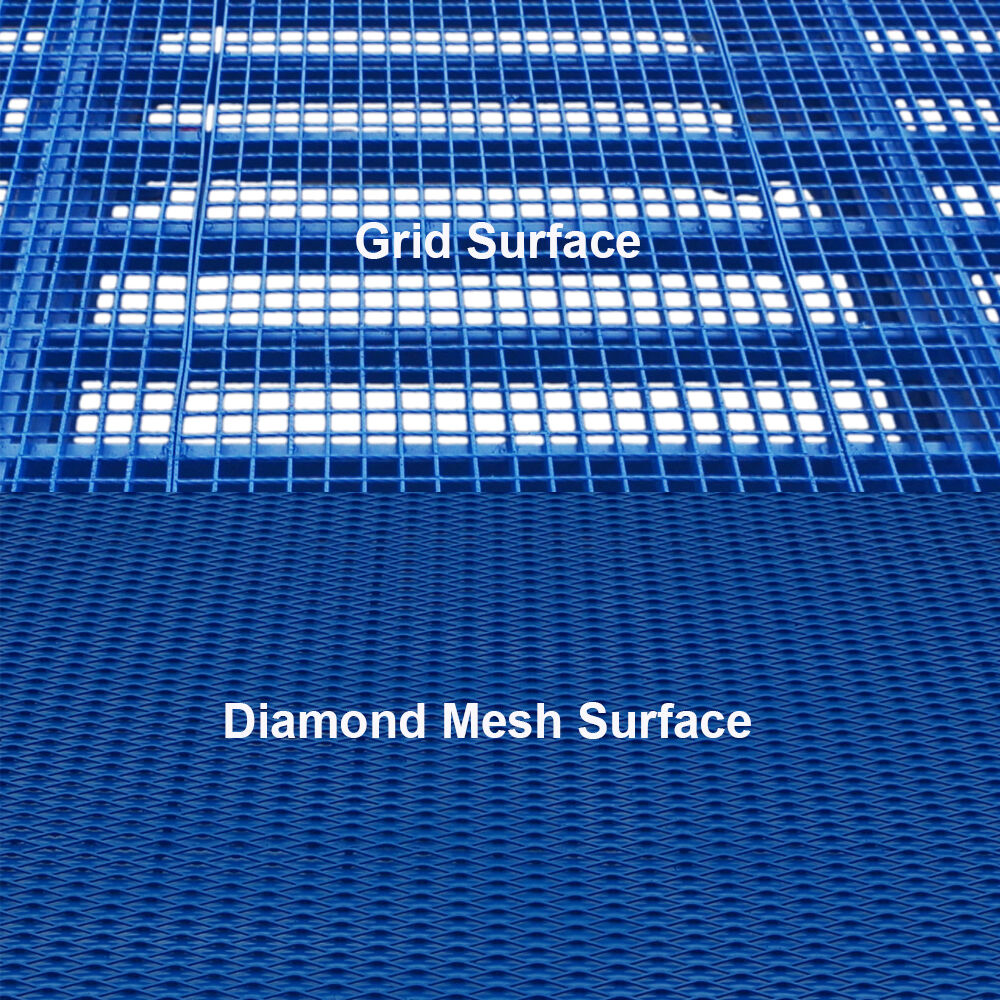

Non-slip Platform：The ramp platform with full paved anti skid platform. It can ensure the forklift walk very safely on the ramp body.
Solid Tyre：Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.

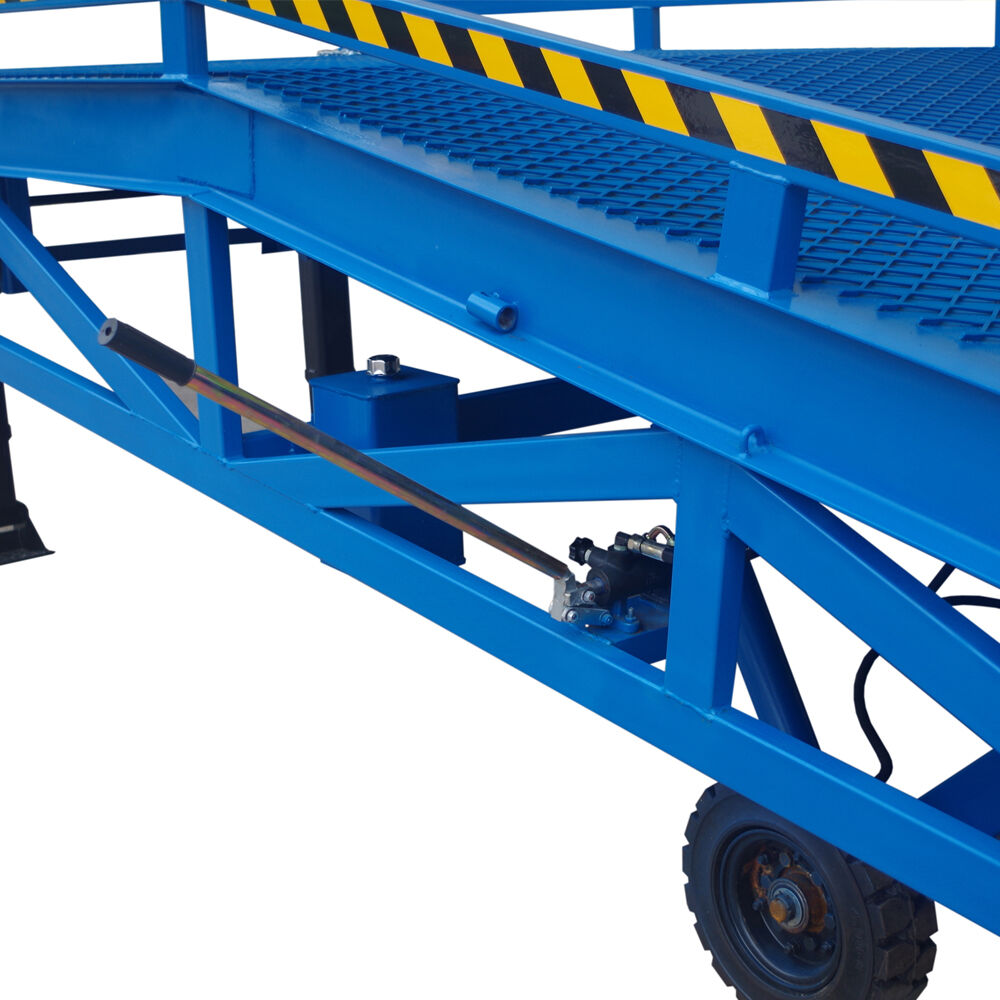

Manual Hydraulic Elevator System：It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
Advantage：
We can supply 8-16T yard ramp.
Hand rails are optional.
Fork pockets boths side make it easier to move the yard ramp by forklift.
Each yard ramp has lifting eye for loading and transportation.

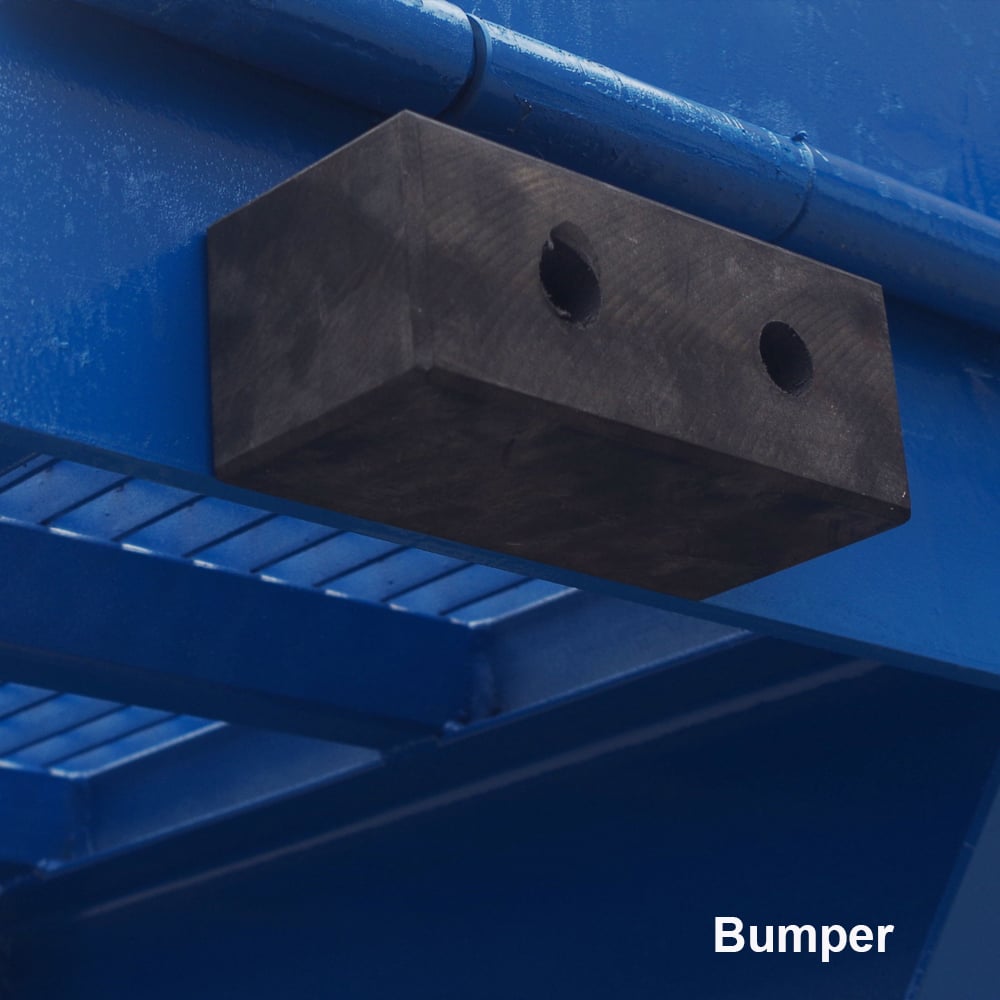

Bumpers ahead can protect both truck or ramps.
Size：
| Model | Capacity(ton) | Weight(kg) | Length(mm) | Dimensions (Platform+Ramp L*W*H )(mm) |
| 8T-1 | 8 | 2930 | 10000 | 3000+7000x2200x1200 -1680 |
| 8T-2 | 8 | 3150 | 10000 | 3000+7000x2200x1200 -1680 |
| 8T-3 | 8 | 3090 | 13000 | 3000+9000x2200x1200 -1680 |
| 8T-4 | 8 | 3346 | 13000 | 3000+9000x2200x1200 -1680 |
| 10T-1 | 10 | 2970 | 10000 | 3000+7000x2200x1200 -1680 |
| 10T-2 | 10 | 3010 | 10000 | 3000+7000x2200x1200 -1680 |
| 10T-3 | 10 | 3130 | 13000 | 3000+9000x2200x1200 -1680 |
| 10T-4 | 10 | 3386 | 13000 | 3000+9000x2200x1200 -1680 |
| 12T-1 | 12 | 3200 | 10000 | 3000+7000x2200x1200 -1680 |
| 12T-2 | 12 | 3420 | 10000 | 3000+7000x2200x1200 -1680 |
| 12T-3 | 12 | 3200 | 13000 | 3000+9000x2200x1200 -1680 |
| 12T-4 | 12 | 3456 | 13000 | 3000+9000x2200x1200 -1680 |
| 16T-1 | 16 | 3300 | 10000 | 3000+7000x2200x1200 -1680 |
| 16T-2 | 16 | 3520 | 10000 | 3000+7000x2200x1200 -1680 |
| 16T-3 | 16 | 3776 | 13000 | 3000+9000x2200x1200 -1680 |
| 16T-4 | 16 | 3966 | 13000 | 3000+9000x2200x1200 -1680 |
Detailed Photos

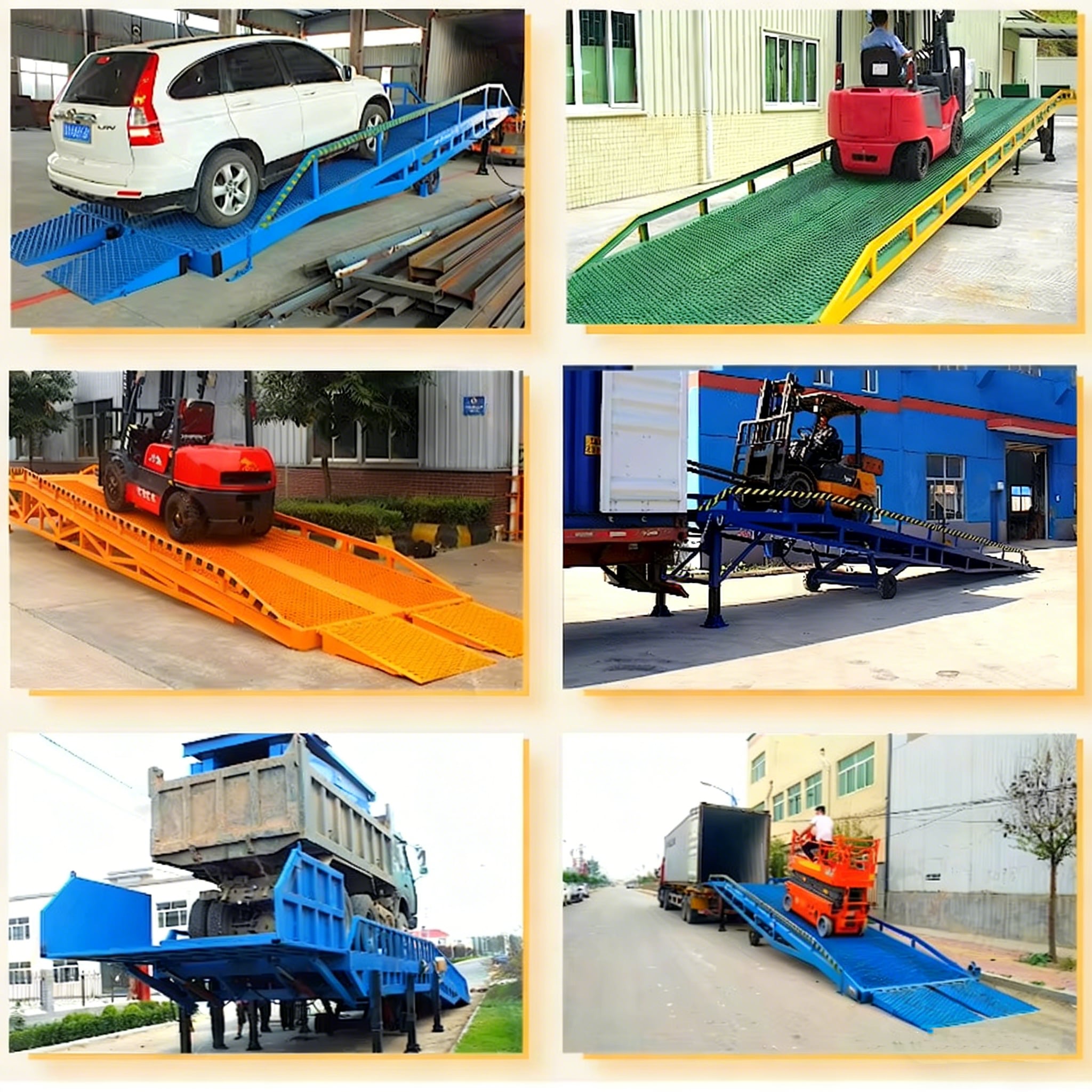

Application

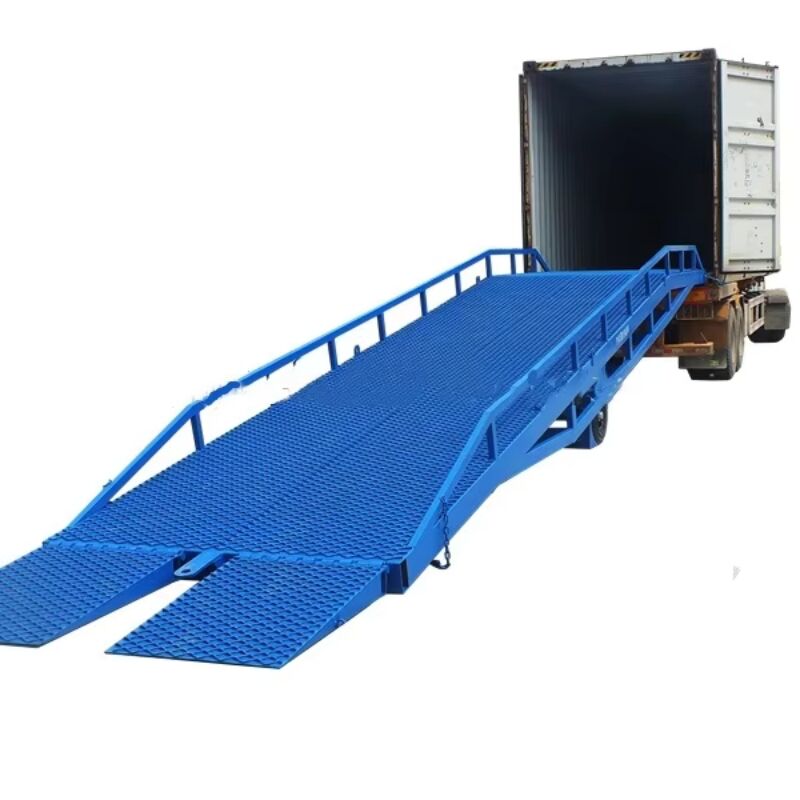

Mobile hydraulic loading container ramp is used in conjunction with the forklift cargo loading and unloading auxiliary equipment, according to the height of the car compartment height adjustment, the forklift can be directly through the equipment into the interior of the cargo bulk cargo handling, only single operation, you can To achieve rapid loading and unloading of goods. It allows enterprises to reduce a lot of labor, improve work efficiency, access to greater economic benefits.
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
