Marine Container Twistlock Stacking Pin Manual Double Ended Intermediate Twist Lock for Shipping Containers
|
Product Name |
Container Manual Twistlock |
|
Material |
Casting Steel |
|
Finish |
Hot Dip Galvanized |
|
Dimensions |
166MM (L) x 101.5MM (W) x 132MM (H) |
|
Weight |
4.5kg |
|
S.W.L Tension |
250KN |
|
Min Breaking Loads Tension |
500 KN |
|
Min Breaking Loads Shear |
420 KN |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
Intermediate Twist Lock is a critical marine container lashing component. It is installed between upper and lower stacked ISO shipping containers on cargo ships.
By manually turning the handle, both upper and lower locking heads engage container corner castings firmly to prevent containers shifting or tipping during ocean transportation.
Both the housing and the lock shaft are made by forging process, ensuring superior strength, durability, and impact resistance.
Hot-dip galvanized steel body offers excellent anti-corrosion performance in saltwater marine environment.
The manual twist-lock can sustain up to 500 kilonewtons of tension pressure, and up to 2000 KN of compression force! The heaviest shipping containers can still be secured and maintained with this lock.
We supply various kinds of container twist locks like semi-automatic twist lock, fully automatic twist lock,dovetail twist lock and manual twist locks.
|
Product Name |
Container Manual Twistlock |
|
Material |
Casting Steel |
|
Finish |
Hot Dip Galvanized |
|

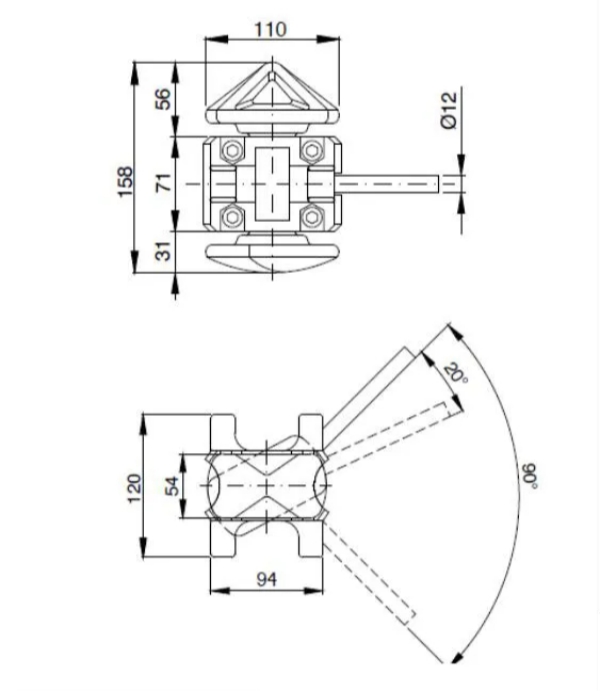

Dimensions |
166MM (L) x 101.5MM (W) x 132MM (H) |
|
Weight |
4.5kg |
|
Type |
Manual |
|
Approval |
DNV GL certified |
|
S.W.L Tension |
250KN |
|
Min Breaking Loads Tension |
500 KN |
|
Min Breaking Loads Shear |
420 KN |
|
Min Breaking Loads Compression |
2000 KN |

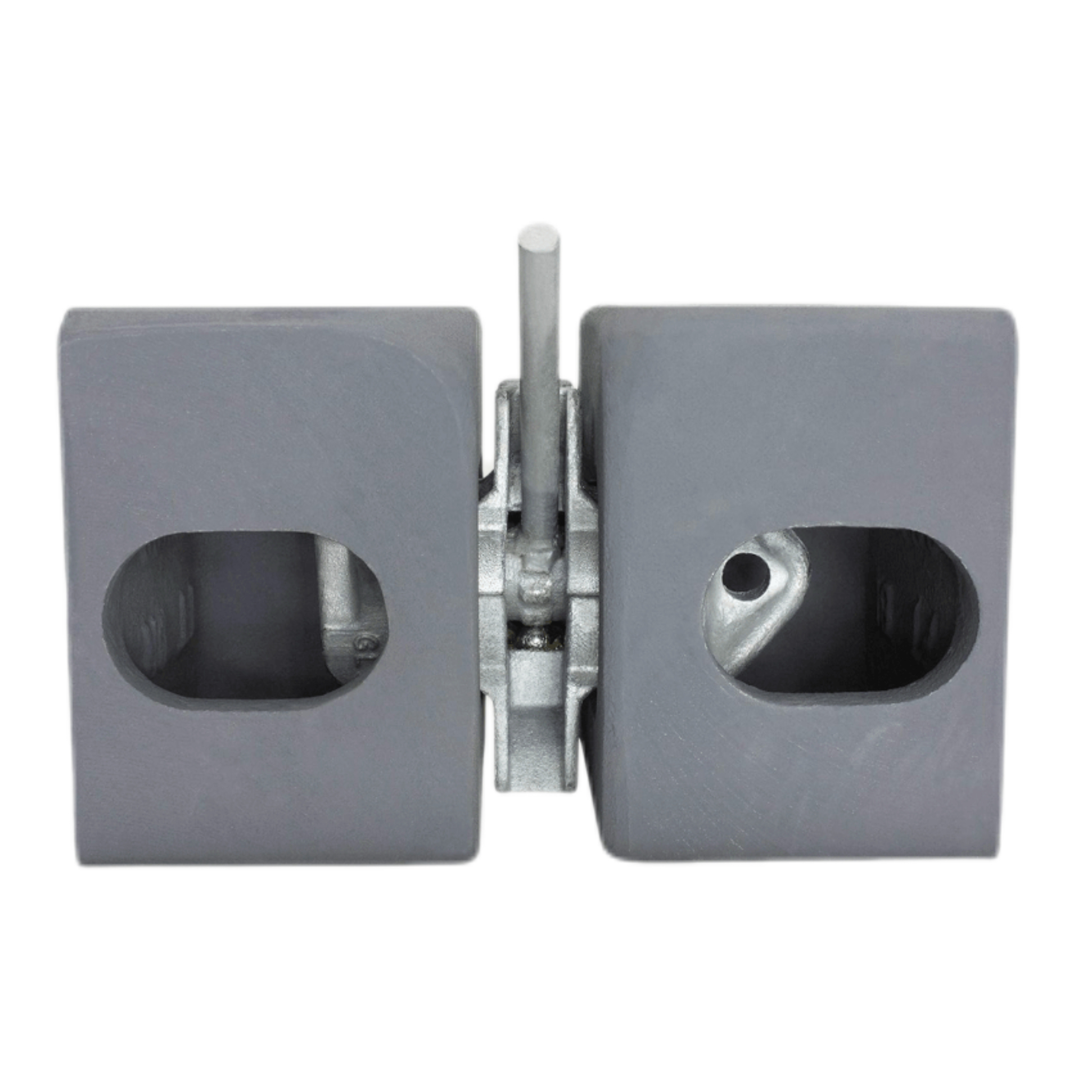

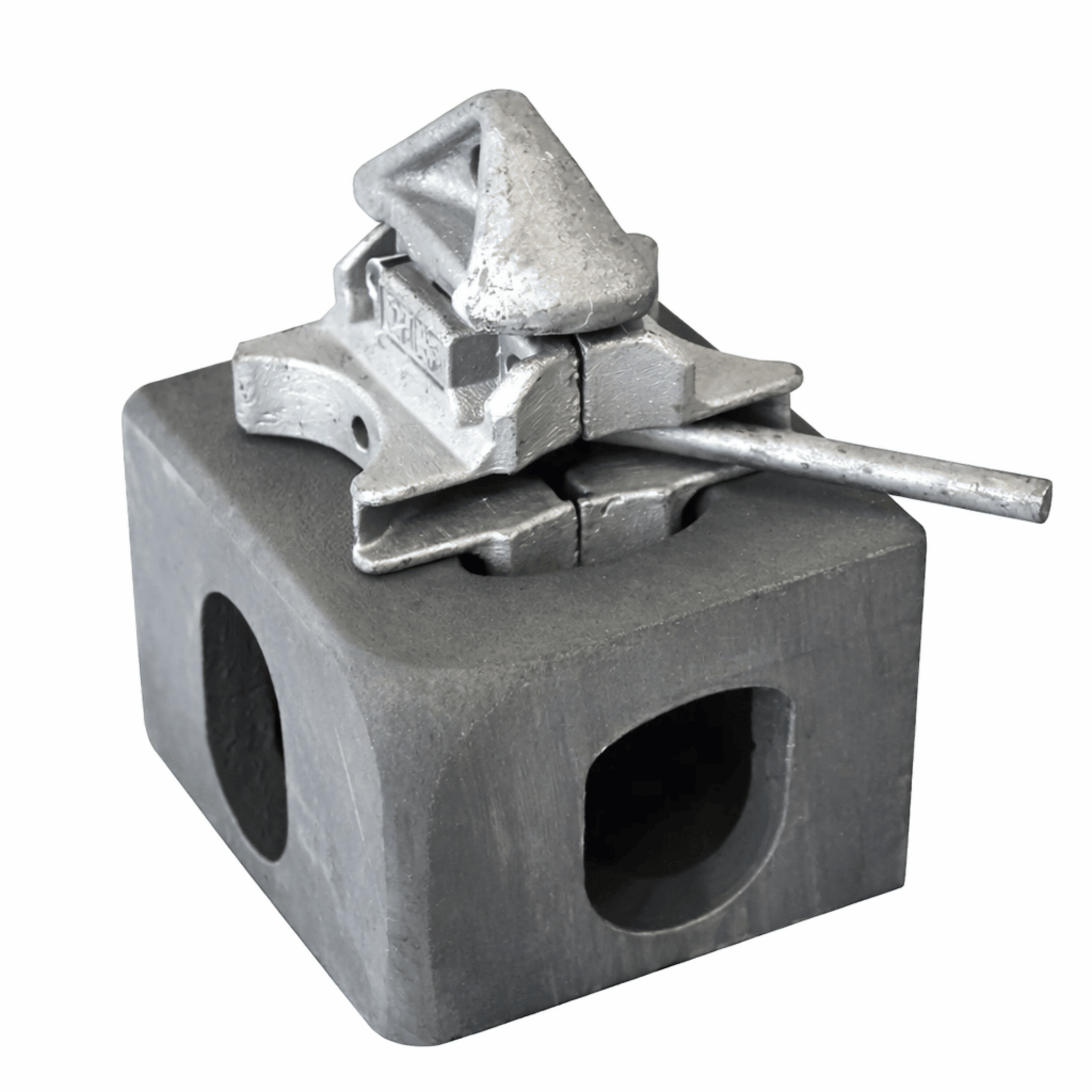

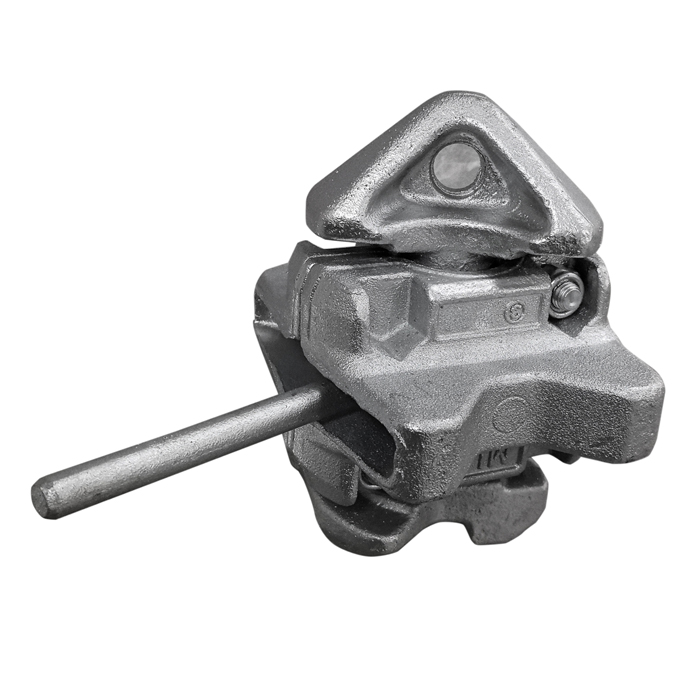

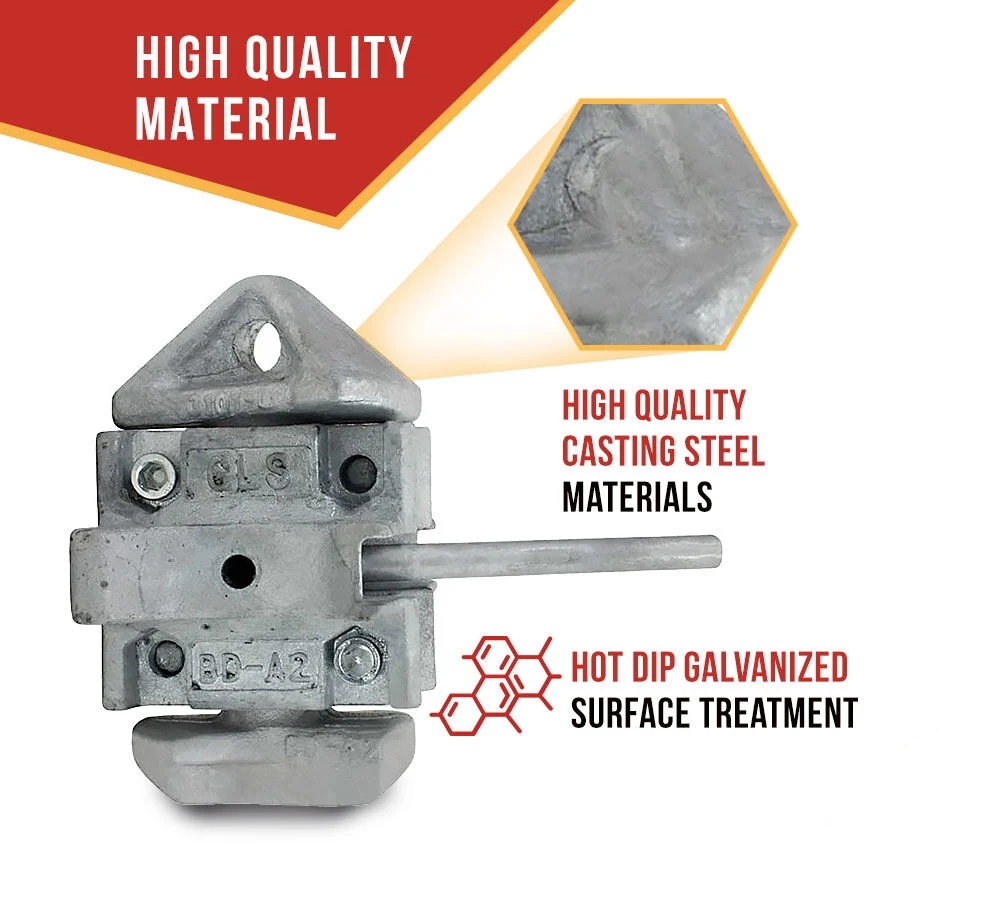

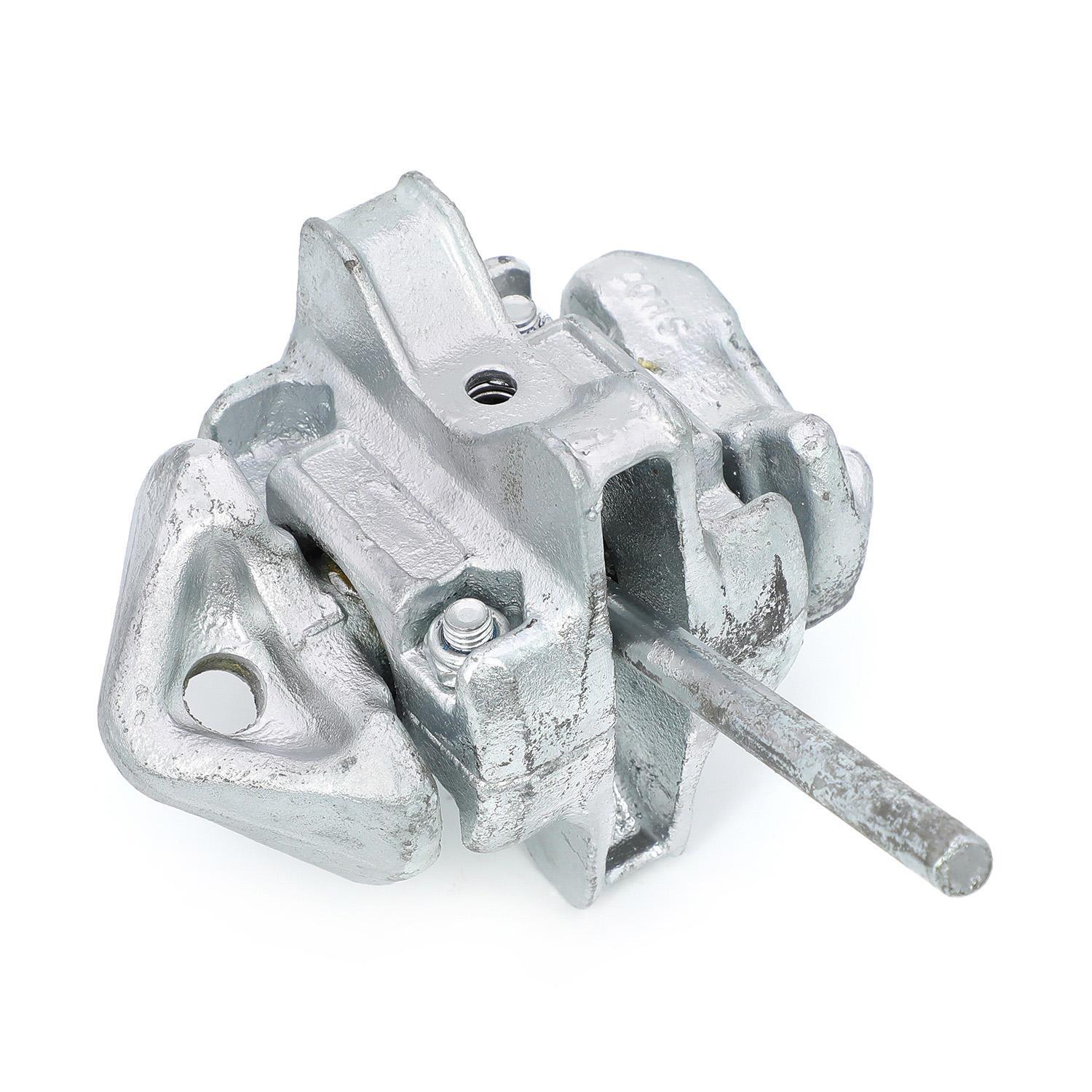

Detailed Photos

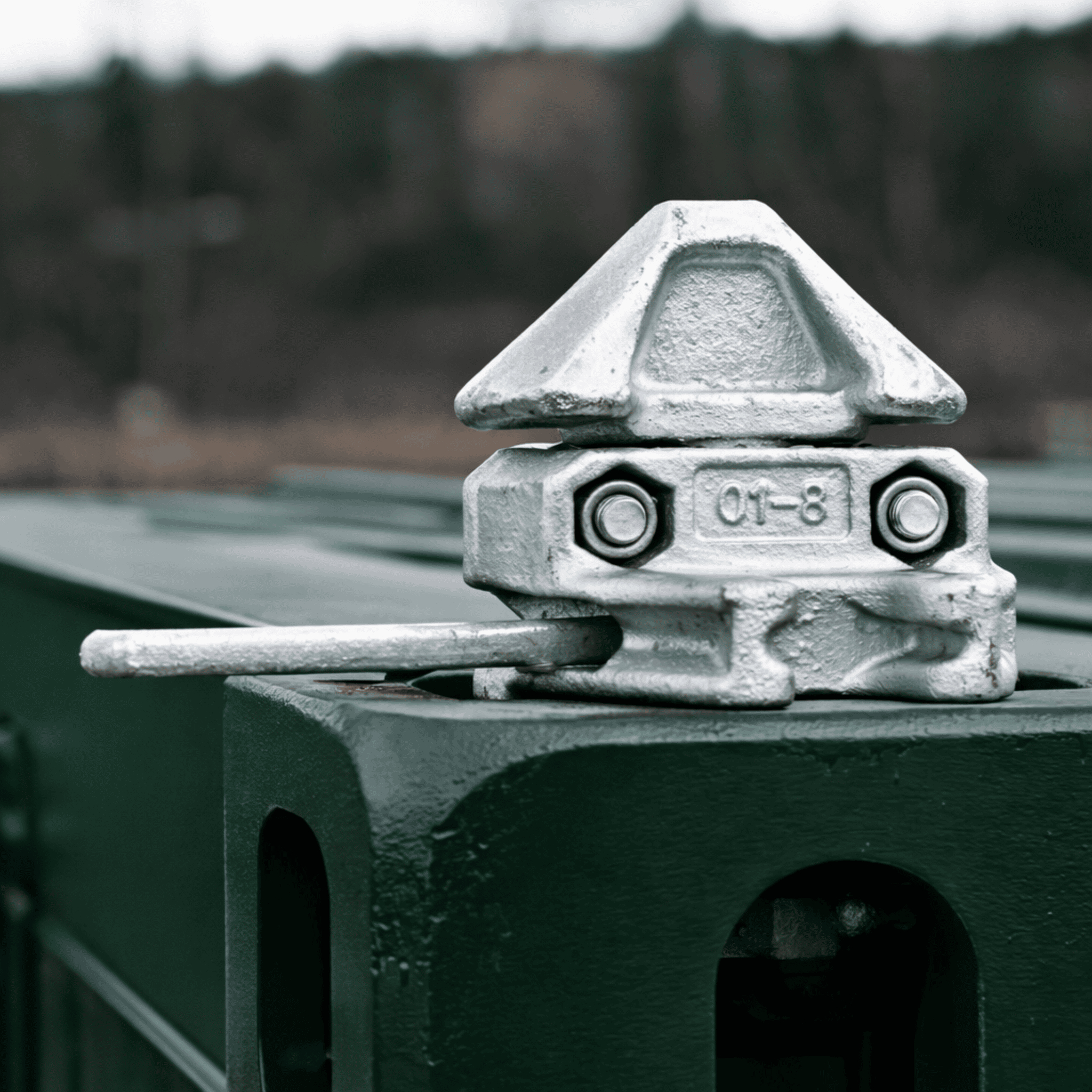

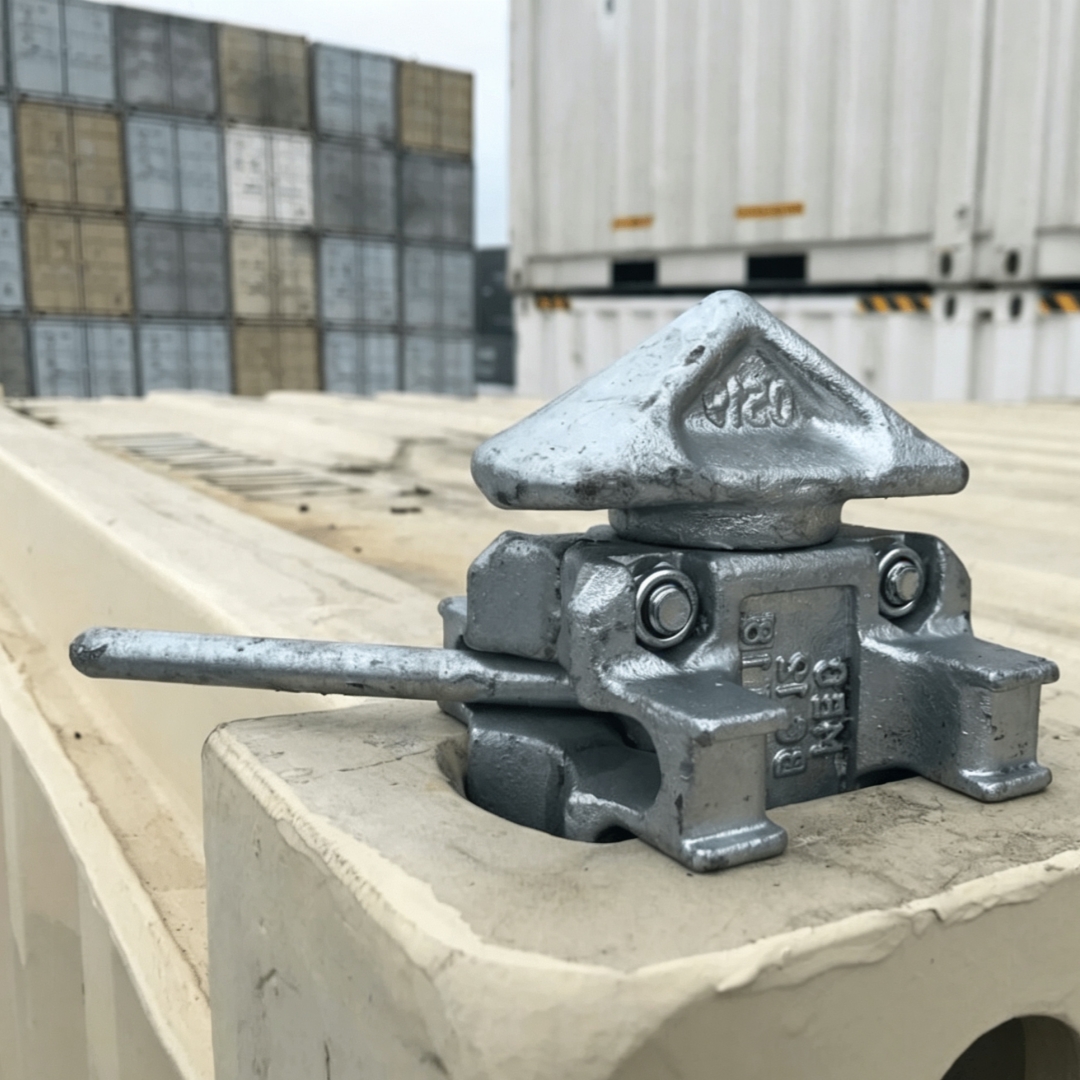

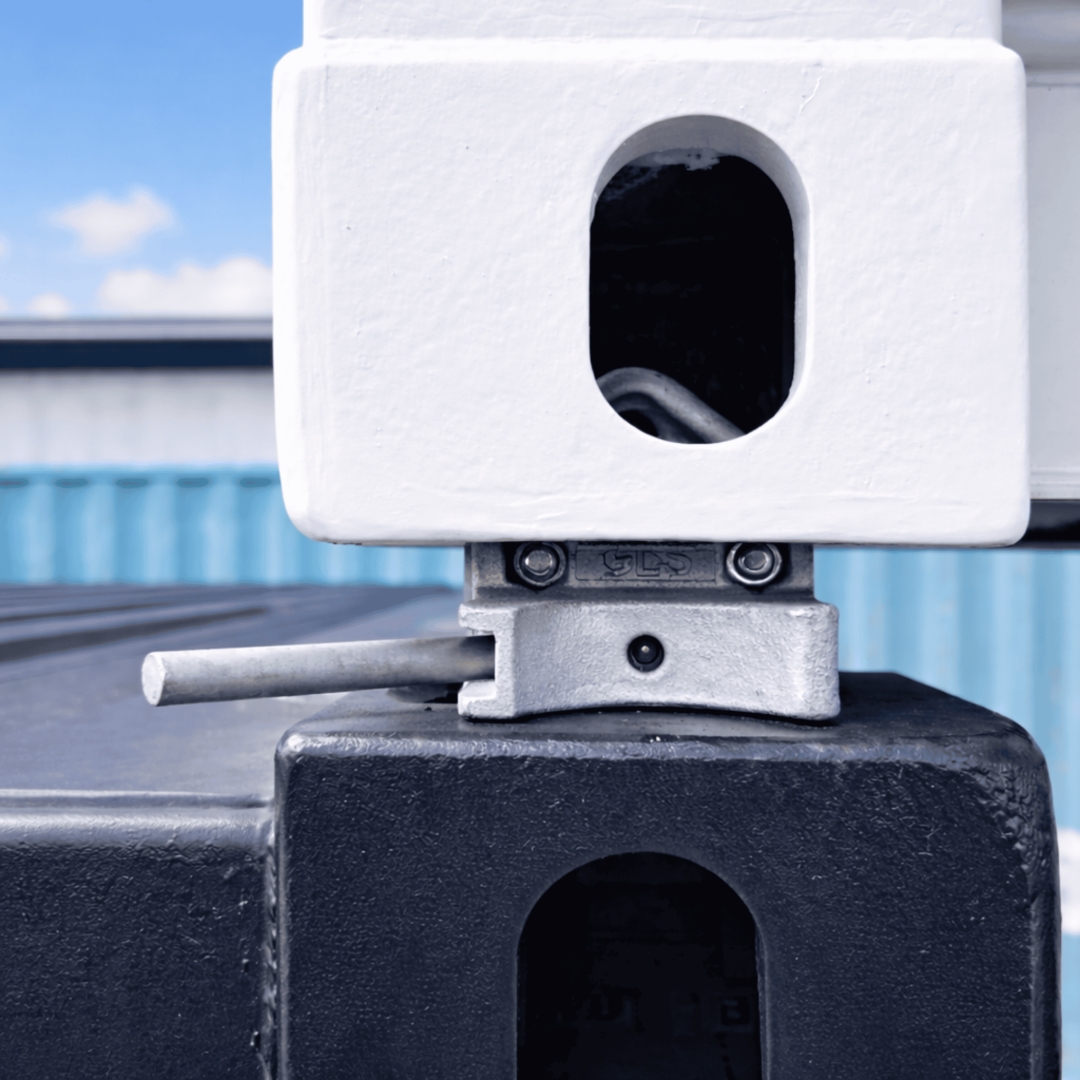

Application

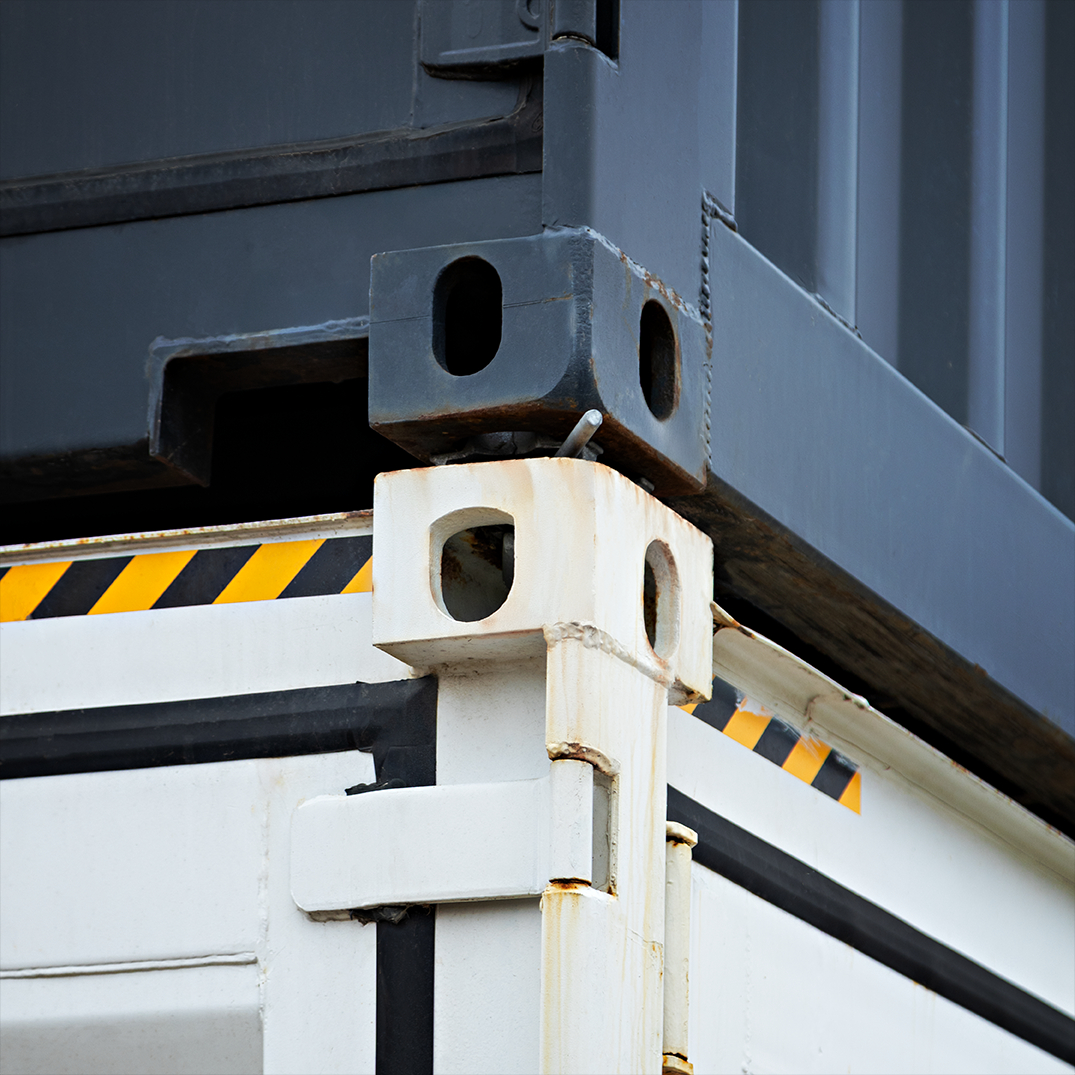

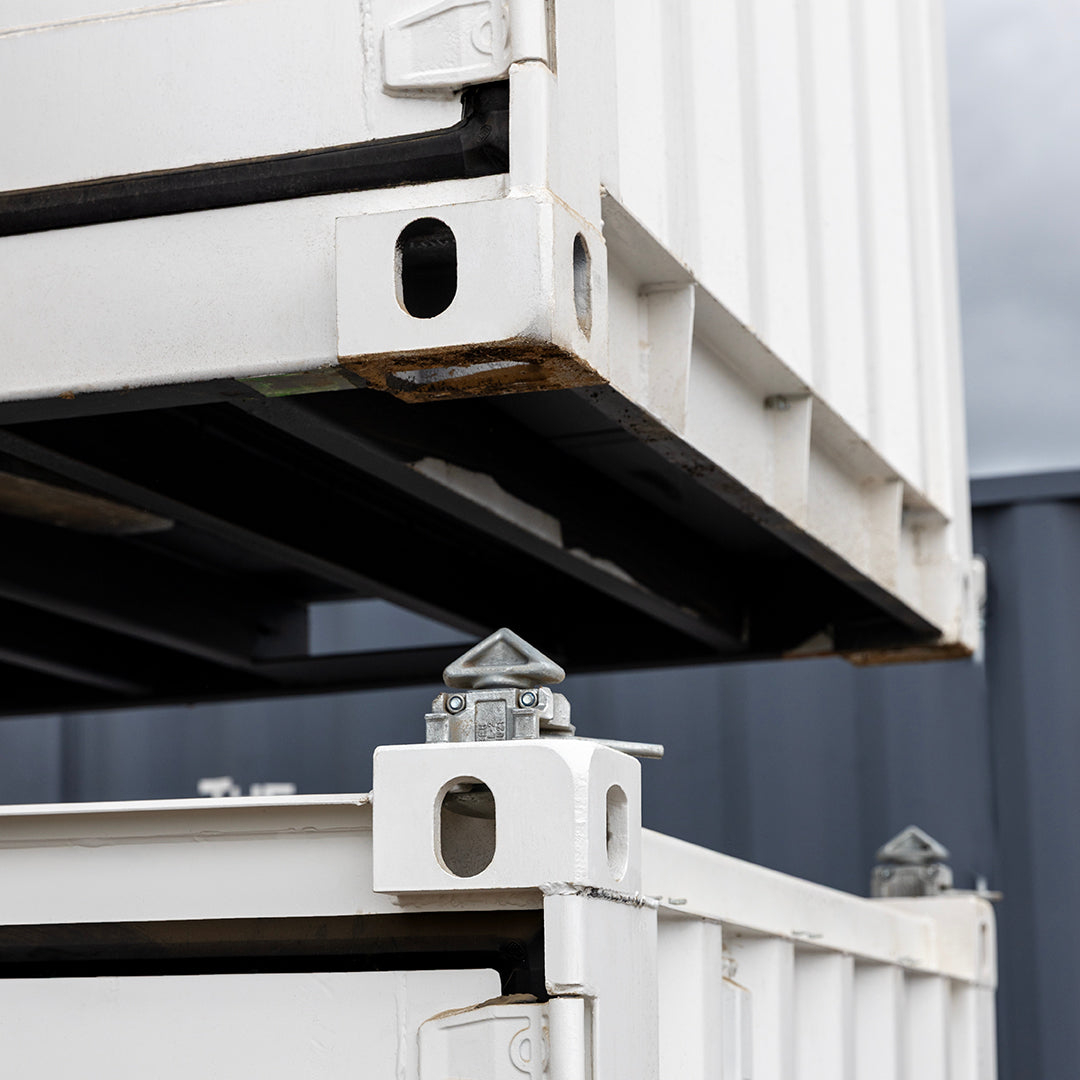

Fasten stacked shipping‑containers in port yards, prevent containers from slipping, shifting or tipping.
Lock multilayer containers on the deck of cargo ships. Resist shaking impact caused by ocean waves and stop containers from falling off during marine transportation.
Packaging & Shipping
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping. All steps are carefully made and tested by engineers.
We can provide all kinds of container spare parts, and we can also accept mixed orders into one container for transportation.
