Lockable Stacker Cone
| Product Name | Lockable Stacking Cone |
| Material | Casting Steel |
| Finish | Hot-dip Galvanised |
| Weight | 3.4kg |
| M.B.L Shear | 420KN |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
The Lockable Stacking Cone is a heavy duty twist lock device with a spring loaded trigger, designed for securely stacking ISO containers. Made from galvanised steel, it offers safe alignment and reliable locking for transport, storage, and industrial use.
Detailed Specifications
| Product Name | Lockable Stacking Cone |
| Material | Casting Steel |
| Finish | Hot-dip Galvanised |

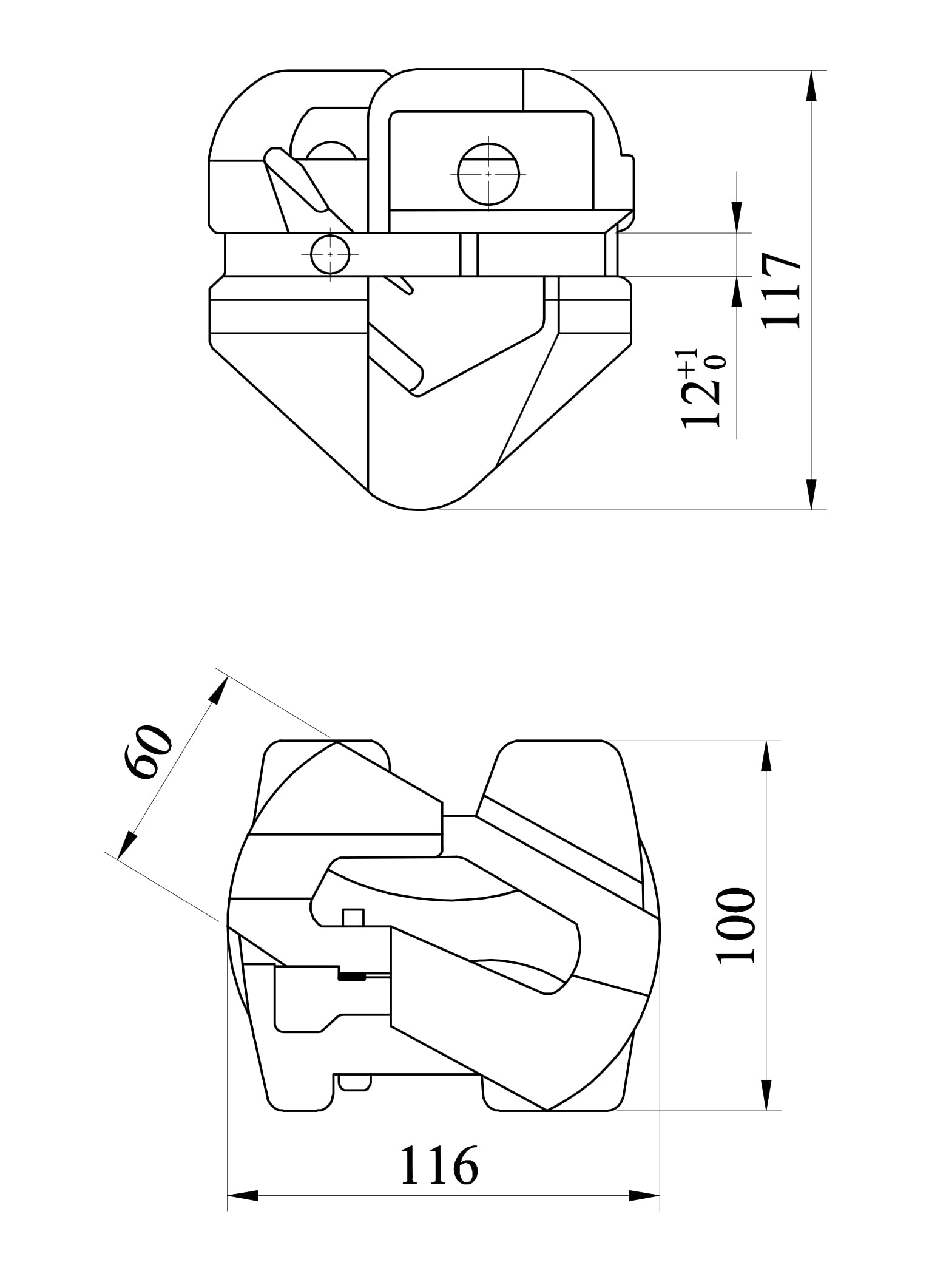

| Size | 116mm (L) x 110mm (W) x 117mm (H) |
| Weight | 3.4KG |
| M.B.L Shear | 420KN |
| Compatibility | Standard ISO Corner Castings |
| Locking Type | Twist lock with spring loaded trigger |

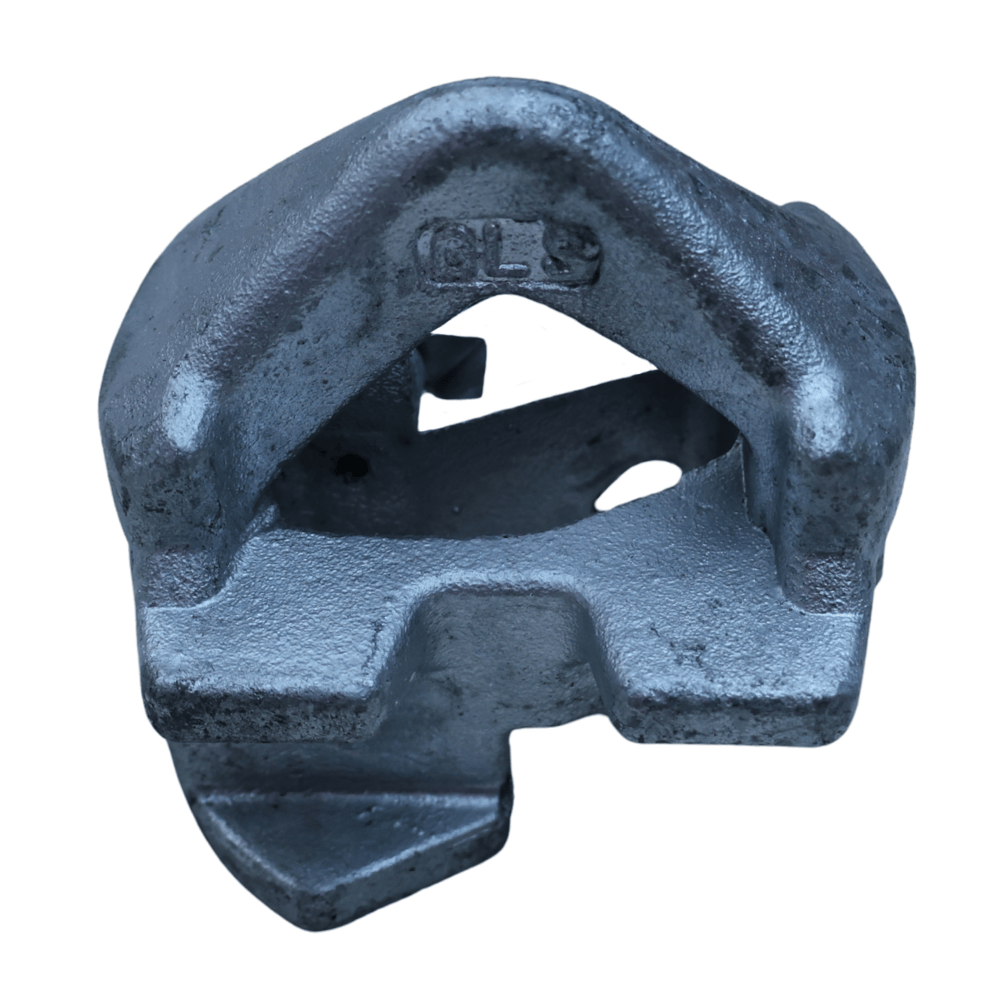

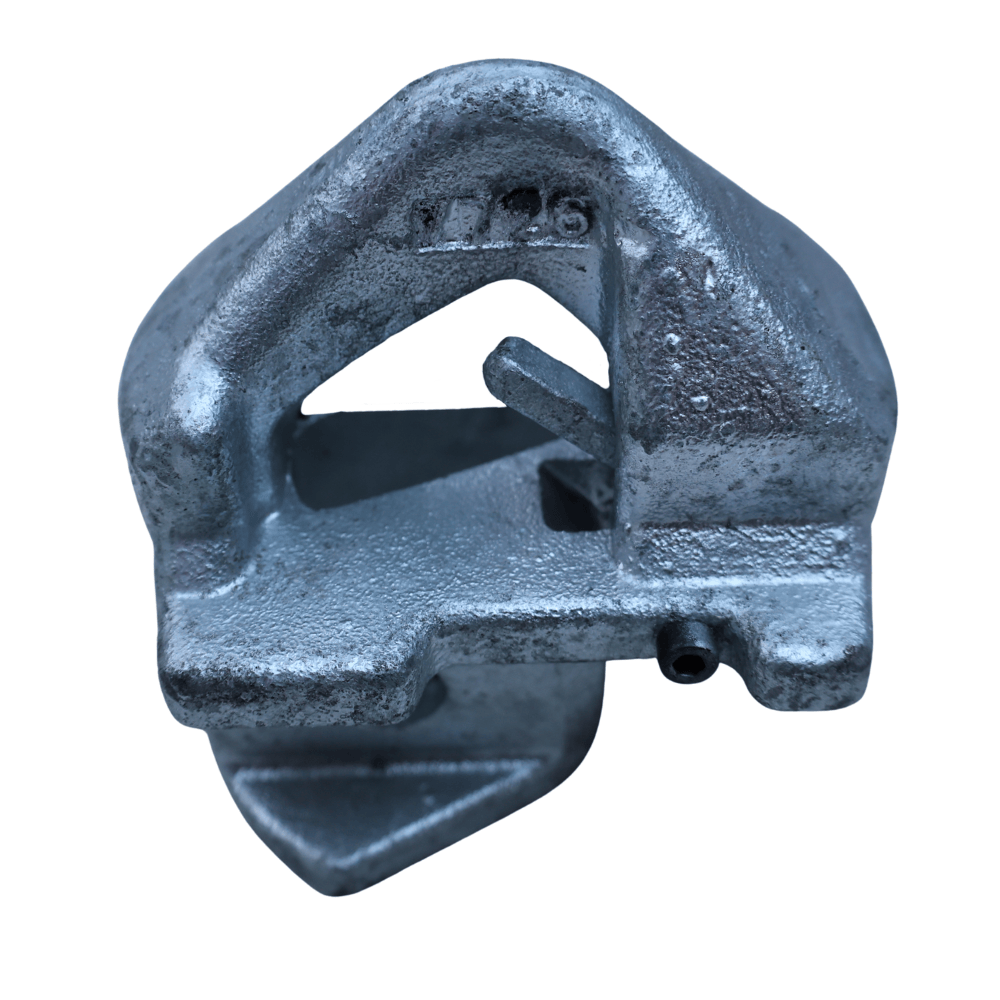

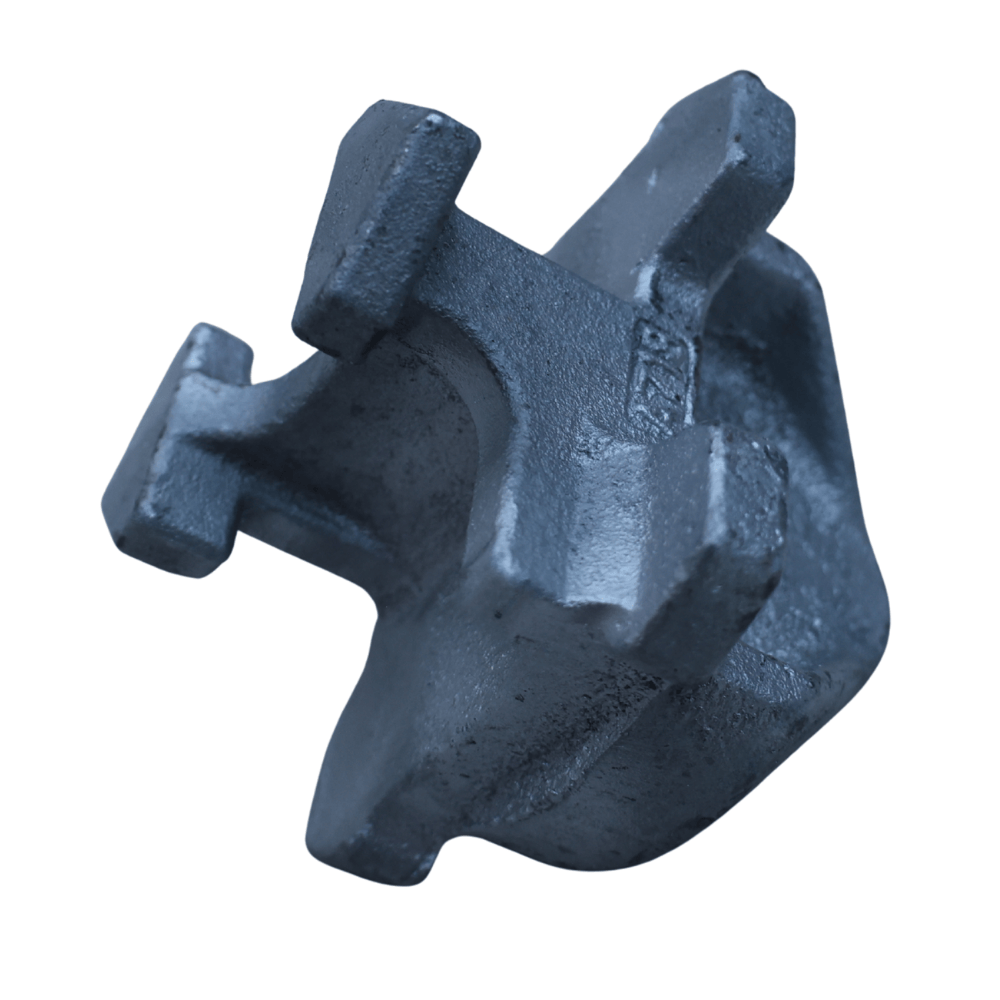

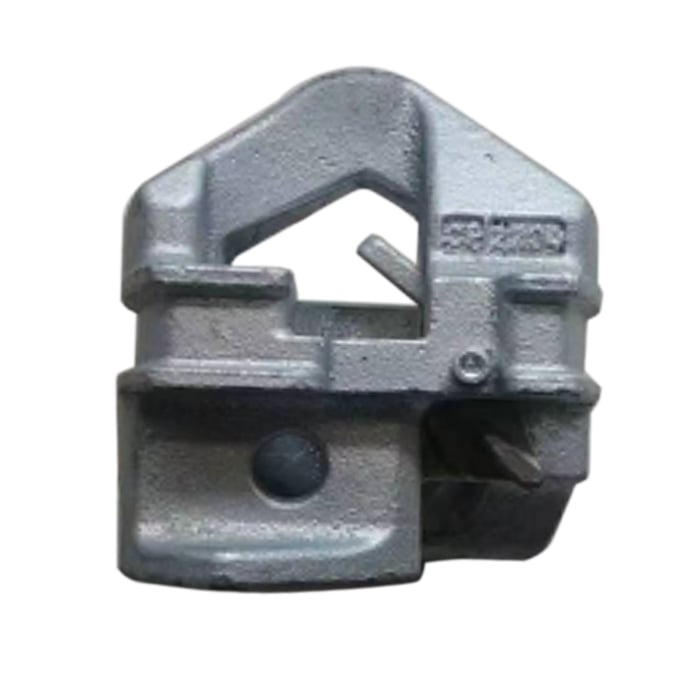

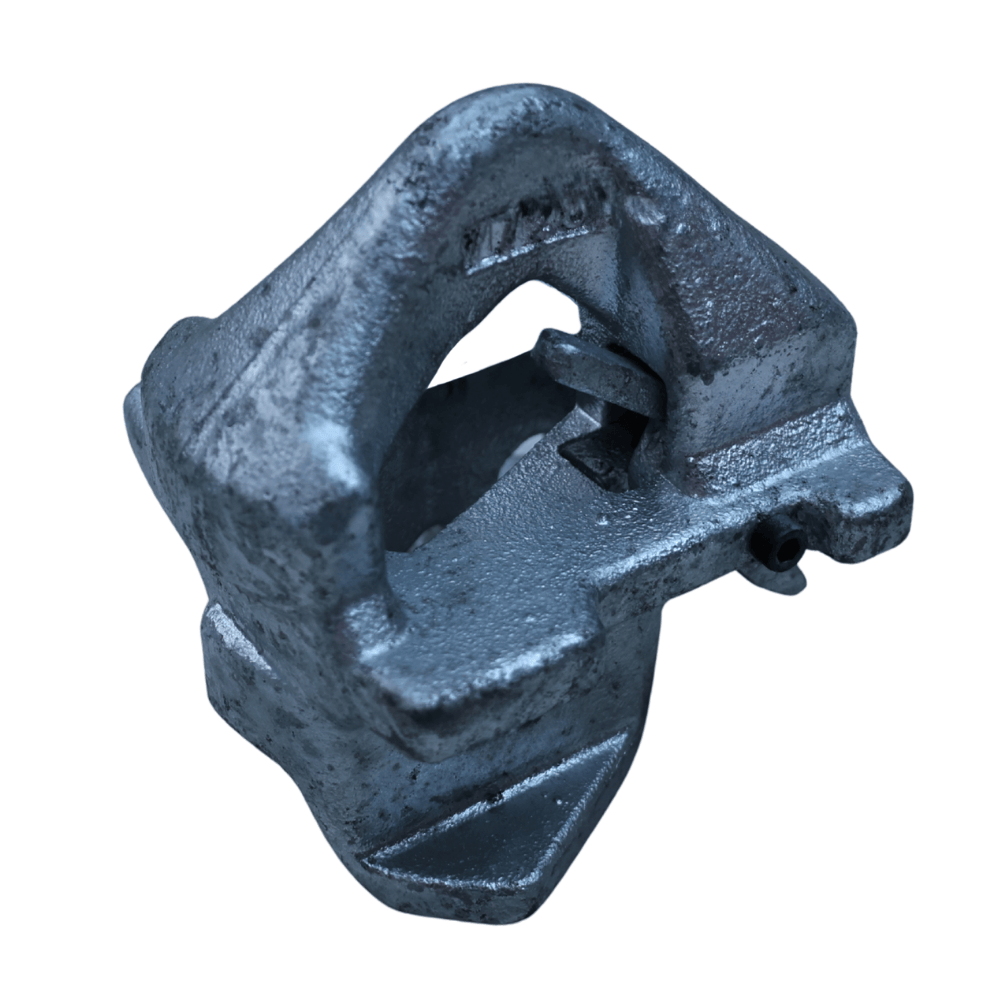

Detailed Photos
Application
During operation at the terminal, when the quay crane lifts a container to approximately chest height, the Safety Single Cone is inserted upward from below into the container’s bottom corner fitting holes. Once the container is hoisted onto the ship and aligned with a stacking cone or another container’s top corner fitting holes, it is lowered into place.

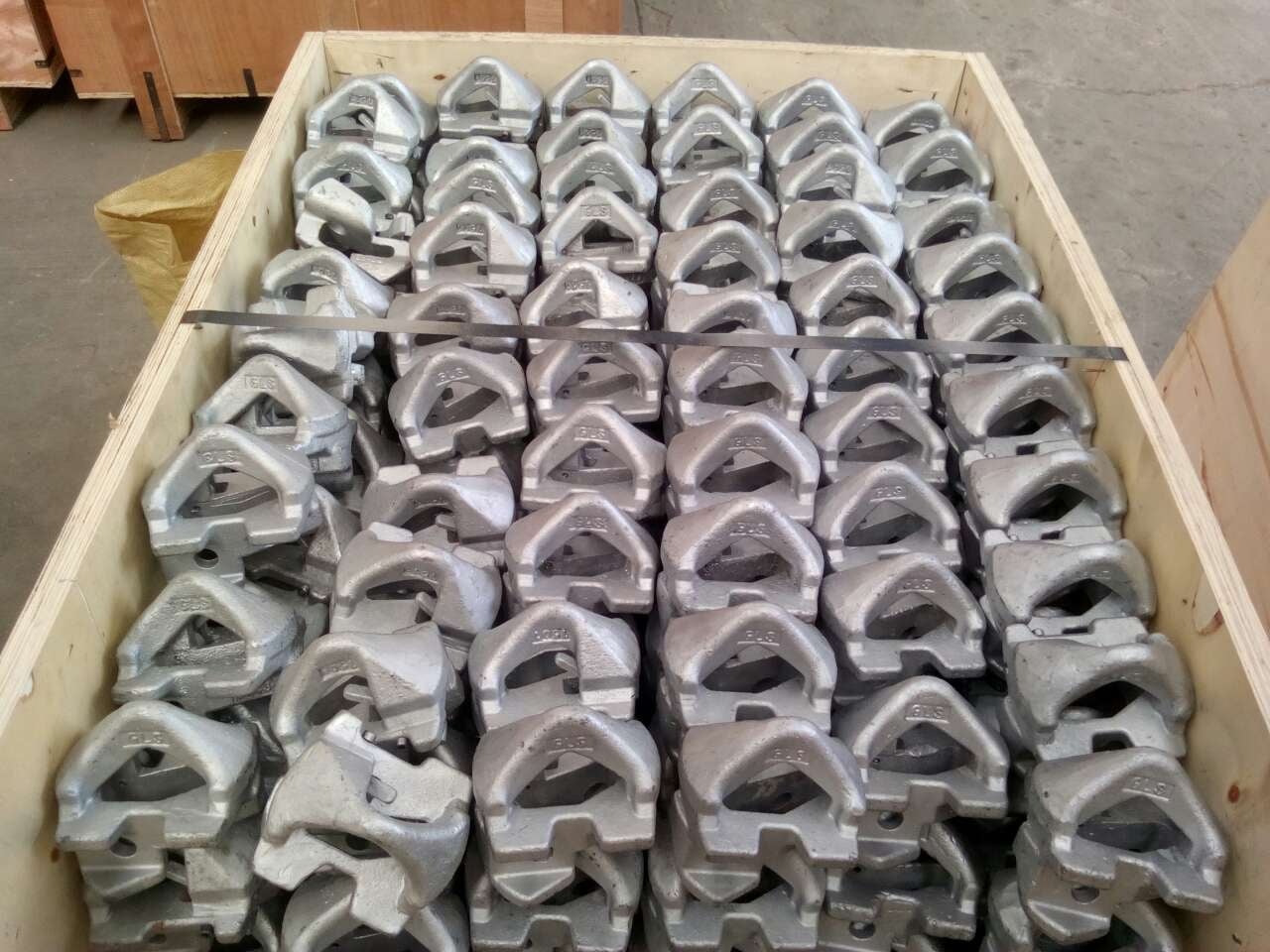

Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
