Heavy Duty Truck Electric Tailgate Lift Board Hydraulic Cantilever Tail Lift Platform for Truck Van
OEM Truck Cantilever Electric Hydraulic Lifting Tailgate Platform Truck Loading Ramp Tail Gate Lift
| Product Name | Truck Tail Lift |
| Material | Steel,Aluminium |
| Load Capacity | 1Ton,1.5Ton,2Ton,3Ton |
| Average Lifting Speed | 60-80mm/S(Speed is adjustable) |
| Usage | Used for loading and unloading cargo on trucks vans |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
High-strength plate and durable, anti-rust treated cylinder piston rod ensure long-lasting performance. Suitable for multiple industries like logistics and transportation with lifting capacities of 1-3 tons.
Advantages:
* Reduces Manual Labor – Minimizes strain on workers when loading/unloading.
* Time-Efficient – Speeds up cargo handling compared to manual methods.
* Space-Saving – Some models fold vertically to save space when not in use.
Detailed Specifications
|
Model
|
1Ton
|
1.5Ton
|
2Ton
|
3Ton
|
|
Panel Size(mm)
|
1700*1600
|
1800*1600
|
2000*1800
|
2300*1800
|
|
1800*1600
|
1800*1700
|
2100*1800
|
2400*1800
|
|
|
1800*1700
|
1900*1700
|
2200*1800
|
2500*1800
|
|
|
1900*1700
|
It can be made according to the width of the carriage
|
|||
|
Load Capacity(kg)
|
1000
|
1500
|
2000
|
3000
|
|
Weight(kg)
|
350
|
450
|
550
|
650
|
|
Motor Power(kw)
|
1.6
|
1.6/2.0/2.5
|
2.0/2.5
|
3
|
|
Motor
|
DC12V-24V/100AH-160AH
|
|||
|
Average Lifting Speed(mm/s)
|
60-80(Speed is adjustable)
|
|||
|
Applicable Carriage Ground Height(mm)
|
700-1200
|
700-1200
|
1200-1500
|
1200-1500
|
|
Hydraulic Oil
|
32#/46# Antiwear hydraulic oil
|
|||
|
Platform Working Angle
|
5°-9°
|
|||

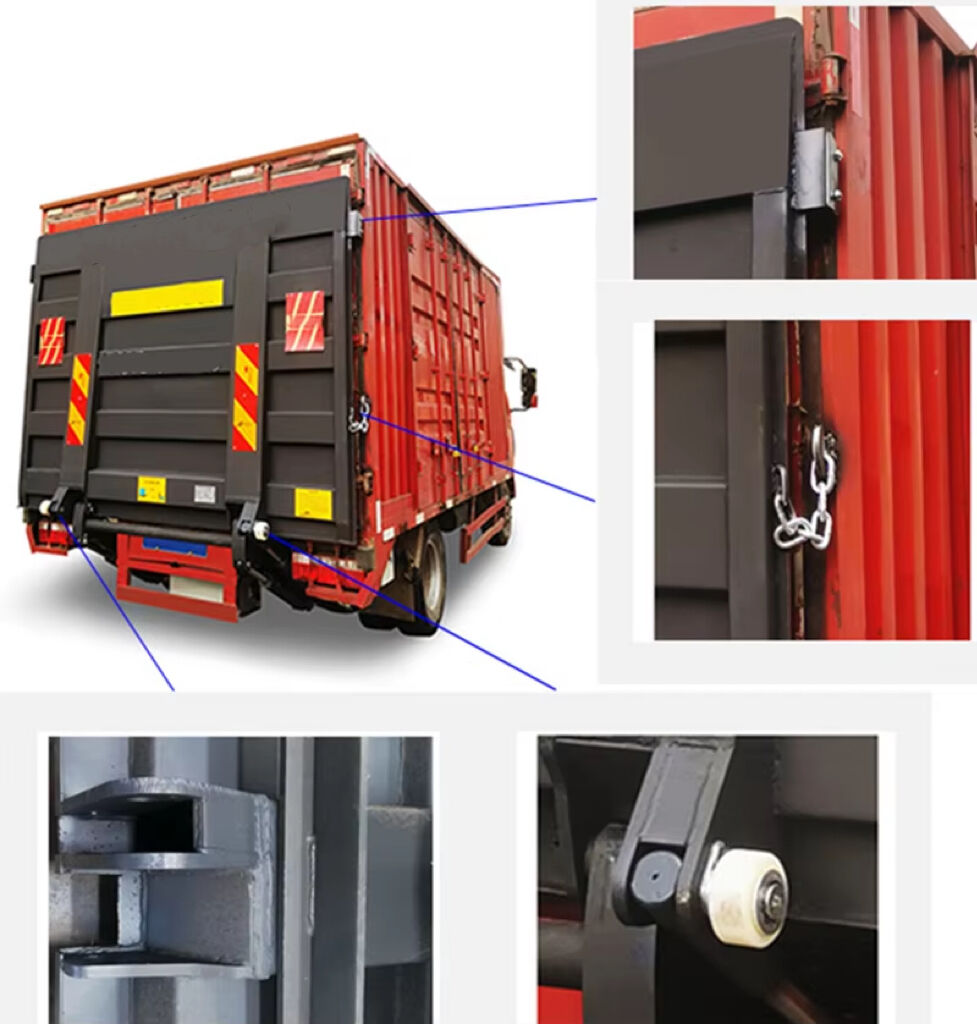

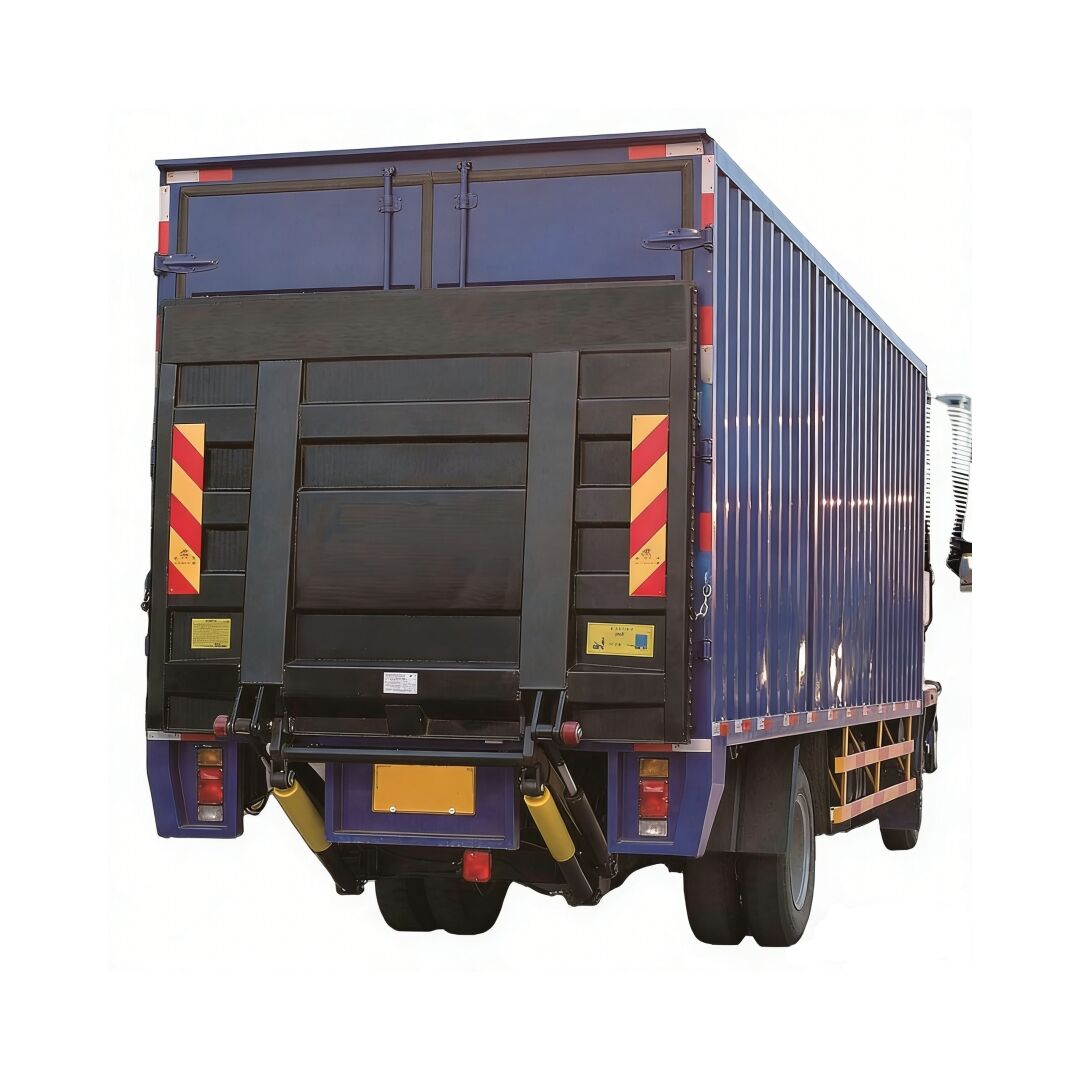

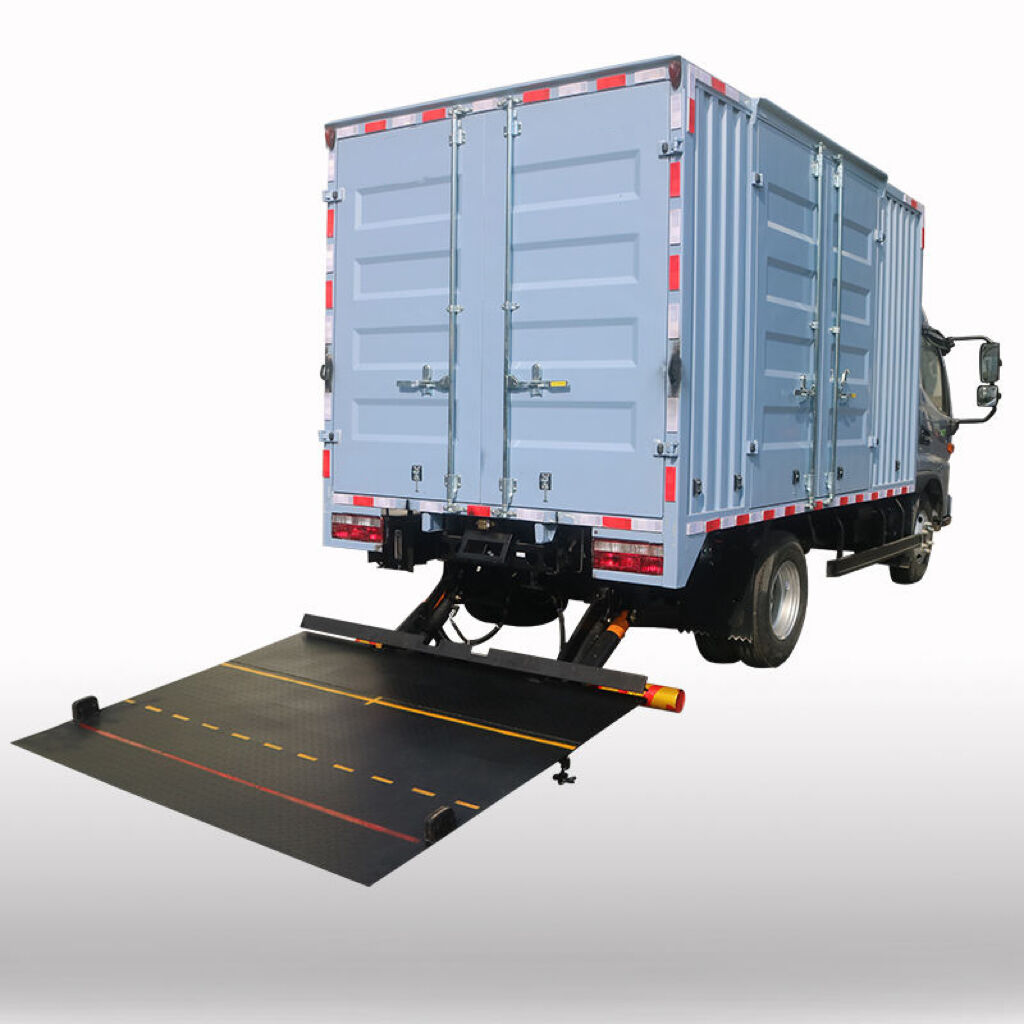

Detailed Photos

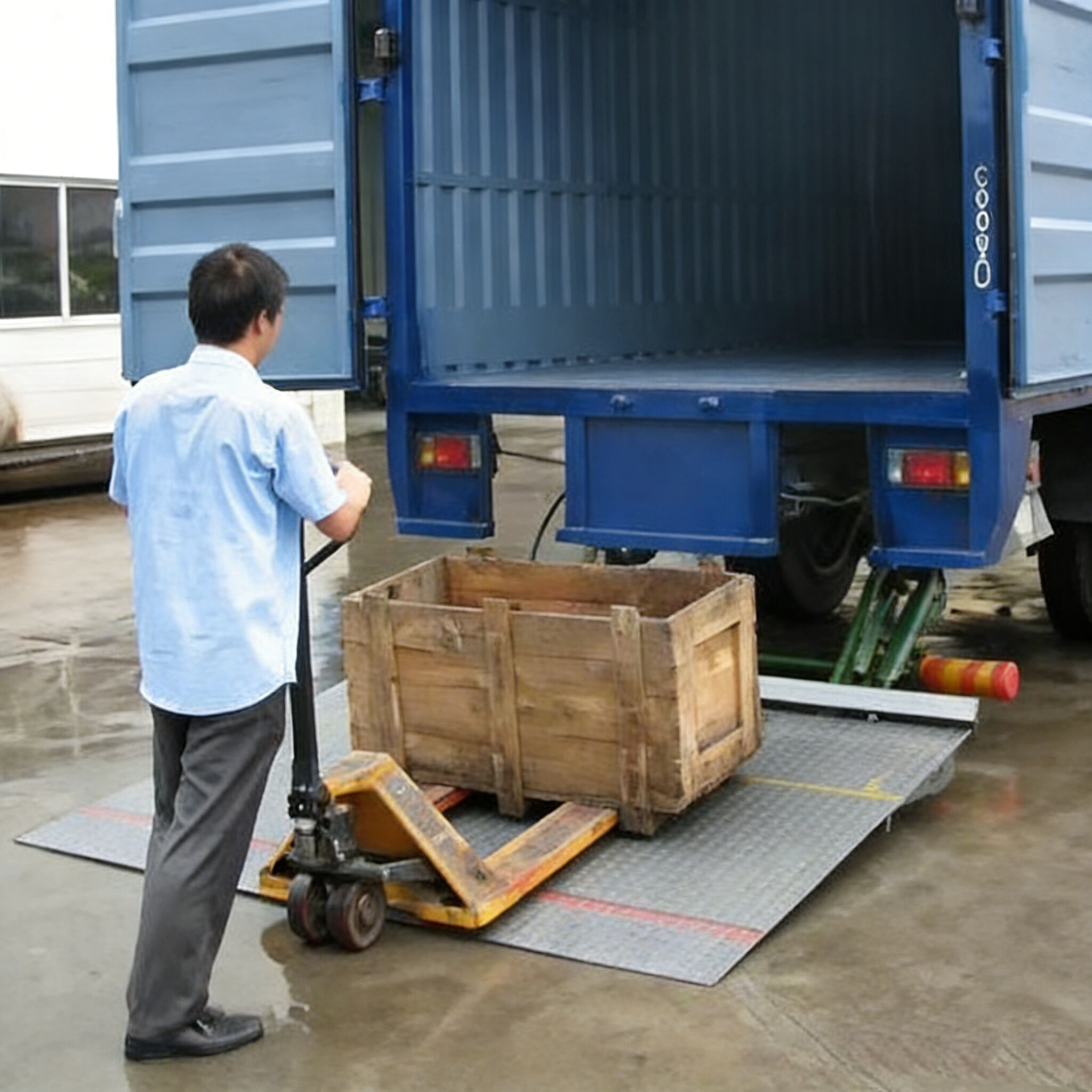

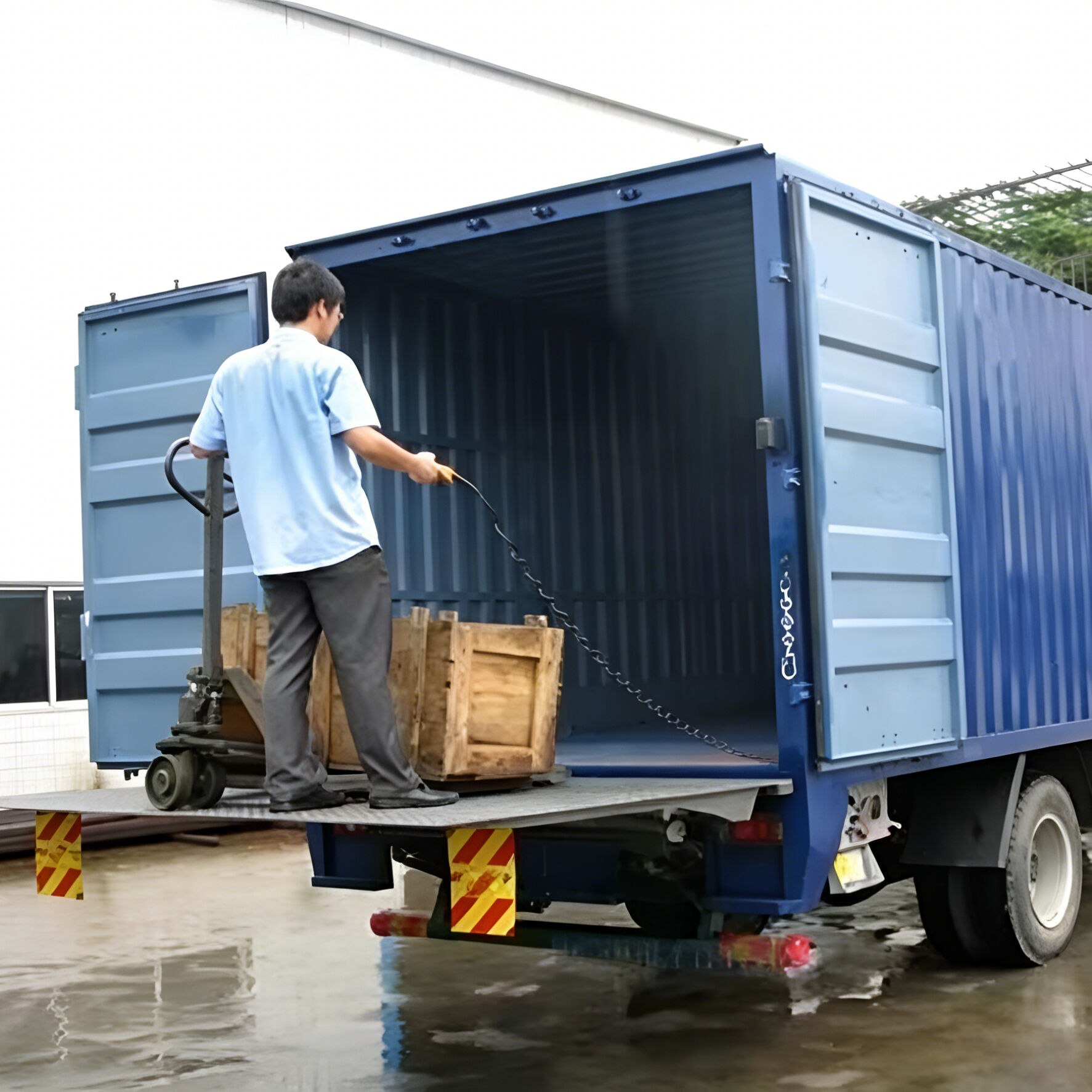

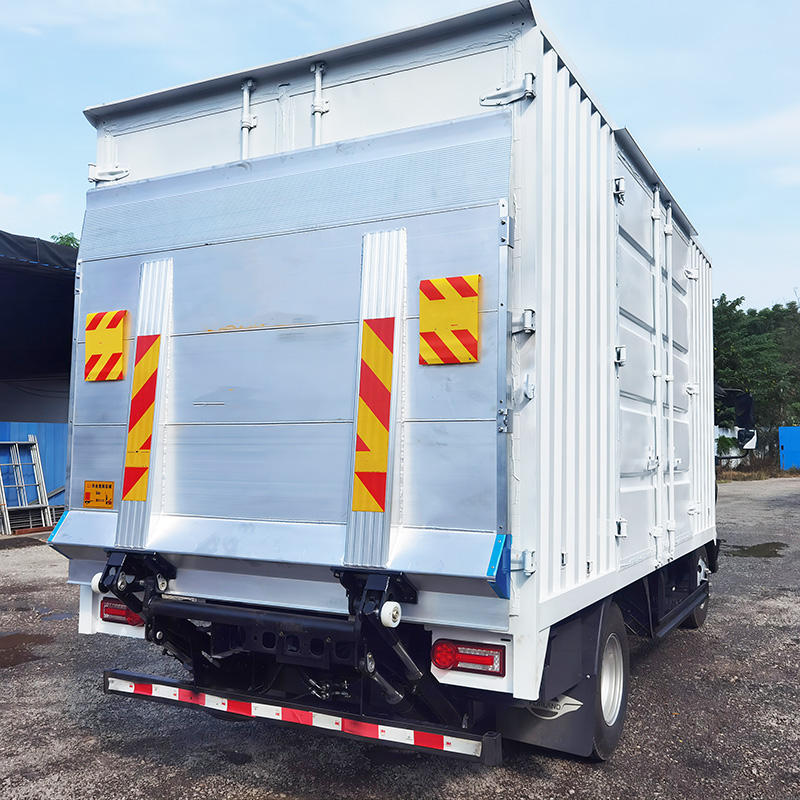

Application

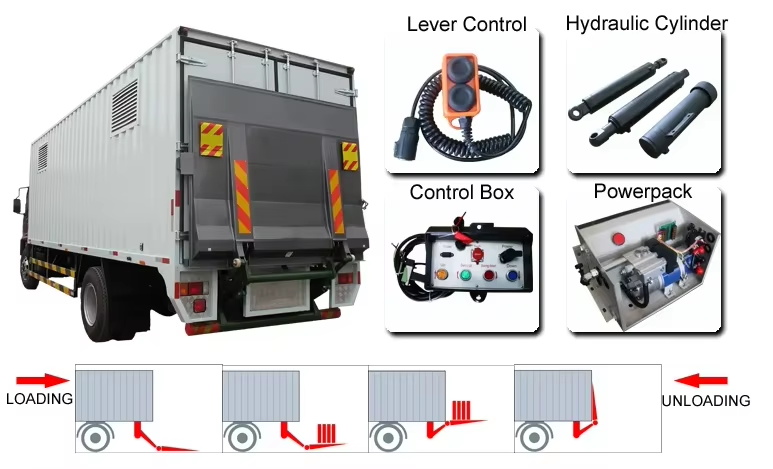

The hydraulic tail gate is a kind of device which is installed at the vehicle tail gate. It is driven by the vehicle power. Vehicles installed with tail gate is beneficial to the mechanical loading and unloading operations, thus highly improves the loading efficiency and safety.
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
