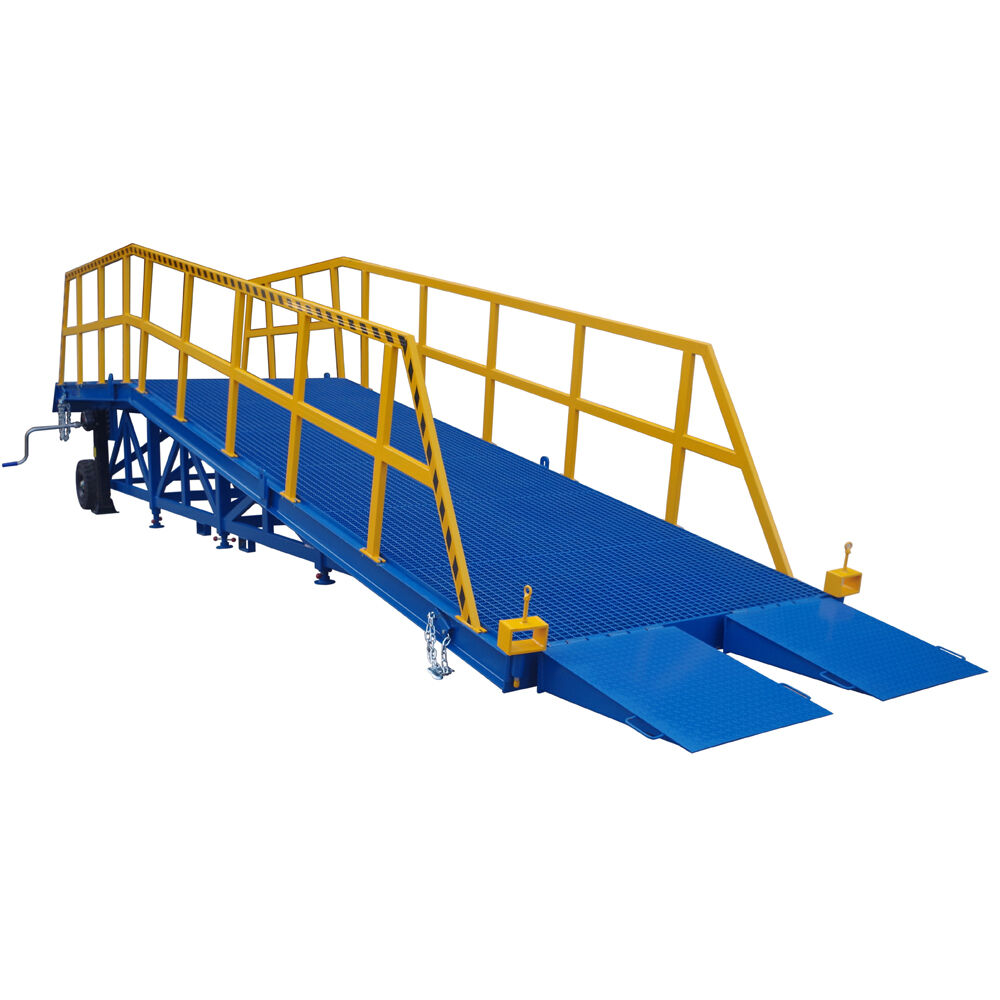

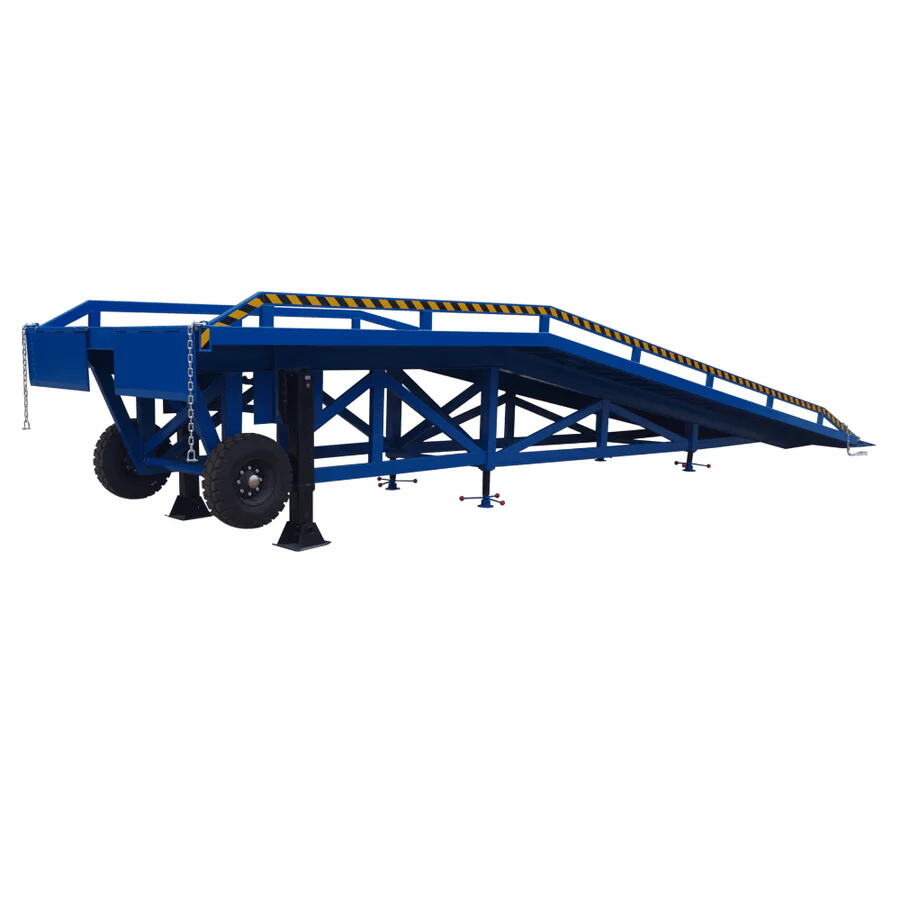

Heavy Duty Steel Mobile Container Forklift Yard Ramp Portable Truck Loading Dock Ramp
8T 10T 12T 16T Portable Container Forklift Dock Ramp Truck Dock Plate Leveler
|
Product Name
|
Mobile Yard Ramp
|
|
Material
|
Steel
|
|
Capacity
|
8Ton,10ton,12Ton,16Ton
|
|
Length
|
Standard: 10000mm
Long: 13000mm |
|
Width
|
2200mm
|
|
Size(Platform+Ramp )
|
Standard:3000mm+7000mmx2200mmx1200 -1680mm
Long:3000mm+9000mmx2200mmx1200-1680mm |
|
Working Height
|
Adjustable 1200mm - 1680mm
|
|
Weight
|
2930-3966kg
|
|
Color
|
Blue or Customized
|
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

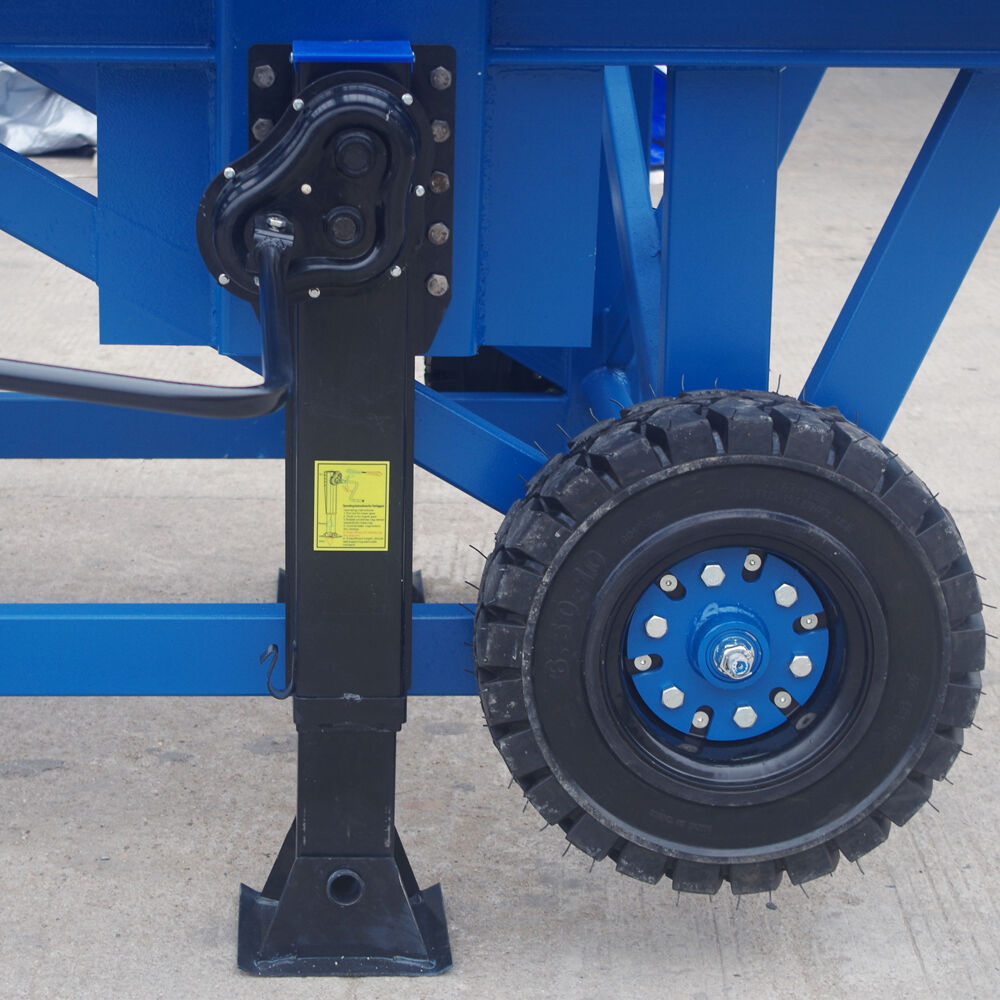

The mobile dock leveler is an auxiliary equipment for heavy forklift and handling equipment in the loading and unloading of container trucks. It can be moved easily and can realize quick loading and unloading of goods. The rolling bridge is operated by hand hydraulic pump, without power supply and suitable for loading and unloading of various occasions.
Advantage：
We can supply 8-16T yard ramp.
Hand rails are optional.
Fork pockets boths side make it easier to move the yard ramp by forklift.
Each yard ramp has lifting eye for loading and transportation.

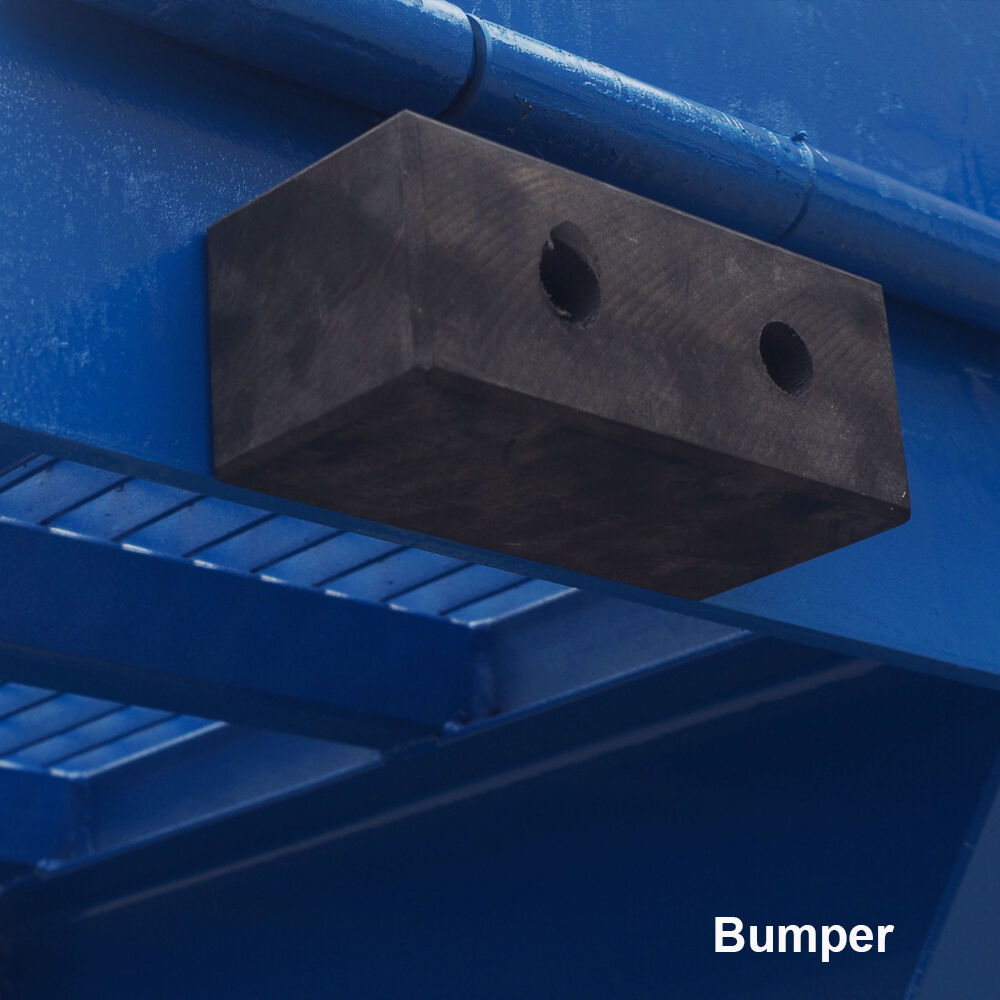

Bumpers ahead can protect both truck or ramps.
Size:
|
Model
|
Capacity(ton)
|
Weight(kg)
|
Length(mm)
|
Dimensions (Platform+Ramp L*W*H )(mm)
|
|
8T-1
|
8
|
2930
|
10000
|
3000+7000x2200x1200 -1680
|
|
8T-2
|
8
|
3150
|
10000
|
3000+7000x2200x1200 -1680
|
|
8T-3
|
8
|
3090
|
13000
|
3000+9000x2200x1200 -1680
|
|
8T-4
|
8
|
3346
|
13000
|
3000+9000x2200x1200 -1680
|
|
10T-1
|
10
|
2970
|
10000
|
3000+7000x2200x1200 -1680
|
|
10T-2
|
10
|
3010
|
10000
|
3000+7000x2200x1200 -1680
|
|
10T-3
|
10
|
3130
|
13000
|
3000+9000x2200x1200 -1680
|
|
10T-4
|
10
|
3386
|
13000
|
3000+9000x2200x1200 -1680
|
|
12T-1
|
12
|
3200
|
10000
|
3000+7000x2200x1200 -1680
|
|
12T-2
|
12
|
3420
|
10000
|
3000+7000x2200x1200 -1680
|
|
12T-3
|
12
|
3200
|
13000
|
3000+9000x2200x1200 -1680
|
|
12T-4
|
12
|
3456
|
13000
|
3000+9000x2200x1200 -1680
|
|
16T-1
|
16
|
3300
|
10000
|
3000+7000x2200x1200 -1680
|
|
16T-2
|
16
|
3520
|
10000
|
3000+7000x2200x1200 -1680
|
|
16T-3
|
16
|
3776
|
13000
|
3000+9000x2200x1200 -1680
|
|
16T-4
|
16
|
3966
|
13000
|
3000+9000x2200x1200 -1680
|

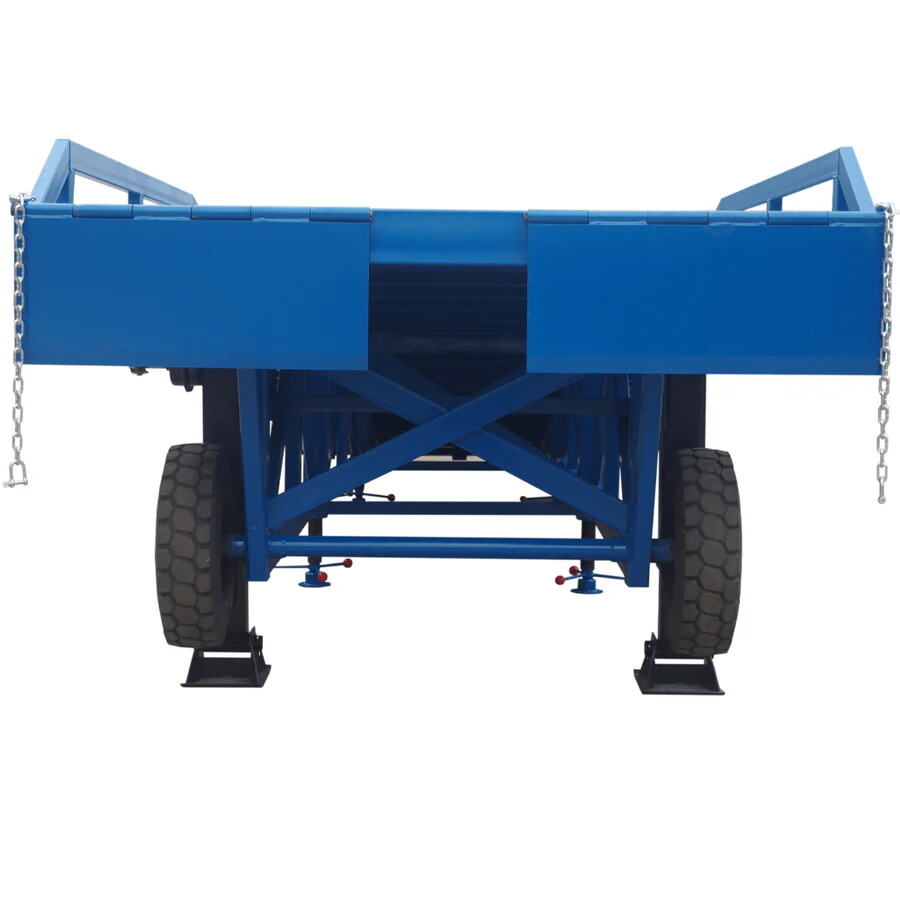

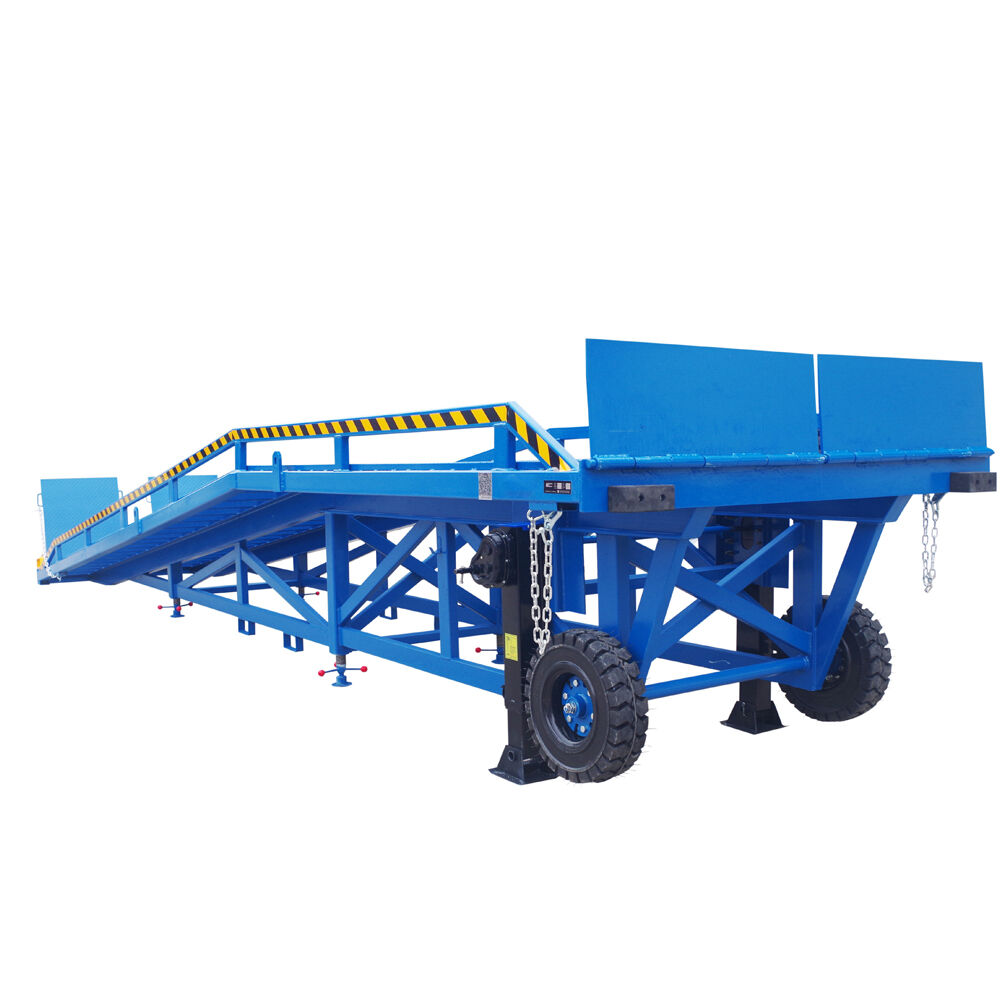

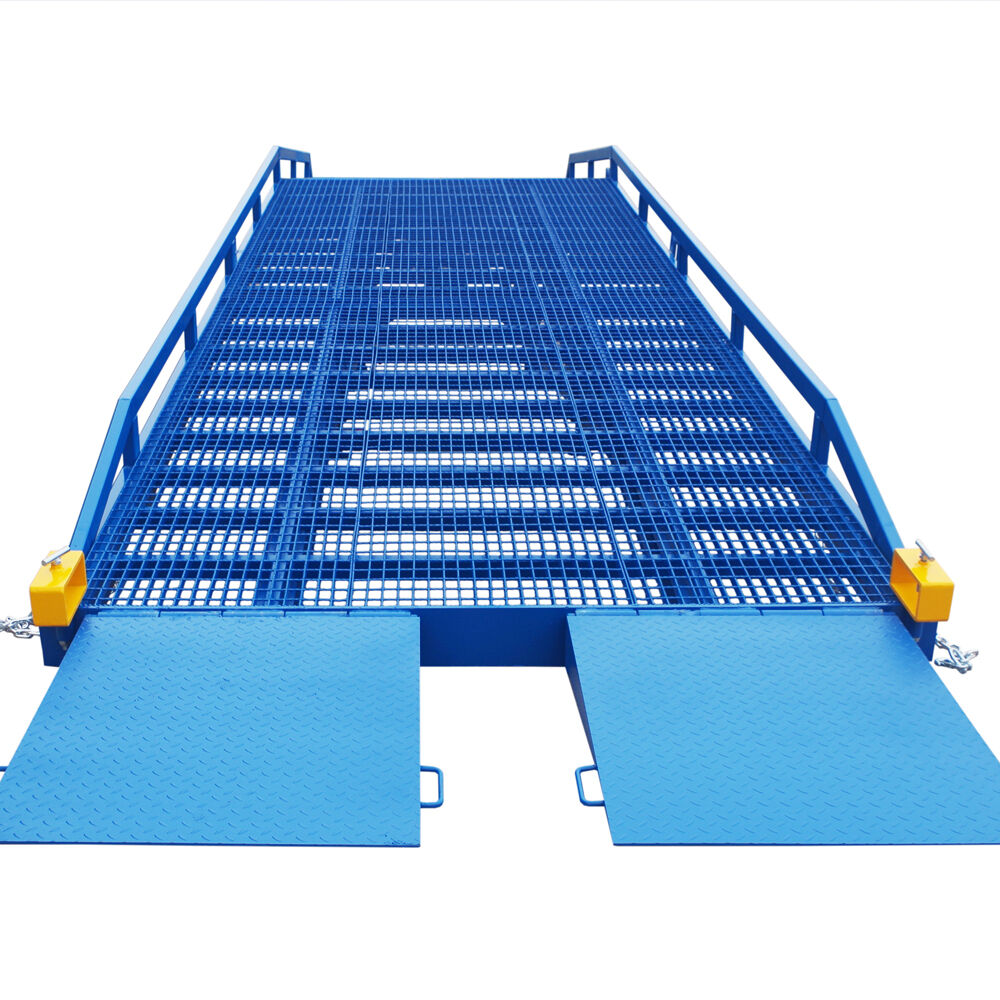

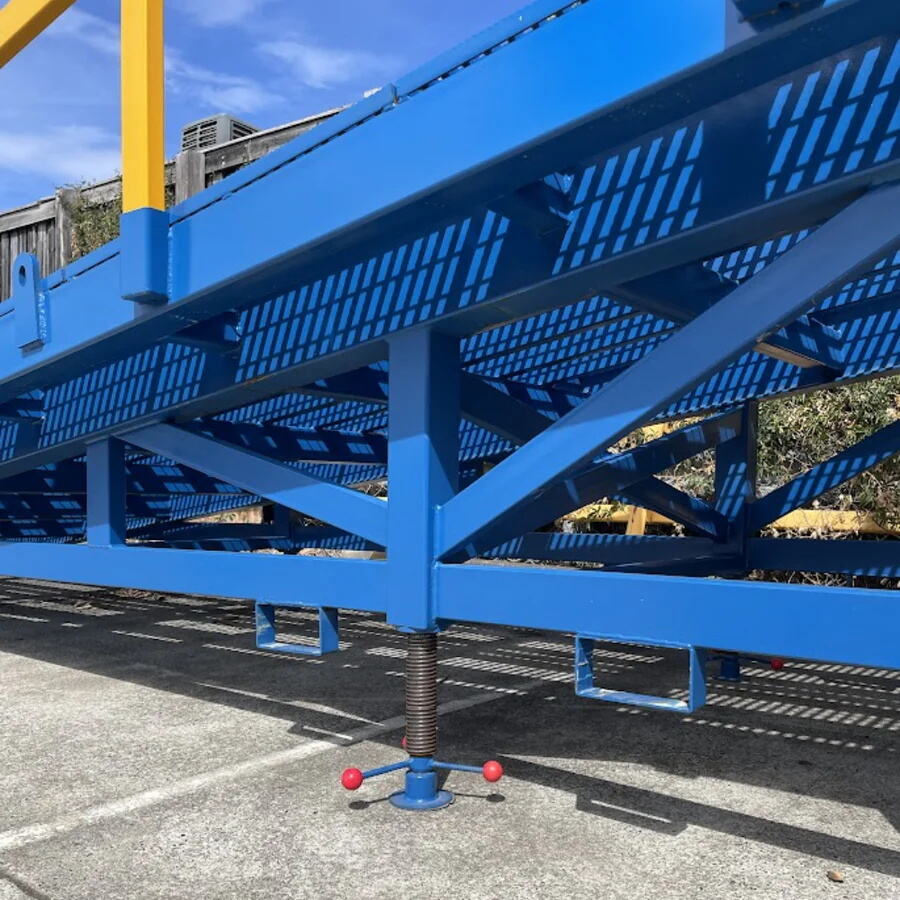

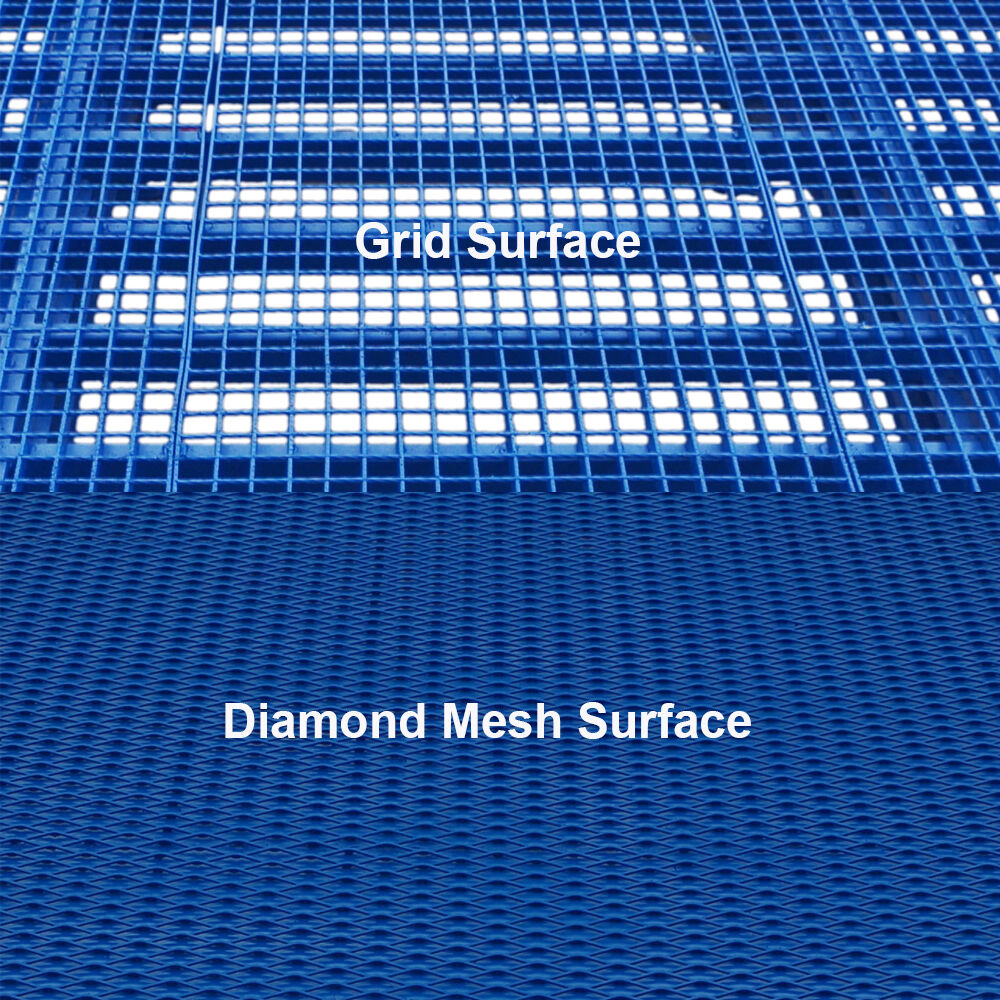

Detailed Photos

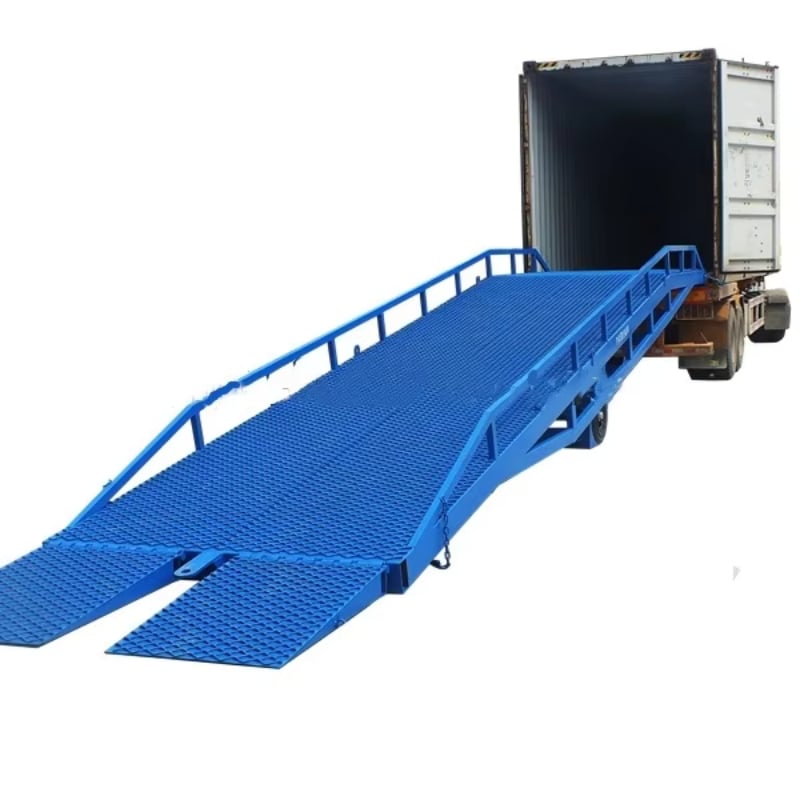

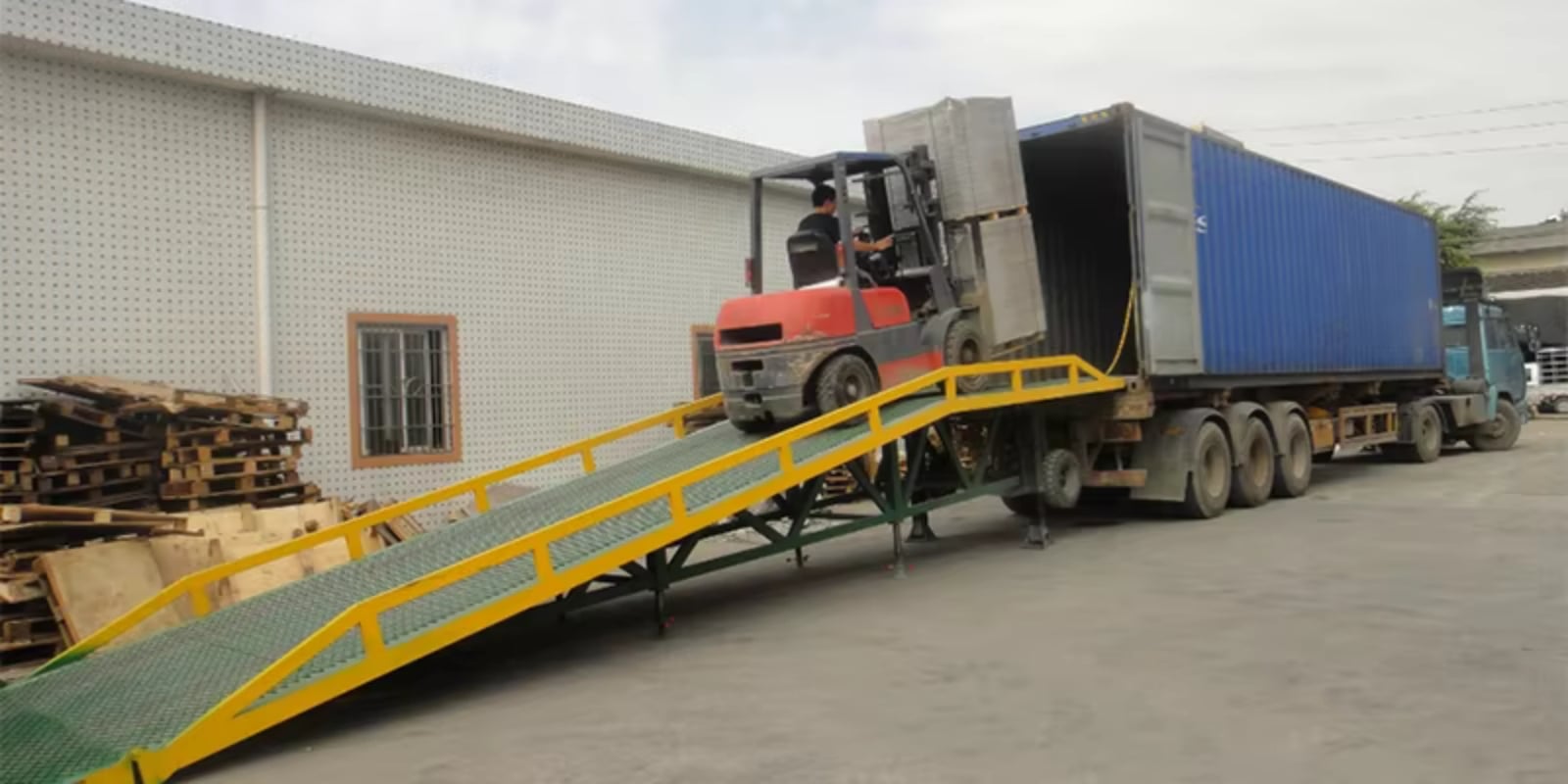

Application

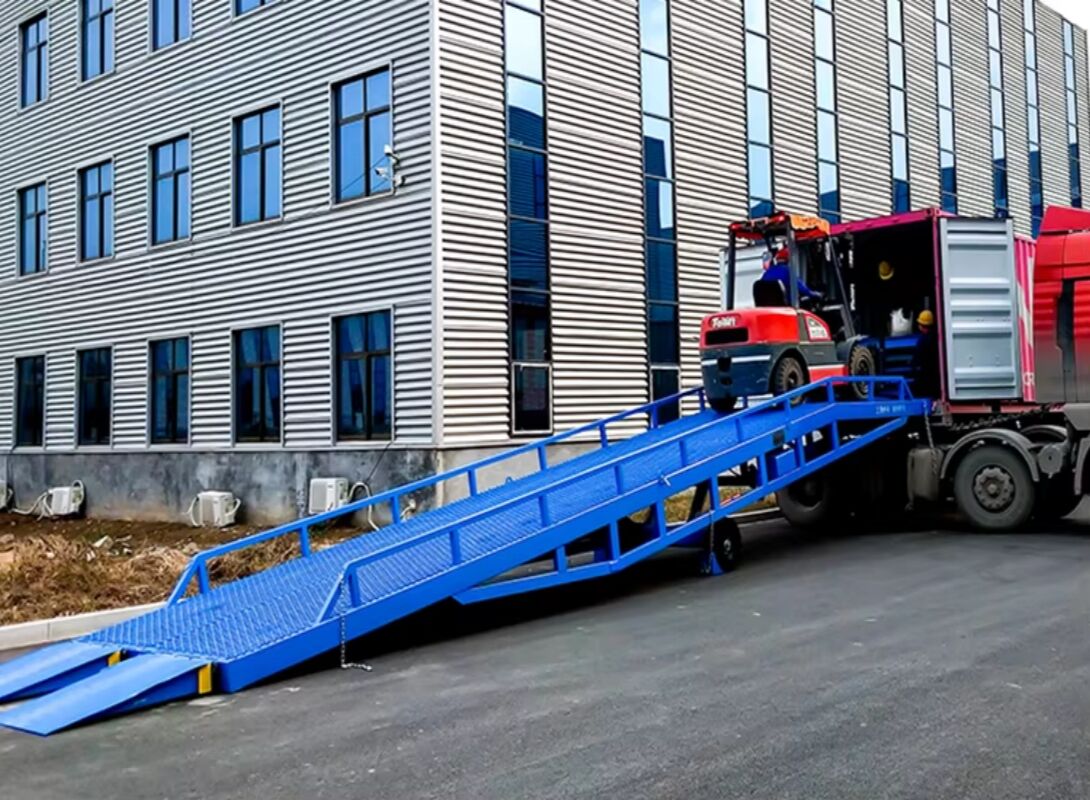

Ramp is for cargo handling and forklift use, with adjustable height according to the level of automobile car. With this dock ramp, truck can directly go through into interior of the container for bulk cargo handling. With only a single person operation, you can achieve rapid loading and unloading of goods. It enables companies to reduce a lot of labor, improve efficiency, and obtain greater economic benefits.
Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
