8 Ton Heavy Duty Long Forklift Container Loading and Unloading Ramp for Warehouse
Heavy Duty Steel Ground Level Container Access Ramps Dock Loading Plate Ramp Board
|
Product Name
|
Forklift Container Ramp
|
|
Material
|
Steel
|
|
Finish
|
Enamel Painted
|
|

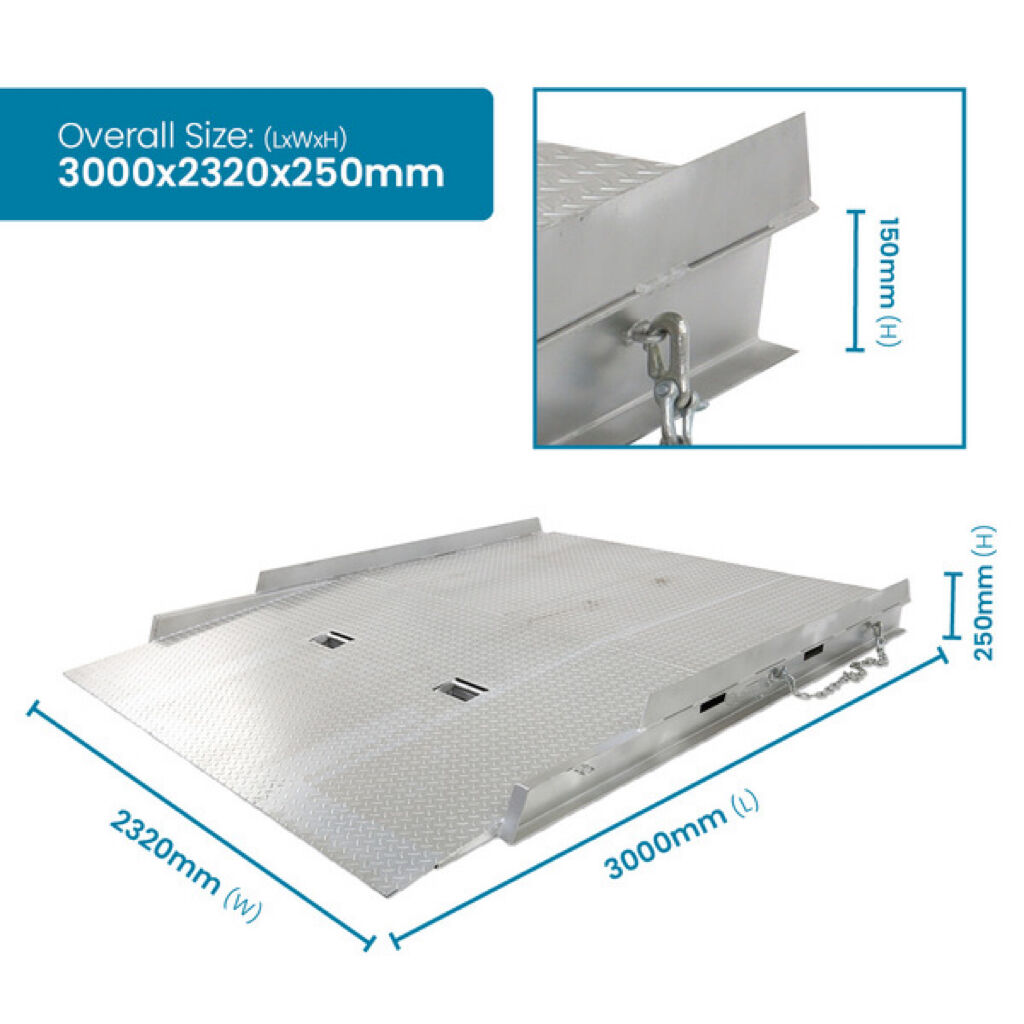

Size
|
3000*2320*250mm
|
|
Overall Length
|
3000mm
|
|
Driveway Width
|
160*65mm
|
|

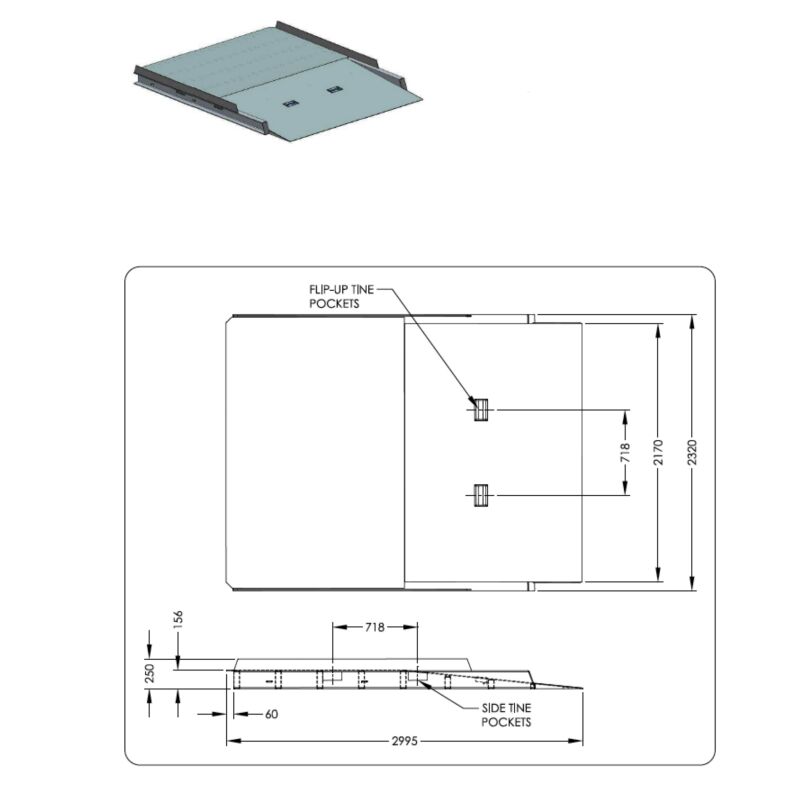

Top Fork Slot Centres
|
718mm
|
|
Weight
|
600kg
|
|
Safe Working Load
|
8000kg
|
|
Color
|
Customized Color
|
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
• Heavy duty construction to suit most applications where container access is required by a forklift.
• 3m ramp length (1.5m of which is horizontal) allows easy pickup of first pallet where forklift has insufficient forward tilt.
• Raised side plates prevent forklift from driving off the side of ramp.
• Fitted with pockets each side, plus flip-up front tine pockets to allow forklift access from all sides.
• Safety chains ensure a safe connection to the container while in use.

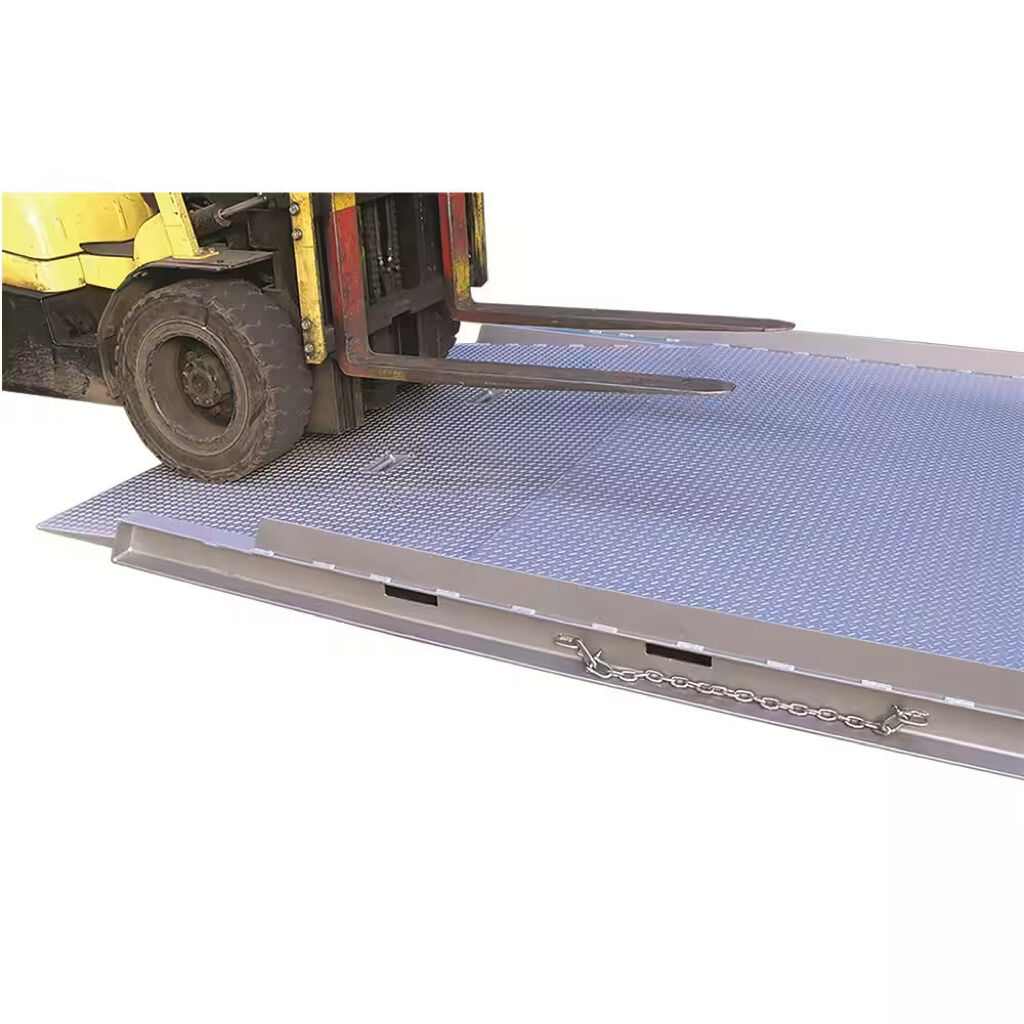

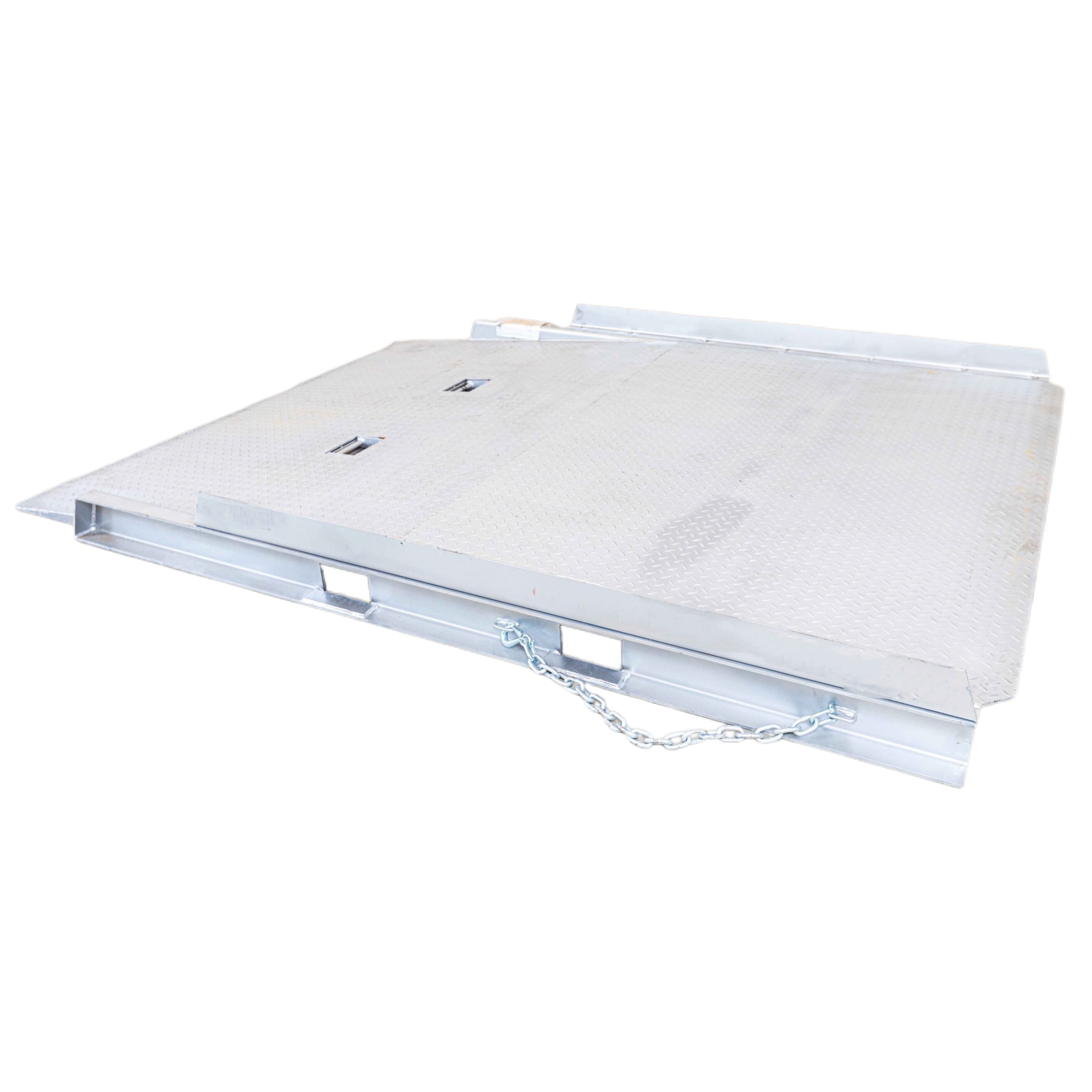

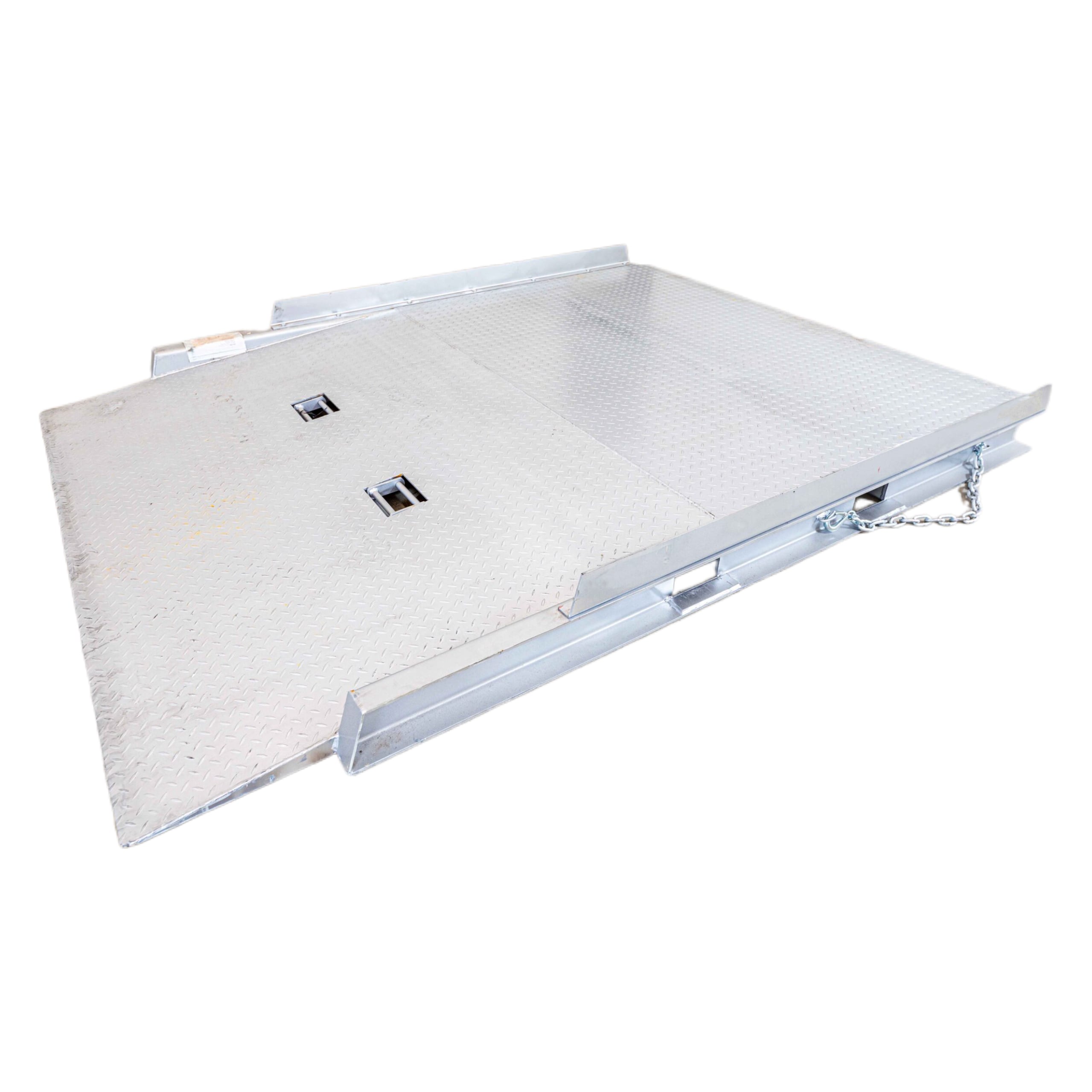

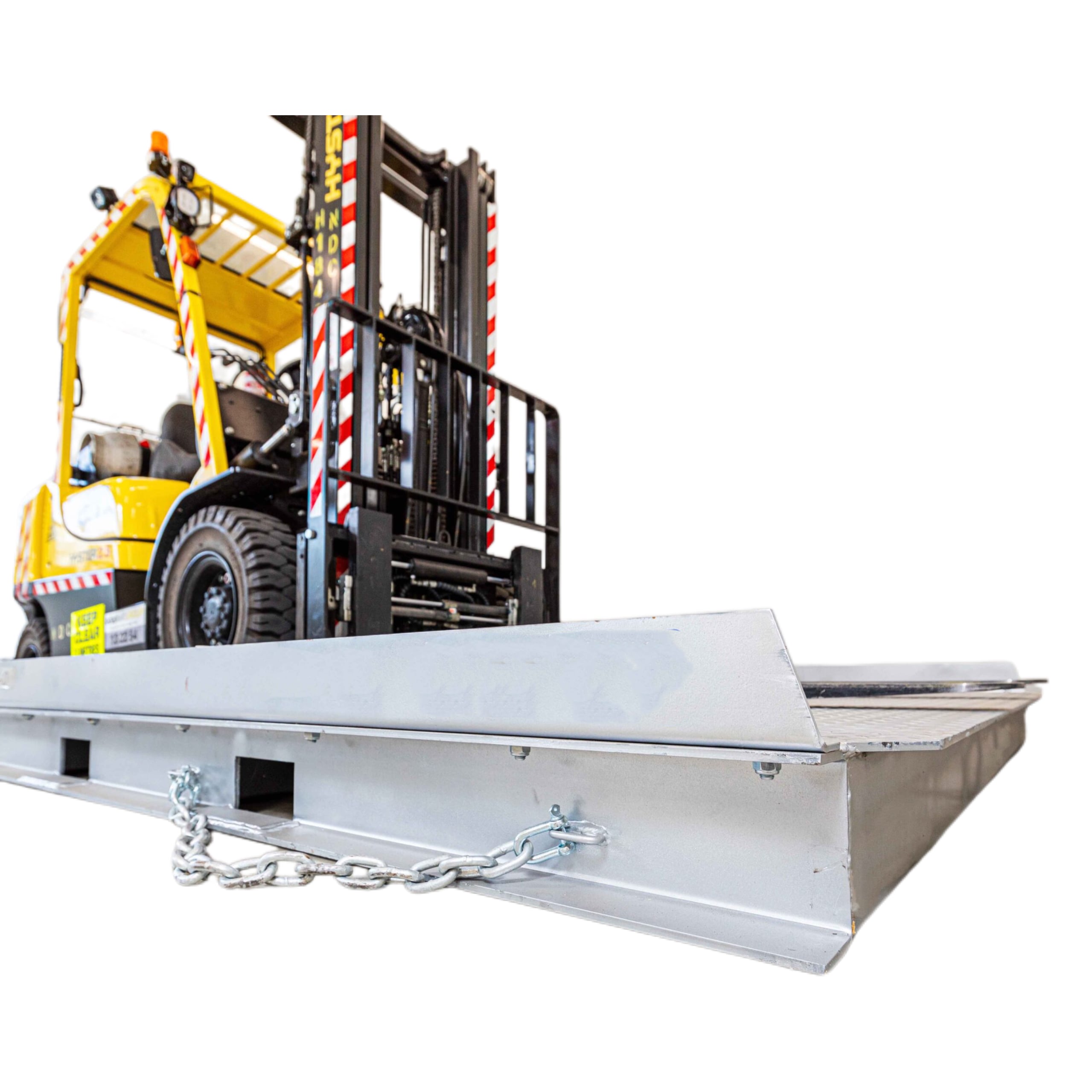

Detailed Photos

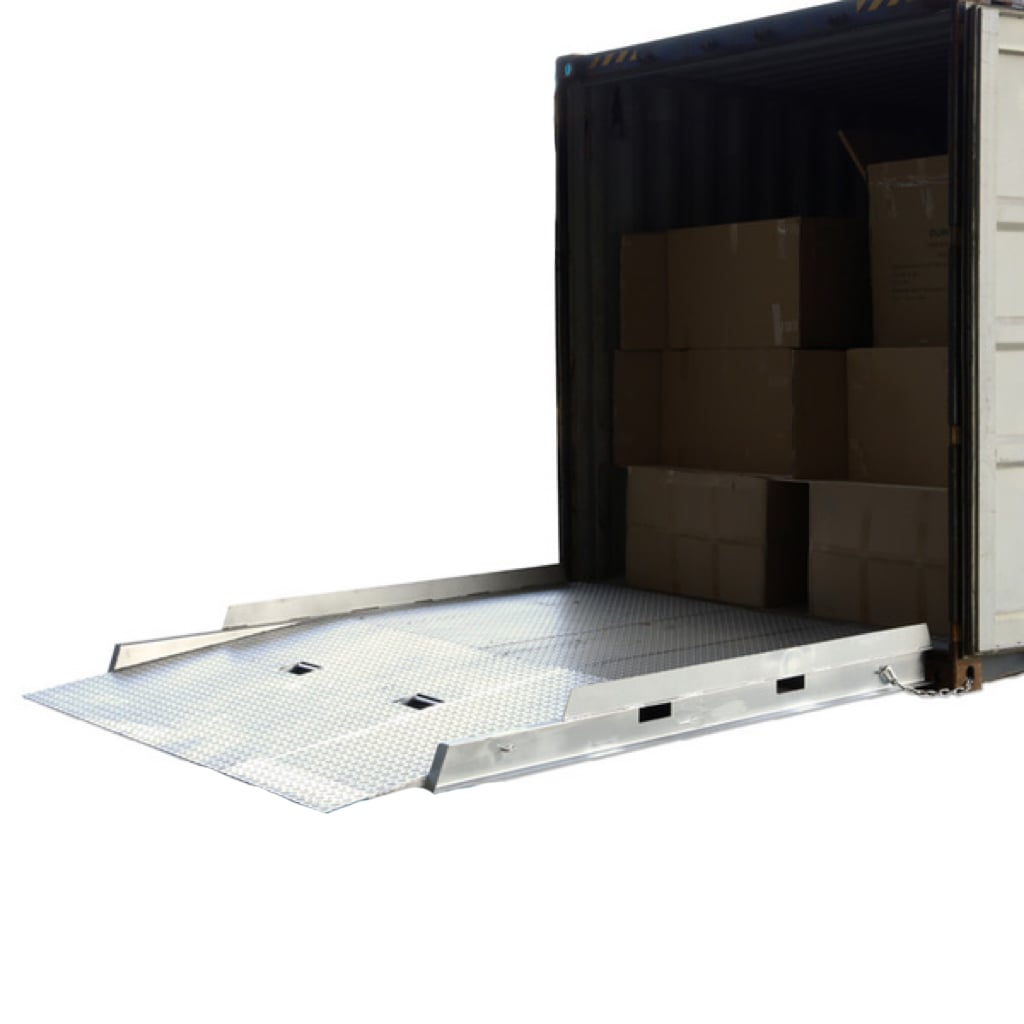

Application

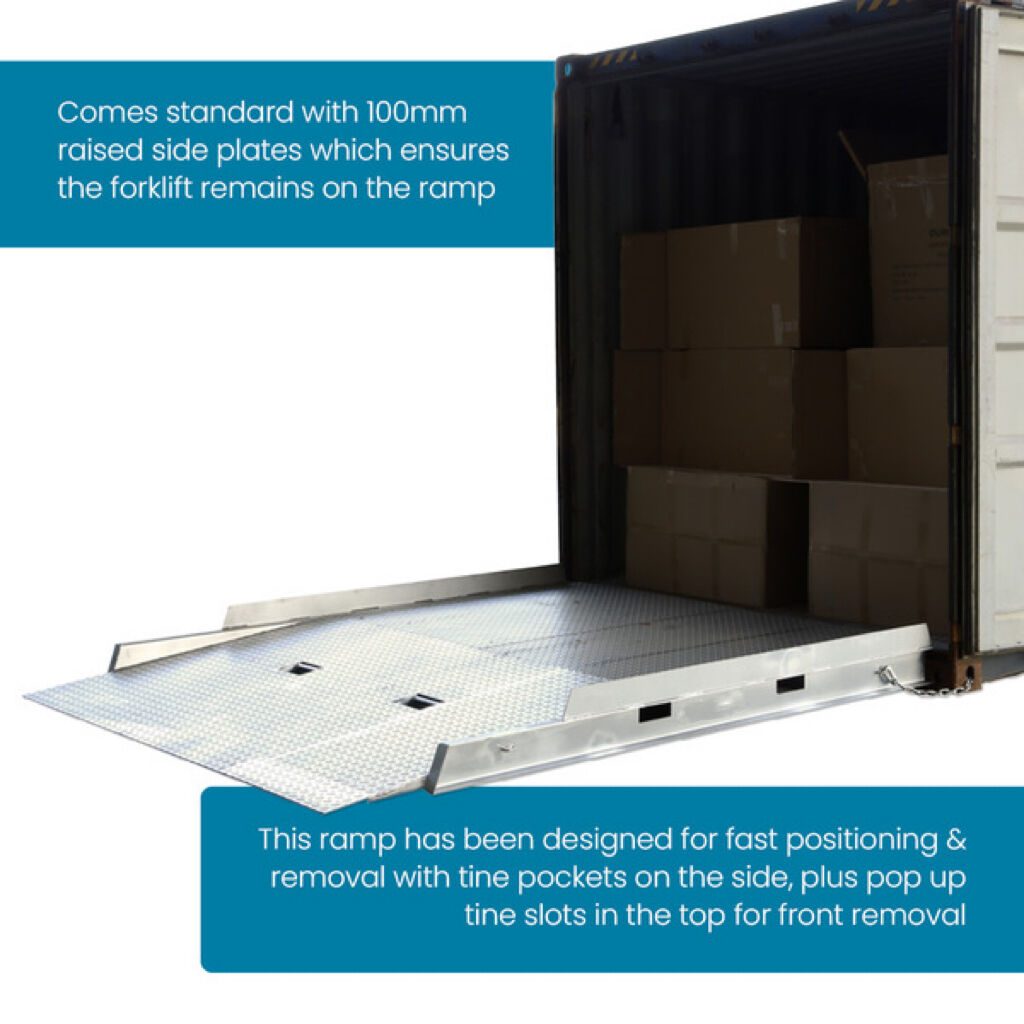

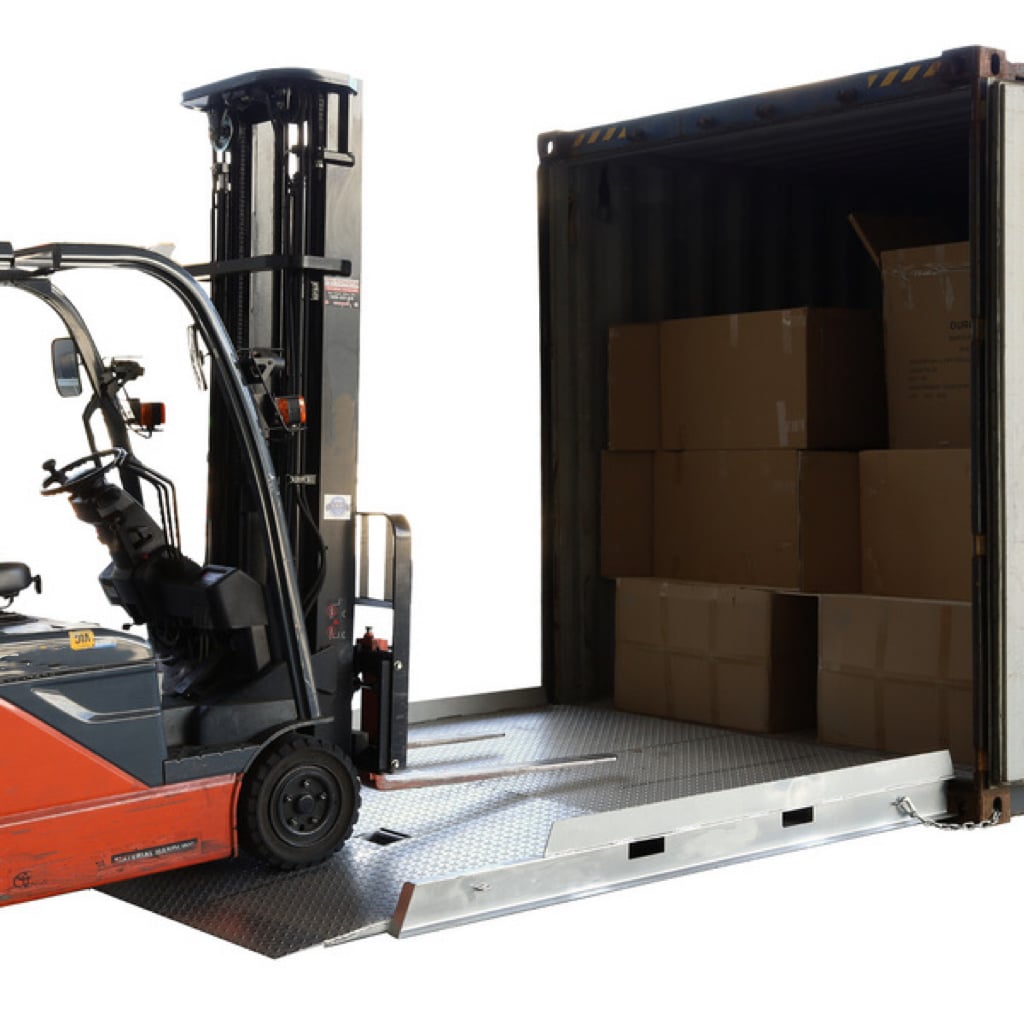

The forklift container ramp is a heavy duty ramp for unloading containers of heavy products with a large forklift. This ramp has been designed for fast positioning and removal with the pockets on the side plus pop up tine slots in the top for front removal. Comes standard with 100mm raised side plates which ensured the forklift remains on the ramp.

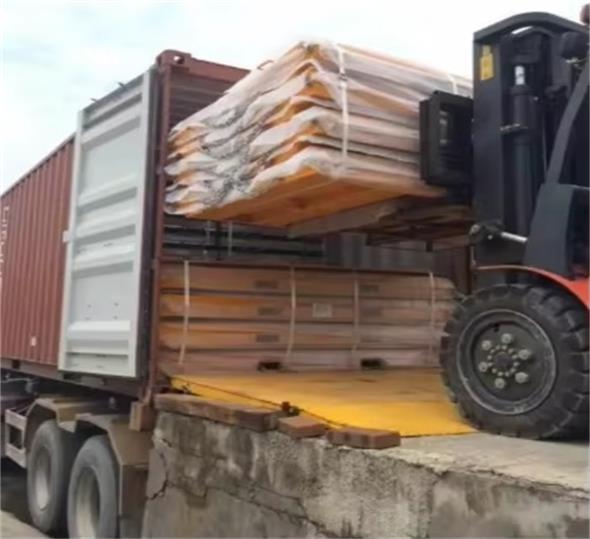

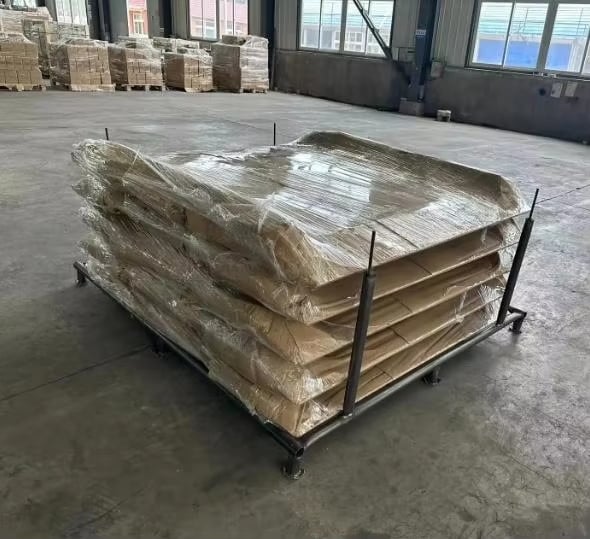

Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
Company Advantage
SHOUGUANG ESEN WOOD CO., LTD has an independent R&D team and a mature customization service system.The team can deeply align with your requirements, providing a complete solution covering product function optimization, appearance design, and supply chain adaptation. If you have any product ideas to discuss, please feel free to ask us at any time. We will be more than happy to answer your questions and promote the cooperation.
