Forklift Lifting Attachment Heavy Duty Forklift Crane Jib Forklift Telescopic Swing Extensions Boom
2 Ton Load Capacity Fork Mounted Forklift Jib Forklift Swing Arm Boom
|
Product Name
|
Forklift Swing Arm Jib
|
|
Material
|
Steel
|
|
Finish
|
Painted
|
|
Safe Working Load
|
500-1200kg
|
|
Pocket Size
|
150*70mm
|
|
Pocket Centre
|
650mm
|
|
Horizontal Centre of Gravity
|
660mm
|
|
Vertical Centre of Gravity
|
60mm
|
|
Weight
|
110kg
|
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

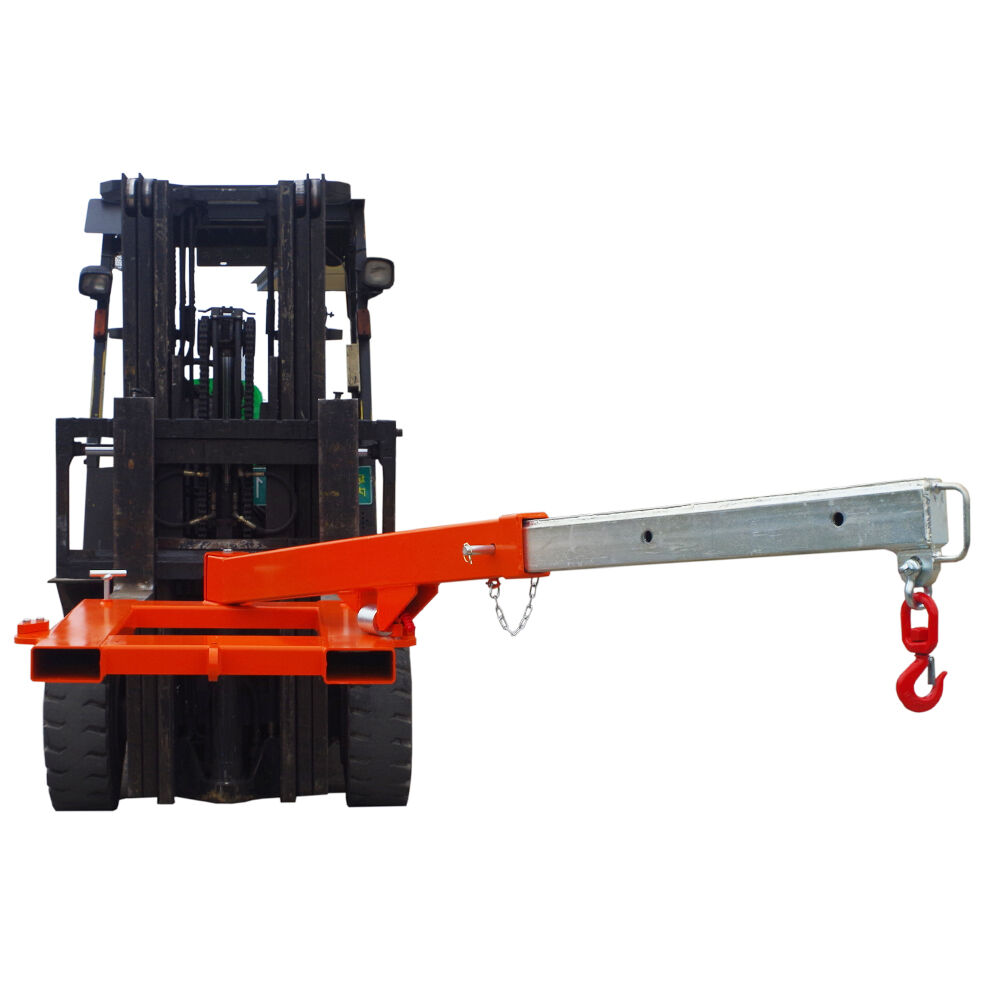

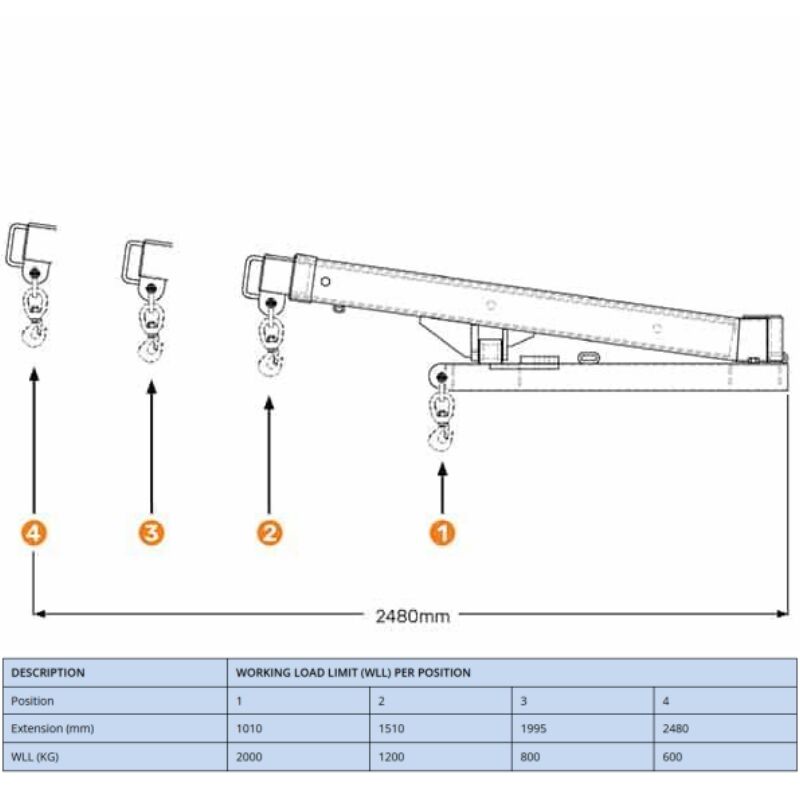

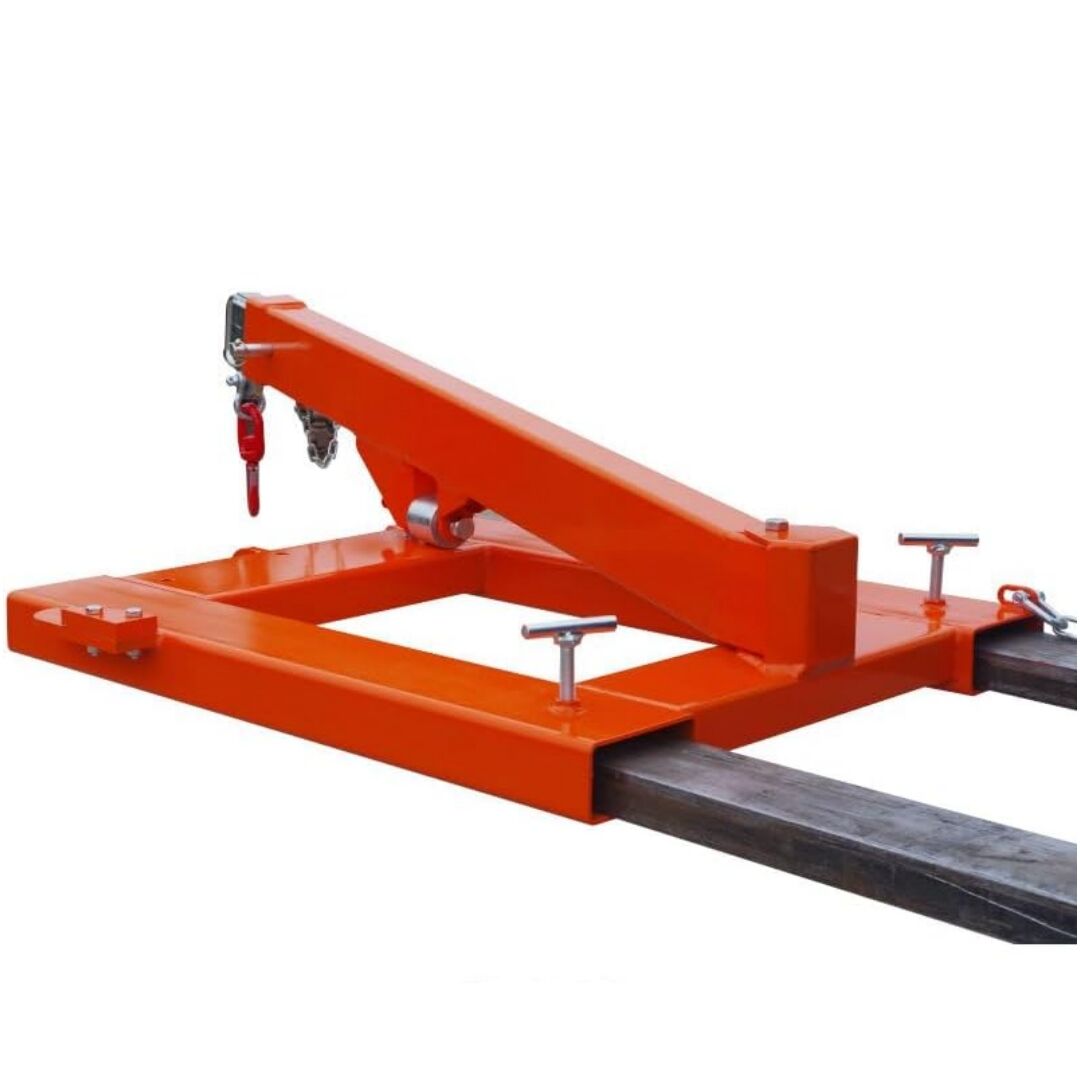

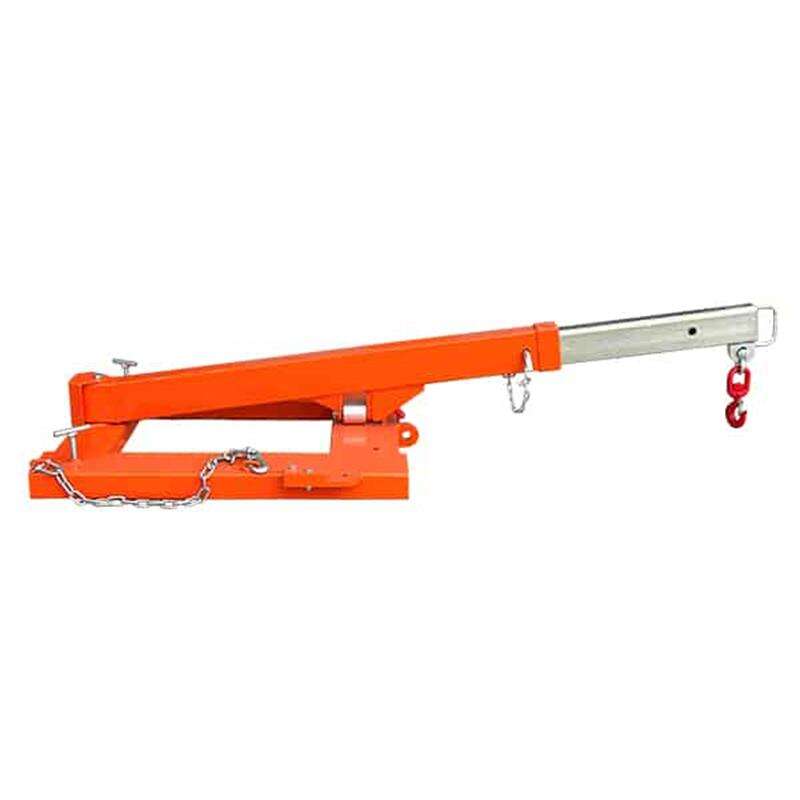

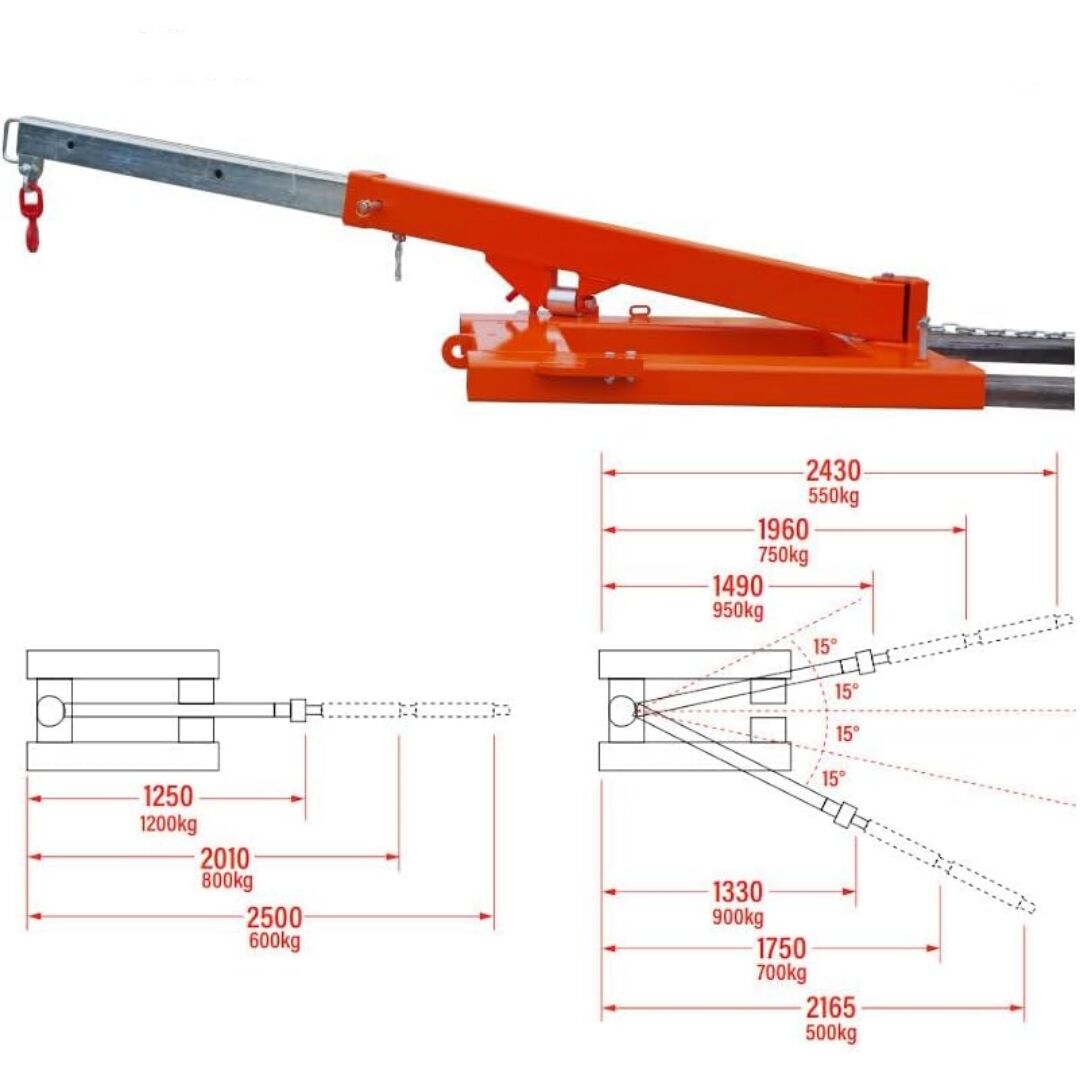

This versatile forklift attachment has five locking points set at 15 degree increments to conveniently slew a load, avoiding the need to reposition a forklift or telehandler whilst on site. Arm is extendable in 3 levels, and has a hanging angle of 8 degrees for good forward vision.The Swing Arm Forklift Jib comes in a painted finish and includes a Manual/Certificate, Safety chain and swivel hook.
FEATURES:
Jib slews 30 degrees left and right.
Jib has an 8-degree tilt for extra height.
Painted finish.

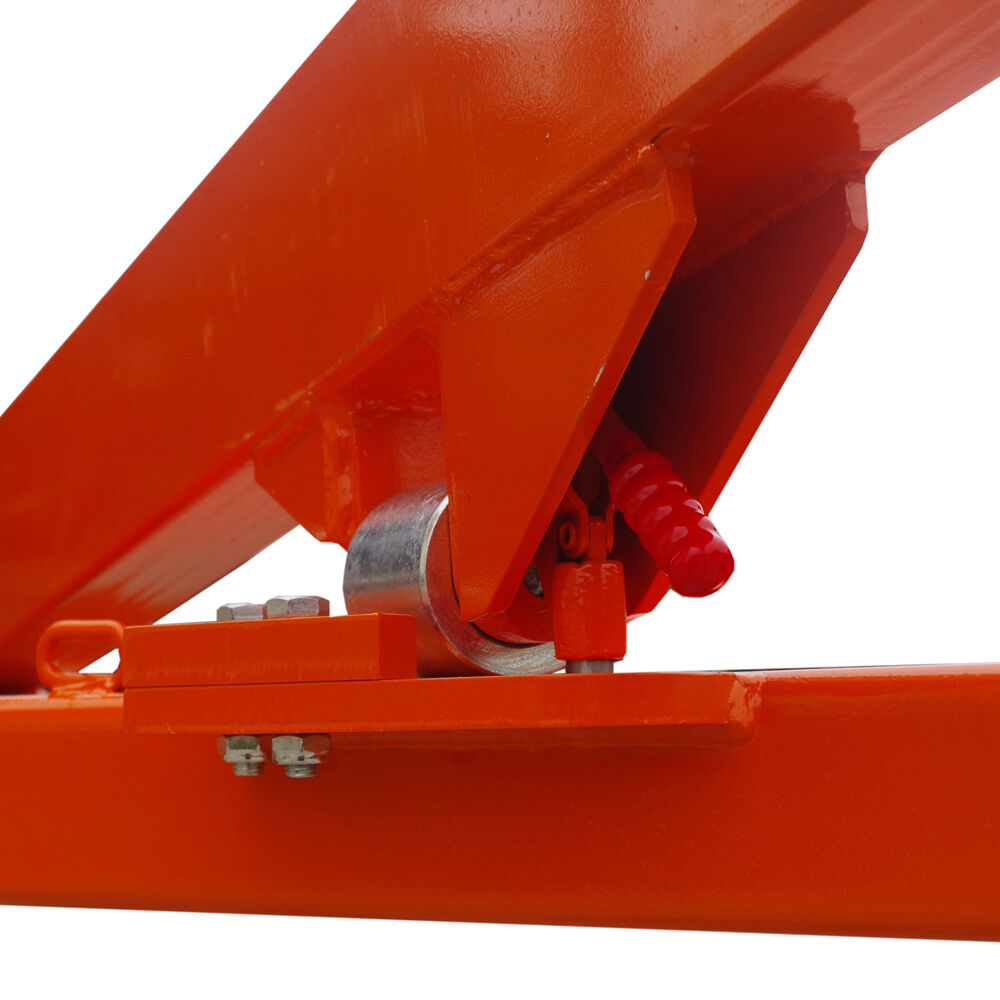

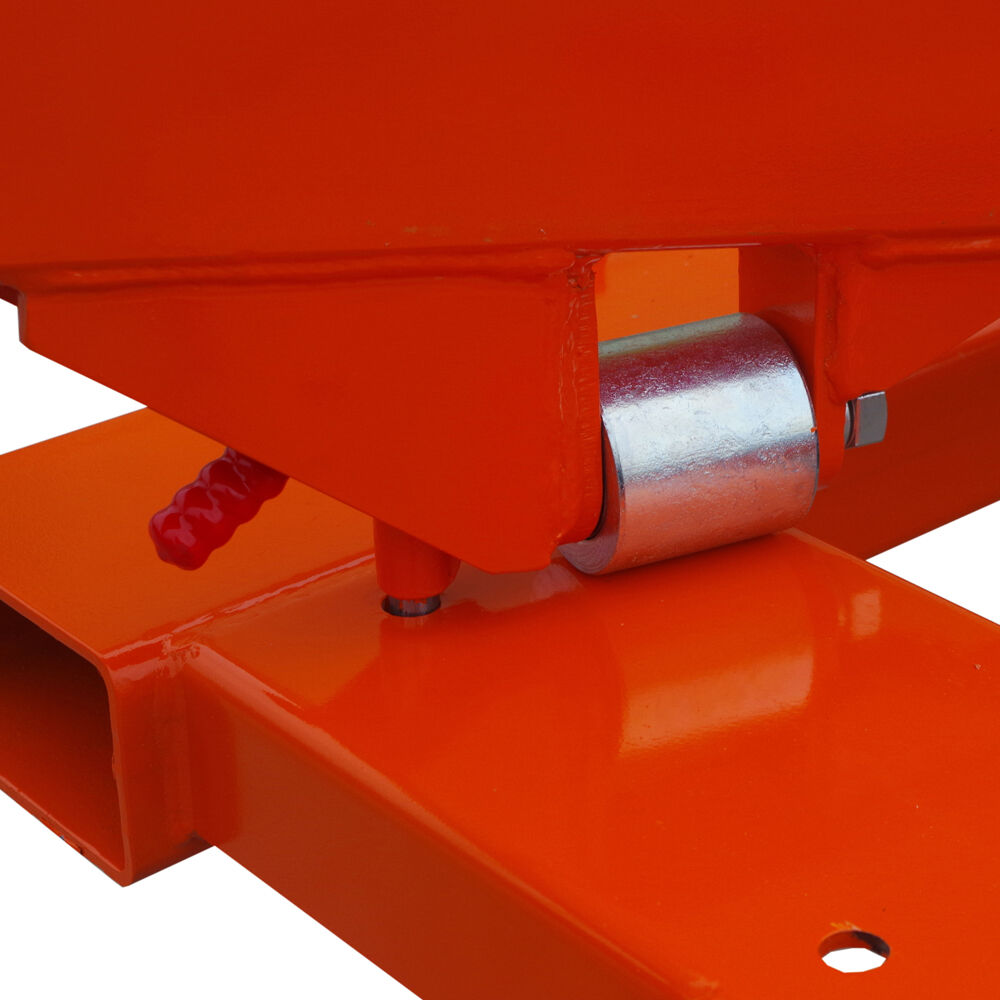

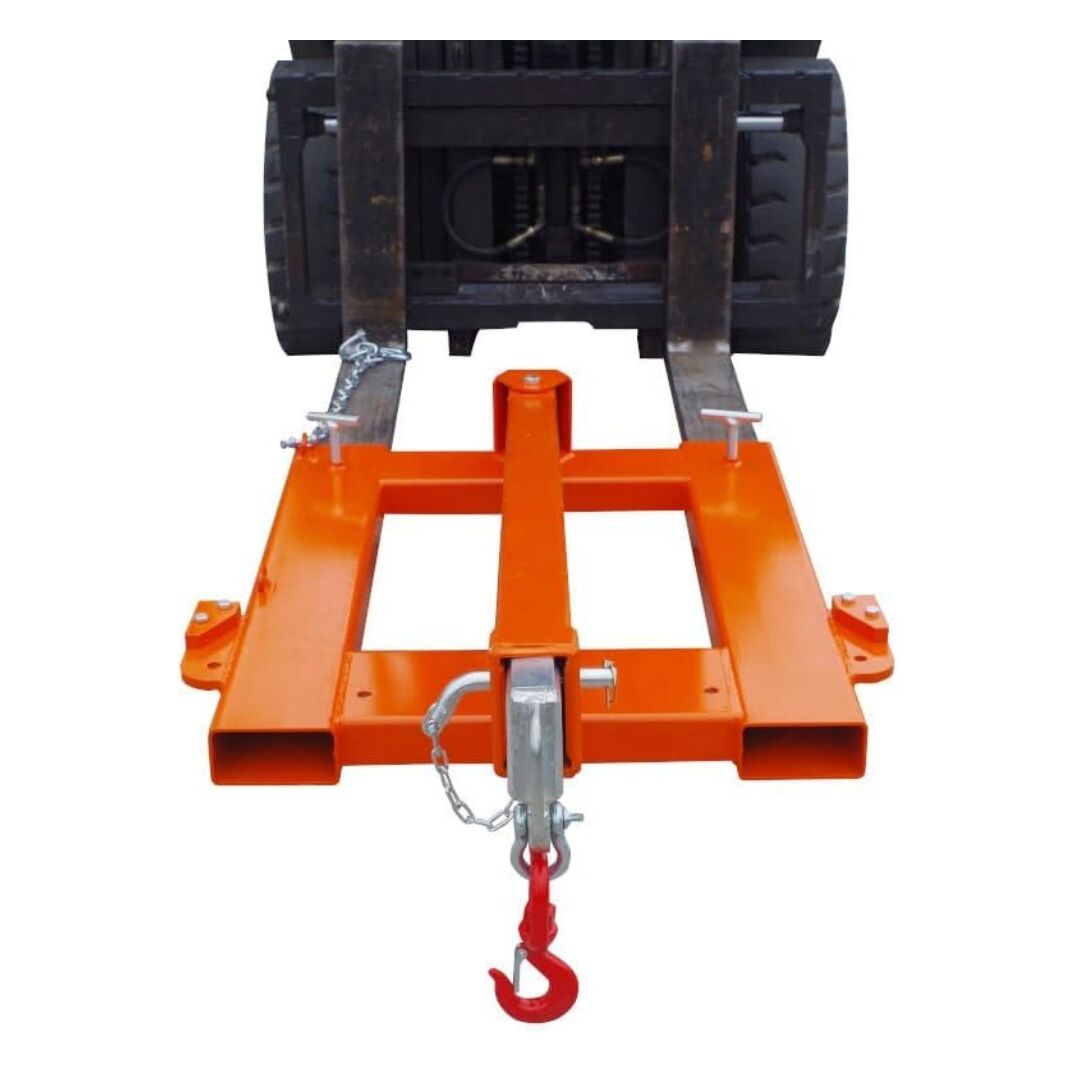

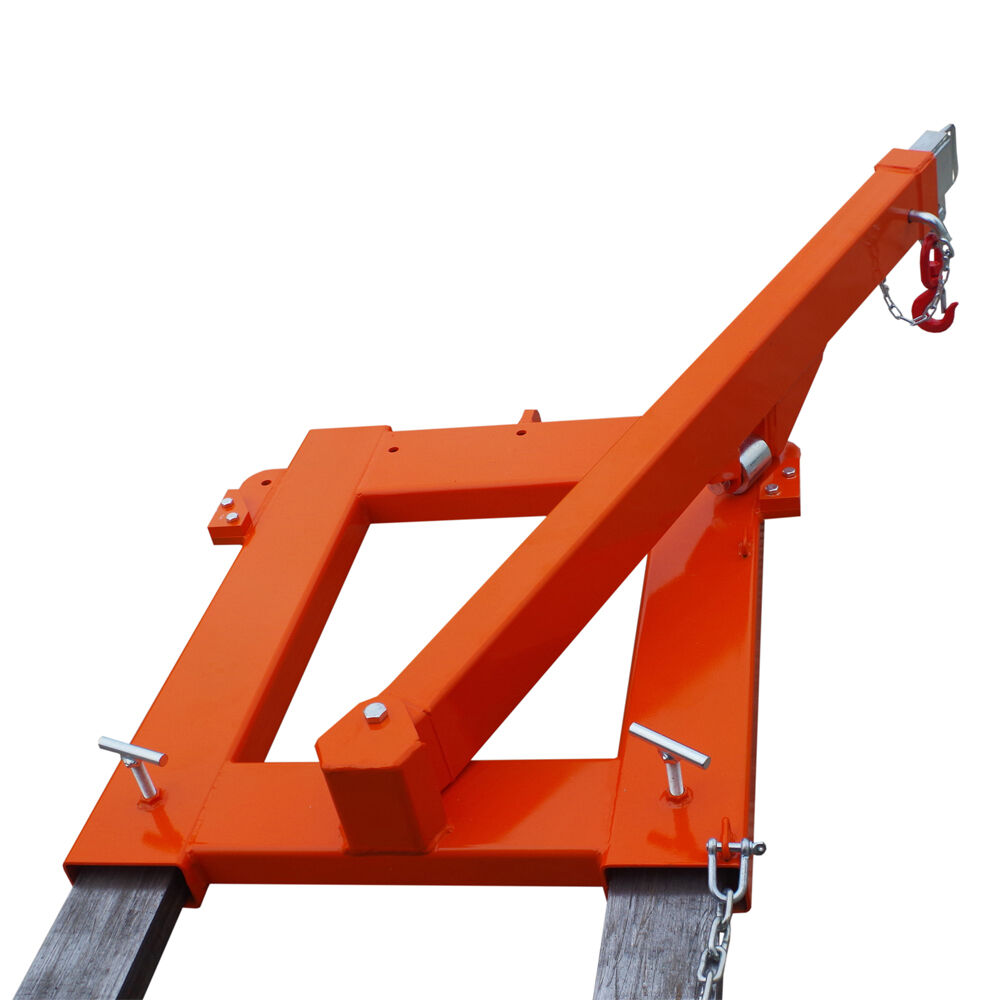

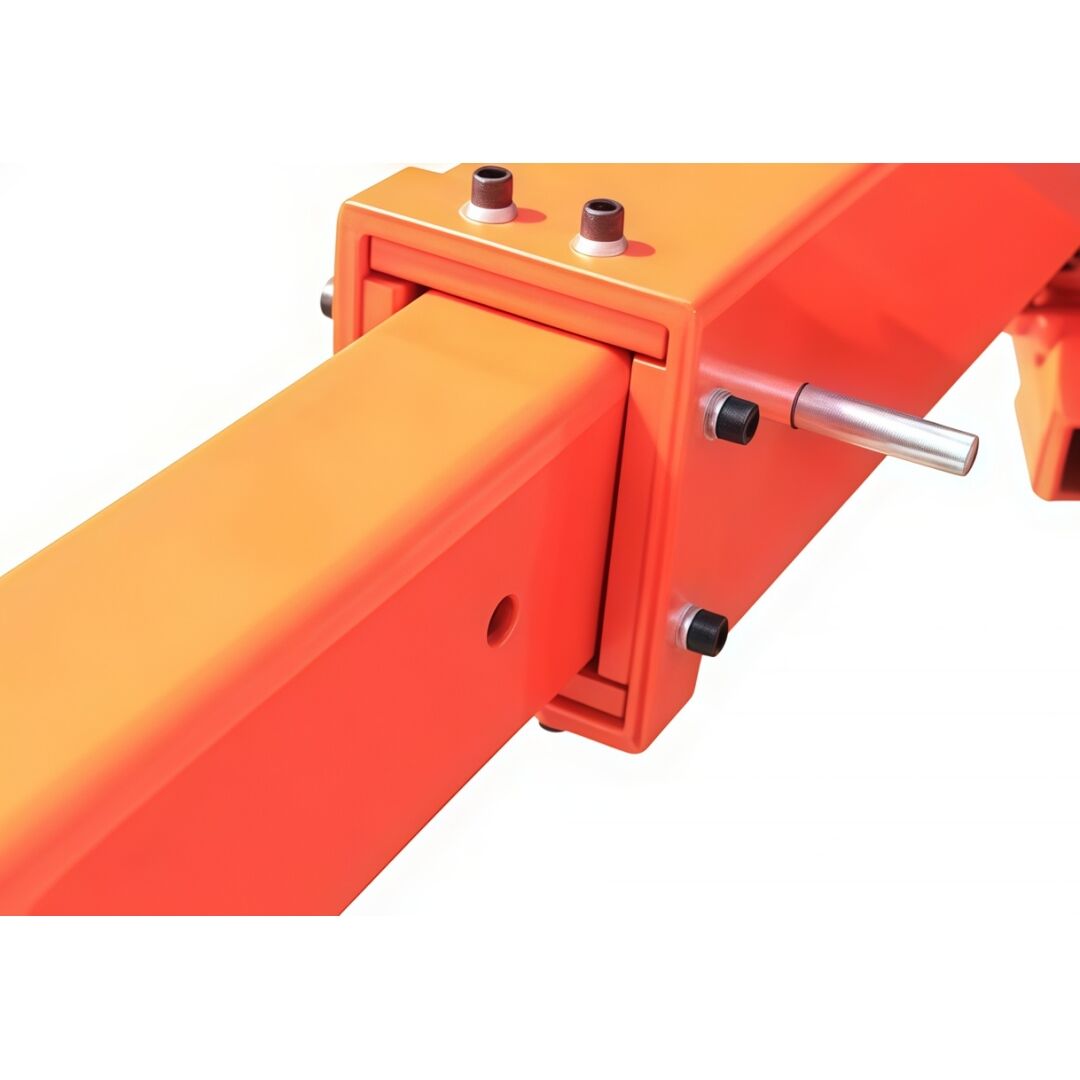

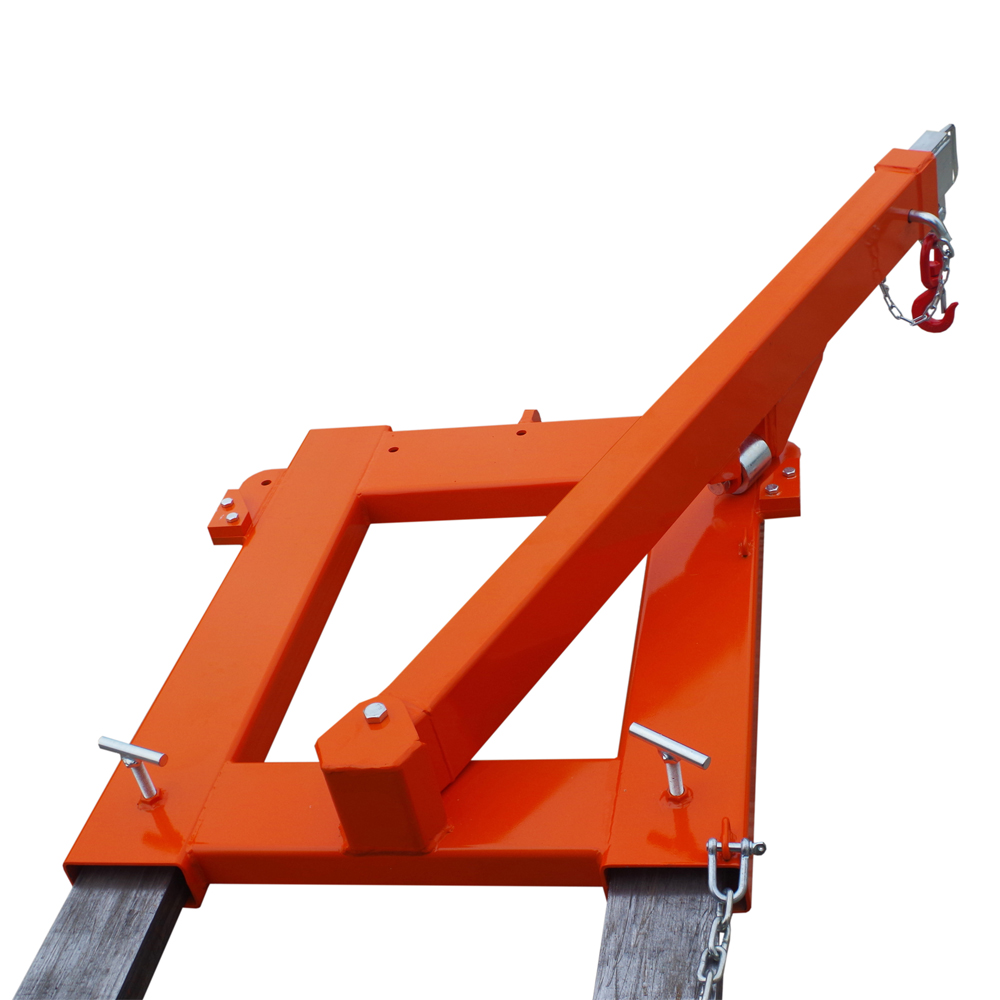

Detailed Photos
Application

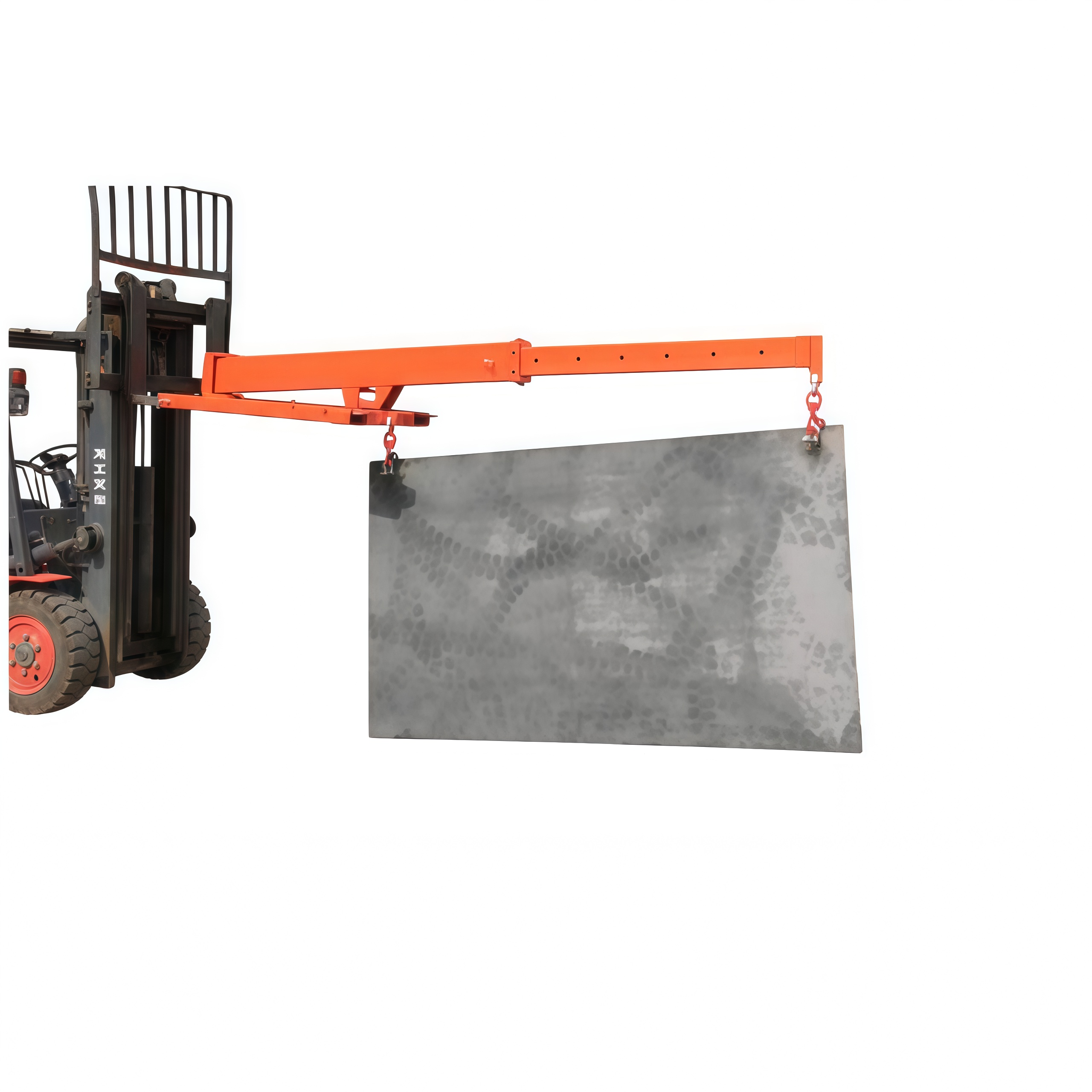

The adjustable telescopic super long lifting arm is suitable for the area where the forklift is not easy to enter for operation ,especially suitable for lifting long strip goods in containers with forklift.
Packaging & Shipping

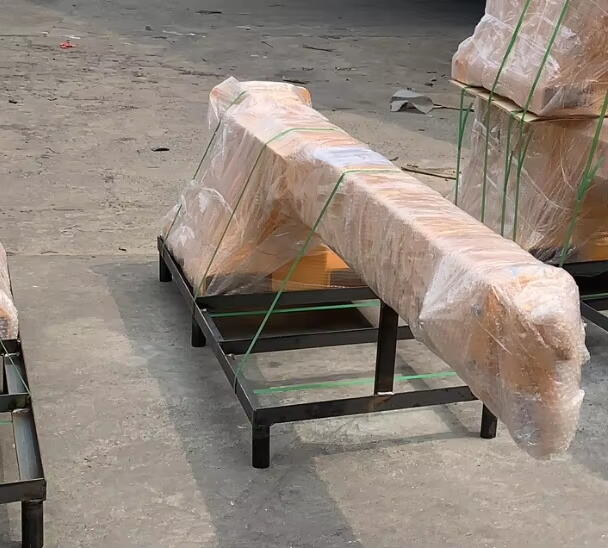

Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
