Double Stacking Cone
| Product Name | Double Stacking Cone |
| Material | Forged Steel |
| Finish | Hot Dip Galvanized |
| Working Load Tensile/Shear | 210KN |
| Breaking Load Tensile/Shear | 420KN |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
The double stacking cone is a precision-engineered device used to align and secure containers when stacking them vertically on ships, terminals, or storage yards. Made from high-strength cast steel and designed for heavy-duty applications, it provides accurate positioning and prevents containers from sliding or shifting during stacking operations.

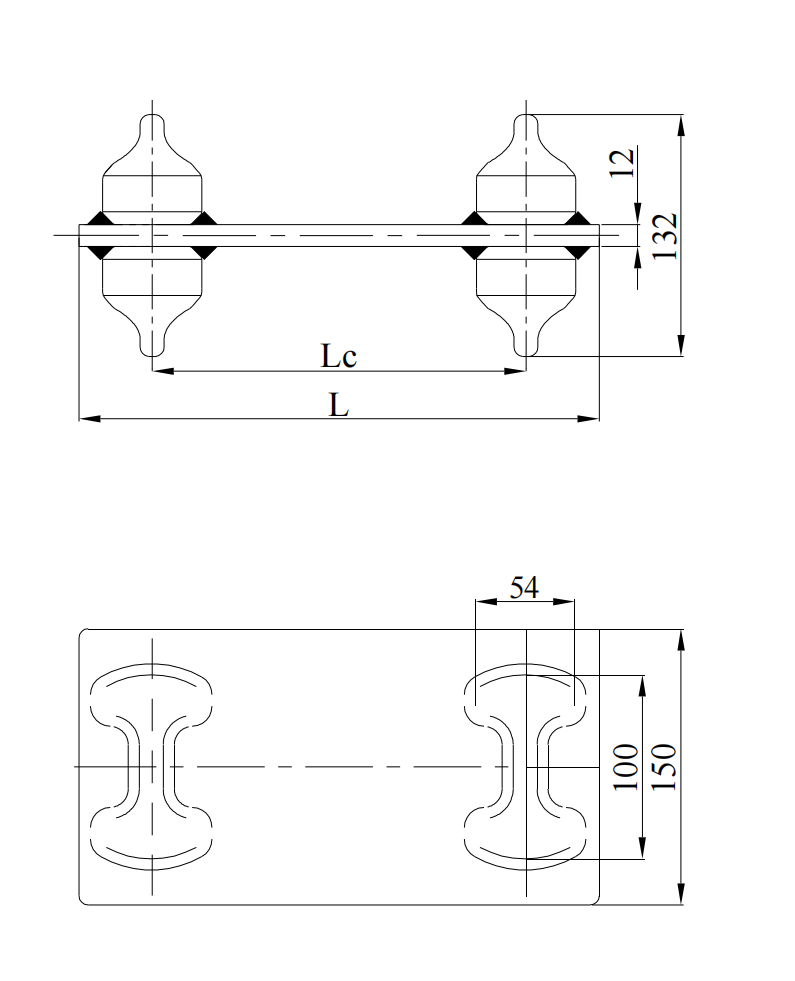

Size:
| Type | LC | L | Weight |
| ES-1 | 203 | 291 | 7.5kg |
| ES-2 | 216 | 304 | 7.7kg |
| ES-3 | 258 | 346 | 8.5kg |

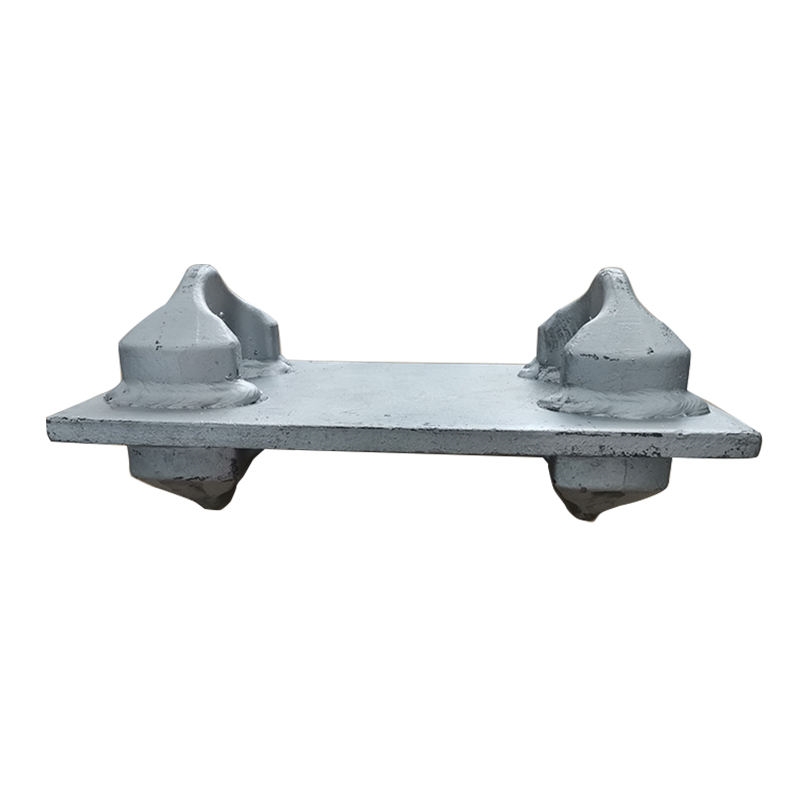

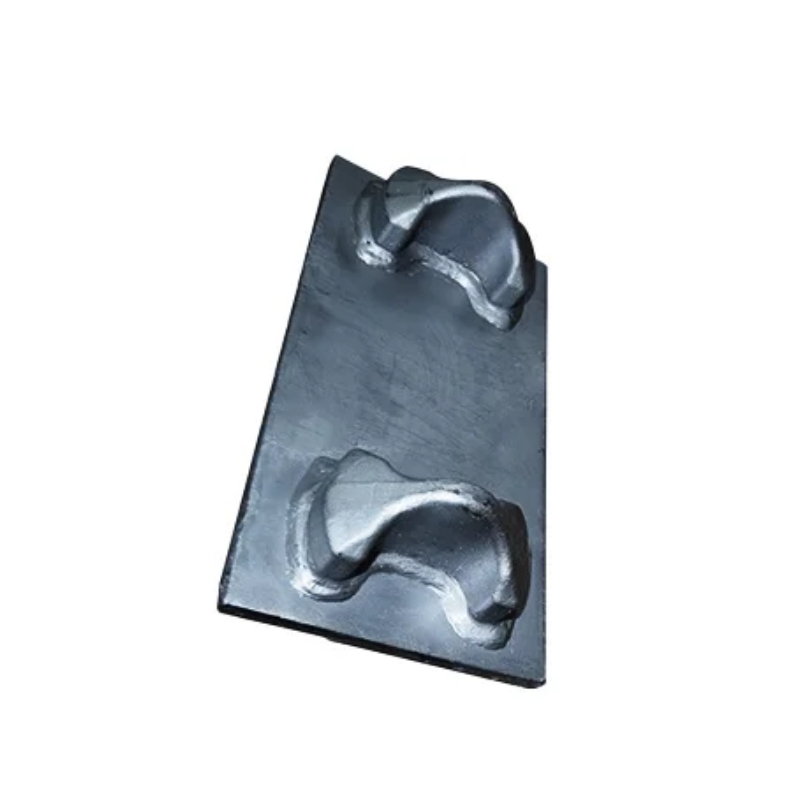

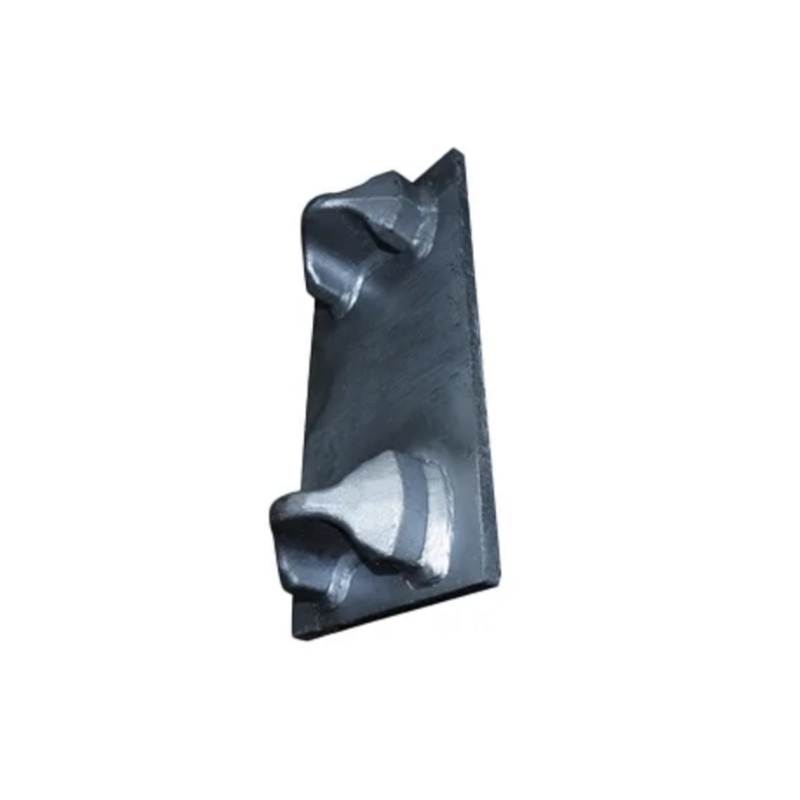

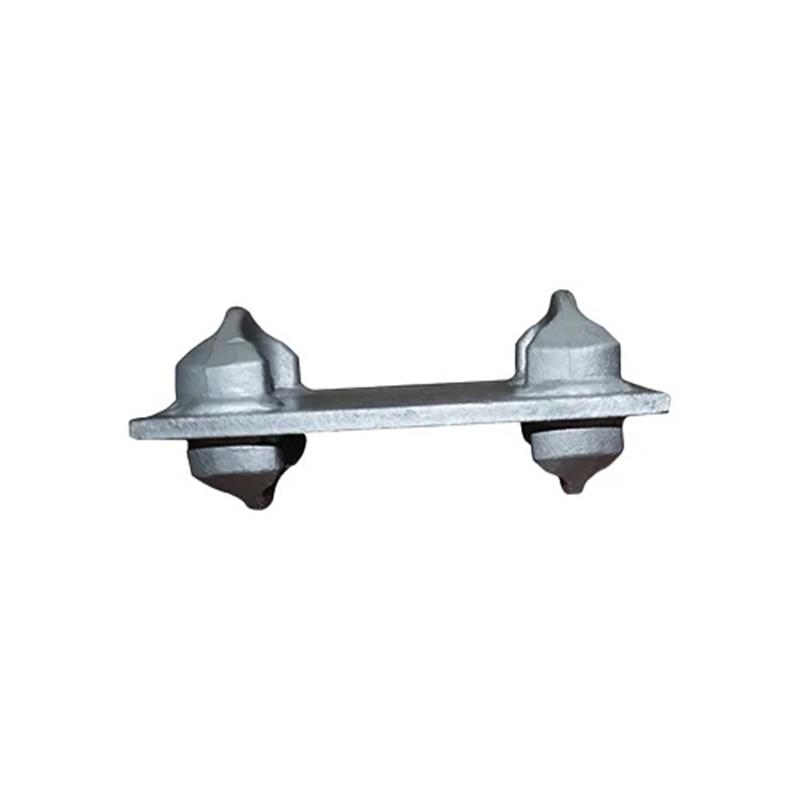

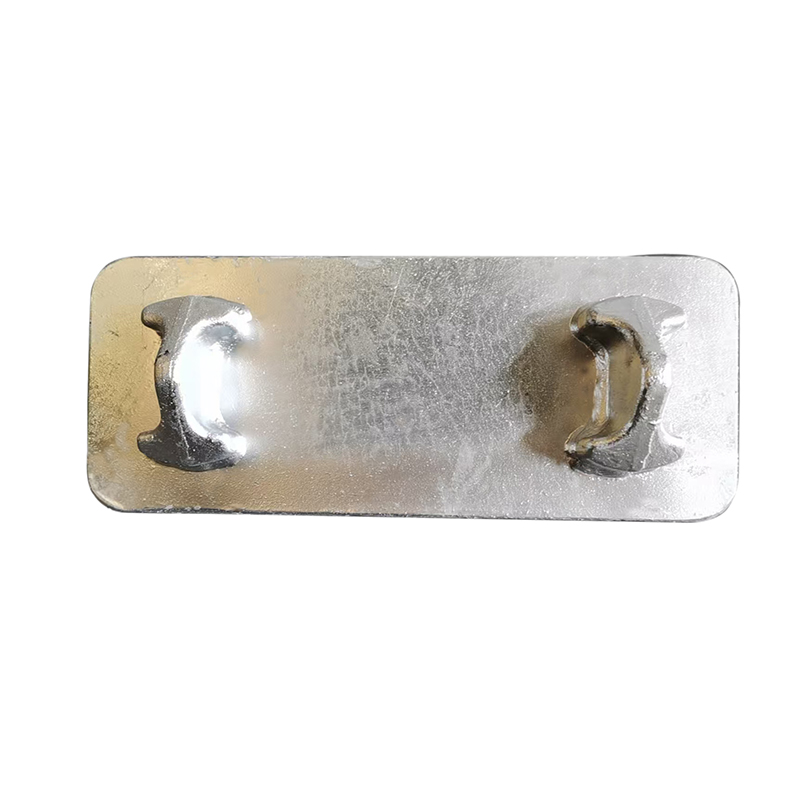

Detailed Photos

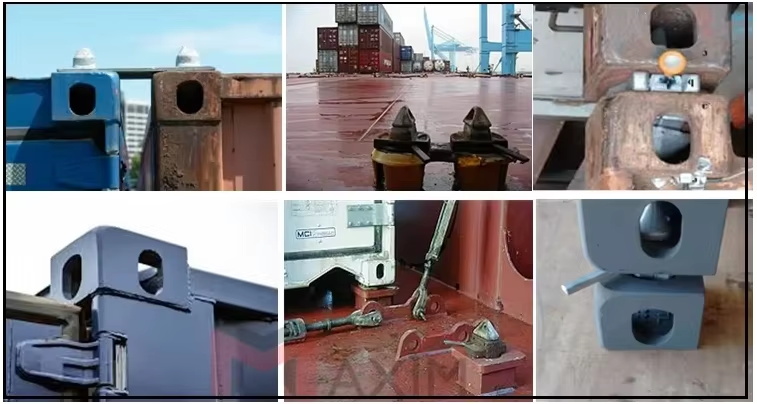

Application
The double stacking cone plays a vital role in modern container logistics, ensuring stable and secure container stacking under various operational environments. Whether used on board, in terminals, or in inland logistics hubs, it guarantees safety, precision, and efficiency throughout the cargo handling process.

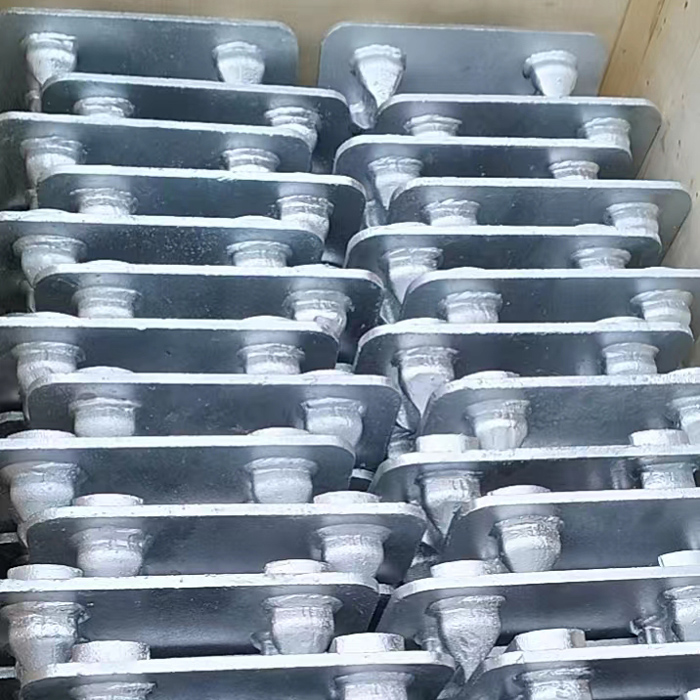

Packaging & Shipping
Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
