6m Wide Sea Container Canopy with 610gsm Fabric Cover for Inside or Outside Mount
Frame Material |
Galvanised steel |
Roof Shape |
Arch |
Sail Finishing |
PVC Coated |
Style |
Modern |
Feature |
Easily Assembled, Portable, Waterproof, High Quality |
Application |
Industrial, Car, Outdoor, Garage |
Installation |
In-home installation available |
Model Number |
6m |
Cover |
PVC 610gsm |
Wind Resistance |
180km/h |
Fire Rating |
B1 |
Size |
6m Wide × Customized Long × 1.8m High (Dome Only) |
Product Name |
Shipping Container Canopy |
Connection |
Twist Lock - No Welding |
Color |
Customized Color |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

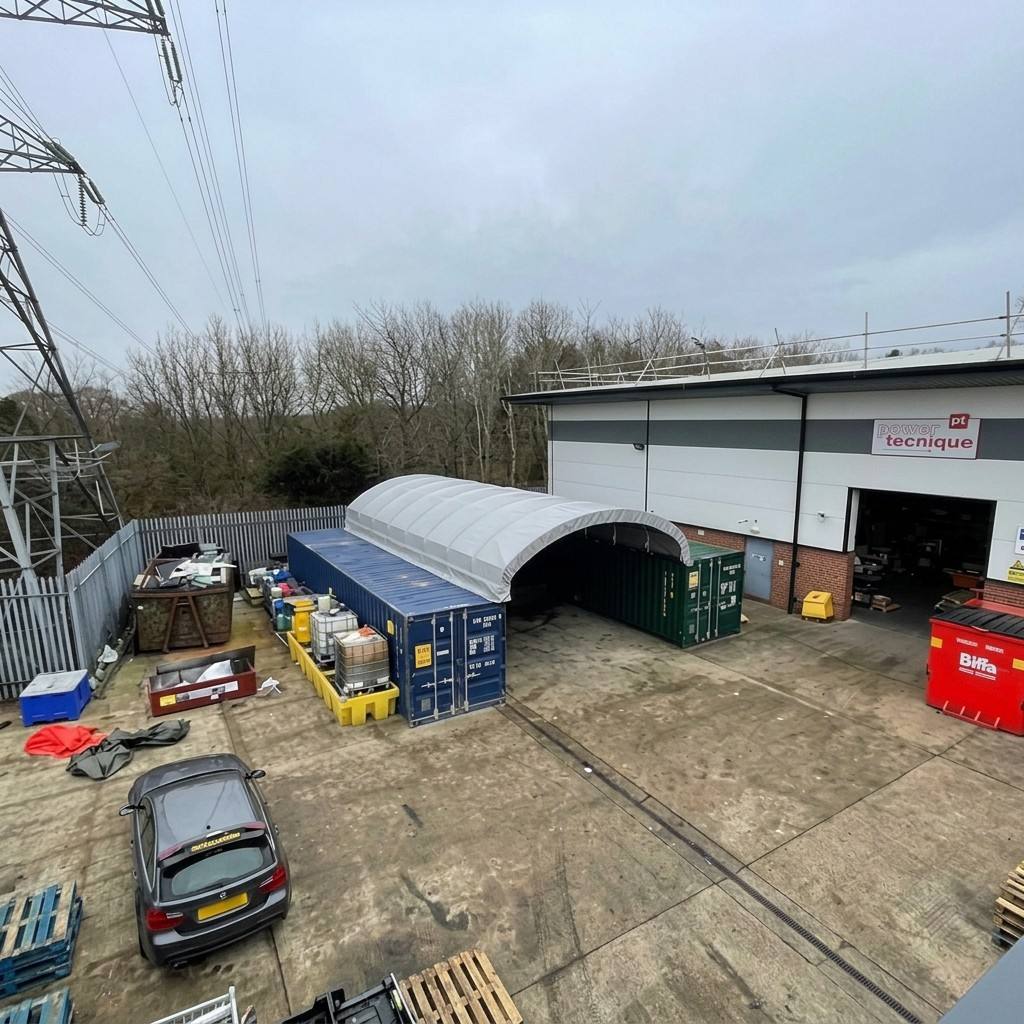

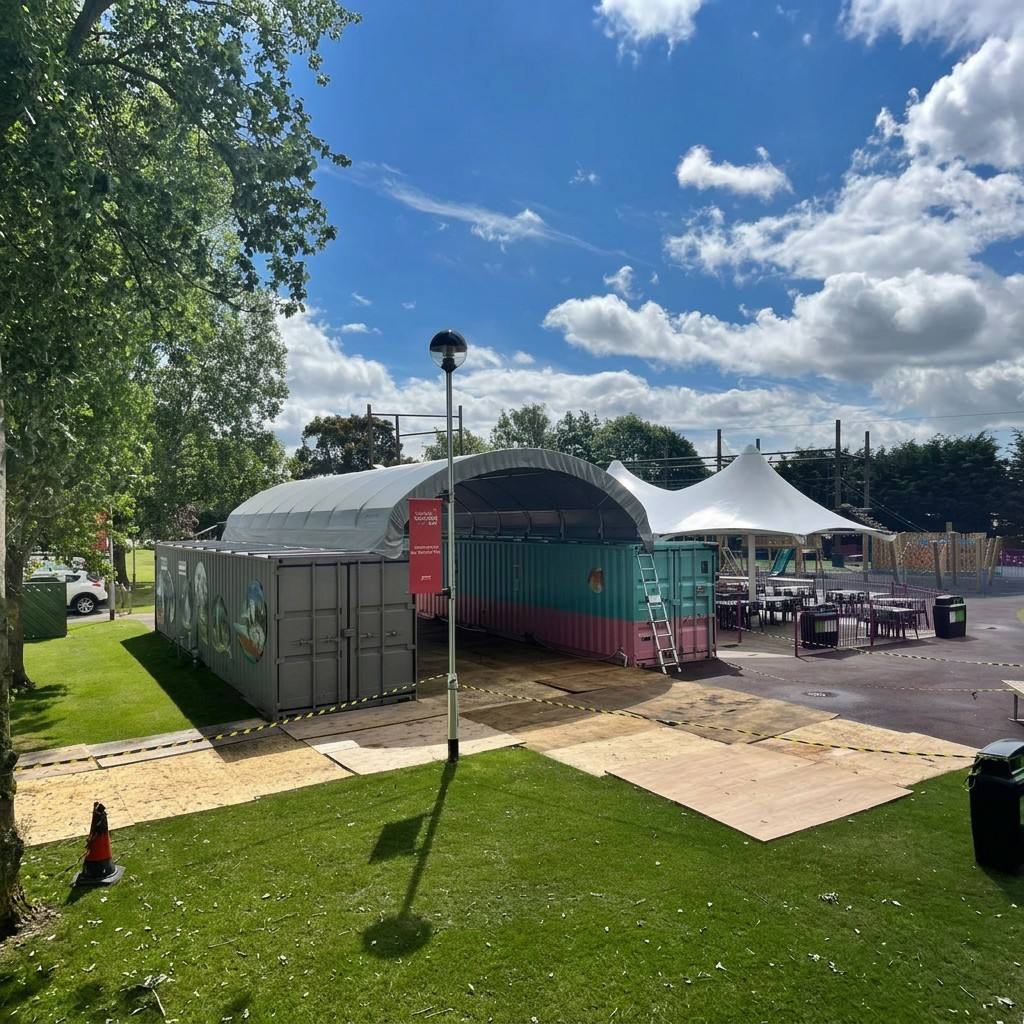

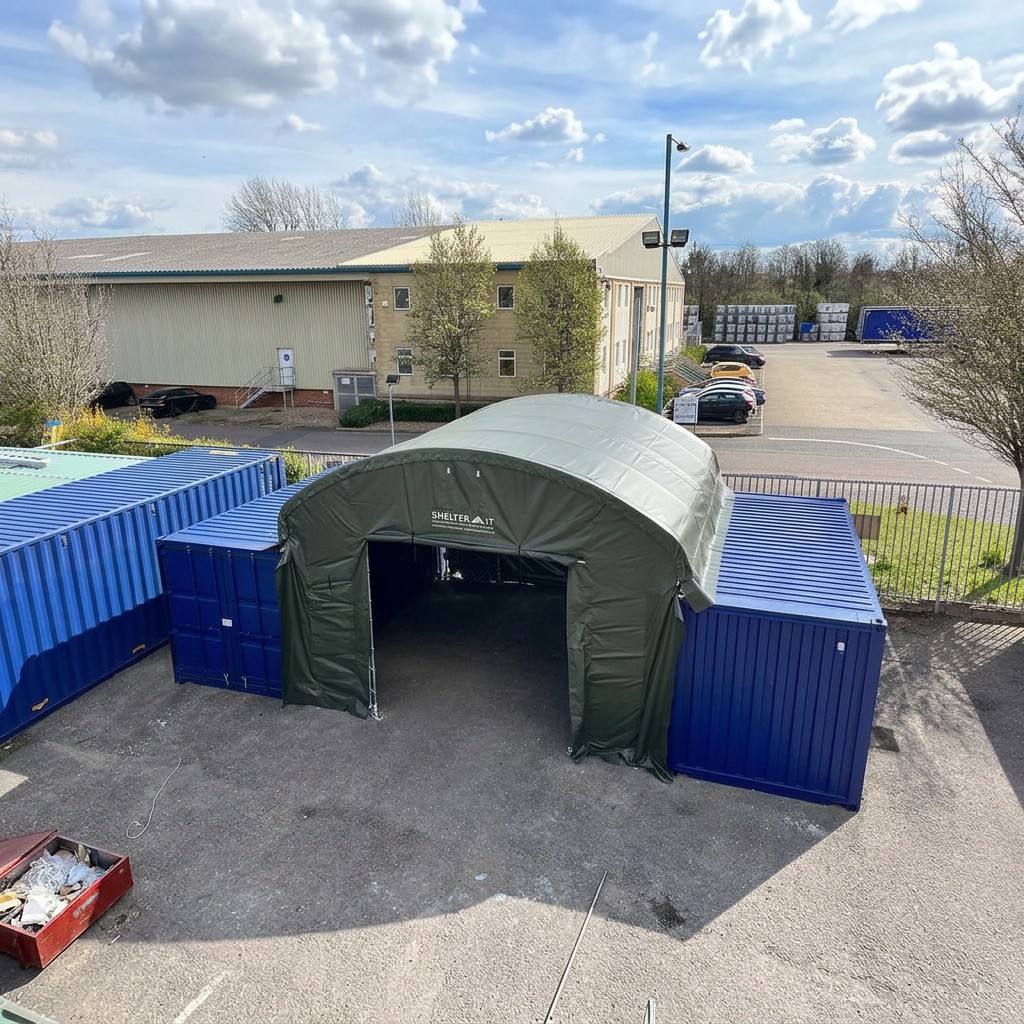

An arched fabric canopy spanning two shipping containers. Hot-galvanised steel frame + 610g/m² PVC cover, locked to the container corner castings via a clamp system — no welding, no damage to the boxes. 6.1m wide, length to your choice, 1.8m arch height — roughly 4.5m total clearance over GP containers, enough for forklifts and trucks. Open ends for loading access, optional half or roll-up door end walls for full enclosure.
About this supplier
Our Company -------- Shouguang Esen Wood Co., Limited
1.We are manufacturer of container flooring plywood, container spare parts. We have possess a high-quality management team.
2.Based on advanced equipment and production line. All index abides by International Quality Standard.
3.We have provided our goods to hundreds of customers from 50 countries.
4.Our container parts are well praised by domestic and foreign customers. We are willing to become a long-term partner with your company in the development.
5.We can customize all special container accessories according to your drawings.
Detailed Photos



Application
Loading dock: a roof between two containers — trucks back in and unload dry in the rain
Equipment shelter: forklifts, generators, tools parked between box and canopy, containers locked at both ends

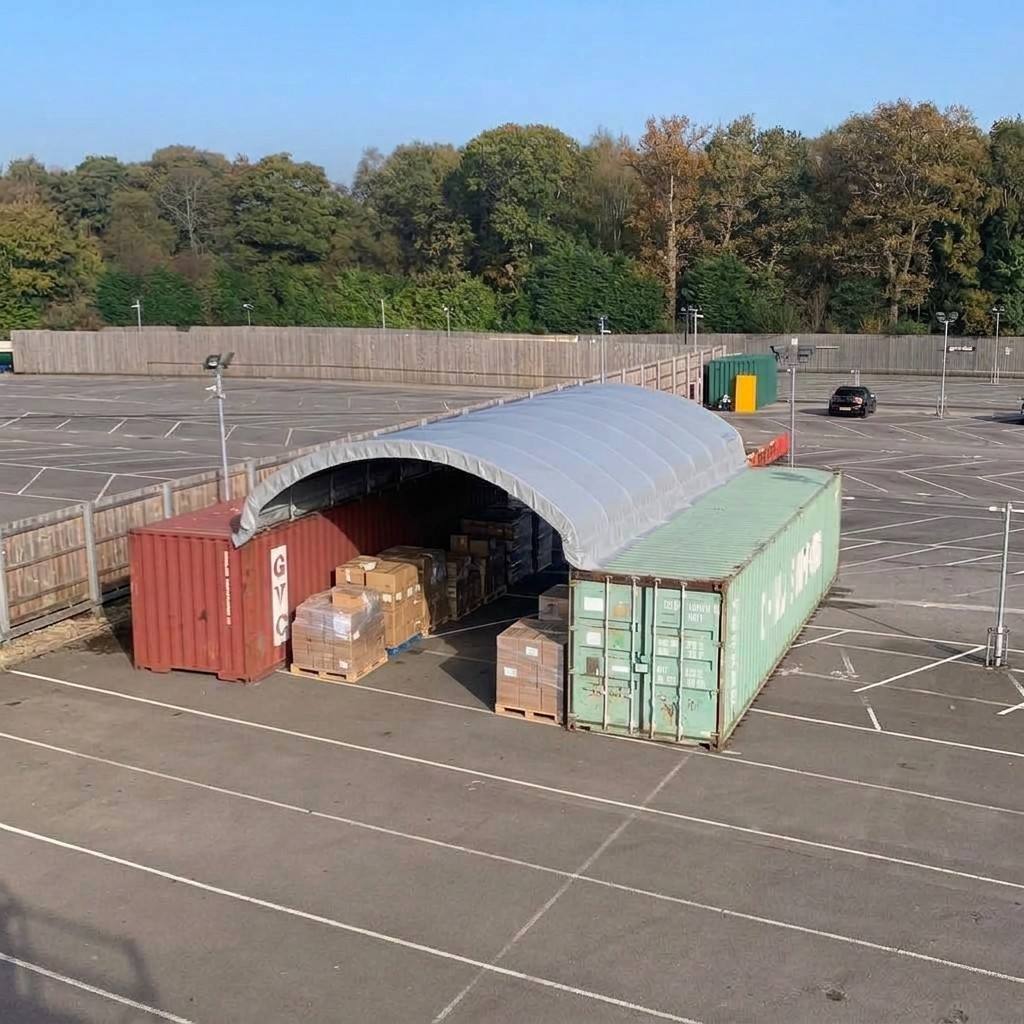

Material storage: pallets, building materials, timber staged outside the box — shaded and dry
Workshop extension: container as tool room, canopy as the assembly or maintenance bay
Waste staging: bins and scrap cages tucked under cover — out of sight, out of the rain
Packaging & Shipping
5.

FAQ
1.What kind of engineering support do you provide?
With over 10 years of industry expertise, our engineering team offers end-to-end support from concept to design. We deliver customized solutions that improve performance, reduce maintenance, and maximize long-term operational value.
2.Is it fire retardant?
Yes. The fabric is flame-retardant and self-extinguishing, suitable for industrial and commercial use where fire safety matters.
3.What is the sea freight delivery time?
Sea freight transit time varies greatly depending on destination port, shipping schedule and customs clearance.
Normally sea shipping takes 7-45 working days from China port to most European main ports, excluding local customs clearance and inland delivery.
4.Is the end wall extra? Without a wall, is it useless in the rain?
If your use is fully enclosed storage or a high-rainfall region, add the end wall or choose a wall-included package. Tell us your application when ordering and we recommend the most economical configuration -no paying for walls you don't need just to check a box.
5.At 1.8m arch height - is this a standalone garage or must it mount on containers?
This must be mounted on top of containers. 1.8m is the arch height measured from the container top - on a GP container the total interior clearance is roughly 4.5m, enough for forklifts and delivery trucks. Standalone on the ground, 1.8m is unusable as activity space. Confirm before purchase: two containers placed parallel, the ST6C spans across their tops, both ends open as loading access.
6.How does the clamp system work? Is it secure?
The clamps mechanically engage the container corner castings - the same principle as shipping twist locks. Once locked, they form a mechanical dead point, and the container's own weight keeps the clamps engaged. No welding, no damage to the container. Each frame leg locks to a corner casting - four-point engagement forms a stable rectangle.
7.How long does the 610g/m² cover last under Australian sun?
The 610g/m² PVC contains UV stabilizers -expected 7-10 years under UK/European conditions. Australian UV intensity is significantly higher, and dark vs. white covers age differently - AU customers are advised to choose white and request local UV data (suppliers can upgrade to 750-900g UV-optimized fabric for the AU market).
