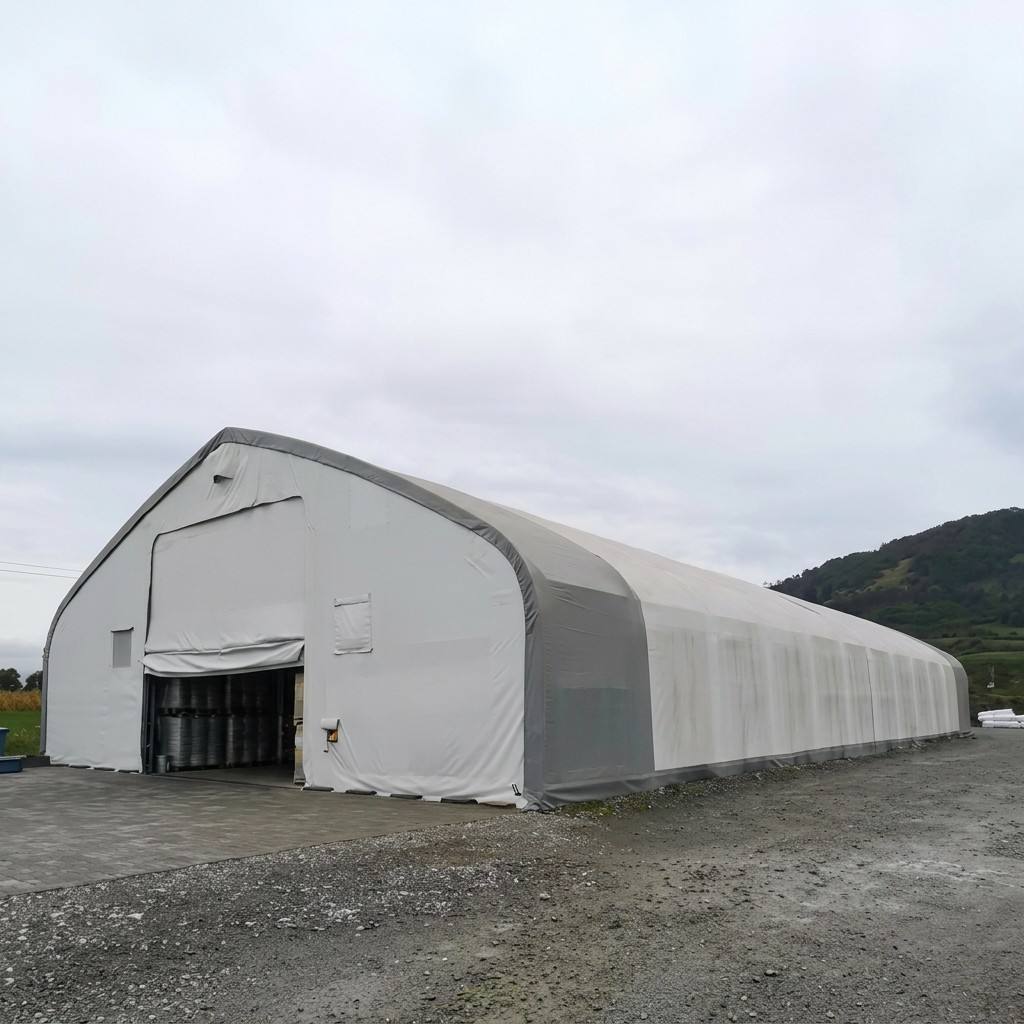

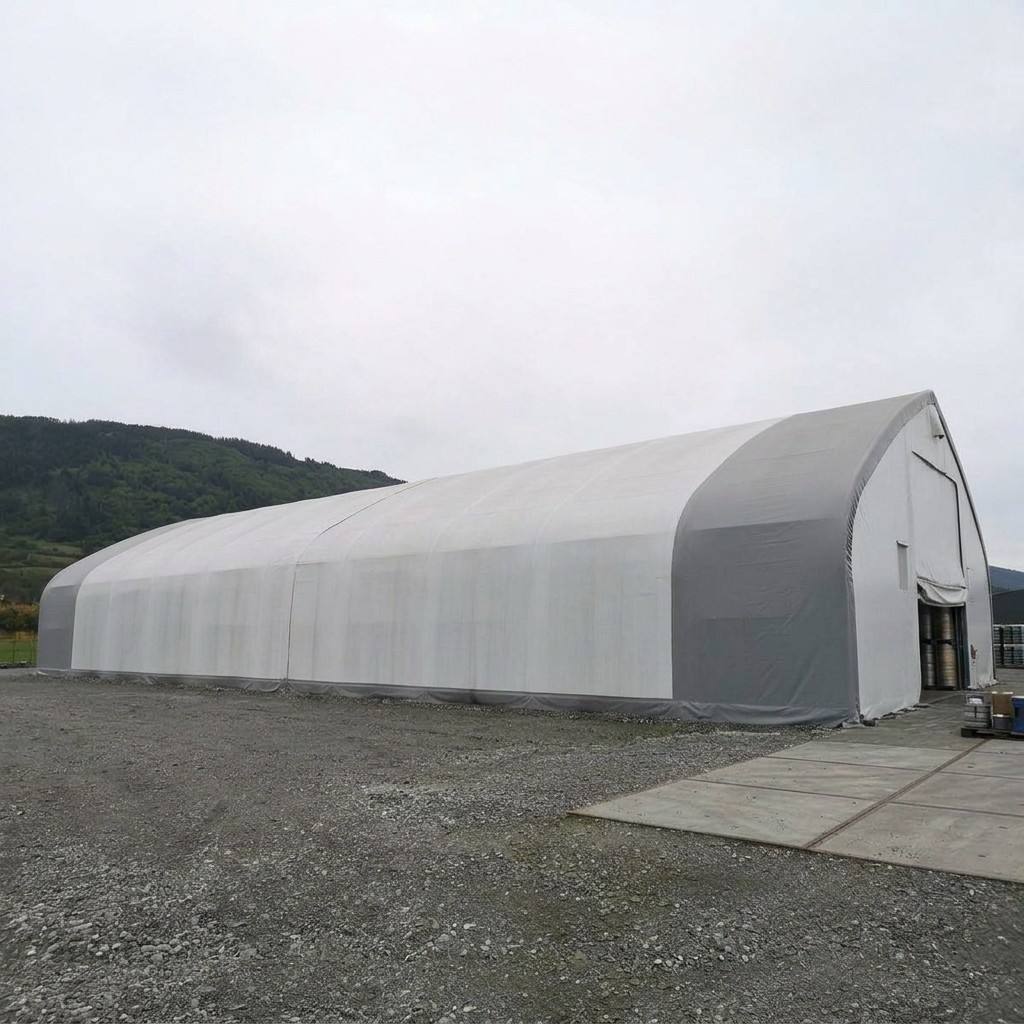

50X100ft Double Truss Peak Storage Shelter for Machinery Vehicles and Industrial Materials

Roof Shape

PEAK

frame finishing

Hot-dip galvanized

Feature

Easily Assembled, Portable, Waterproof, High Quality

Installation

in-home installation available

Coverage Area (sq. ft.)

5000

Cover

610g/m² PVC

Snow Rating

20 lbs/sq ft (1.0 kN/m²)

Size

50 ft W x 100 ft L x 23 ft H (15.25 x 30.5 x 7.015 m)

Side wall height

3.5 m (approximately 11.5 ft)

Purlin

60 x 1.5 mm

frame material

Galvanised steel

sail finishing

PVC Coated

Style

Modern

Application

Industrial, Car, Outdoor, Garage

place of origin

Shandong, China

model number

50100

Product Name

Container shelter

Wind Resistance

60-70 mph (100-110 km/h)

Winch door

18 ft W x 16 ft H (5.49 x 4.89 m)

Arch spacing

3.05 m (10 ft)

Main arch tube

60 x 1.8 mm

  • Description
  • Detailed Photos
  • Application
  • Packaging & Shipping
  • Related Products
Description

True 100% Usable Footprint with 9ft Vertical Sidewalls Unlike standard curved hoop shelters that severely restrict clearance near the edges, our 50x100x23ft model features true 9-foot (2.74m) vertical sidewalls. This allows you to stack standard warehouse pallet racks directly against the walls, park fleet vehicles edge-to-edge, and maneuver forklifts with zero fear of clipping curved poles. With 5,000 sq ft (464.5 m²) of zero-column clear span, every single square inch works for your bottom line.

About this supplier

Our Company -------- Shouguang Esen Wood Co., Limited

1.We are manufacturer of container flooring plywood, container spare parts. We have possess a high-quality management team.

2.Based on advanced equipment and production line. All index abides by International Quality Standard.

3.We have provided our goods to hundreds of customers from 50 countries.

4.Our container parts are well praised by domestic and foreign customers. We are willing to become a long-term partner with your company in the development.

5.We can customize all special container accessories according to your drawings.

Detailed Photos

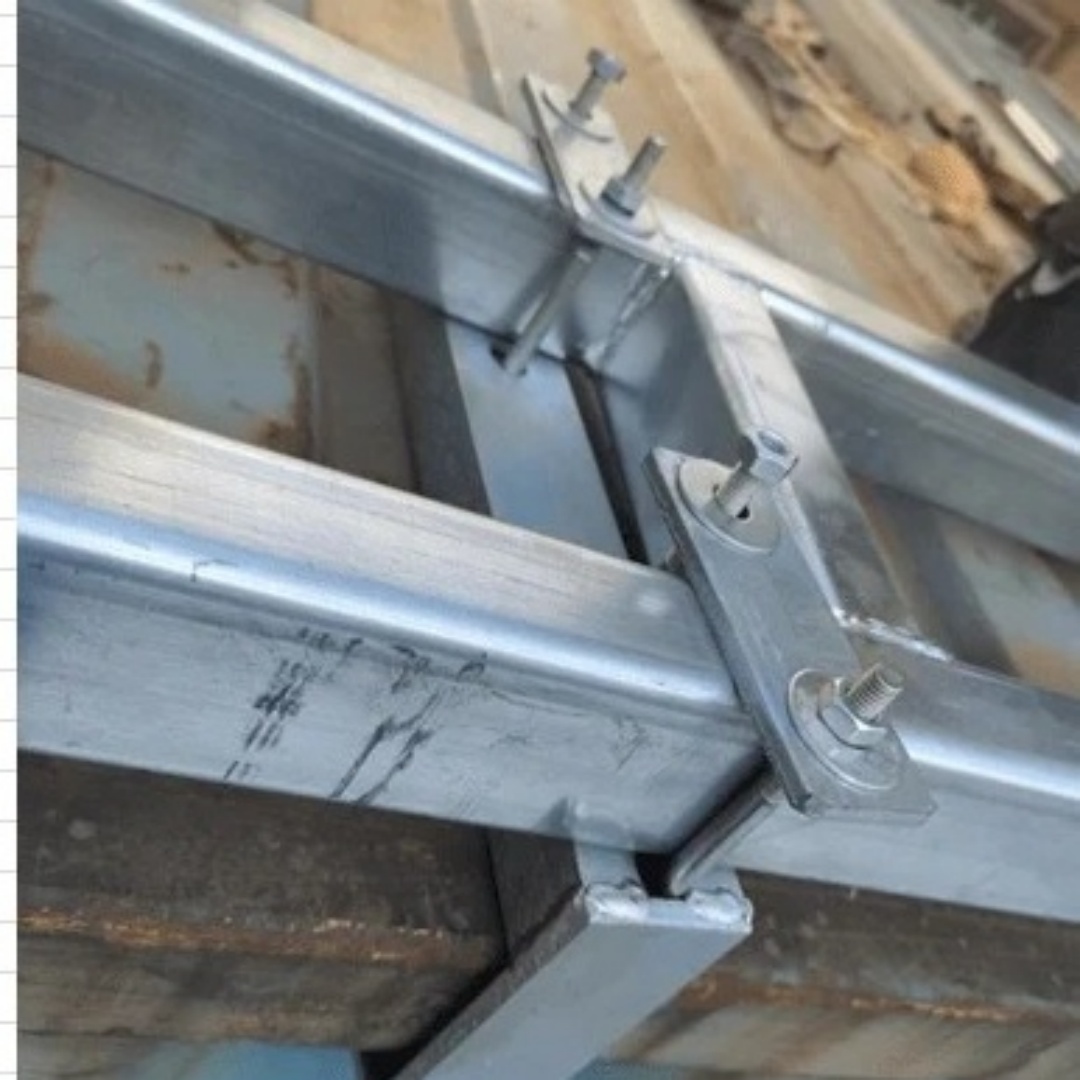

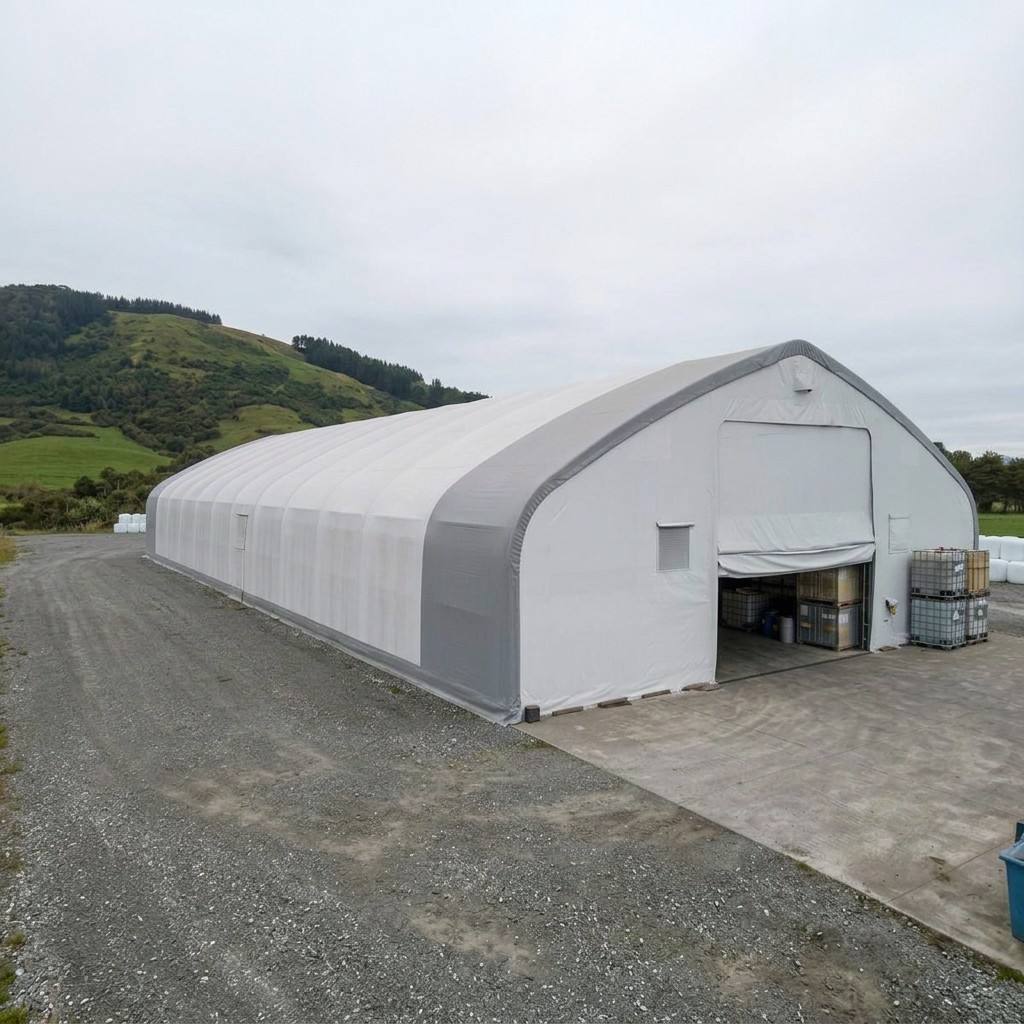

Engineered A-Frame Peak Roof & Dual-Truss Steel Strength Designed specifically for heavy snowbelts and open windy landscapes, the steep A-frame peak roof forces snow, slush, and heavy rain to shed instantly down the sides, eliminating heavy center roof sagging. Built with 15-gauge hot-dip galvanized steel double trusses (truss cross-section 200–250mm), the framework easily handles wind gusts up to 60–70 mph (100–110 km/h) and ground snow loads up to 20 lbs/sq ft (1.0 kN/m²).9.20 50100 双 (3).jpg

Application

Winter storage for combine harvesters, 4WD tractors, sprayers, and bulk hay/feed bags.

Heavy equipment maintenance bays (excavators, dump trucks) and secure jobsite tool/material storage.

Commercial winterizing hangars for Class A motorhomes, luxury yachts, and boat trailers.

FAQ

1.What kind of engineering support do you provide?

With over 10 years of industry expertise, our engineering team offers end-to-end support from concept to design. We deliver customized solutions that improve performance, reduce maintenance, and maximize long-term operational value.

2.Is it fire retardant?

Yes. The fabric is flame-retardant and self-extinguishing, suitable for industrial and commercial use where fire safety matters.

3.Do I need a building permit for a 5,000 sq ft structure, and do you supply engineering blueprints?

In most jurisdictions across the US and Canada, this structure is classified as a temporary, relocatable fabric building, which typically enjoys streamlined zoning approvals compared to permanent brick-and-mortar warehouses. We provide full CAD footprint drawings, anchor bolt patterns, foundation reaction load specifications, and NFPA 701 fire-retardant certificates to help your local engineer or contractor submit for municipal site permits.

4.What is the sea freight delivery time?

Sea freight transit time varies greatly depending on destination port, shipping schedule and customs clearance. Normally sea shipping takes 7-45 working days from China port to most European main ports, excluding local customs clearance and inland delivery.

5.Will the steep peak roof handle heavy northern snowfalls, and what is the certified snow rating?

Engineered specifically for cold northern climates (Canada and the northern US), the structure is rated for a ground snow load of 20 lbs/sq ft (≈1.0 kN/m²) backed by commercial double-chord galvanized steel trusses. The steep A-frame peak roof design naturally sheds snow and ice down both sides by gravity, preventing dangerous thick snow buildup commonly seen on flatter curved hoop buildings.

6.Is it safe for winter storage?

The cover sheds snow and blocks ice/rain; vehicles stay dry. It's not heated -remove snow buildup and it protects year-round.

7.The peak reaches 23ft and weighs 5.5 tonnes. Do we need an expensive crane to erect it?

A heavy crane is not required. The arches assemble in modular, bolt-together segments on the ground. Raising the trusses requires only standard job-site equipment: one reach forklift / telehandler and one scissor lift platform. With our pre-labeled parts and step-by-step illustrated manual, a crew of 5–6 workers can complete full assembly within 4–6 working days.

8.Will this large cover flap loudly in high winds or become loose over time?

No. The membrane utilizes a heavy-duty pipe-pocket and double-ratchet tie-down system along the entire 100ft length. Once tensioned, the 26oz/32oz heavy PVC skin remains drum-tight against the double trusses, eliminating wind-whipping and premature fabric fatigue. We recommend re-checking ratchet tension twice a year during seasonal weather transitions.
