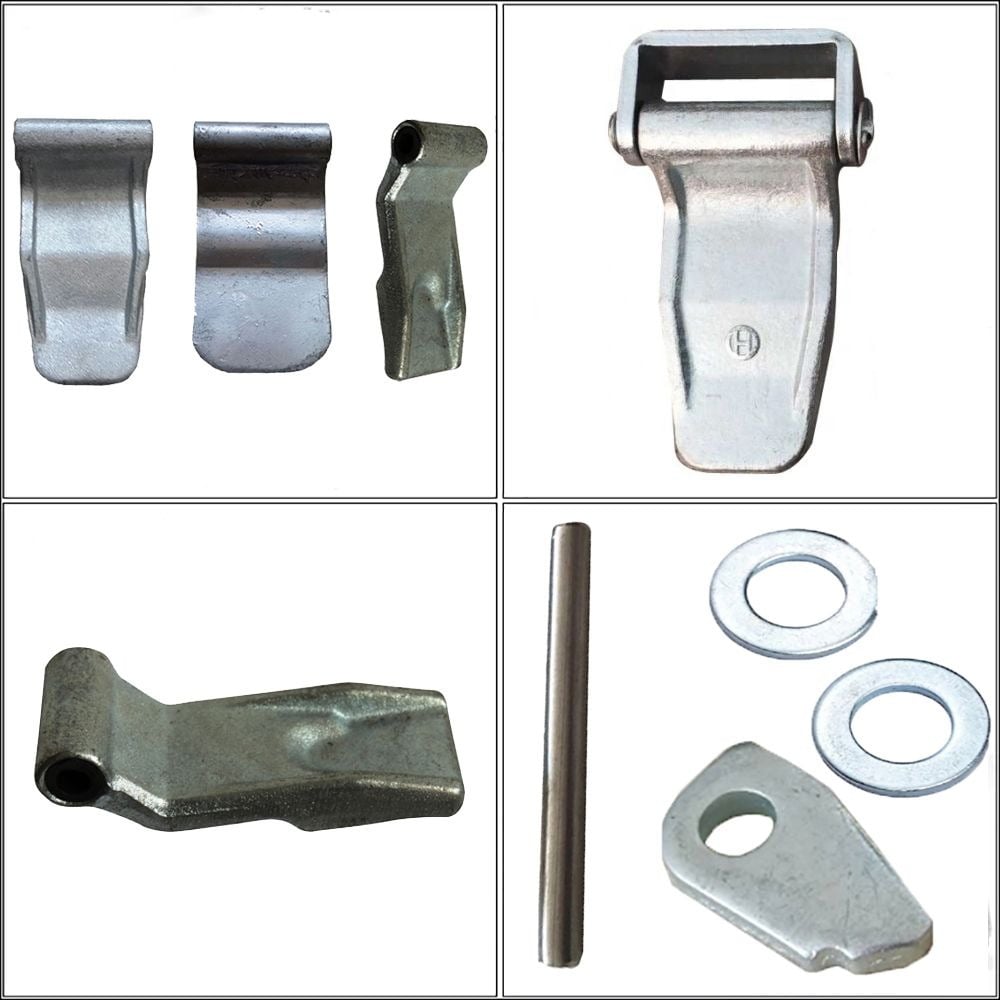

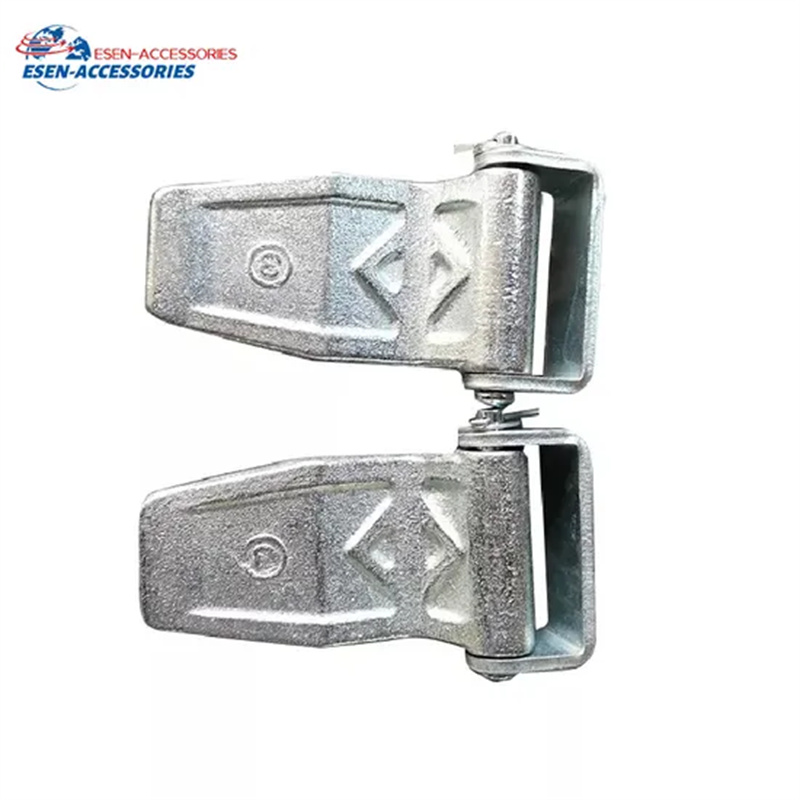

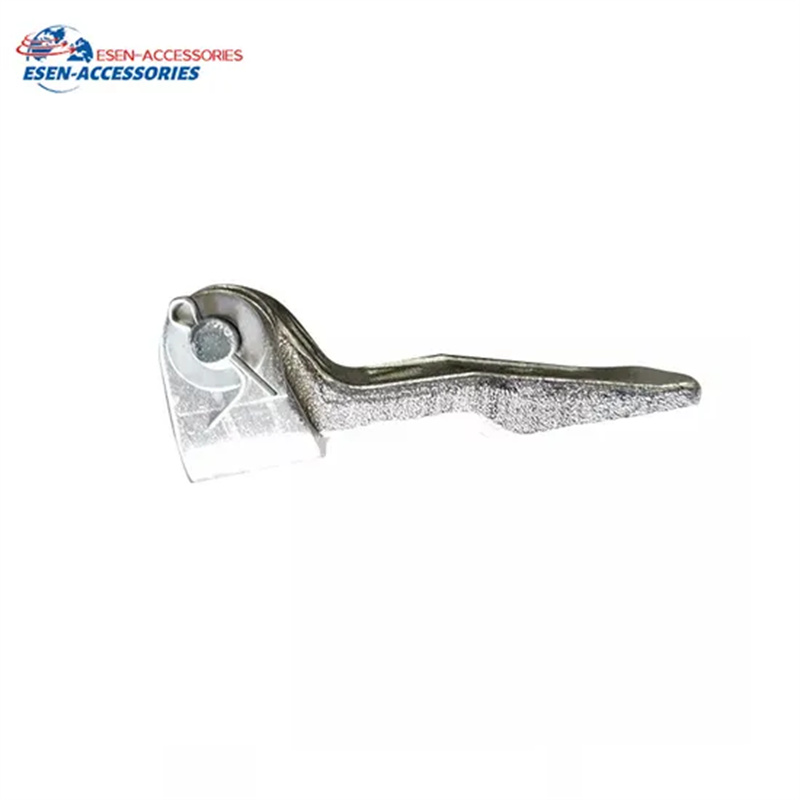

ISO Steel Shipping Container Door Spare Parts Door Hinges Forged Door Hinge
|

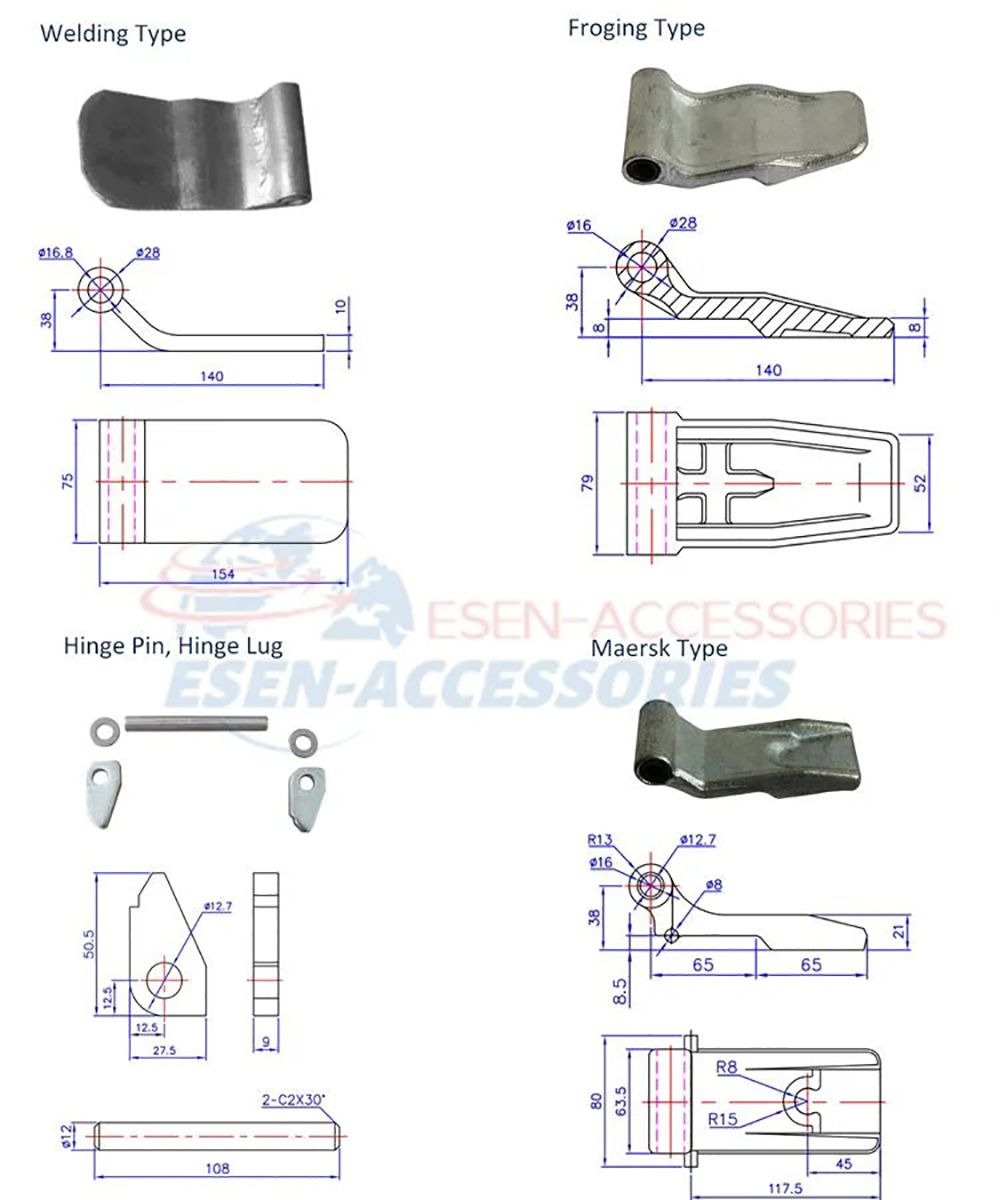

Specification For Container Door Hinge |
|||
|
Type |
Forged hinge |
Welding hinge |
MSK hinge |
|
Weight |
1.97kgs |
2.00kgs |
1.96kgs |
|
Size |
140x79x38mm |
140x75x38mm |
130x80x38mm |
|
Material |
Steel SC25 |
||
|
Finish |
Hot Dip Galvanized |
||
|

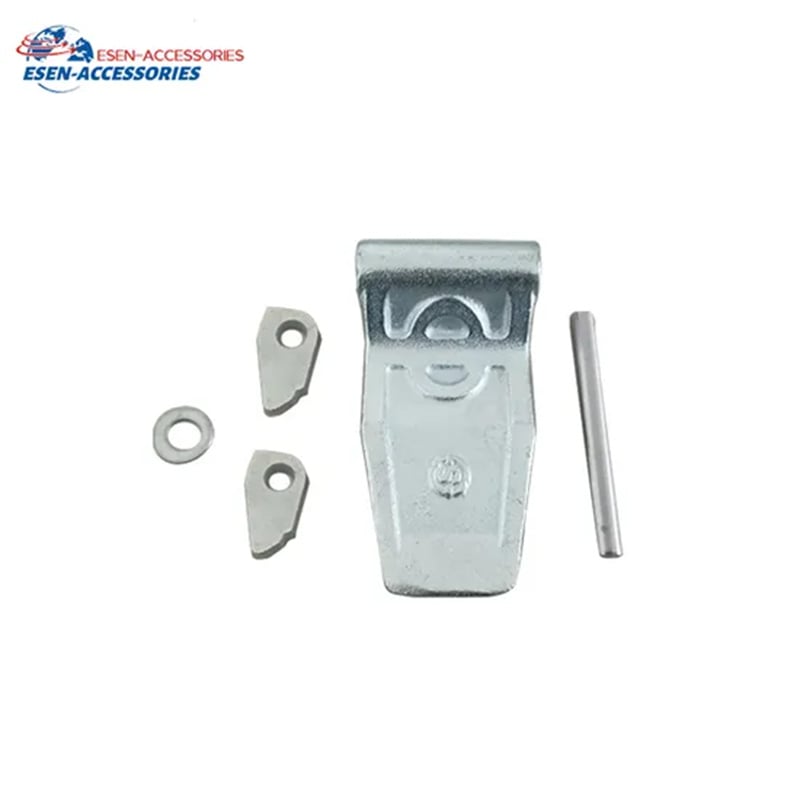

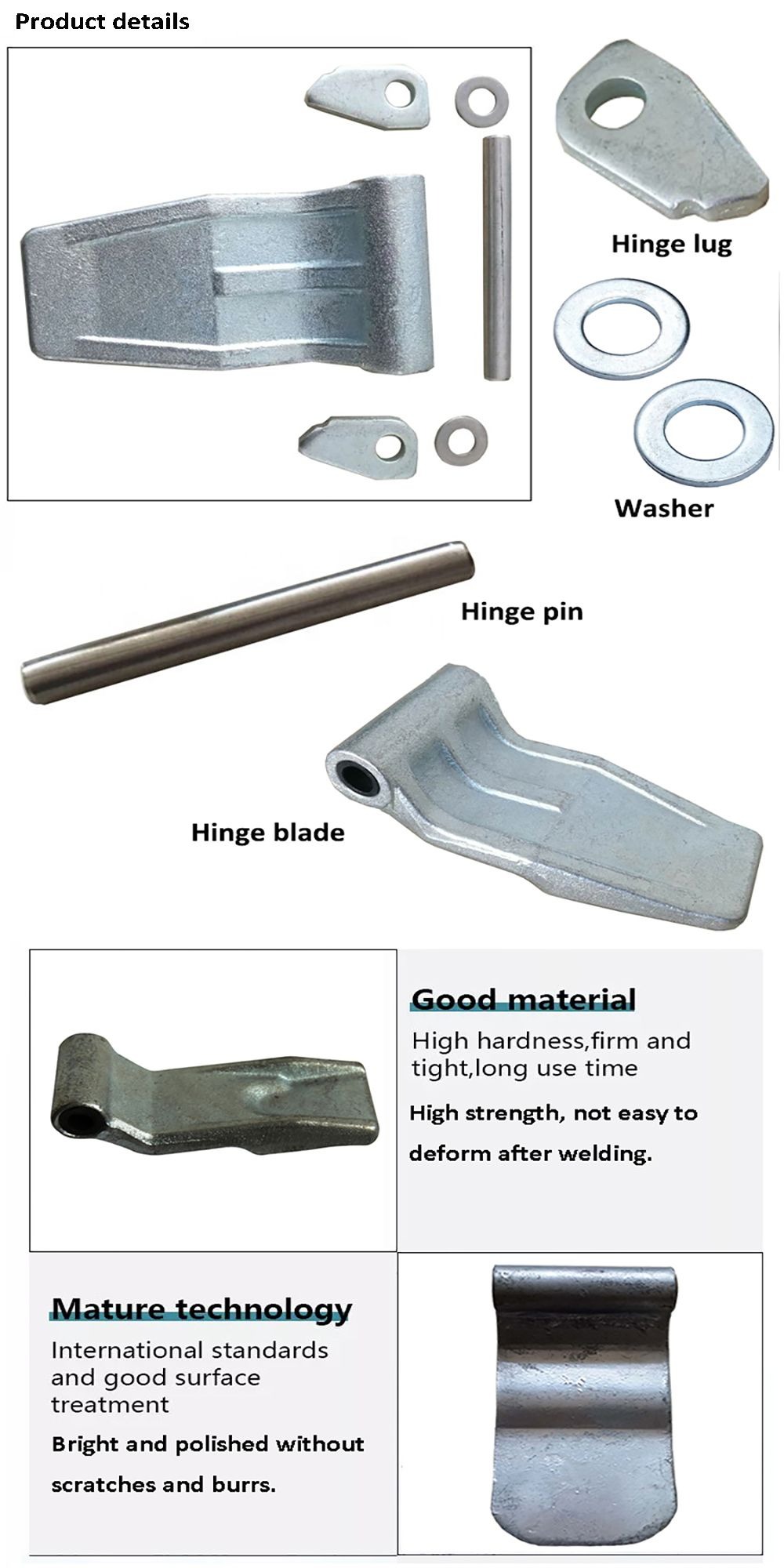

Shipping Container Hinge Accery |
|||
|
Parts Name |
2pcs Hinge lug |
1 pc hinge pin |
Brass wash |
|
Size |
t9.0x50.5x27.5mm |
Ø12x108mm |
innerØ:13.50, outerØ:26mm |
|
Material: |
SS400 |
SUS304 |
|
- Description
- Packaging & Shipping
- Related Products
Description
The door hinge is made of high-quality carbon steel. The surface is treated by environmental protection galvanizing, beautiful and durable.Container door hinge is designed to lock the container in a secure way.
Like other shipping container fittings, shipping container door hinge is designed to lock the container in a secure way. Shipping container doors are not like car doors or bedroom doors. There are four or five door hinges per shipping container door and the hinge pins must be lined up right for the doors to be free to fully open and close as they're supposed to.
The product is used on the container doors. It has been continuously improved, so that the quality, process and application range of the product have been greatly improved, and it has won the consistent praise of the vast number of customers!
This can also be used for container manufacture and repair, such as standard containers, customized containers, container maintenance, container transformation, special containers, marine container trucks, railway containers, etc.
Each container is standard equipped with 8 sets of hinges, each door with 4 sets, mainly used for the rear corner post and door panel.

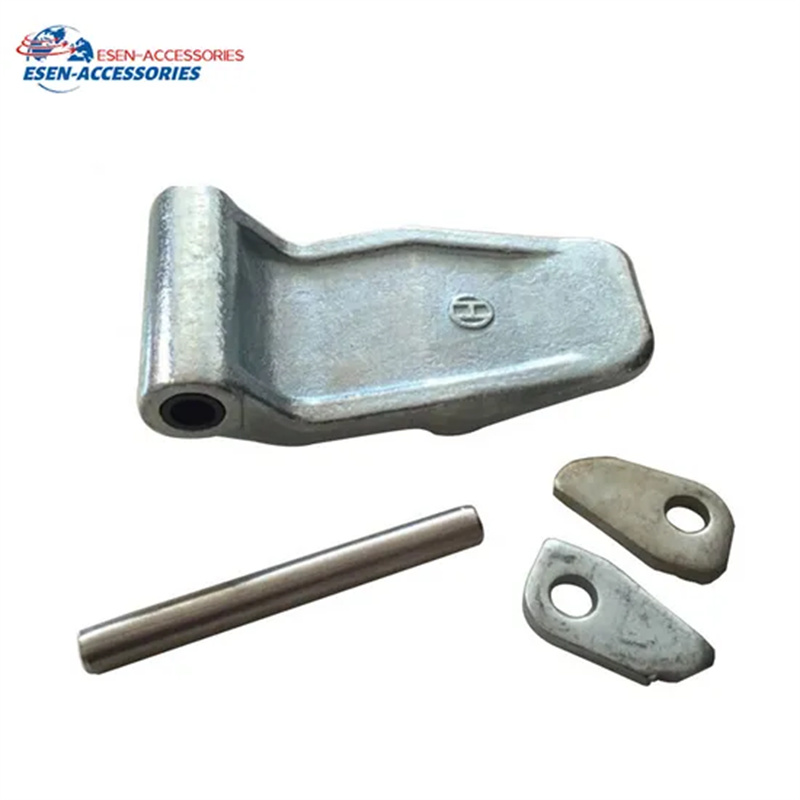

This forged type door hinge is used on shipping containers. It is made of steel material. This door hinge also has welding and MSK type.
Packaging & Shipping

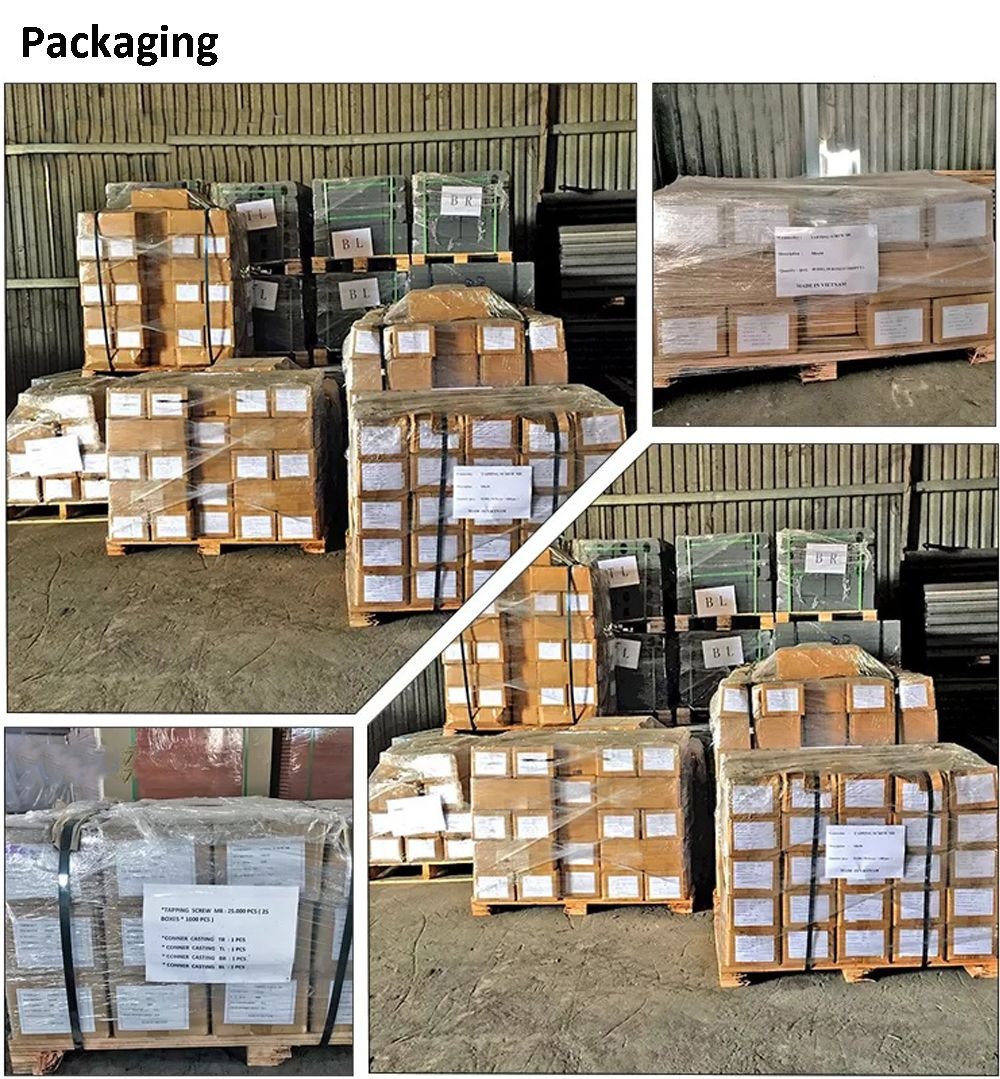

★Container Door Hinge are packed into bag or carton, then packed into steel pallet as the pictures below.
All the steps made carefully and test by engineers.
★We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
