ISO 20/40FT Shipping Container Casters Wheels
|
Specification For Container Door Hinge |
|||
|
Type |
Forged hinge |
Welding hinge |
MSK hinge |
|
Weight |
1.97kgs |
2.00kgs |
1.96kgs |
|
Size |
140x79x38mm |
140x75x38mm |
130x80x38mm |
|
Material |
Steel SC25 |
||
|
Finish |
Hot Dip Galvanized |
||
|
Shipping Container Hinge Accery |
|||
|
Parts Name |
2pcs Hinge lug |
1 pc hinge pin |
Brass wash |
|
Size |
t9.0x50.5x27.5mm |
Ø12x108mm |
innerØ:13.50, outerØ:26mm |
|
Material: |
SS400 |
SUS304 |
|
- Description
- Application
- Packaging & Shipping
- Related Products
Description

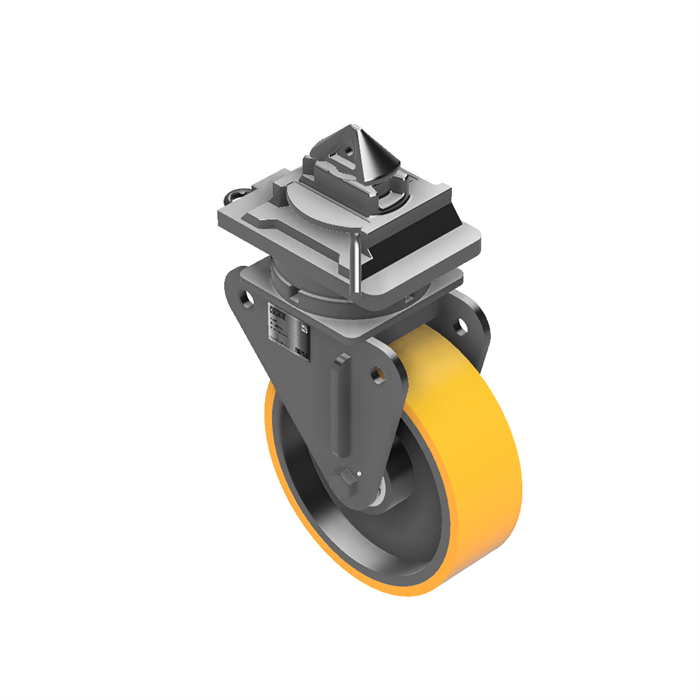

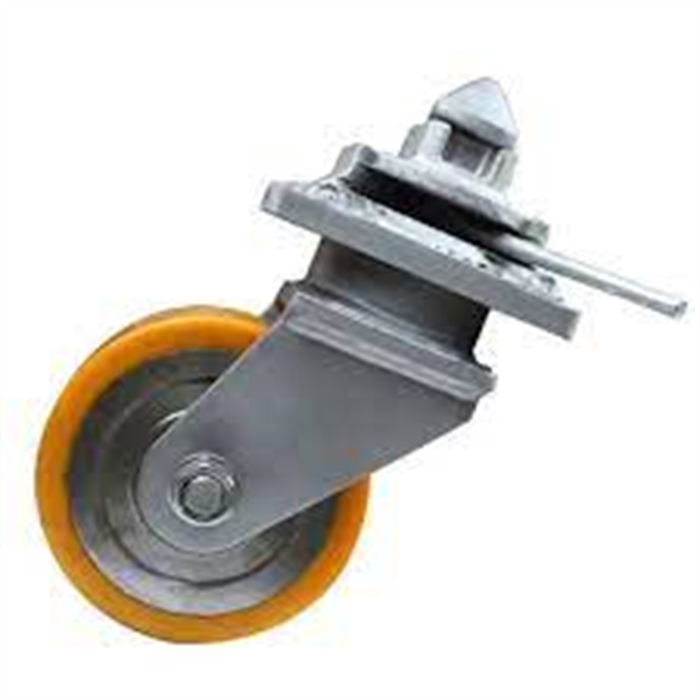

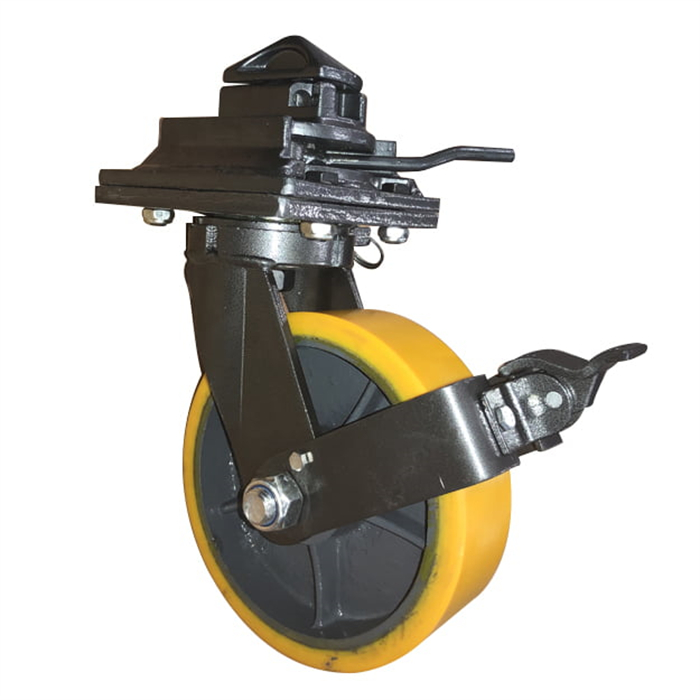

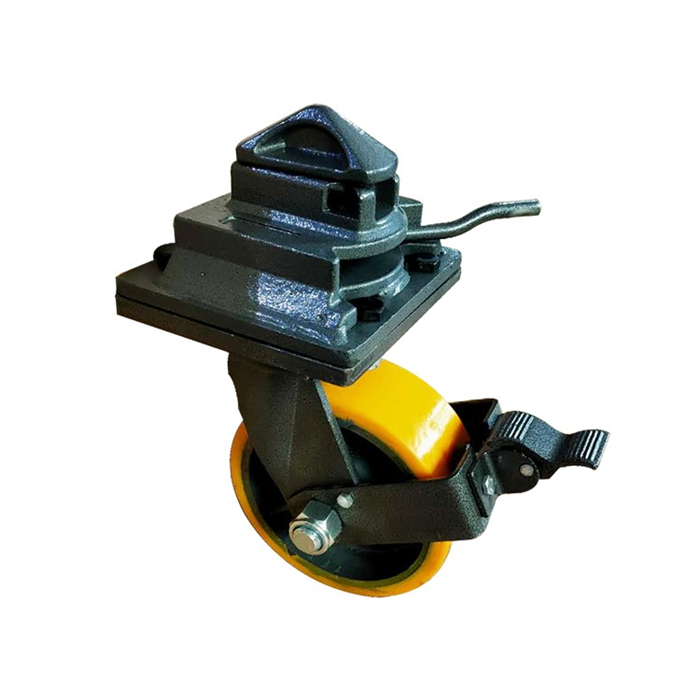

This Container Wheels are designed for Shipping Container and Container House only.
The wheel have Twist lock on the top, so that it can be locked the container quickly via container bottom corner castings.

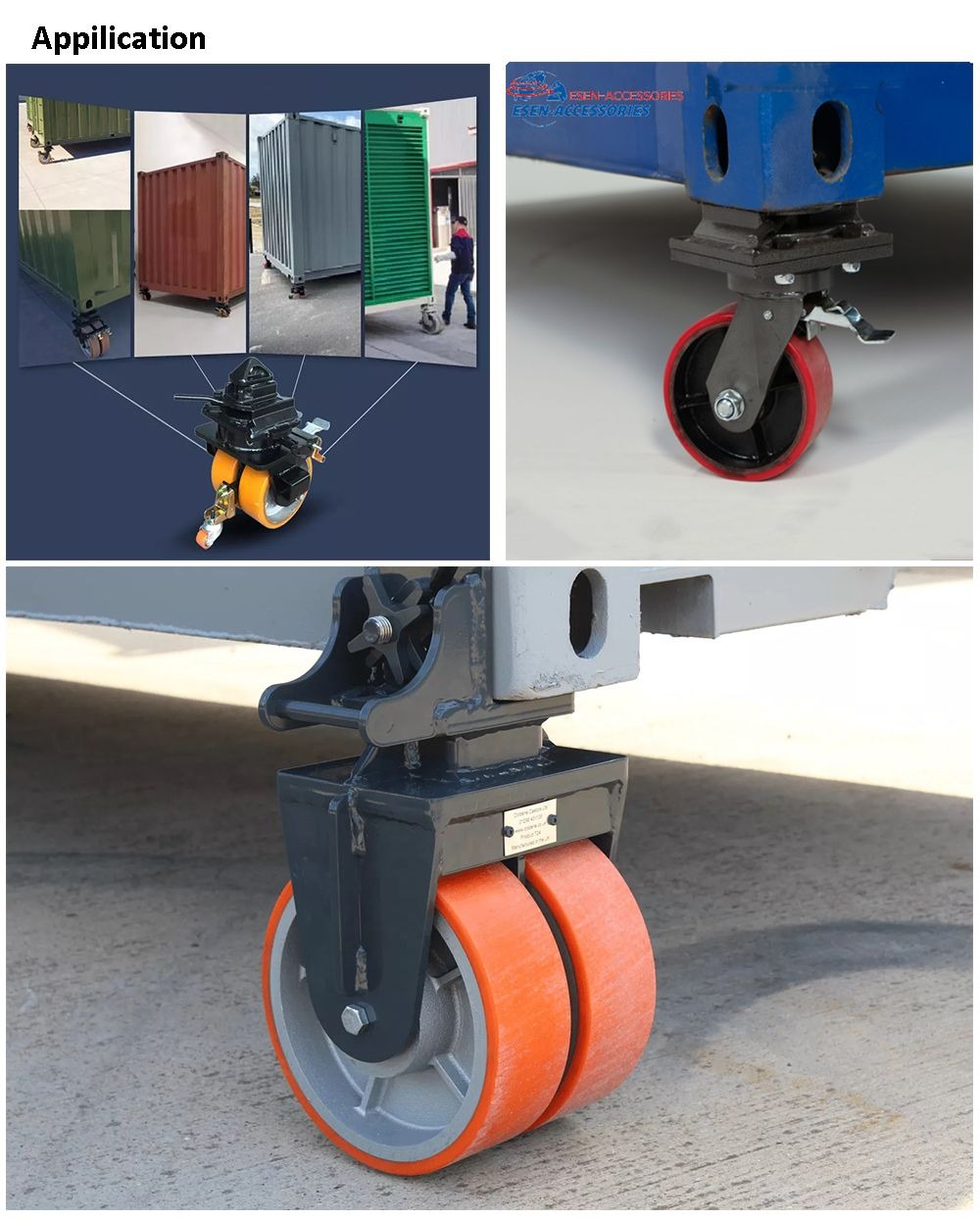

Application
√ Mobilize loaded or unloaded containers
√ Fits ISO Corner Fitting of Cargo Containers of various sizes
√ Load capacities range from 2,500LB to 20,000LB
√ Variety of wheel selection depends on load capacity and application environment
√ Handle swing to lock into Corner fitting or back to unlock
√ Swivel lock and wheel brakes are available
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and
efficient packaging services will be provided.
