Heavy Duty Steel Container Truck Loading Dock Plate Ramps Forklift Dock board for Warehouse
Loading Docking Ramp Steel Dock Board Plate for Forklift Container Loading and Unloading
| Product Name | Dock Boards |
| Material | Steel |
| Capacity | 7Ton,12Ton |
| Color | Silver |

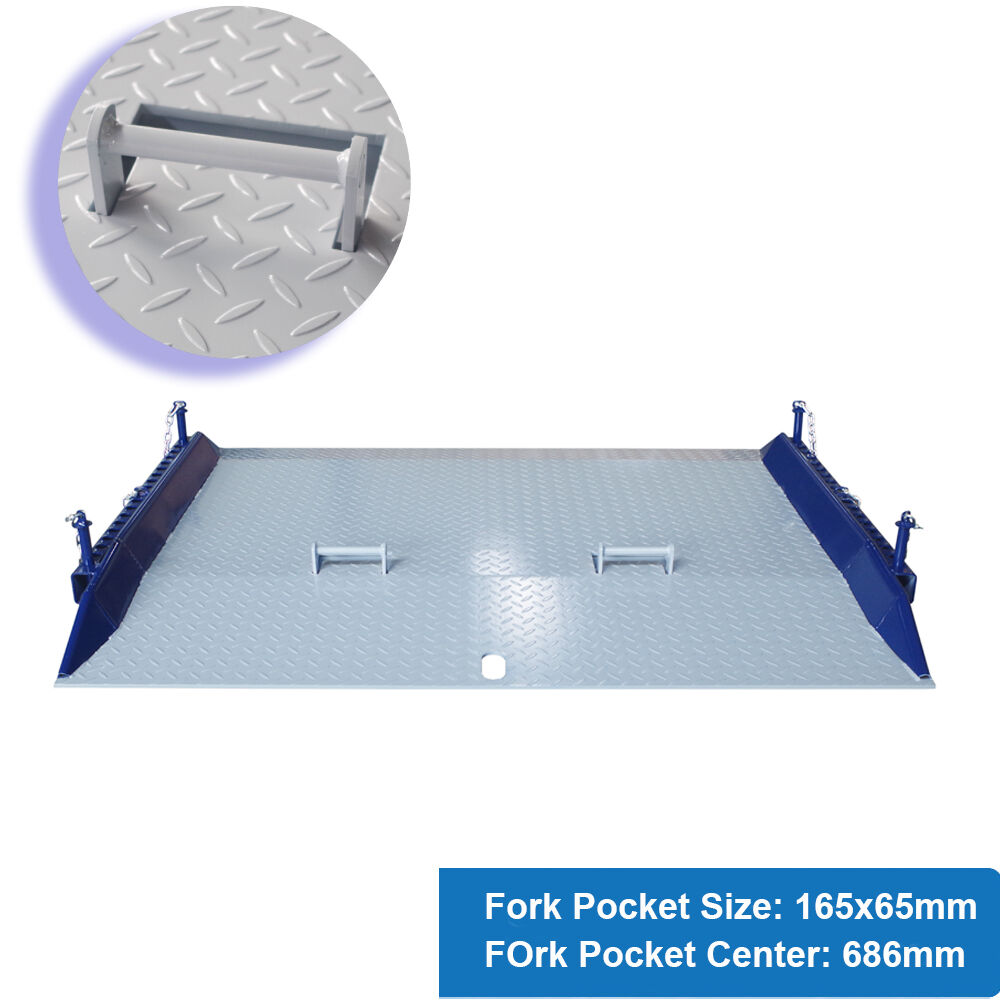

| Fork Pocket Size | 165*65mm |
| Fork Pocket Center | 686mm |
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

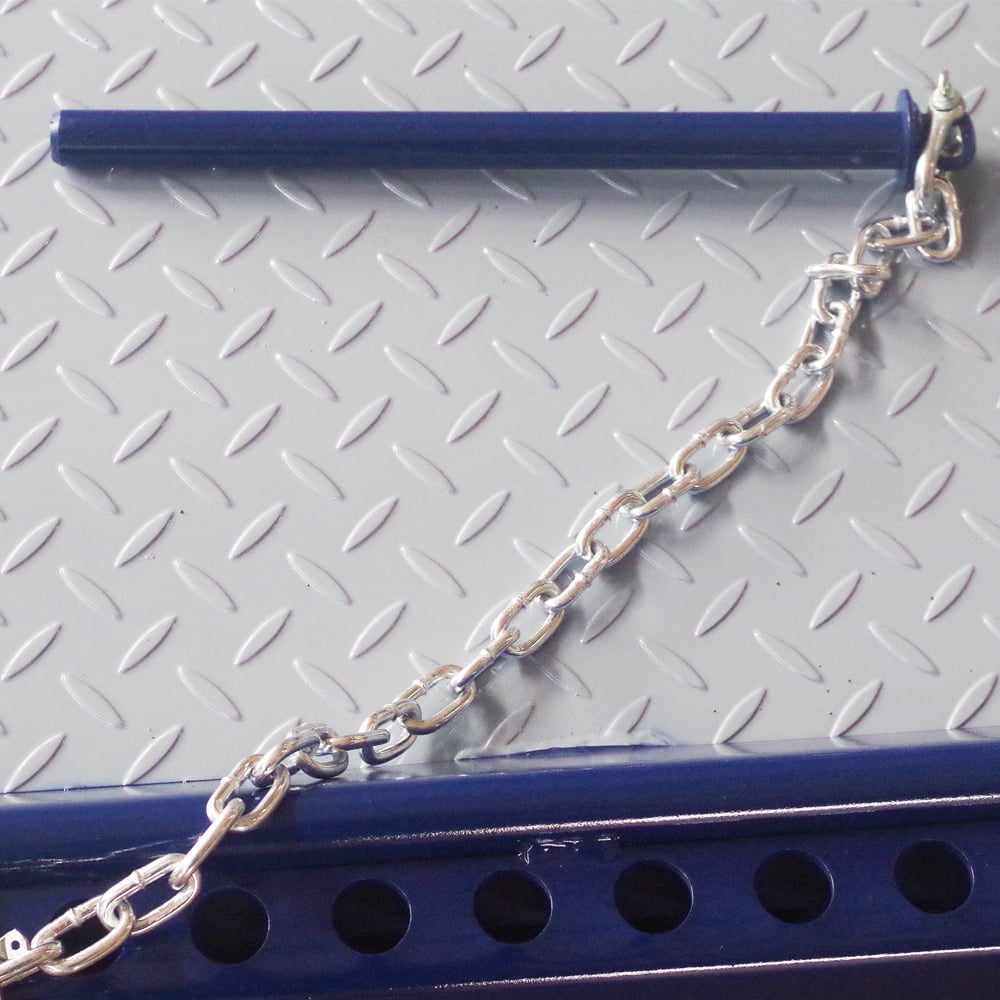

This loading/unloading platform is mainly used for connecting the logistics platform with the truck. It can quickly connect the loading/unloading platform with the truck's cargo compartment, and can also quickly disengage, facilitating the loading and unloading of goods by forklifts. There are connecting chains on both sides, facilitating the movement of forklifts. Guardrails are welded on both sides to prevent the forklift from falling. The surface is galvanized or painted. The specific dimensions can be discussed with our technical staff to select a platform with appropriate load-bearing capacity and suitable size.
Size:
| Model | Capacity(kg) | Width(mm) | Pin Length(mm) | Weight(kg) | 14% Grade Height Up(mm) | 19% Grade Height Up(mm) |
| 1 | 7000 | 1524 | 610 | 275 | 216 | 380 |
| 2 | 7000 | 1830 | 762 | 431 | 254 | 330 |
| 3 | 7000 | 1980 | 610 | 356 | 216 | 280 |
| 4 | 7000 | 2134 | 915 | 486 | 305 | 380 |
| 5 | 12000 | 1524 | 610 | 396 | 216 | 380 |
| 6 | 12000 | 1830 | 762 | 528 | 254 | 330 |
| 7 | 12000 | 1980 | 610 | 492 | 216 | 280 |
| 8 | 12000 | 2134 | 915 | 680 | 305 | 380 |

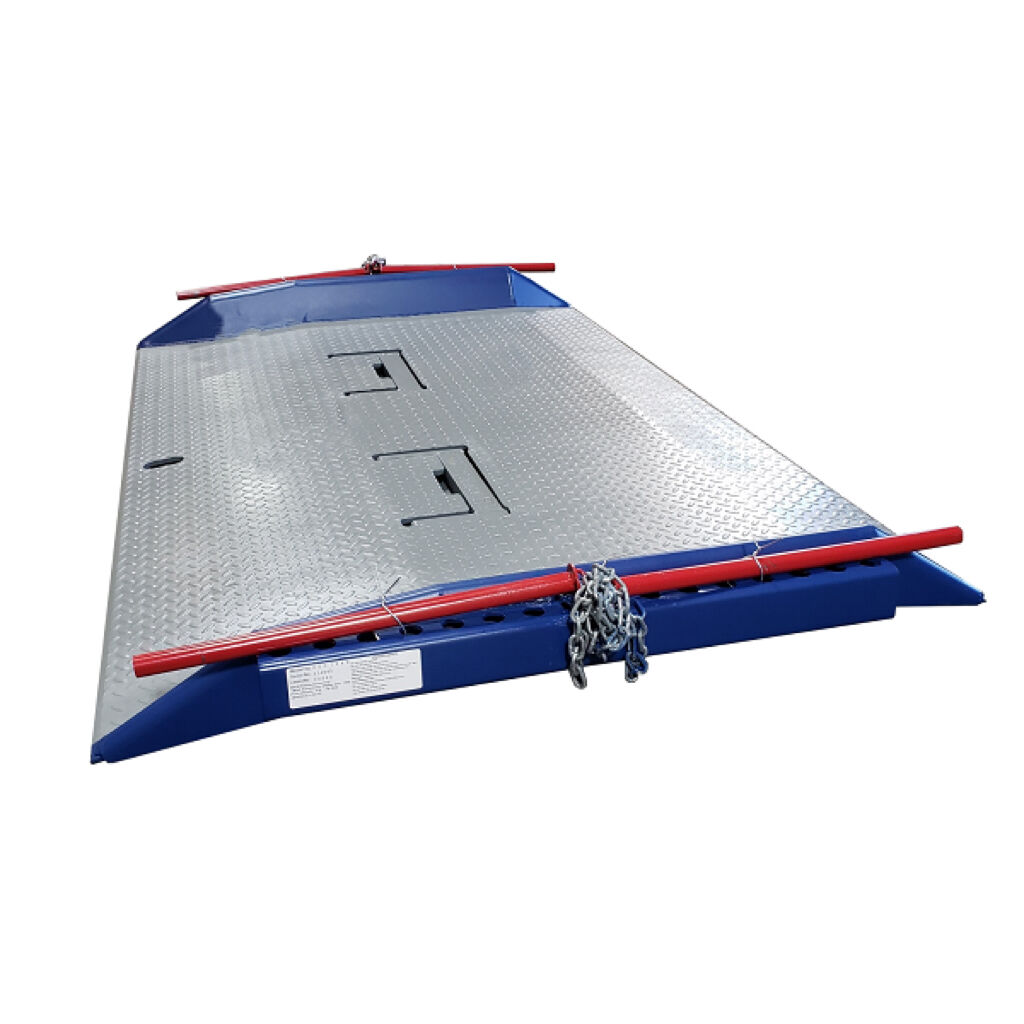

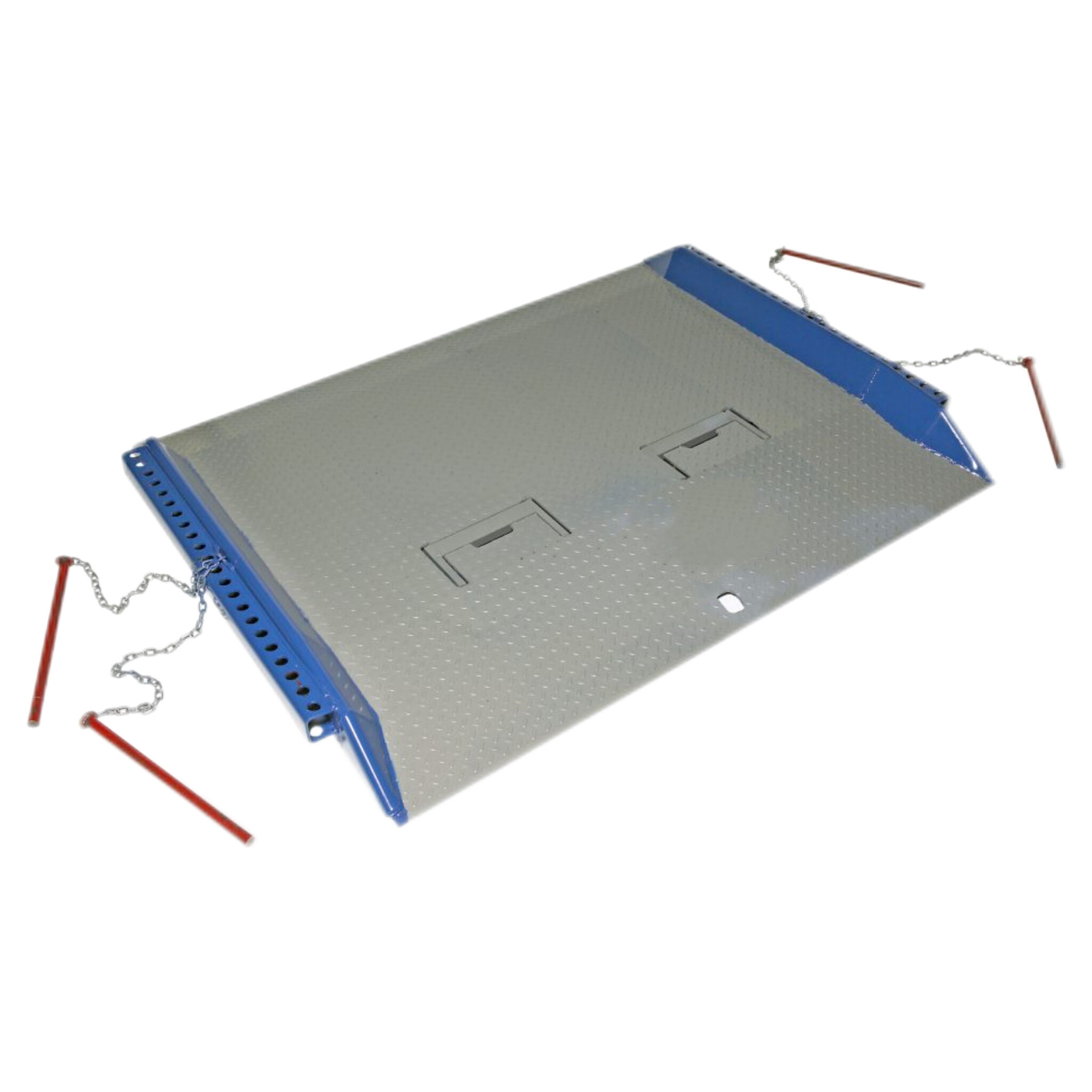

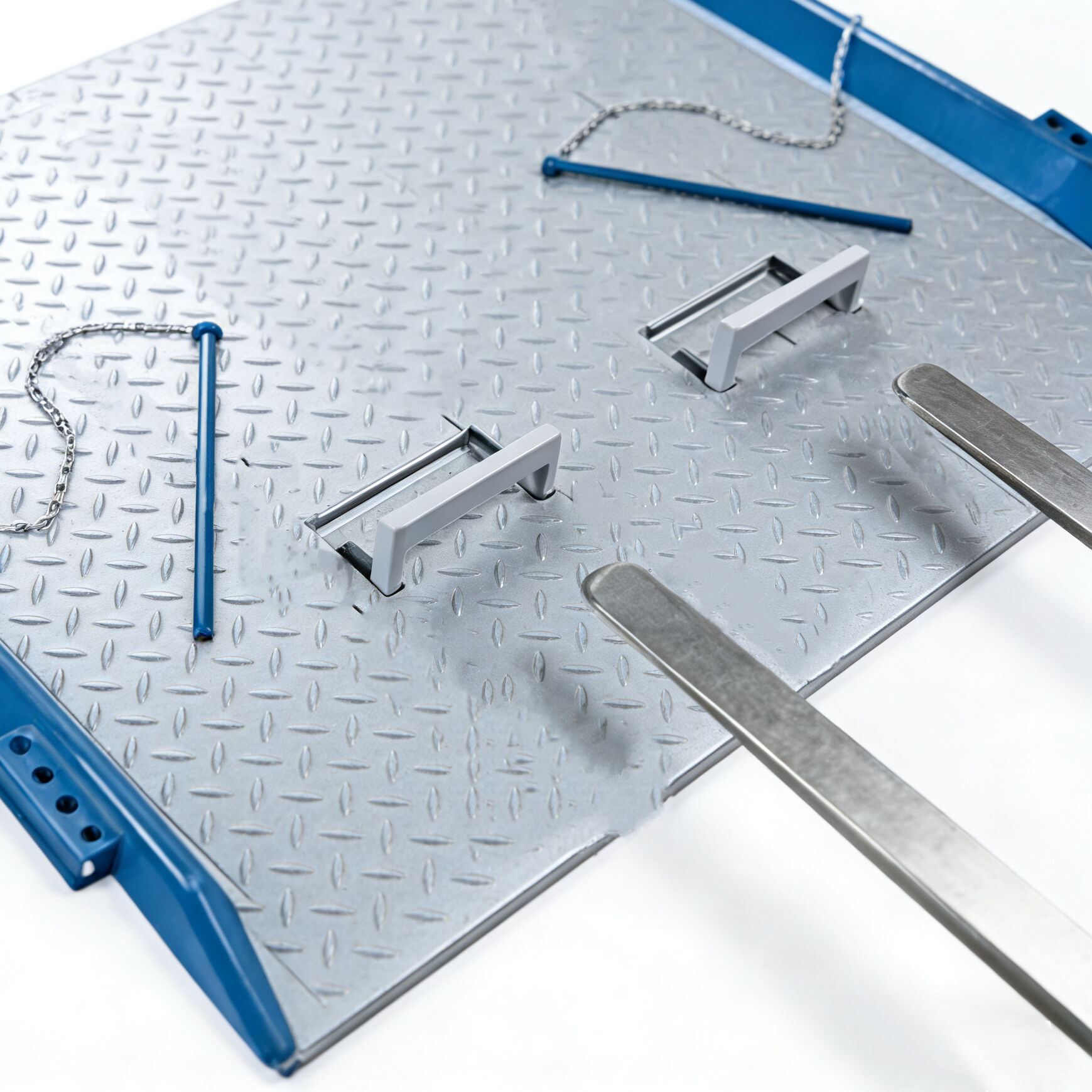

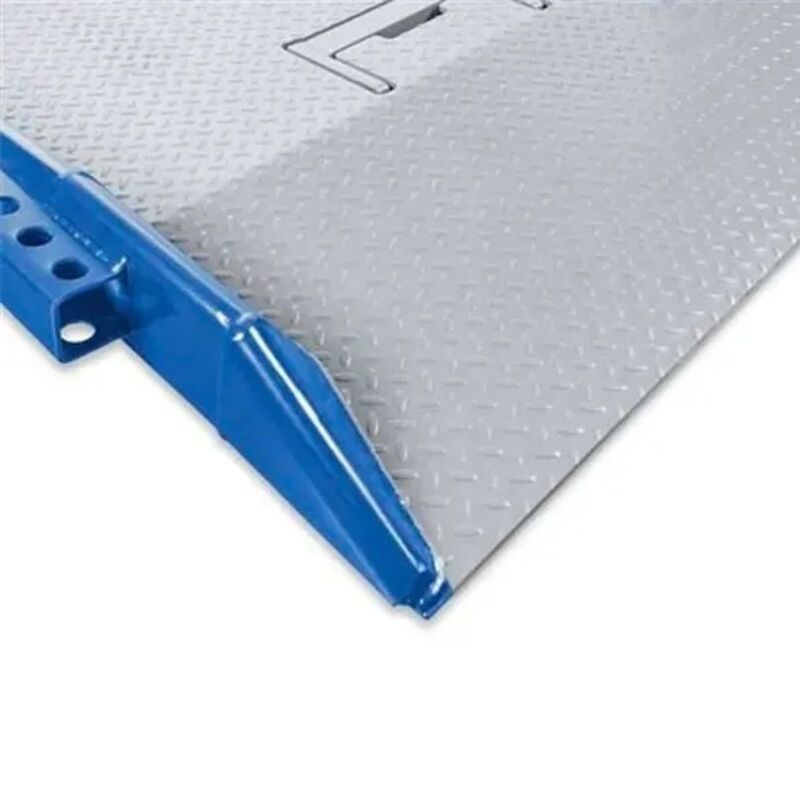

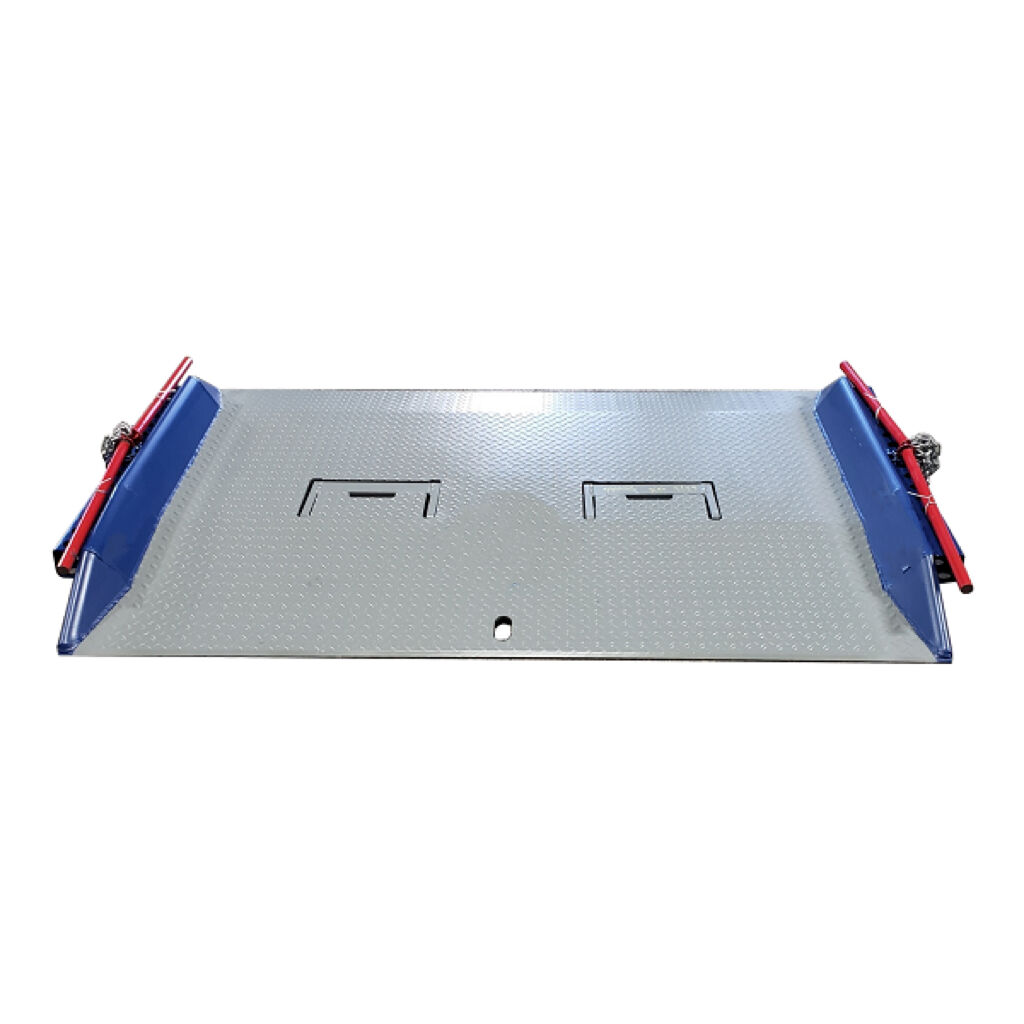

Detailed Photos

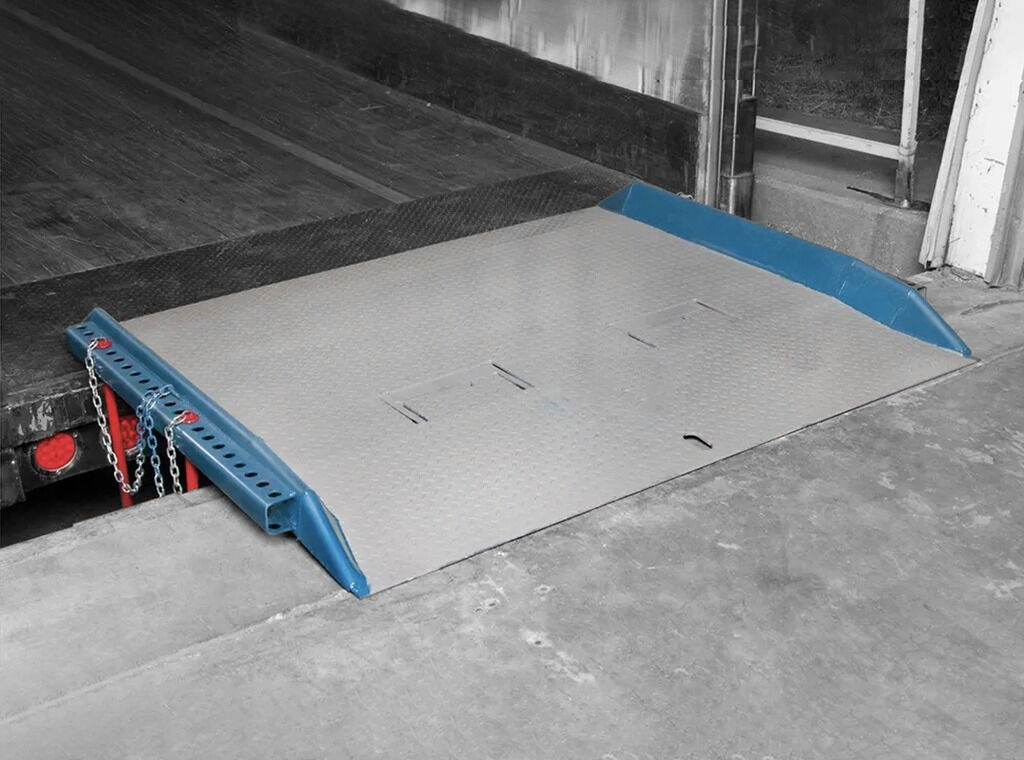

Application

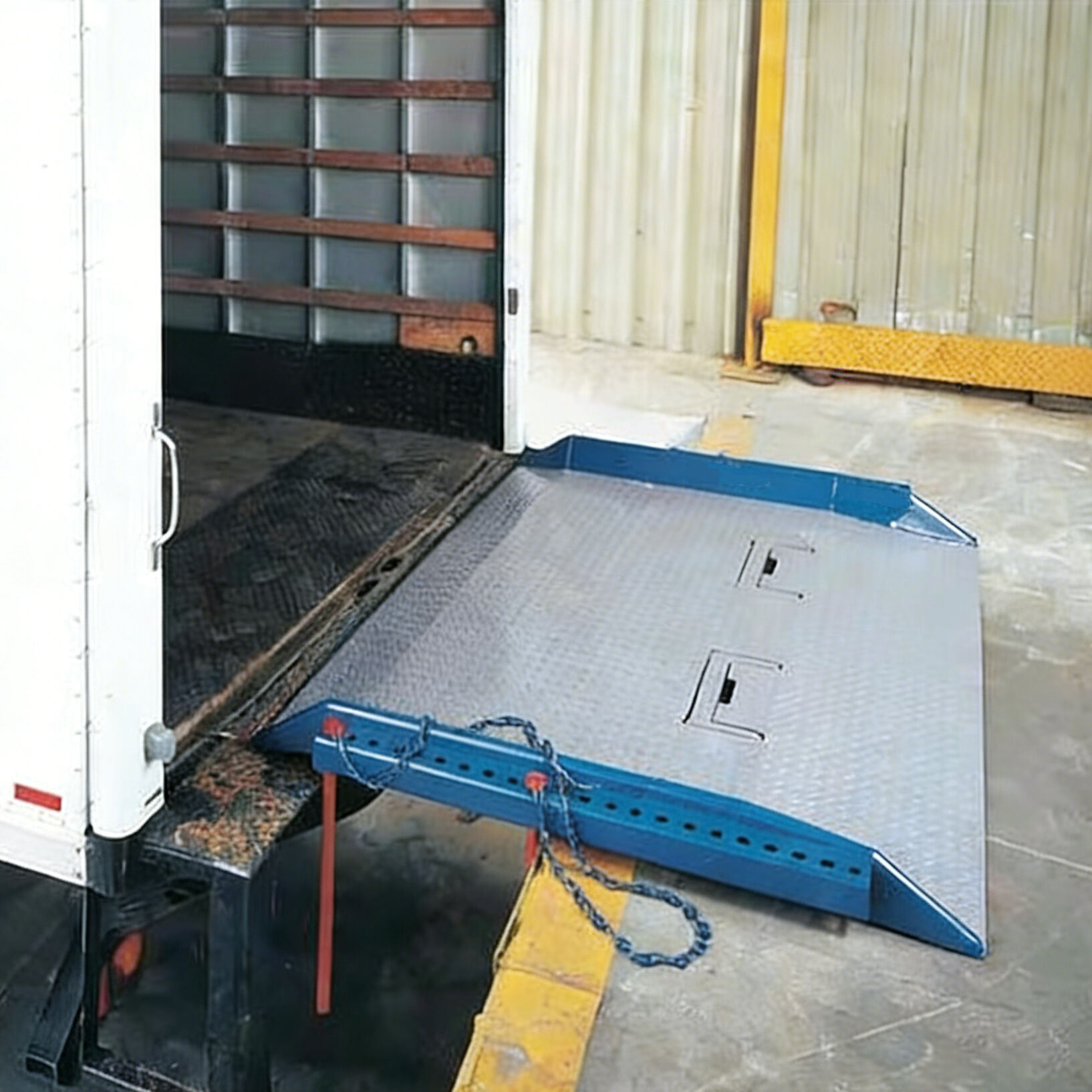

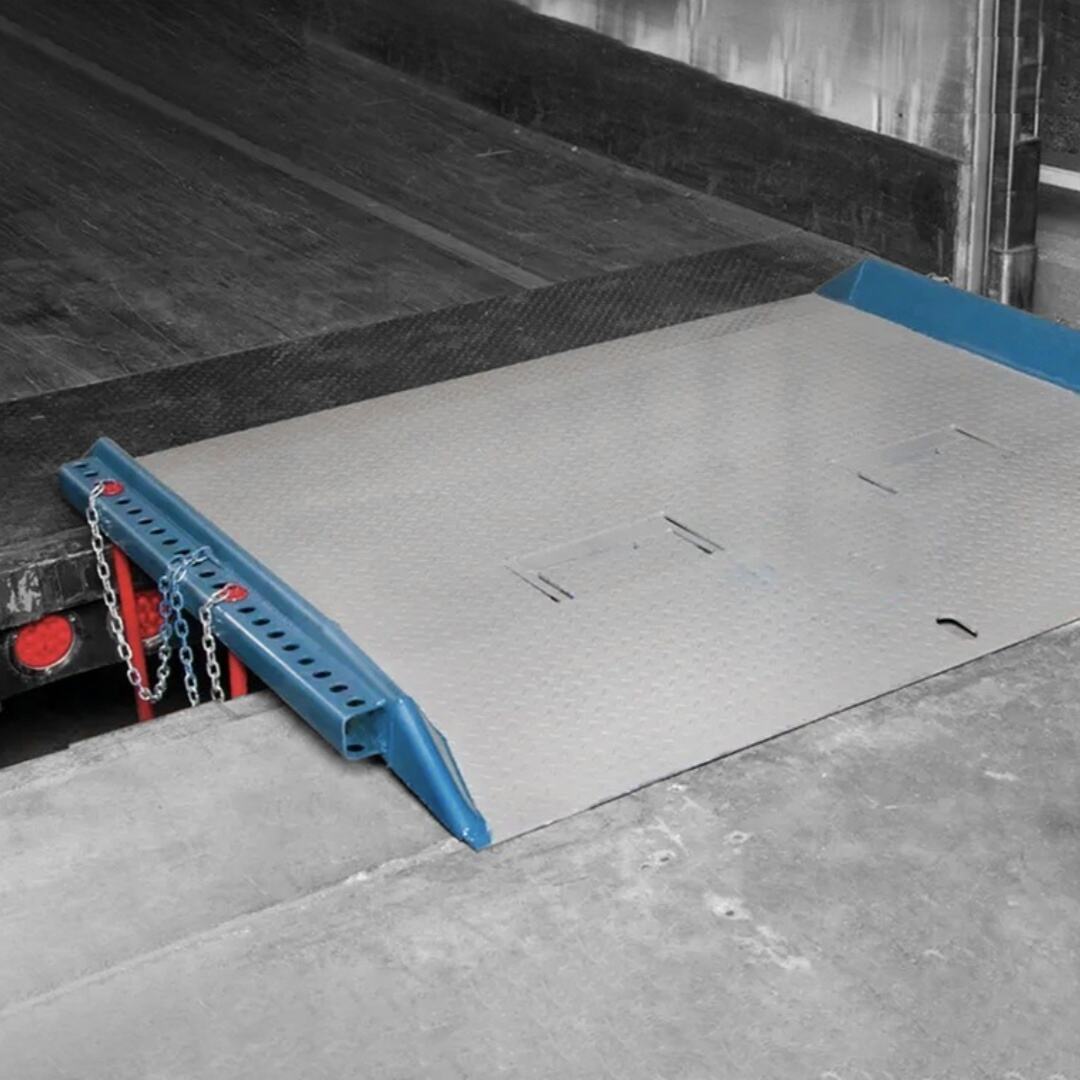

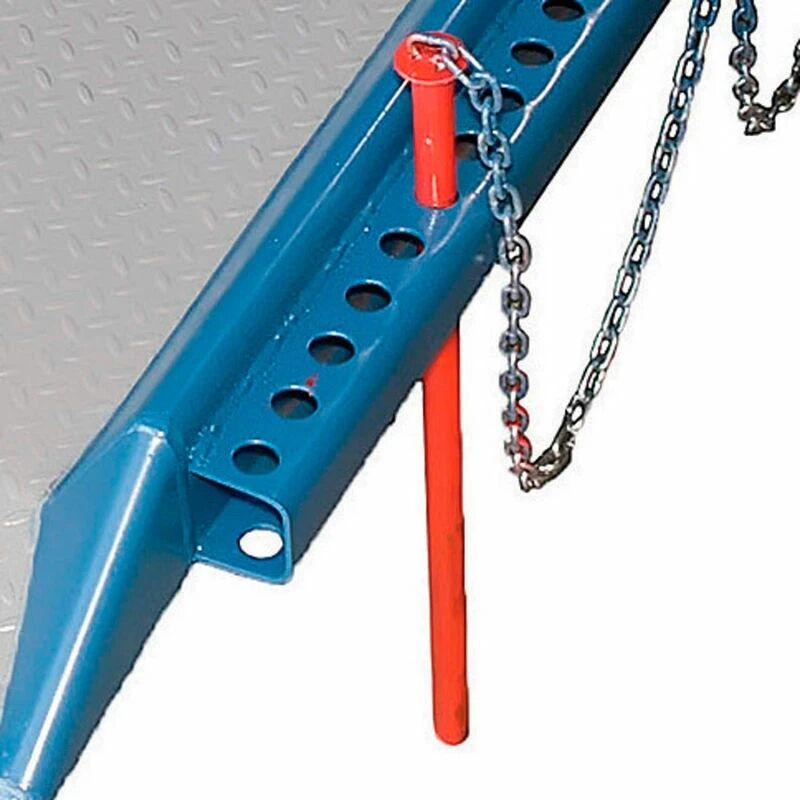

Built to handle the widest variety of trailer types and docking conditions, the dock Boards unique dual pin locking system makes it the most versatile dock board on the market. Ideal for use on tough park out, lift gate trailer, and angled docking applications.
Packaging & Shipping

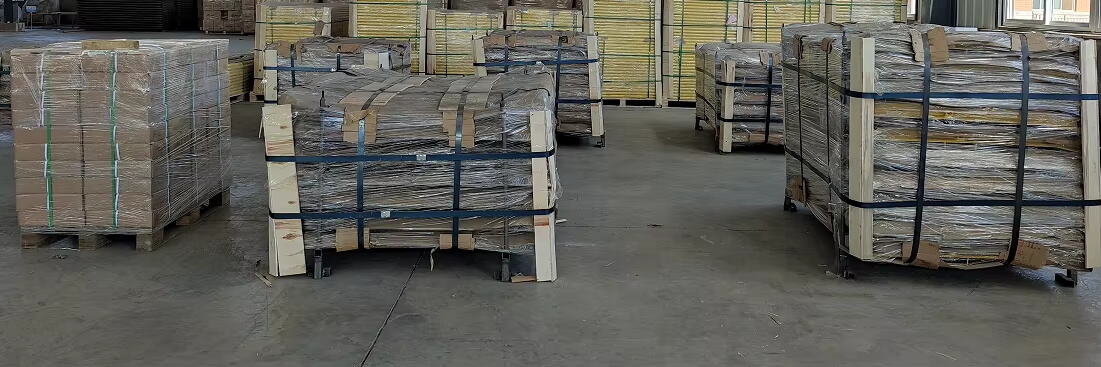

Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, then fastened with the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
