Good Quality Hot DIP Galvanized Dry Shipping Container Forged Type Door Hinge
| Product Name | Container Door Hinge Lug | ||
| Place of Origin | Shanghai, China | ||
| payment | By T/T,30% before production then 70% before delivery | ||
| Surface Treatment | Hot Dip Galvanized | ||
| Matierial | SS400 | ||
| Application | Container Manufacture and Repair | ||
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description

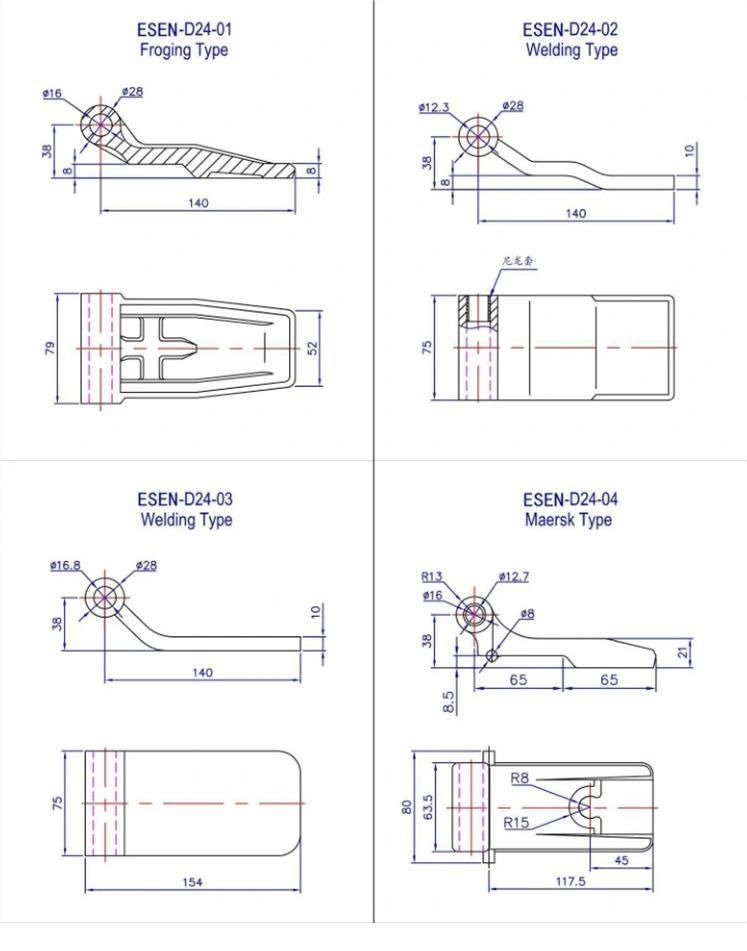

Hinge blades are divided into forging type, welding type, Maersk Type. According to the material of the lining sleeve, it can be divided into nylon and copper. One container needs 8 pieces of hinge blade. Hinge blade set includes 1 piece hinge, 2 pieces lug,1 piece hinge pin, 2 pieces brass wash.
Detailed Photos
Application

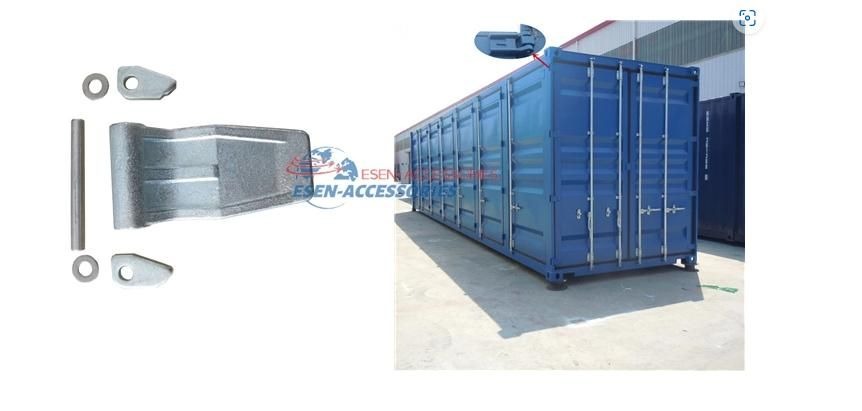

Each container is standard equipped with 8 sets of hinges, each door with 4 sets, mainly used for the rear
corner post and door panel.
Packaging & Shipping

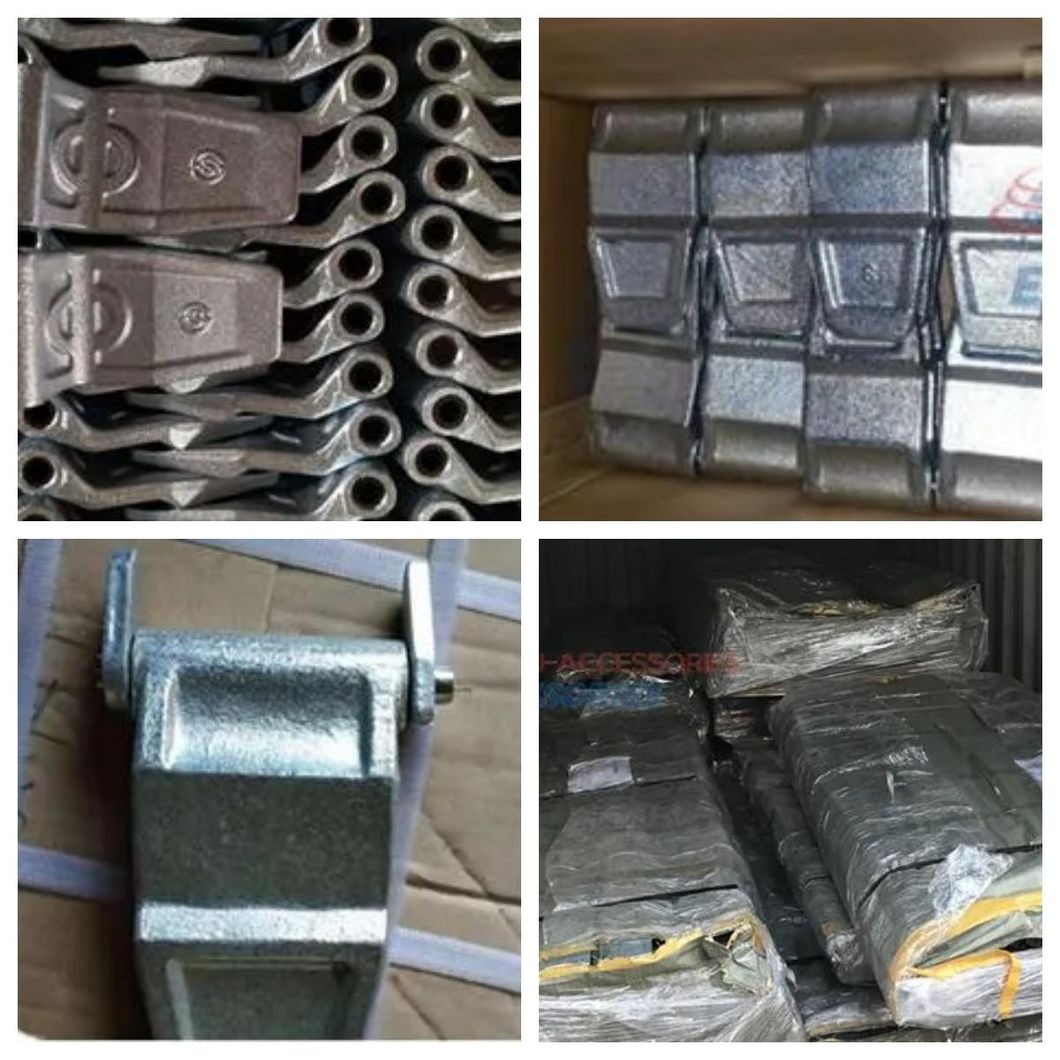

★Packing in to box. Inside full in there is a waterproof plastic bag, outside with plywood or carton, thenfastened with
the plastic rope specializes packing for secure and package into the pallet.
All the steps made carefully and test by engineers.
★We could supply all kinds of container spare parts, and also accept Mix Order loaded into one container for shipping.
