Double Truss Interlocking Concrete Block Shelter with Blocks 1600x800x800mm for Aggregate and Recycling Storage
Block Mounted Fabric Building for Recycling Bay Shelter / Waste Transfer Station Cover
|
Application |
storage house |
|
Product Type |
Steel Structure |
|
After-sale Service |
Online Technical Support |
|
Place of Origin |
Shandong, China |
|
Product Name |
Container shelter |
|
Wind Resistance |
70 mph (110 km/h) |
|
Connection Method |
Precision-engineered male and female interlocking components |
|
Material |
PVC |
|
Cover |
610g/m² PVC |
|
Snow Rating |
20 lbs/sq ft (1.0 kN/m²) |
|
Package Feature |
Anti-Collision, Stackable, Ocean Freight Protected |
|
Assembly |
No mortar, cement, or adhesives required for secure connections |
FAQ：
1.What kind of engineering support do you provide?
With over 10 years of industry expertise, our engineering team offers end-to-end support from concept to design. We deliver customized solutions that improve performance, reduce maintenance, and maximize long-term operational value.
2.Is it fire retardant?
Yes. The fabric is flame-retardant and self-extinguishing, suitable for industrial and commercial use where fire safety matters.
3.What is the sea freight delivery time?
Sea freight transit time varies greatly depending on destination port, shipping schedule and customs clearance. Normally sea shipping takes 7-45 working days from China port to most European main ports, excluding local customs clearance and inland delivery.
4.Is it safe for winter storage?
The cover sheds snow and blocks ice/rain; vehicles stay dry. It's not heated -remove snow buildup and it protects year-round.
5.Do you supply the actual 1600x800x800mm concrete blocks, or just the canopy roof kit?
We supply the complete engineered steel canopy, 610/750gsm PVC cover, and heavy-duty concrete mounting baseplates. Because individual concrete blocks weigh 2.4 tonnes each, shipping solid concrete overseas incurs massive, uneconomical ocean freight. Almost all international clients purchase the precast blocks locally (from firms like Elite Precast, PPC, or local batching plants for ~£185/block).
6.How are the baseplates anchored to the Lego blocks? Do the top blocks need to be flat?
Yes, for the top tier of your block wall, we recommend specifying "Flat-Top" interlocking blocks (blocks without the top raised studs) from your local supplier. Our heavy-gauge hot-dip galvanized baseplates seat flush onto the flat concrete surface and anchor securely using heavy-duty M16/M20 chemical resin capsule anchors or mechanical expansion bolts (anchor hardware can be included in our kit). Alternatively, saddle-style clamping brackets can be supplied to straddle blocks with studs.
7.Do I need mortar, cement, or specialized tools to assemble a block wall?

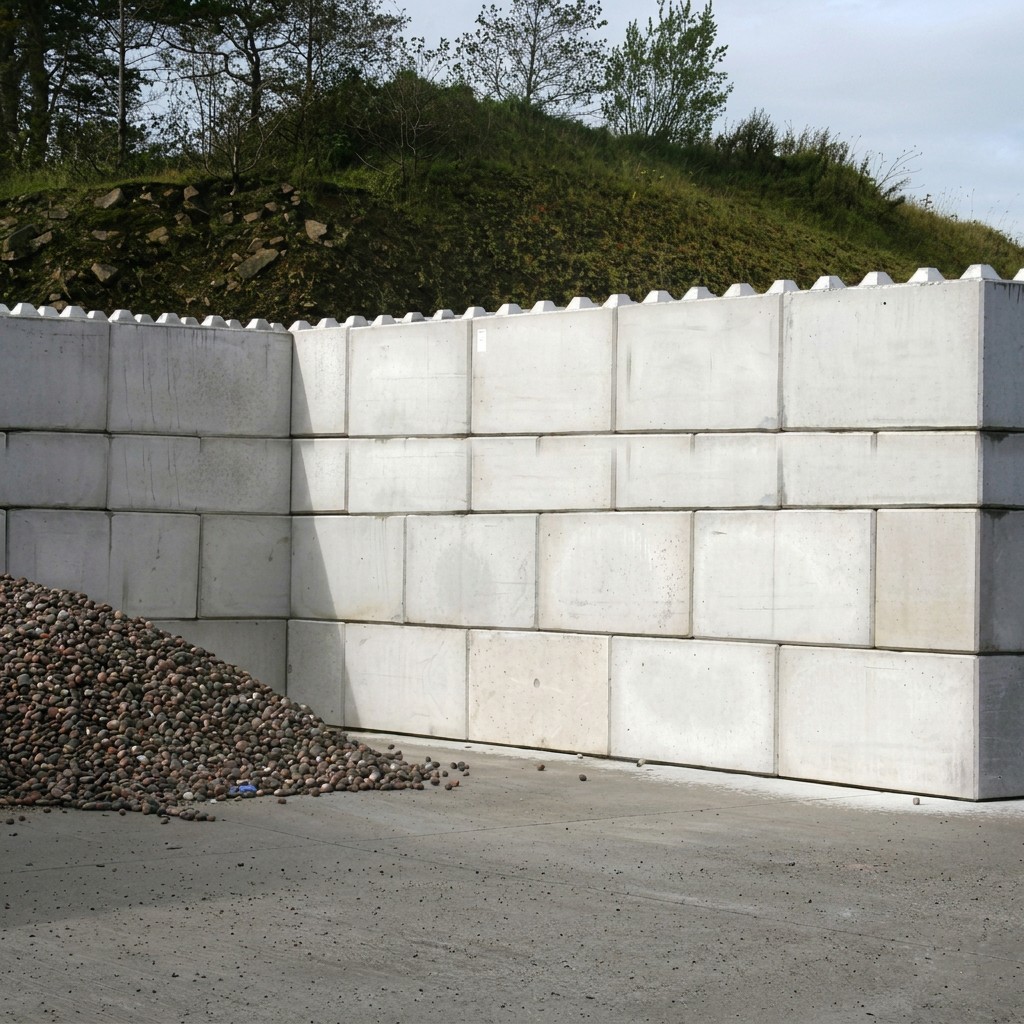

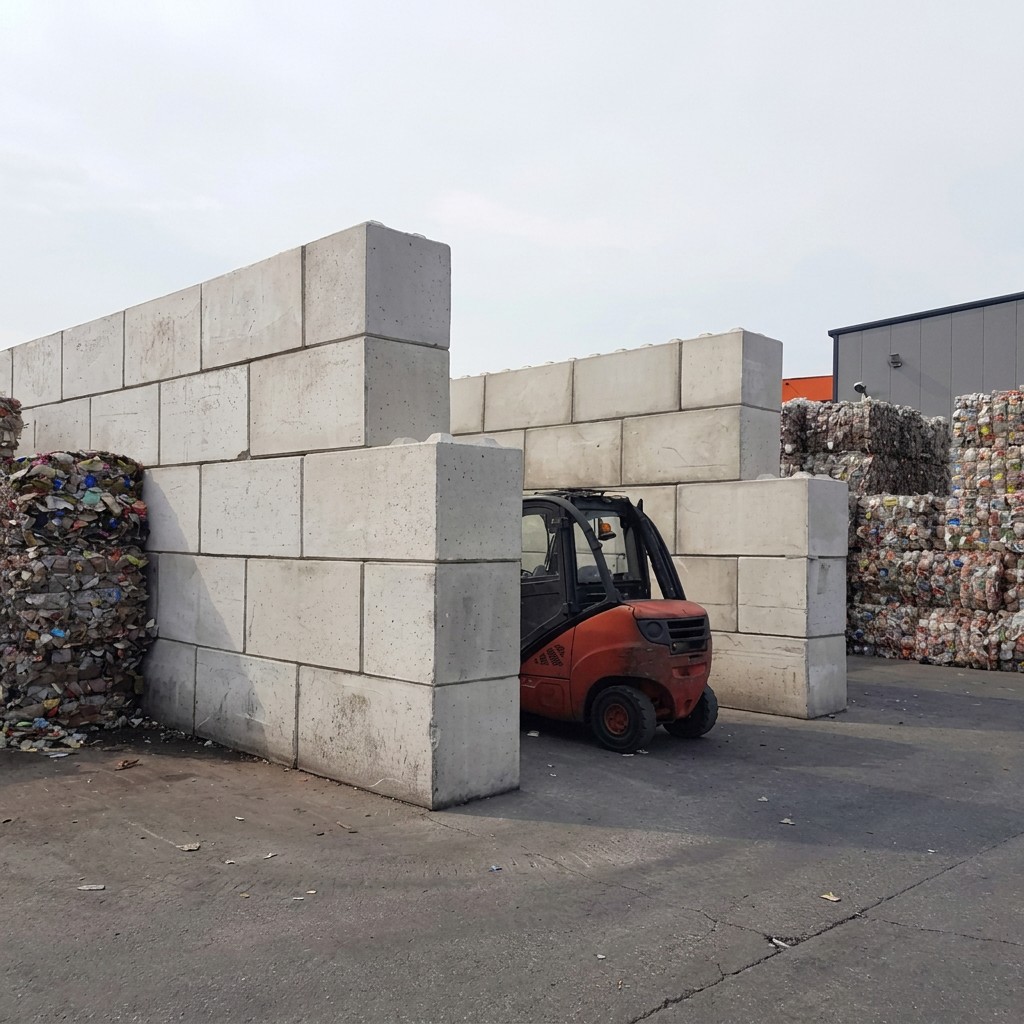

Zero mortar and zero adhesives required. The blocks utilize a dry-stacked interlocking system. The precision studs on top seat directly into the recesses on the underside of the tier above, locking rigidly through sheer gravity and geometric alignment. Assembly only requires a standard forklift, telehandler, or excavator equipped with a commercial lifting clutch/chain (using the block's cast-in lifting pins). A small crew can stack an entire material bunker in less than half a day.
- Description
- Detailed Photos
- Application
- Packaging & Shipping
- Related Products
Description
The Interlocking Concrete Legoblock & Bin Block Canopy Shelter is an advanced, heavy-duty modular covered solution engineered specifically for bulk material handling, environmental recycling, and severe industrial site environments.
This innovative system integrates a monumental precast interlocking concrete push-wall base (Legoblocks / Bin Blocks) with a high-tensile, hot-dip galvanized arched steel canopy. Unlike standard container shelters with thin corrugated walls that easily dent, buckle, and rust when struck by heavy machinery, solid 80cm-thick concrete bunker blocks are virtually indestructible—effortlessly withstanding continuous, high-impact scraping and pushing from heavy wheel loader buckets and excavators 24/7. Furthermore, the massive deadweight of the stacked concrete blocks (often 40 to 60+ tonnes) acts as an immovable gravity ballast foundation, completely eliminating the need for expensive poured concrete slabs and bypassing protracted permanent-building permit cycles.
Delivering generous, 100% column-free clearspans from 8m to 20m (26ft to 66ft), the roof is covered with commercial-grade 610–900gsm flame-retardant, ripstop PVC membrane featuring a continuous central daylighting skylight. The mortar-free, dry-stacked system can be fully erected and operational in as little as 48 hours, and remains 100% demountable and relocatable whenever your yard configuration evolves. It is the premier, proven asset for aggregate bays, quarries, municipal road-salt storage barns, scrap recycling facilities, and agricultural silage bunkers.
SHOUGUANG ESEN WOOD CO.,LTD is covering an area of 60,000 square meters, we have more than 500 employees and 9 automatic production lines. Our main products are Container Flooring Plywood and Container Spare Parts.
We have obtained ISO Certificate, ABS Certificate (USA) and FSC Certificate. Our annual production capacity reaches 100,000 cubic meters of container flooring plywood and 500,000 tons of container spare parts. All indicators comply with both International Quality Standards and Chinese Quality Standards.
To maintain high and stable quality, we have invested heavily in upgrading production equipment, including automatic multi-saws, automatic veneering machines, drying rooms, veneer dryers, cold presses, veneer joiners and so on.
Relying on advanced production equipment & technology, superior product quality and professional services, we have built long-term cooperation with customers worldwide. Our products are exported to Europe, North America, Singapore, Australia, South Africa, the Middle East, Southeast Asia and other regions. We also maintain sound partnerships with many domestic container manufacturers including CIMC and CFS.
Detailed Photos
Application
Aggregate Storage Bay Canopy / Quarry Sand Shed

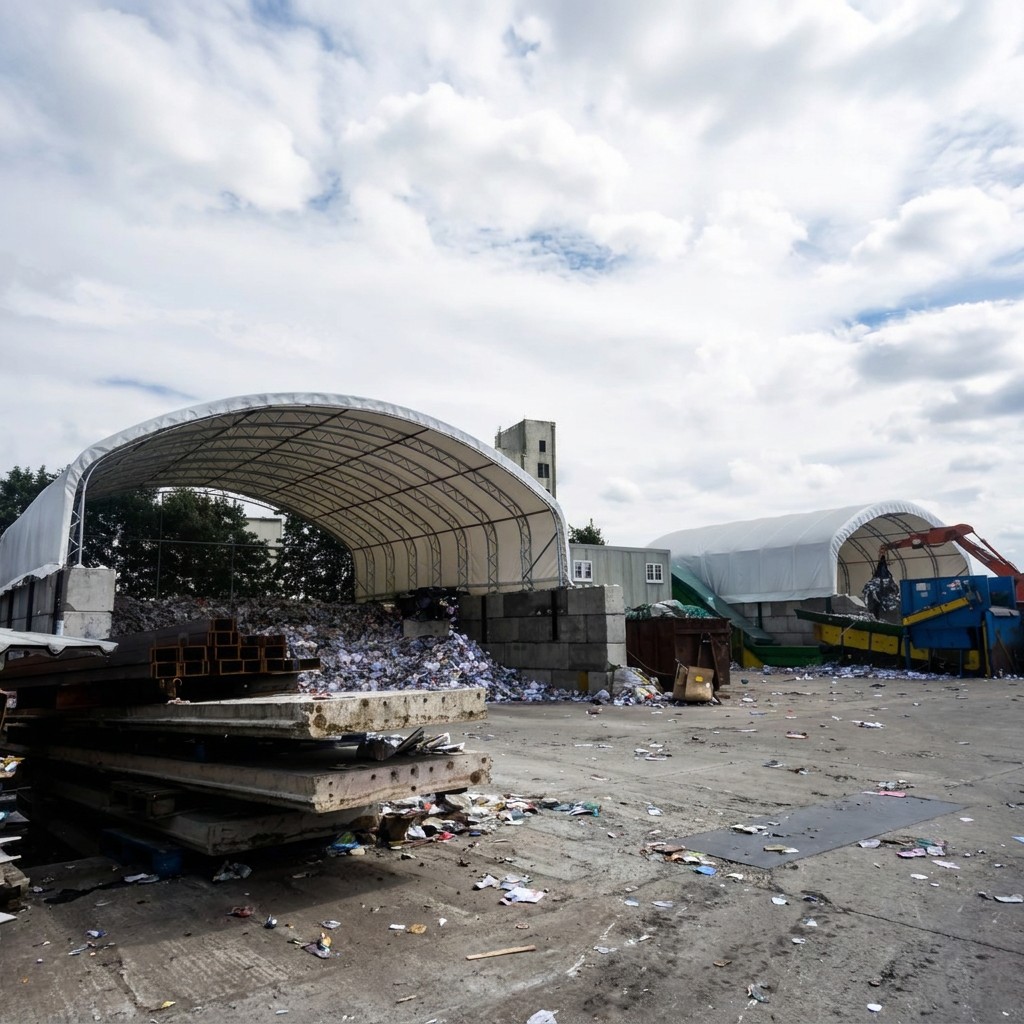

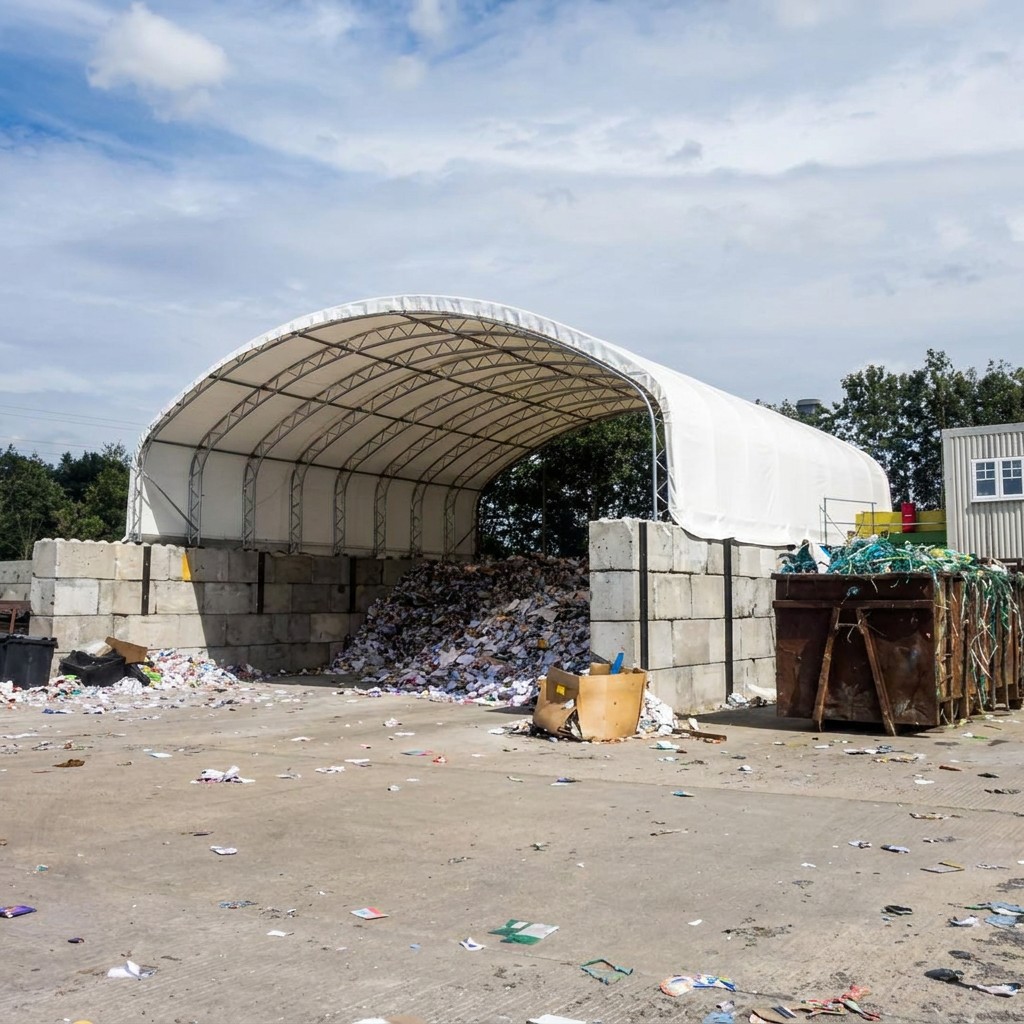

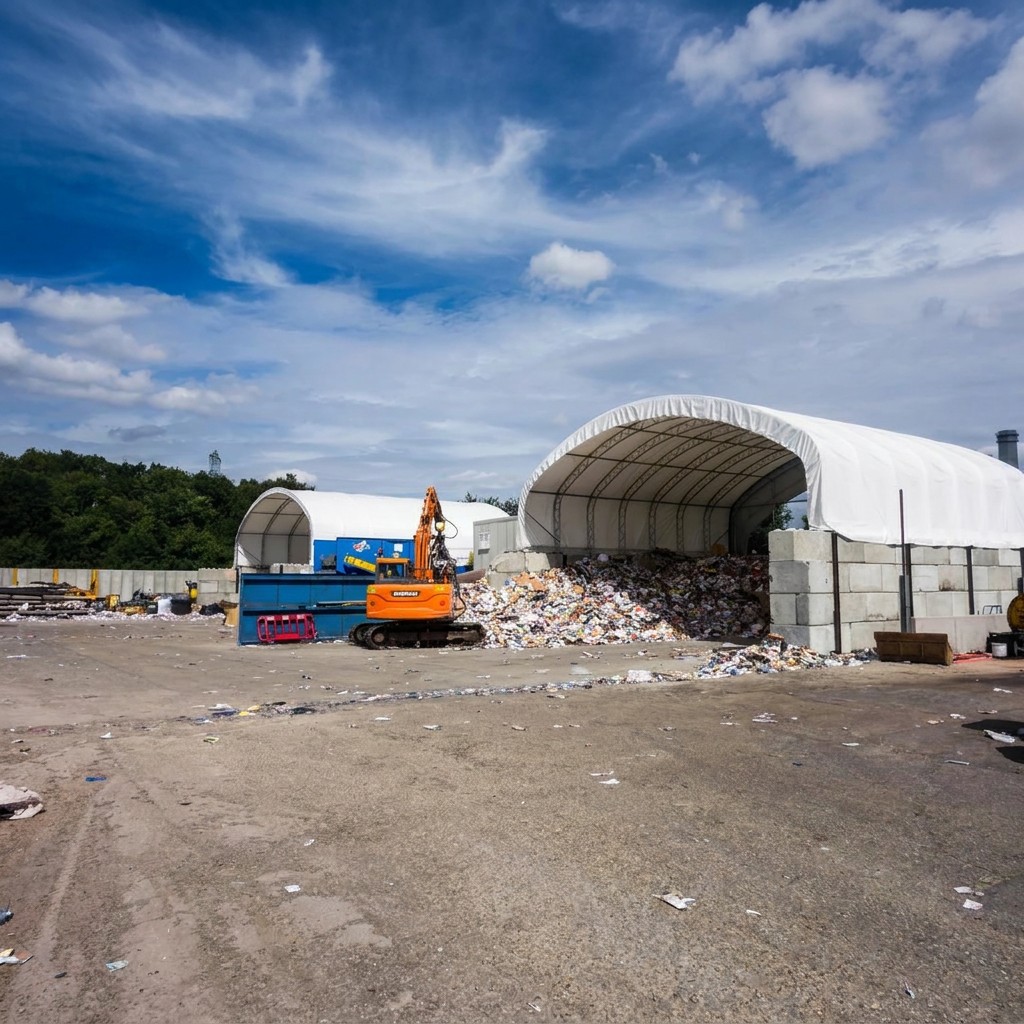

Recycling Bay Shelter / Waste Transfer Station Cover
Municipal De-icing Salt Storage Shed / Salt Barn
Agricultural Silage Bunker Bunker Cover / Hay Storage Bay
Scrap Metal Bunker Canopy / Compost Storage ShedPackaging & Shipping
